Zutto ZTSPGN-P20X1001
GEPON OLT SFP Transceiver PX20+ / Typical data rate 1.25 Gbps, Maximal reach 20km
The Zutto ZTSPGN-P20X1001 GEPON OLT SFP Transceiver is a reliable and high-performance solution tailored for next-generation GEPON networks. It supports a typical data rate of 1.25Gbps for efficient upstream and downstream communication over single-mode fiber, with a maximum reach of 20km. Equipped with a 1490nm continuous-mode transmitter and 1310nm burst-mode receiver, this transceiver ensures seamless performance for broadband applications.
Designed to meet IEEE 802.3ah standards, the ZTSPGN-P20X1001 is built for durability and reliability, featuring digital diagnostics monitoring for real-time operational insights. Its hot-pluggable SC BIDI SFP interface simplifies installation, making it an ideal choice for telecom providers and large-scale networking solutions.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Performance Specifications
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Storage Temperature
|
Tst
|
-40
|
+85
|
°C
|
||
|
Operating CaseTemperature
|
Tc
|
-10
|
70
|
°C
|
||
|
Input Voltage
|
-
|
GND
|
Vcc
|
V
|
||
|
Power Supply Voltage
|
Vcc-Vee
|
-0.5
|
+3.6 |
V
|
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Power Supply Voltage
|
Vcc
|
3.135
|
3.3
|
3.465
|
V
|
|
|
Operating Case
|
Tc
|
-10
|
-
|
70
|
°C
|
|
|
Temperature
|
||||||
|
Data Rate
|
DR
|
-
|
1.25
|
- |
Gbps
|
|
|
Total SupplyCurrent
|
-
|
- | - |
400
|
mA
|
|
|
Damage Threshold For
|
-
|
- | - |
4
|
dBm
|
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Optical CentralWavelength
|
|
1480
|
1490
|
1500
|
nm
|
- |
|
Spectral Width(-20dB)
|
|
- |
-
|
1
|
nm
|
- |
|
Side Mode SuppressionRatio
|
SMSR
|
30 | - |
-
|
dB
|
- |
|
AverageOpticalOutputPower
|
Po
|
+2
|
- | +7 | dBm | - |
|
Extinction Ratio
|
Er
|
9
|
- | - |
dB
|
- |
|
Rise/Fall Time
|
Tr/Tf
|
- | - |
260
|
ps
|
- |
|
Transmitter TotalJitter
|
Jp-p
|
- | - |
344
|
ps
|
- |
|
Transmitter Reflectance
|
RFL
|
- | - |
-12
|
dB
|
- |
|
Average Lauched Power of Off Transmitter
|
Poff
|
- | - |
-39
|
dBm
|
- |
|
DifferentialInputVoltage
|
VIN-DIF
|
300 | - |
1600
|
mV
|
- |
|
TxDisable InputVoltage-Low
|
VIL
|
0 | - |
0.8
|
V
|
- |
|
TxDisable InputVoltage-High
|
VIH
|
2.0
|
- |
Vcc
|
V
|
- |
|
Output Eye
|
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Operate Wavelength
|
-
|
1260
|
1310
|
1360
|
nm
|
- |
|
Sensitivity
|
Pr
|
|
-30
|
dBm
|
1 | |
|
Saturation
|
Ps
|
-6
|
- |
-
|
dBm
|
|
|
LOS assert Level
|
-
|
-45
|
- | - | dBm | - |
|
LOS De-Assert Leve
|
-
|
-
|
- |
-31
|
dBm
|
- |
|
LOSHysteresis
|
-
|
0.5
|
- |
5
|
dB
|
- |
|
Receiver Optical Reflectance
|
-
|
- | - |
-12
|
dB
|
- |
|
Data Output Low
|
Vol
|
-2 | - |
-1.58
|
V
|
- |
|
Data Output High
|
Voh
|
-1.1 | - |
-0.74
|
V
|
- |
|
LOSOutput Voltage-Low
|
VSD-L
|
0 | - |
0.8
|
V
|
- |
|
LOSOutput Voltage-High
|
VSD-H
|
2.0 | - |
Vcc
|
V
|
Note:1. Minimum Sensitivity and saturation levels for an 8B10B 27-1 PRBS. BER≤10-12, 1.25Gpbs, ER=9dB
Key Features

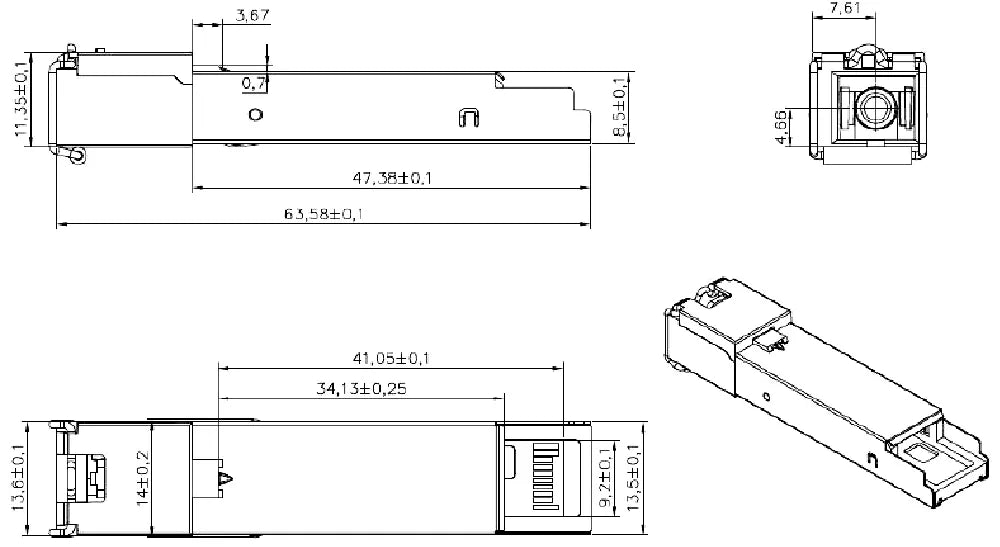

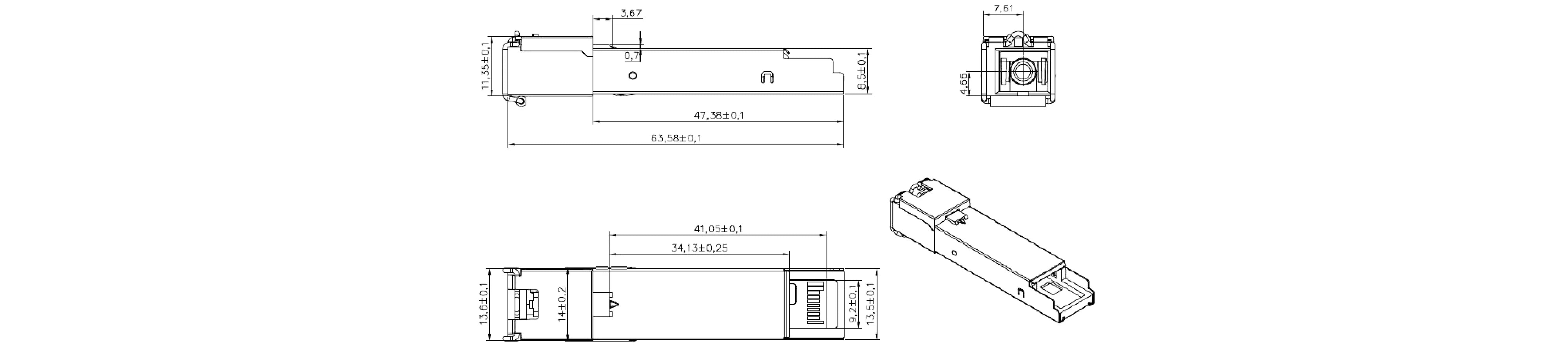

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZTSPGN-P20X1001
What is the maximum transmission distance for the Zutto ZTSPGN-P20X1001 GEPON OLT SFP Transceiver?
The Zutto ZTSPGN-P20X1001 supports a maximum transmission distance of up to 20km over single-mode fiber, making it ideal for long-range GEPON network applications.
What is the data rate of the Zutto ZTSPGN-P20X1001?
This transceiver supports a typical data rate of 1.25 Gbps, offering efficient and high-speed data communication for upstream and downstream in GEPON OLT systems.
Is the Zutto ZTSPGN-P20X1001 compliant with industry standards?
Yes, the Zutto ZTSPGN-P20X1001 is compliant with SFP MSA (Multi-Source Agreement) and meets the IEEE 802.3ah standards, ensuring compatibility and reliable performance with telecom equipment.
Does the Zutto ZTSPGN-P20X1001 feature any diagnostic capabilities?
Yes, it provides digital diagnostics for real-time monitoring of operational parameters such as transmitting power, receiver input power, temperature, and voltage, helping to maintain optimal performance.
What is the operating temperature range for the Zutto ZTSPGN-P20X1001?
The Zutto ZTSPGN-P20X1001 operates within an ambient temperature range of -10°C to 70°C, making it suitable for use in various commercial and industrial environments.
