Zutto ZTSPGN-ONU20B1001
GPON ONU STICK SFP Transceiver CLASS B+ / 28 dB link budget; Class B+, 20 km reach
The Zutto ZTSPGN-ONU20B1001 GPON ONU Stick SFP Transceiver is an innovative solution designed for seamless integration into fiber-to-the-home (FTTH) and other high-speed broadband applications. Featuring an asymmetric data rate of 1.244Gbps upstream and 2.488Gbps downstream, it offers robust and reliable connectivity over distances of up to 20km. With an integrated diplexer transceiver, OMCI support, and compliance with ITU-T G.984.2 Class B+ standards, this transceiver simplifies GPON ONU deployments.
Built for durability and performance, the ZTSPGN- ONU20B1001 includes advanced features like dying gasp notification, TC Layer GEM encapsulation, and subscriber location identifier support. Its plug-and- play design and wide operating temperature range (-40°C to 85°C) make it the ideal choice for cost- effective and reliable GPON network expansion.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
%20and%20other%20high-speed%20broadband%20applications.%20Fea...
){kind=link}
Regulatory Compliance
|
Feature
|
Symbol | Min |
|---|---|---|
|
Electrostatic Discharge
(ESD)to the ElectricalPins
|
MIL-STD-883E Method 3015.7
|
-Class 1 (>500V for data pins,
>2000V for other pins)
|
|
ElectrostaticDischarge (ESD) to the
Duplex LC Receptacle
|
IEC 61000-4-2
|
Compatible with standards
|
|
Electromagnetic Interference (EMI)
|
FCC Part 15 Class B
EN55022 Class B (CISPR 22B)
|
Compatible with standards
|
|
Immunity
|
IEC 61000-4-3
|
Compatible with standards
|
|
Laser Eye Safety
|
FDA 21CFR 1040.10 and1040.11
EN60950, EN (IEC) 60825-1,2
|
Compatible with Class I laser product.
|
|
RoHS
|
2011/65/EC
|
Compliant with standards
|
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Storage Temperature
|
TS
|
-40
|
-
|
+85
|
°C
|
|
|
Operating Voltage
|
VCC
|
3.14
|
3.30 | 3.46 |
V
|
|
|
OperatingRelative Humidity
|
RH
|
5 | - |
95
|
%
|
Recommended Operating Conditions
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Operating CaseTemperature
|
TC
|
-40
|
-
|
85
|
°C
|
1 |
|
Operating CaseTemperature
|
Tc
|
0
|
- | 85 |
°C
|
2 |
|
TotalTx and Rx Supply Current
|
ICC
|
- | 600 |
-
|
mA
|
|
|
Power Dissipation
|
PD
|
- | 2 |
-
|
W
|
|
|
Bit Rate(Tx)
|
BR
|
- | 1244.16 |
-
|
Mbps
|
|
|
Bit Rate(Rx)
|
BR
|
- | 2488.32 |
-
|
Mbps
|
|
|
Transmission Distance
|
TD
|
- | - |
20,000
|
m
|
|
|
Module Initialize time
|
T_Initial
|
70
|
s
|
3 | ||
|
Two-wire serial interface Clock rate
|
f_serial_clock
|
80
|
Khz
|
Notes:
1. I temp
2. E temp
3. Suggest do not access I2C until module initialization is completed
Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Center Wavelength Range
|
λC
|
1290
|
1310
|
1330
|
nm
|
|
|
Average OutputPower
|
P0UT
|
0.5 | - | 5 |
dBm
|
|
|
AverageOutput Power (LaserOff)
|
P0UT-OFF
|
- | - |
-40
|
dBm
|
|
|
Side Mode Suppression Ratio
|
SMSR
|
30
|
- | - | dB | |
|
Spectral Width (-20dB)
|
λ20
|
- | - |
1
|
nm
|
|
|
Extinction Ratio
|
ER
|
10 | - |
-
|
dB
|
1 |
|
OpticalRise and FallTime(20%-80%)
|
TR/TF
|
- | - |
250
|
ps
|
|
|
JitterGeneration
|
JG
|
- | - |
0.2
|
UI
|
2 |
|
Transmitter Output Eye
|
|
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Center Wavelength Range
|
λC
|
1480
|
1490
|
1500
|
nm
|
|
|
Overload
|
|
-8 | - | - |
dBm
|
|
|
Sensitivity(BOL Room Temp)
|
Sen
|
- | - |
-28
|
dBm
|
3 |
|
SignalDetect AssertionLevel
|
SDA
|
-
|
- | -29 |
dBm
|
|
|
Signal Detect De-Assertion Level
|
SDD
|
-45
|
- |
-
|
dBm
|
|
|
Hysteresis
|
PSDA-SDD
|
0.5
|
- |
6
|
dB
|
|
|
1310nm Tx to 1490nm Rx Crosstalk
|
- | - |
-47
|
dB
|
||
|
1555nm Rx to 1490nm Isolation
|
30 | - |
-
|
dB
|
||
|
(1550-1560nm) Ext to 1490 Rx Isolation
|
|
34 | - | - | dB | |
|
Back Reflection @ 1310nm
|
|
- | - | -12 | dB | |
|
Back Reflection @ 1490nm
|
|
- | - | -27 | dB | |
|
Rx Reflectance
|
|
- | - | -20 | dB | |
|
1530nm to 1490nm Rx Isolation
|
|
7 | - | - | dB | |
|
1539nm to 1490nm Rx Isolation
|
|
22 | - | - | dB | |
|
1625nm to 1490nm Rx Isolation
|
|
22 | - | - | dB |
Notes:
1. Measured by Ethernet package with random payload.
2. 4kHz to 10MHz
3. Measured with Ethernet package with random payload and ER=8.2dB, BER =10-10.
Key Features

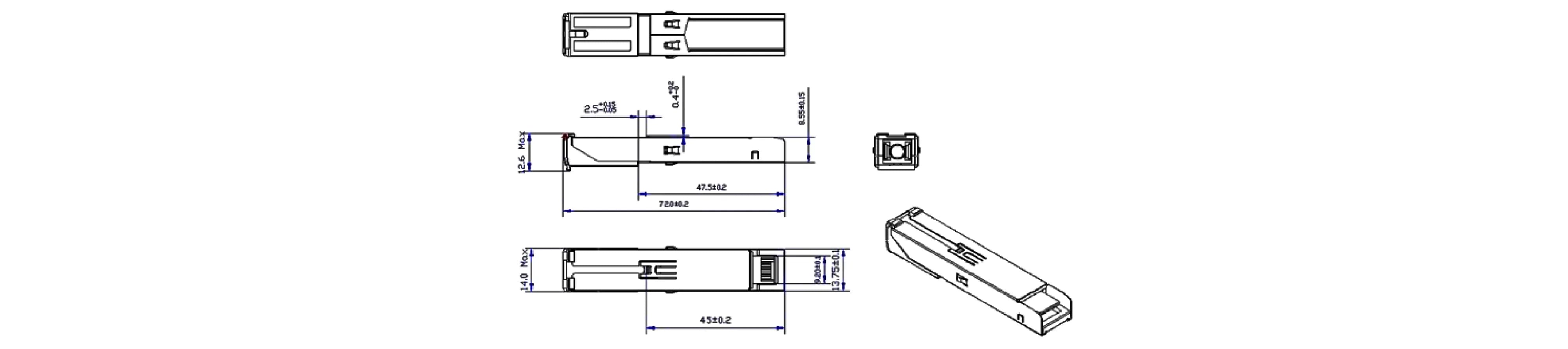

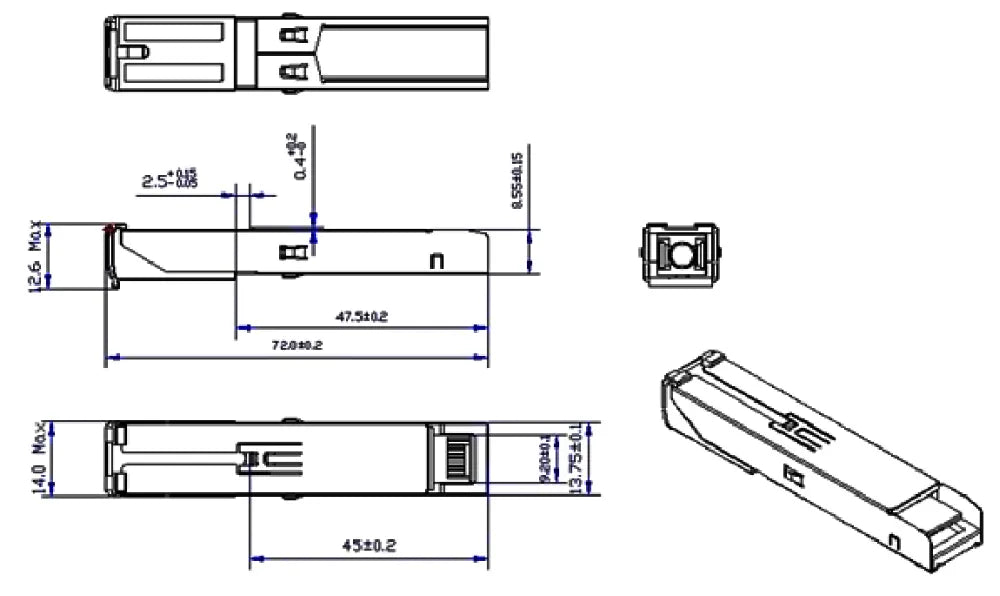

Mechanical Dimensions(Unit:mm)
