Zutto ZT50QSP28-LR- BiDi002
50GBASE-LR BiDi QSFP28 Optical Transceiver / Up to 10km transmission on single mode fiber

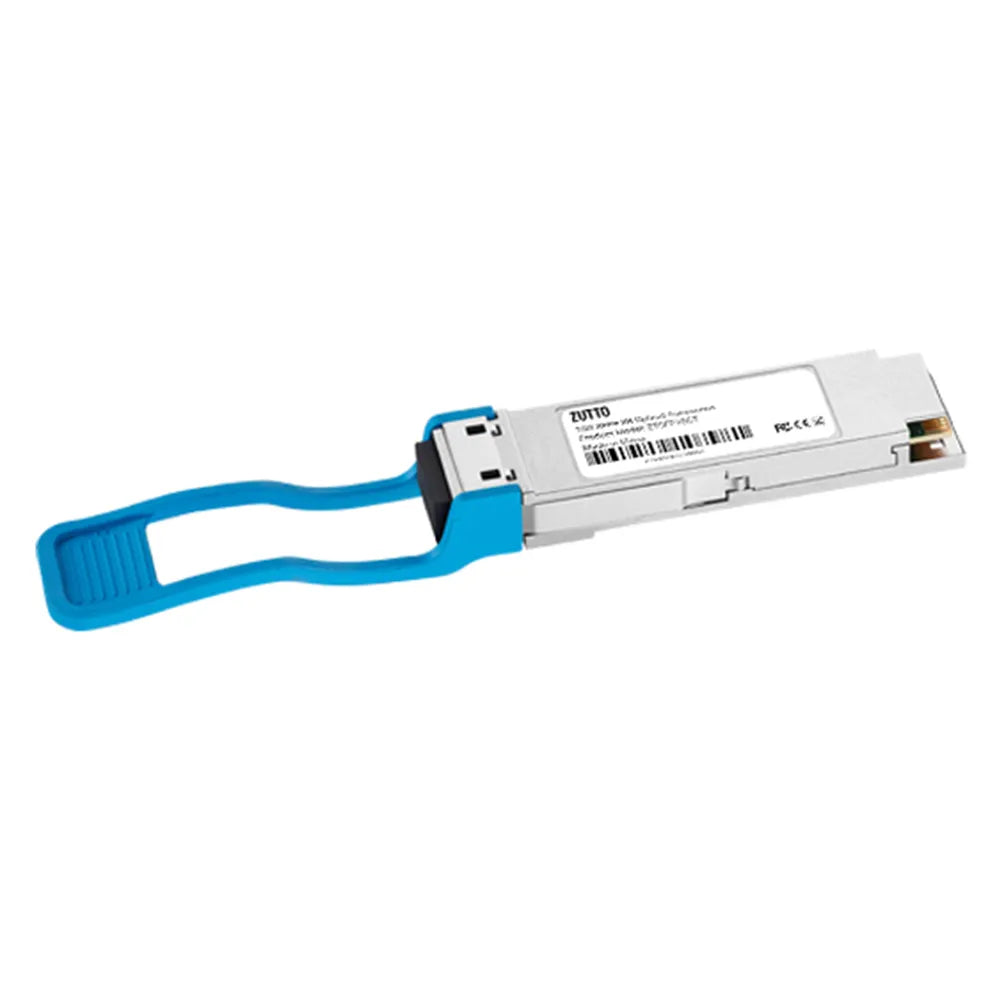

The Zutto ZT50QSP28-LR-BiDi002 is a 50GBASE- LR BiDi QSFP28 optical transceiver designed for high-speed Ethernet and telecom networks. Supporting up to 53.125 Gbps over 10 km of single-mode fiber, it combines robust performance with energy efficiency, consuming just 3.5W. Compliant with QSFP28 MSA and IEEE 802.3 standards, it ensures seamless integration and reliable connectivity.
With a compact, hot-pluggable design and single LC duplex connector, the ZT50QSP28-LR-BiDi002 simplifies deployment. Advanced diagnostic monitoring via I2C enhances performance tracking, making it a reliable and eco-friendly choice for modern networking demands.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit | Unit |
|---|---|---|---|---|---|---|
|
Maximum Supply Voltage
|
Vcc
|
0 | 3.6 |
V
|
||
|
Storage Temperature
|
Ts
|
-40 | 85 | °C | ||
|
Relative Humidity
|
RH
|
10 | 85 |
%
|
1
|
|
|
Damage Threshold
|
THd
|
5.2 |
dBm
|
Operating Environments
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Supply Voltage
|
VCC
|
3.135
|
3.3 |
3.465
|
V
|
|
|
Case Temperature
|
Top
|
0 |
70
|
℃
|
||
|
Link Distance with G.652
|
0.002 |
10
|
km |
Electrical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Power dissipation
|
3.5
|
W
|
||||
|
Supply Current
|
Icc
|
1.0101
|
A
|
1 |
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Data Rate
|
26.5625
|
Gbps
|
||||
|
Differential Voltage pk-p
|
Vpp
|
900 |
mV
|
|||
|
Common Mode Noise, RMS
|
Vrms
|
17.5
|
mV | |||
|
Differential Termination Re-
sistance Mismatch
|
10
|
%
|
At 1 MHz
|
|||
|
Transition time
|
Trise/Tfall
|
10 | ps |
20%~80%
|
||
|
Eye width
|
EW15
|
0.46 | UI | |||
|
Eye height
|
EH15
|
95 | mV |
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Data Rate
|
26.5625
|
Gbps
|
||||
|
Differential Voltage pk-p
|
Vpp
|
900 |
mV
|
|||
|
Common Mode Voltage
|
Vcm
|
-350 |
2850
|
mV | ||
|
Common Mode Noise, RMS
|
Vrms |
17.5
|
mV
|
|||
|
Transition time
|
Trise/Tfall
|
95 | ps |
20%~80%
|
||
|
Vertical Eye Closure (VEC)
|
5.5 | dB | ||||
|
Eye width
|
EW15
|
0.57 | UI | |||
|
Eye height
|
EH15
|
228 | mV |
Key Features
Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT50QSP28-LR-BiDi002
What is the primary function of the ZT50QSP28-LR-BiDi002 Optical Transceiver?
The ZT50QSP28-LR-BiDi002 is a 50GBASE-LR BiDi QSFP28 optical transceiver designed for high-speed Ethernet and telecom networks, supporting up to 53.125 Gbps over single-mode fiber.
What is the maximum transmission distance supported by this transceiver?
This transceiver can transmit data over single-mode fiber (SMF) for distances up to 10 kilometers, making it ideal for long-range network applications.
How energy-efficient is the ZT50QSP28-LR-BiDi002?
The transceiver operates with a low power consumption of 3.5W, offering a balance of high performance and energy efficiency for demanding networks.
Does the ZT50QSP28-LR-BiDi002 offer real-time monitoring?
Yes, it includes digital diagnostic monitoring (DDM), allowing users to track parameters such as temperature, voltage, optical power, and bias current in real time for optimized performance.
Is the ZT50QSP28-LR-BiDi002 compliant with international standards?
Absolutely. It is compliant with QSFP28 MSA and IEEE 802.3 standards, ensuring reliable performance and seamless integration into modern networking systems.
