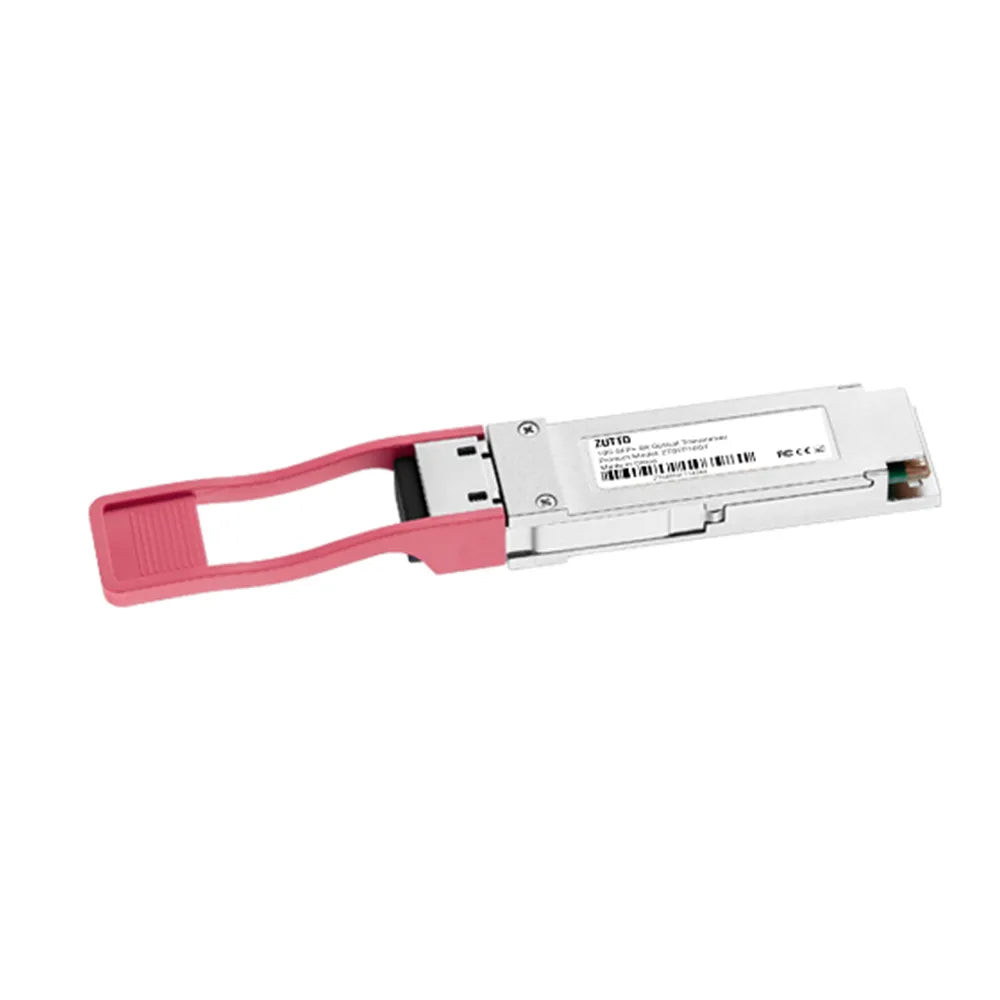

Zutto ZT40QSPX-100M001
40Gb/s 100m QSFP+ Transceiver / Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
The Zutto ZT40QSPX-100M001 is a 40Gbps QSFP+ optical transceiver designed for high- speed data center and metro network applications. Featuring 4 full-duplex channels, it supports an aggregate bandwidth of over 40Gbps for distances up to 150m on OM4 multimode fiber. Its MTP/MPO connector and QSFP MSA compliance ensure seamless integration and reliable performance.
Operating with a power consumption of just 1.5W and within a 0°C to 70°C temperature range, the ZT40QSPX-100M001 offers advanced digital diagnostics and channel management for optimal efficiency. Its robust design and RoHS compliance make it a sustainable choice for
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|
| Storage Temperature | Ts | -40 | +80 | °C | |
| Supply Voltage |
VccT,R
|
-0.5 | 4 | V | |
| Relative Humidity | RH | 0 | 85 | % |
Recommended Operating Environment
| Parameter | Symbol | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|
|
Case operating Temperature
|
TC
|
0
|
+70
|
°C
|
|
|
Supply Voltage
|
VccT, R
|
+3.13 | 3.3 | +3.47 | V |
|
Supply Current
|
Icc |
1000
|
mA | ||
|
Power Dissipation
|
PD | 1.5 | W |
Electrical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Data Rate per Channel
|
|
- |
10.3125
|
11.2
|
Gbps
|
|
|
Power Consumption
|
- |
1.0
|
1.5
|
W | ||
|
Supply Current
|
Icc | - | 0.75 |
1.0
|
A | |
|
Control I/O Voltage-High
|
VIH
|
2.0 |
Vcc
|
V
|
||
|
Control I/O Voltage-Low
|
VIL
|
0 | 0.7 |
V
|
||
|
Inter-Channel Skew
|
TSK
|
150 |
Ps
|
|||
|
RESETLDuration
|
10 |
Us
|
||||
|
RESETLDe-assert time
|
100 |
ms
|
||||
|
Power On Time
|
100 |
ms
|
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Single Ended OutputVoltageTolerance
|
0.3
|
4 |
V
|
1 | ||
|
CommonmodeVoltage Tolerance
|
15 |
mV
|
||||
|
Transmit Input Diff Voltage
|
VI | 120 |
1200
|
mV | ||
|
Transmit Input Diff Impedance
|
Zin | 80 | 100 |
120
|
||
|
Data Dependent Input Jitter
|
DDJ
|
0.1
|
UI
|
|||
|
Data Input Total Jitter
|
TJ
|
0.28
|
UI
|
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Single Ended OutputVoltageTolerance
|
|
0.3 |
4
|
V
|
||
|
Rx Output Diff Voltage
|
Vo | 600 |
800
|
mV | ||
|
Rx Output Rise and Fall Voltage
|
Tr/Tf
|
135 |
ps
|
1 | ||
|
Total Jitter
|
TJ
|
0.7 |
UI
|
|||
|
Deterministic Jitter
|
DJ
|
0.42 |
UI
|
Key Features

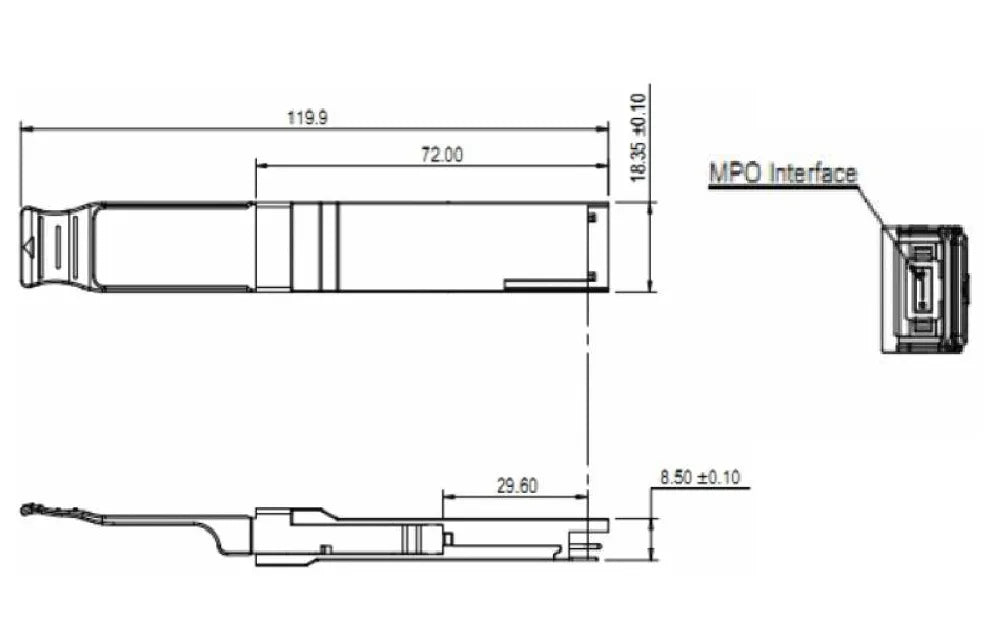

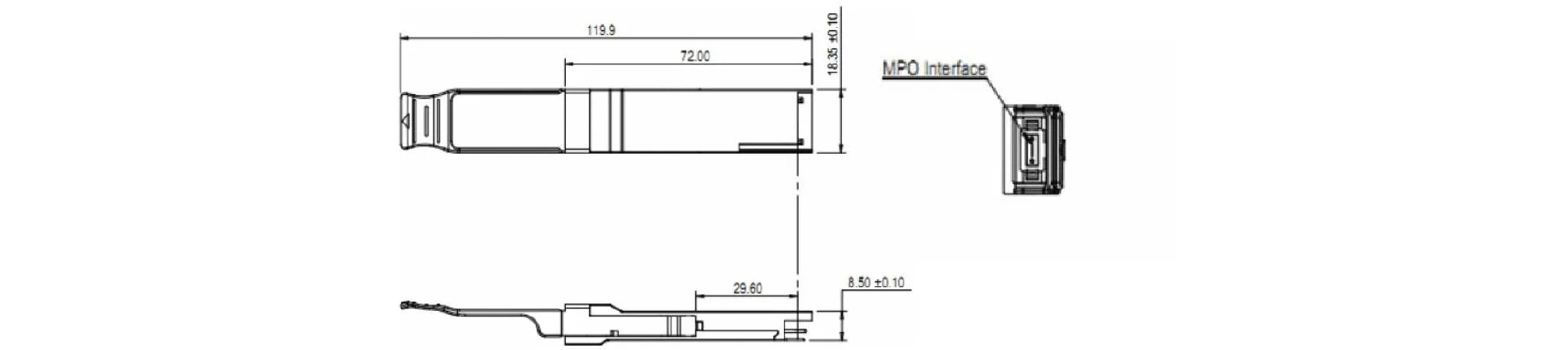

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT40QSPX-100M001
What is the primary function of the ZT40QSPX-100M001 Optical Transceiver?
The ZT40QSPX-100M001 is a 40Gbps QSFP+ optical transceiver designed for high-speed data transmission in data centers, metro networks, and rack-to-rack applications.
What is the maximum transmission distance of this transceiver?
This transceiver supports transmission distances of up to 150 meters on OM4 multimode fiber and 100 meters on OM3 multimode fiber.
How energy-efficient is the ZT40QSPX-100M001?
With a low power consumption of just 1.5W, this transceiver ensures energy efficiency in high-performance networking environments.
Does the ZT40QSPX-100M001 provide real-time monitoring capabilities?
Yes, it features built-in digital diagnostic monitoring (DDM), enabling real-time tracking of parameters such as temperature, voltage, and optical power for enhanced performance management.
Is the ZT40QSPX-100M001 easy to install and integrate?
Absolutely. The transceiver is hot-pluggable, allowing for seamless installation and replacement without disrupting active network operations.
