Zutto ZT25SP28-DAC001
25Gb/s SFP28 Direct Attach Cable / Supports IEEE 802.3by
The Zutto ZT25SP28-DAC001 is a 25Gbps SFP28 Direct Attach Passive Cable designed to meet the demands of modern data centers, high-speed networks, and enterprise-level connectivity. Built with precision and compliance to IEEE 802.3by and SFF-8402 standards, this cable delivers robust performance and exceptional reliability over short distances. Its energy-efficient design ensures low power consumption, making it a cost-effective choice for organizations looking to scale their network infrastructure.
Engineered with high-quality twin-axial copper conductors and advanced shielding, the ZT25SP28-DAC001 minimizes signal interference and ensures stable, high-speed data transfer. Its plug-and-play compatibility allows for quick installation, providing seamless integration into existing networking setups while delivering optimal performance under demanding conditions.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Recommended Operating Environment
| Parameter | Symbol | Min. |
Typical
|
Max.
|
Unit
|
|---|---|---|---|---|---|
|
Storage Temperature
|
-40 |
+85
|
°C
|
||
|
Operating Case Temperature
|
Tc
|
0 |
+70
|
°C
|
|
|
Power Supply Voltage
|
VCC3
|
3.14 |
3.47
|
V
|
Recommended Operating Environment
| Parameter |
Minimum
|
Typical
|
Maximum
|
Units
|
|---|---|---|---|---|
|
Characteristic Impedance
|
90 | 100 | 110 |
Ω
|
|
Time Delay
|
- | - | 4.5 |
ns/m
|
Key Features

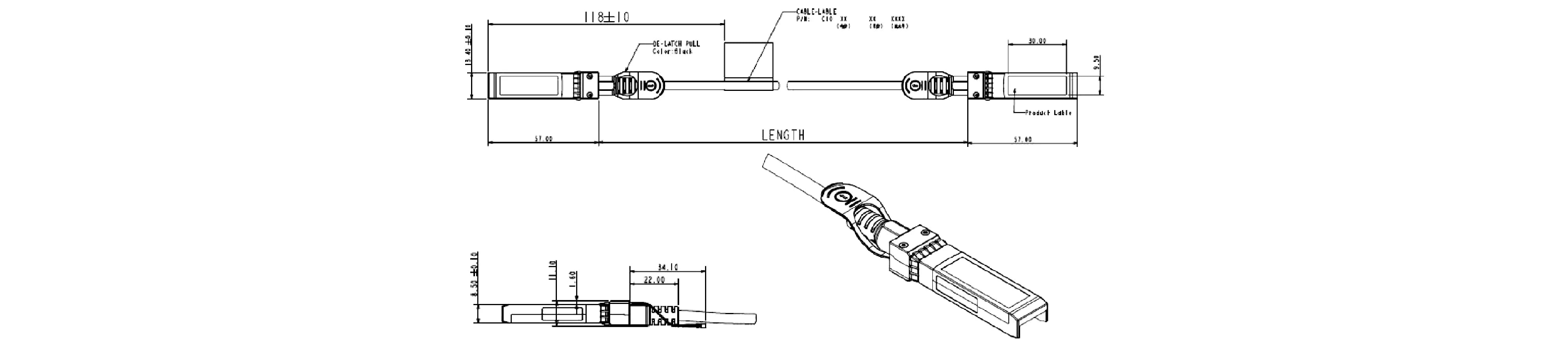

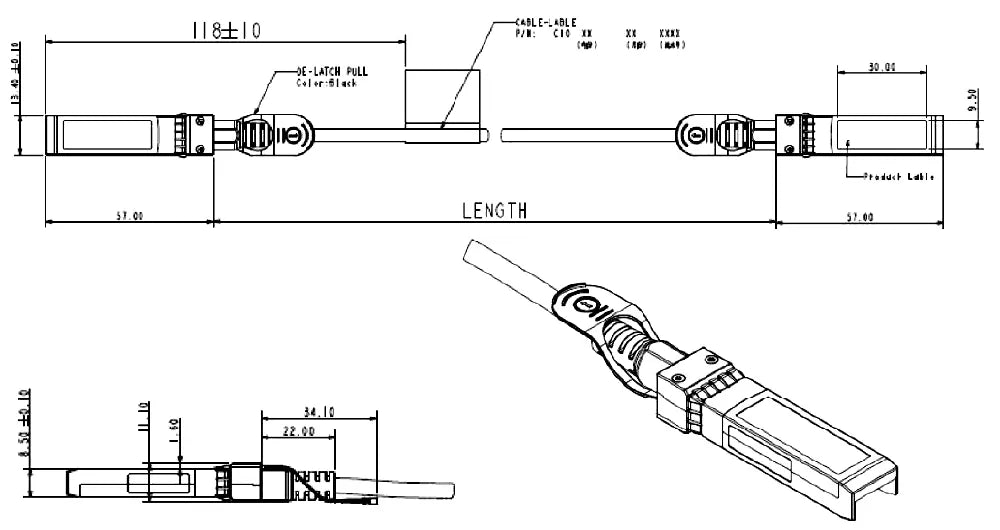

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT25SP28-DAC001
What is the maximum data rate supported by the Zutto ZT25SP28-DAC001?
The Zutto ZT25SP28-DAC001 supports data rates of up to 25Gbps, ensuring fast and reliable performance for high-bandwidth applications such as 25 Gigabit Ethernet switches, routers, and data center equipment.
What is the maximum cable length for the Zutto ZT25SP28-DAC001?
The Zutto ZT25SP28-DAC001 is available in lengths of 0.5m, 1m, 2m, 3m, and 5m, offering flexibility for various installation needs within data centers and high-speed networks.
Is the Zutto ZT25SP28-DAC001 energy efficient?
Yes, the Zutto ZT25SP28-DAC001 features a passive design that minimizes power consumption, making it an energy-efficient solution ideal for high-density networks and reducing overall operational costs.
How does the Zutto ZT25SP28-DAC001 ensure signal integrity?
The Zutto ZT25SP28-DAC001 is built with solid silver-plated copper conductors and superior shielding, which enhances signal integrity and durability, ensuring stable performance even in demanding network environments.
Is the Zutto ZT25SP28-DAC001 easy to install?
Yes, the Zutto ZT25SP28-DAC001 is designed with SFP28 connectors for plug-and-play installation, allowing for quick and hassle-free deployment, reducing downtime, and enabling rapid scaling of network infrastructure.
