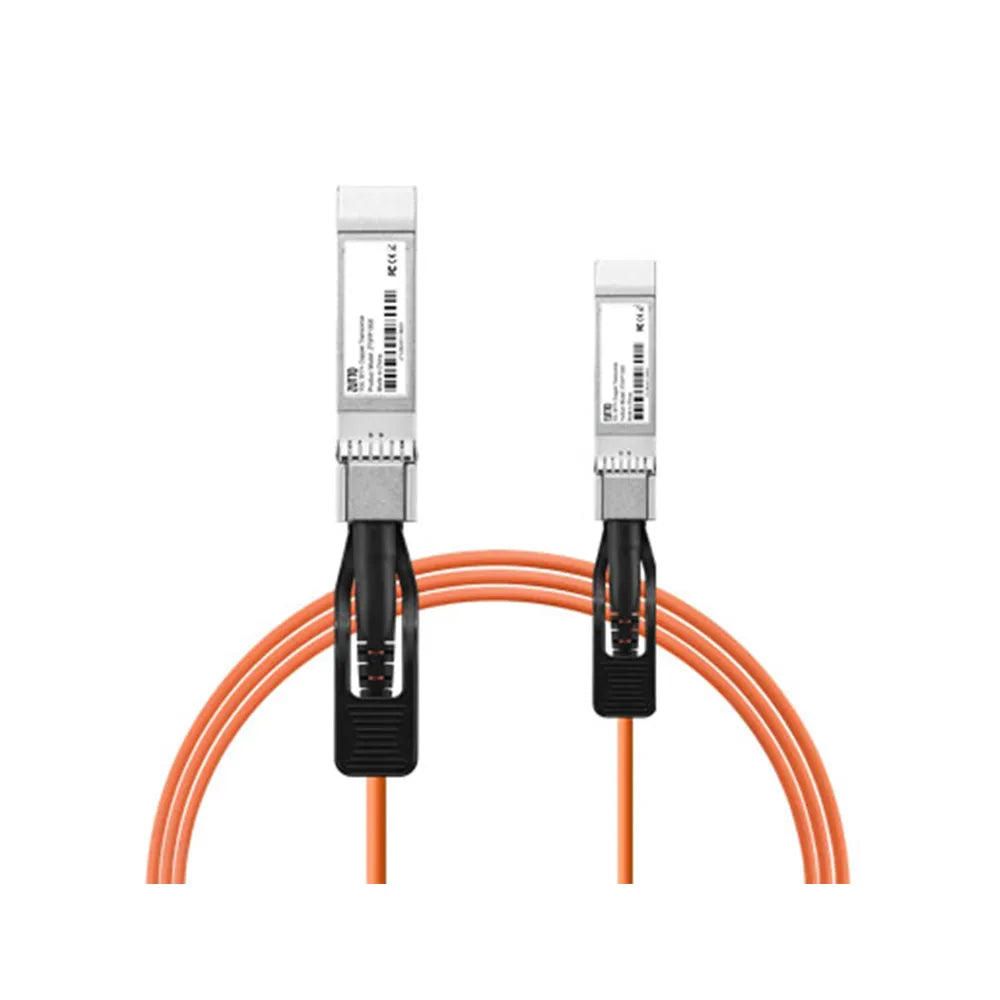

SFP+ Active Optical Cable (AOC), orange fiber optic cable with dual SFP+ connectors, supports 10Gbps high-speed data transmission, ideal for data centers, high-performance computing, and storage networking.
SFP+ Active Optical Cable (AOC), orange fiber optic cable with dual SFP+ connectors, supports 10Gbps high-speed data transmission, ideal for data centers, high-performance computing, and storage networking.
SFP+ Active Optical Cable (AOC), orange fiber optic cable with dual SFP+ connectors, supports 10Gbps high-speed data transmission, ideal for data centers, high-performance computing, and storage networking.

Zutto ZT25SP28-AOC001

25G SFP28 Active Optical Cable / Up to 70m/100m by active optical cable with OM3/OM4 fiber

The Zutto ZT25SP28-AOC001 Active Optical Cable sets a new benchmark in high-speed data transfer, combining cutting-edge technology with unparalleled reliability. Designed for next-generation data centers and 25G Ethernet applications, this cable ensures seamless performance across long distances up to 100 meters, powered by pre-terminated fiber cables and 25G VCSEL transmitters. With a robust SFP28 housing and advanced EMI shielding, it provides superior durability and stability for critical network environments.

Engineered for high-capacity I/O and in-rack connections, the ZT25SP28-AOC001 is compliant with SFF-8472 digital diagnostics and RoHS standards, guaranteeing both safety and precision. Its low power consumption and wide operating temperature range make it ideal for efficient and versatile deployment in modern networking infrastructures.

REQUEST MORE INFO ▶
 Download Data Sheets

Absolute Maximum Ratings


Parameter Symbol Min.
Max.
 Unit Note
Power Supply Voltage
VCC
 0
3.6
 V
Storage Temperature
Ts
 40 85 °C
Operating Case Temperature
TC
 0 70 °C
Relative Humidity
RH
 0 85 %

Recommended Operating Conditions


Parameter Symbol Min. Typical Max. Unit Note
Power Supply Voltage
Vcc
3.135
3.3
3.465
V
Operating Case Temperature
TC
0
 25
70
℃
Data Rate, each Lane
25.78125
Gb/s
Data Rate Accuracy
-100
 100
ppm
Control Input Voltage High
 2
Vcc
V
Control Input Voltage Low
 0 0.8
V
Fiber Bend Radius
Rbend
 3
cm

Electrical Characteristics – Transmitter


Parameter Symbol Min. Typical Max. Unit Note
Power Consumption

1.0
W
 1
Supply Current
Icc
300
mA
 1
Overload Differential Voltage pk-pk
 TP1a 900
mV
Common Mode Voltage (Vcm)
TP1
-350
2850
mV
 2
Differential Termination Resistance Mismatch
TP1
10
 %
At 1MHz
Differential Return Loss (SDD11)
TP1
See CEI-28G
VSR Equation
dB
Common Mode to Differential
conversion and Differential to
Common Mode conversion (SDC11, SCD11)
TP1
See CEI-28G
VSREquation 13-20
dB
Stressed Input Test
TP1a
See CEI-28G-
VSR Section

Electrical Characteristics – Receiver


Parameter
Differential Voltage, pk-pk
Symbol
TP4
 Min. Typical
Max.
900
Units
mV
 Note
Common Mode Voltage (Vcm)
TP4
 -350
2850
mV
 2
Common Mode Noise, RMS
TP4
17.5
mV
At 1MHz
Differential Termination Resistance Mismatch
TP4
10
%
Differential Return Loss (SDD22)
TP4
See CEI- 28G VSR
Equation 13-
dB
Common Mode to Differential conversion
and Differential to Common Mode conversion
(SDC22, SCD22)
TP4
See CEI- 28G
VSR Equation
13-19
dB
Common Mode Return Loss (SCC22)
TP4
-2
dB
 3

Transition Time, 20 to 80%
TP4
 9.5

Ps
Vertical Eye Closure (VEC)
TP4
5.5
dB
Eye Width at 10 -15 probability (EW15)
TP4
 0.57

UI
Eye Height at 10 -15 probability (EH15)
TP4
 228

mV


Key Features


A red speedometer icon with the needle pointing towards high speed, symbolizing fast data transmission and efficient network connectivity.

High-Speed Data Transmission

Supports 25G Ethernet with a 25.78125 Gb/s data rate, ensuring ultra-fast and stable connectivity for high-demand network environments.
An icon displaying two servers connected by bidirectional arrows, representing extended network coverage and enhanced data transmission performance.

Long-Distance Capability

Pre-terminated fiber cables with OM3/OM4 support seamless data transmission over distances up to 100 meters, making it perfect for expansive data centers.
A red shield icon with a green check mark in the center, representing compliance with IEC-60825 laser safety standards, featuring low EMI interference and excellent ESD protection for enhanced safety and durability.

Durable and Reliable Design

Features SFP28 housing with enhanced EMI shielding, providing durability, reduced interference, and consistent performance in demanding conditions.
A red battery icon with full charge bars, symbolizing energy-efficient operation and low power consumption for improved energy utilization.

Energy-Efficient and Compliant

Operates with a low power consumption of just 1.0W per terminal, is RoHS-compliant, and works within a wide temperature range (0°C to 70°C), ensuring eco-friendly and versatile usage.

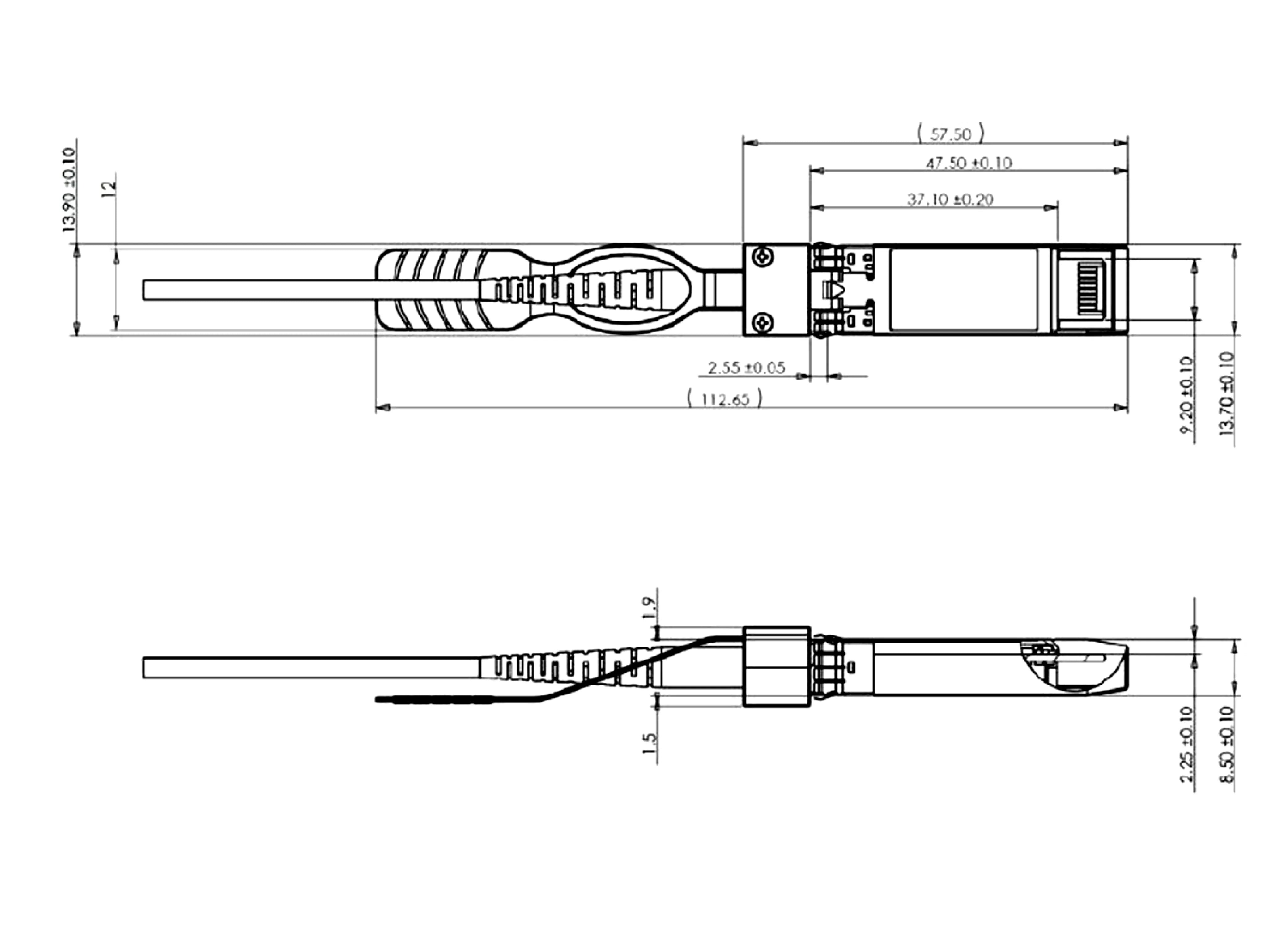

Mechanical Dimensions(Unit:mm)

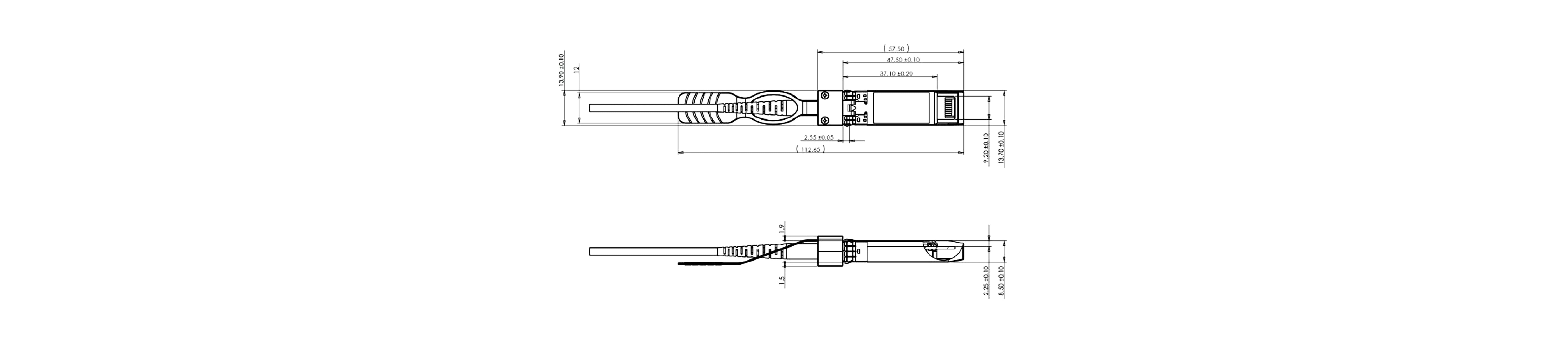

Detailed technical drawing of the Zutto ZT25SP28-AOC001 25G SFP28 Active Optical Cable, showing dimensions and structural details of the connector and fiber cable. The diagram highlights key measurements such as 112.65mm total length, 57.50mm connector length, and 13.20mm width. It also includes annotations for latch mechanism and fiber strain relief, ensuring a clear view of its physical attributes.Detailed technical drawing of the Zutto ZT25SP28-AOC001 25G SFP28 Active Optical Cable, showing dimensions and structural details of the connector and fiber cable. The diagram highlights key measurements such as 112.65mm total length, 57.50mm connector length, and 13.20mm width. It also includes annotations for latch mechanism and fiber strain relief, ensuring a clear view of its physical attributes.

Quality Certifications


Reach_Compliant Certification CE Certification FCC Certification ROHS Certification
