Zutto ZT200QSPX-LR4001
200G QSFP-DD LR4 10Km Optical Transceiver / Maximum link length of 10km on Single ModeFiber(SMF)
The Zutto ZT200QSPX-LR4001 is a cutting-edge 200Gbps QSFP-DD optical transceiver, ideal for long-range, high-speed data transmission in Ethernet and telecom networks. Compliant with IEEE 802.3bs standards, it supports a 10km range over single-mode fiber and features a 4x50G PAM4 LAN-WDM transmitter for exceptional performance. Its hot-pluggable design with dual LC connectors ensures seamless integration and scalability.
With power dissipation of just 10.8W and real- time monitoring through an I2C management interface, the ZT200QSPX-LR4001 offers efficiency and reliability. Designed to operate between 0°C and 70°C, it provides robust functionality, making it an ideal solution for demanding network environments.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Maximum Supply Voltage
|
Vcc
|
0
|
3.6
|
V
|
||
|
Storage Temperature
|
Ts
|
-40 |
85
|
℃
|
||
|
Relative Humidity
|
RH
|
10 |
85
|
%
|
1 | |
|
Damage Threshold（each lane）
|
THd
|
6.3 |
dBm
|
Operating Environments
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Supply Voltage
|
Vcc
|
3.135
|
3.3 |
3.465
|
V
|
|
|
Case Temperature
|
Top
|
0 |
70
|
℃
|
||
|
Supply Current
|
Icc
|
3.27
|
A
|
|||
|
Power Supply Noise
|
Vrip
|
2%
3%
|
DC-1MHz
1-10MHz
|
Key Features

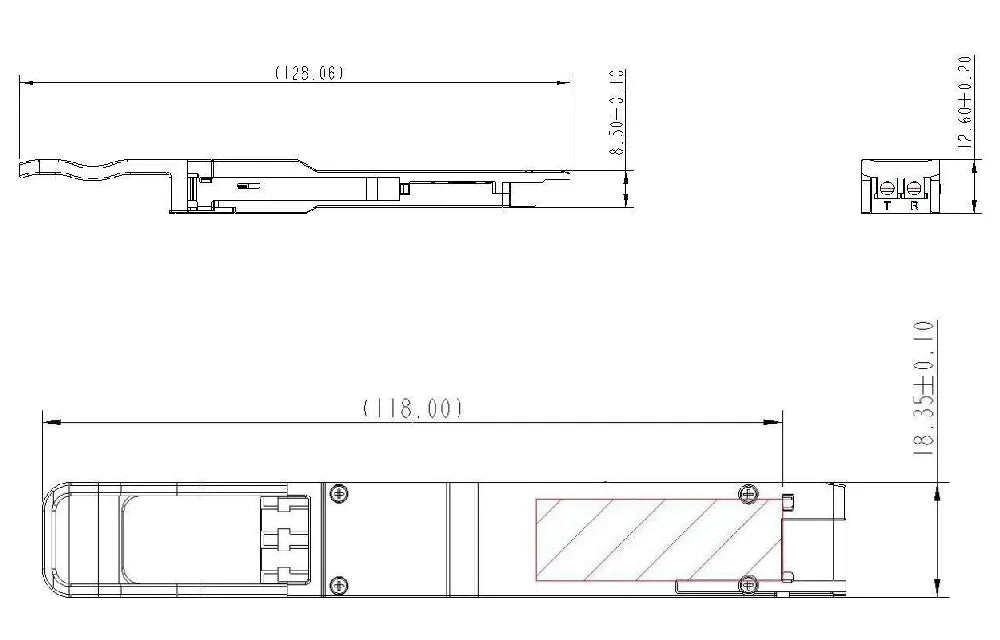

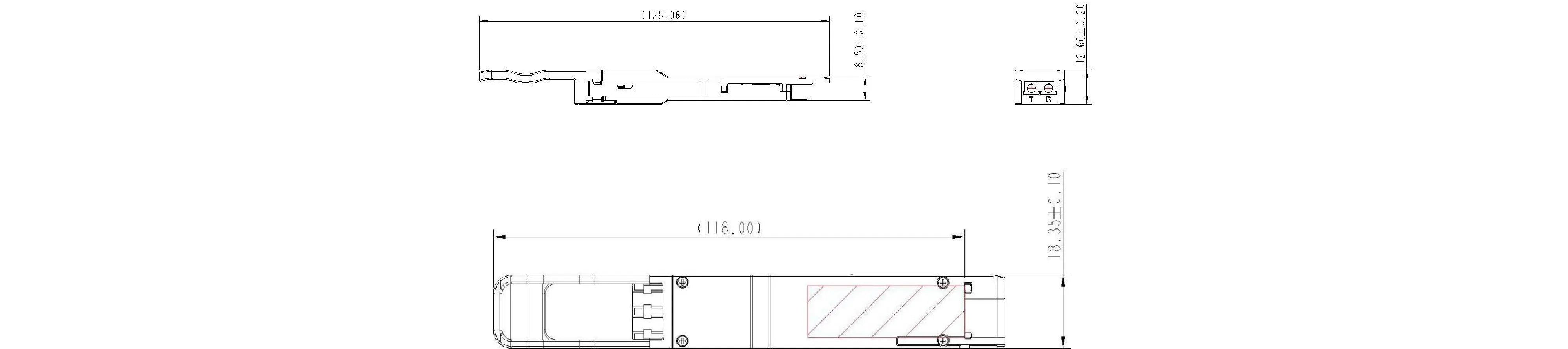

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT200QSPX-LR4001
What is the primary purpose of the ZT200QSPX-LR4001 Optical Transceiver?
The ZT200QSPX-LR4001 is a 200Gbps QSFP-DD optical transceiver designed for high-speed, long-range Ethernet and telecom networks, supporting distances up to 10 kilometers.
What is the power consumption of this transceiver?
This transceiver operates with a power dissipation of 10.8W, making it energy-efficient for large-scale networking deployments.
Does the ZT200QSPX-LR4001 provide real-time diagnostics?
Yes, the transceiver features an I2C-based management interface, allowing real-time monitoring of temperature, voltage, and optical power for optimized performance.
What standards is the ZT200QSPX-LR4001 compliant with?
The transceiver aligns with IEEE 802.3bs standards and is RoHS-compliant, ensuring interoperability and environmental responsibility.
What applications are best suited for the ZT200QSPX-LR4001?
This transceiver is ideal for 200GBASE-LR4 Ethernet, telecom networking, and data center interconnects requiring long-range, high-speed data transfer.
