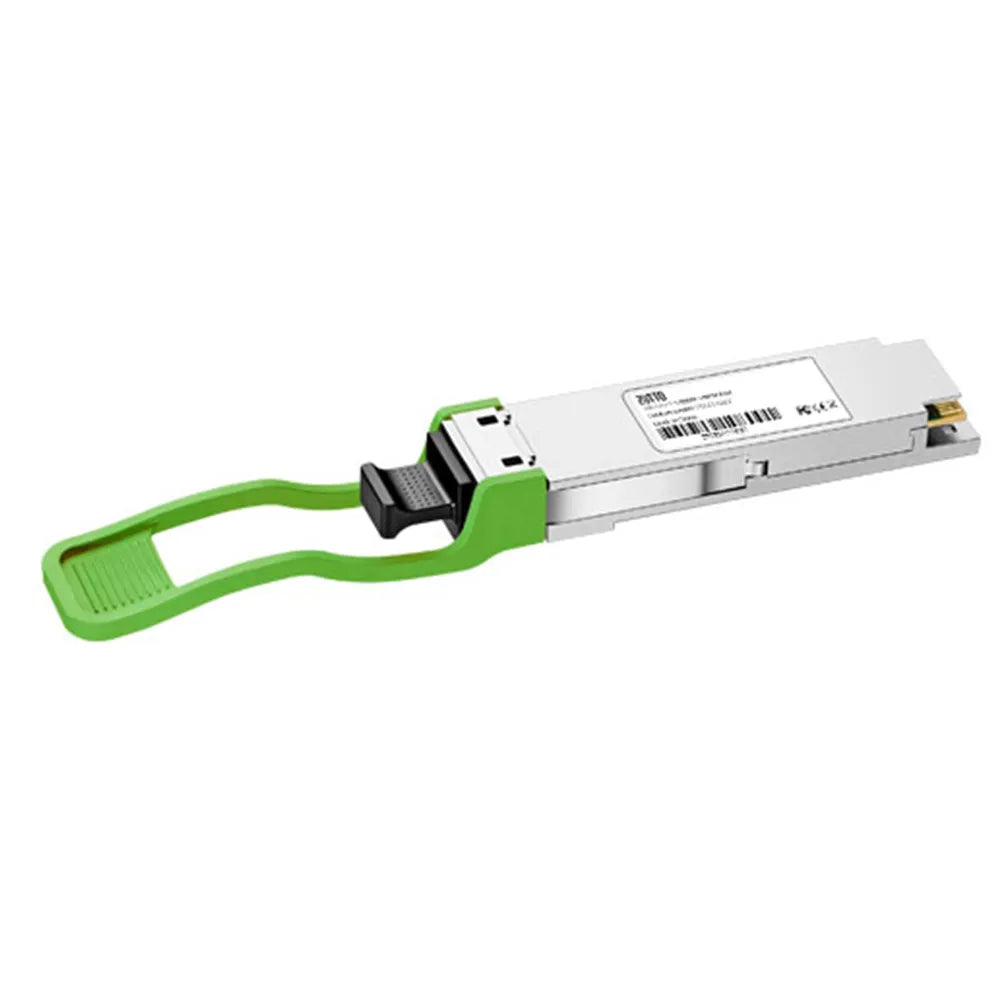

Zutto ZT200QSPX-ER4001
200G QSFP-DD ER4 40Km Optical Transceiver / Up to 40km transmission on single mode fiber
The ZuttoZT200QSPX-ER4001 is a 200Gbps QSFP-DD ER4 optical transceiver, optimized for long-range networking in Ethernet and telecom applications. With support for transmission up to 40km on single-mode fiber, it features advanced LAN-WDM technology and a PAM4 electrical interface for reliable and high-performance connectivity. Compliant with IEEE 802.3cn and QSFP-DD MSA standards, it ensures seamless integration into modern networking systems.
Equipped with a low-power design consuming 10.8W and I2C-based digital diagnostics for real- time monitoring, the ZT200QSPX-ER4001 offers efficiency and reliability. Operating across a temperature range of 0°C to 70°C, it provides a robust and scalable solution for data-intensive environments.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|
|
Maximum Supply Voltage
|
Vcc
|
-0.5
|
3.3 |
3.6
|
V |
|
Storage Temperature
|
Ts
|
-40 | 85 | °C | |
| Relative Humidity | RH | 10 | 85 | % | |
|
Damage Threshold, each lane
|
THd
|
-2.4
|
dBm
|
Operating Environments
| Parameter | Symbol | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|
|
Supply Voltage
|
Vcc
|
3.135
|
3.3 |
3.465
|
V
|
|
Case Temperature
|
Top
|
0 | 70 |
℃
|
|
|
Link Distance with G.652
|
40
|
km
|
Key Features

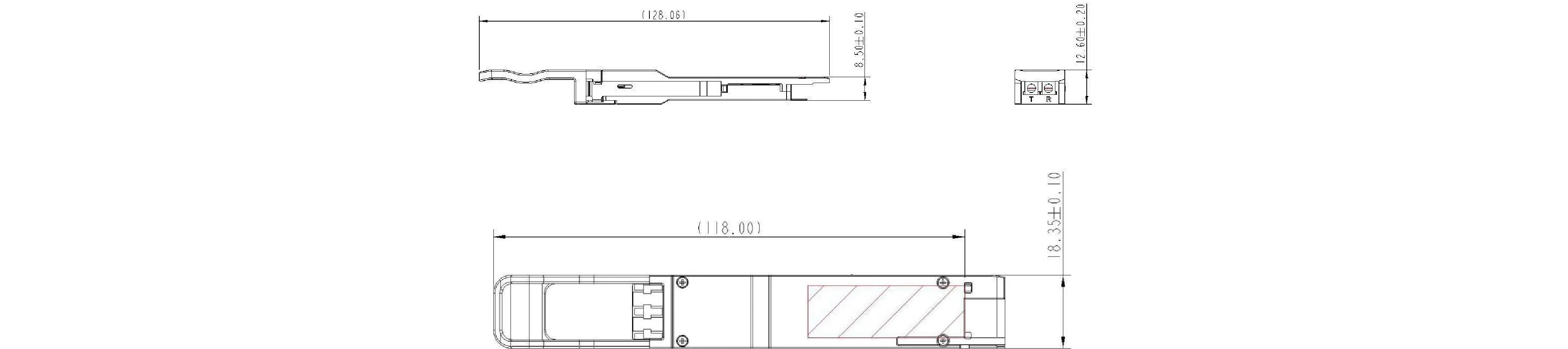

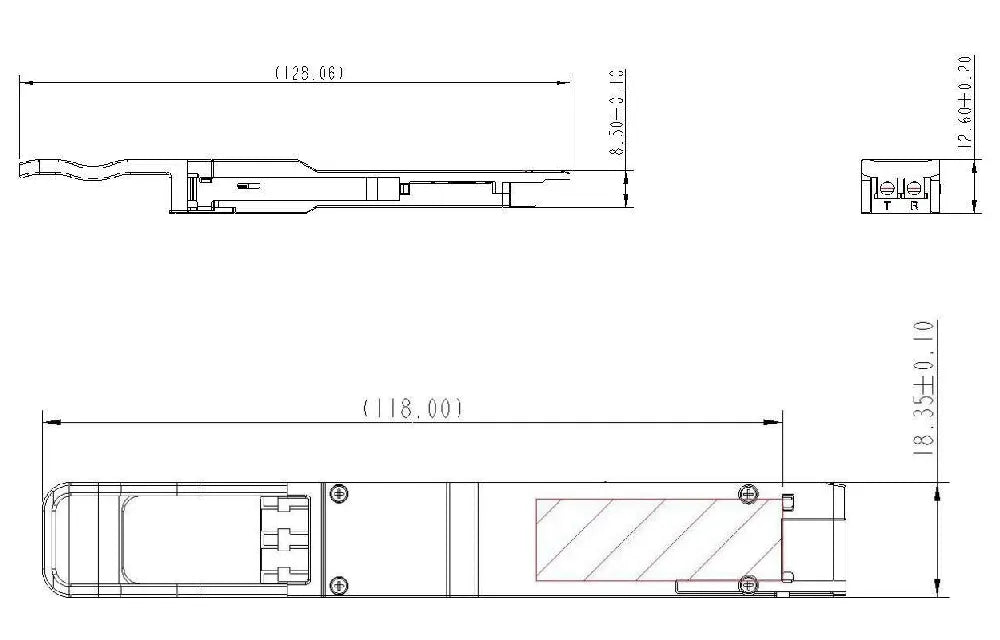

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT200QSPX-ER4001
What is the primary function of the ZT200QSPX-ER4001 Optical Transceiver?
The ZT200QSPX-ER4001 is a high-performance 200Gbps QSFP-DD optical transceiver designed for long-range data transmission in Ethernet and telecom networks, supporting distances up to 40 kilometers.
What are the key features of this transceiver?
- Supports up to 212.5Gbps aggregate bit rates.
- Includes 4 LAN-WDM lanes with advanced MUX/DEMUX technology.
- Compliant with IEEE 802.3cn and QSFP-DD MSA standards.
- Equipped with I2C-based real-time digital diagnostic monitoring.
What makes the ZT200QSPX-ER4001 energy efficient?
The transceiver features a low power consumption of 10.8W, optimizing energy usage while maintaining high-performance data transmission for demanding applications.
What types of applications are suitable for the ZT200QSPX-ER4001?
This transceiver is ideal for:
- 200GBASE-ER4 Ethernet.
- Telecom networking.
- Data center interconnects.
How does the ZT200QSPX-ER4001 ensure reliable performance?
It provides robust reliability with:
- I2C-based monitoring for temperature, voltage, and optical power.
- Wide operating temperature range from 0°C to 70°C, ensuring stable
- performance across environments.
