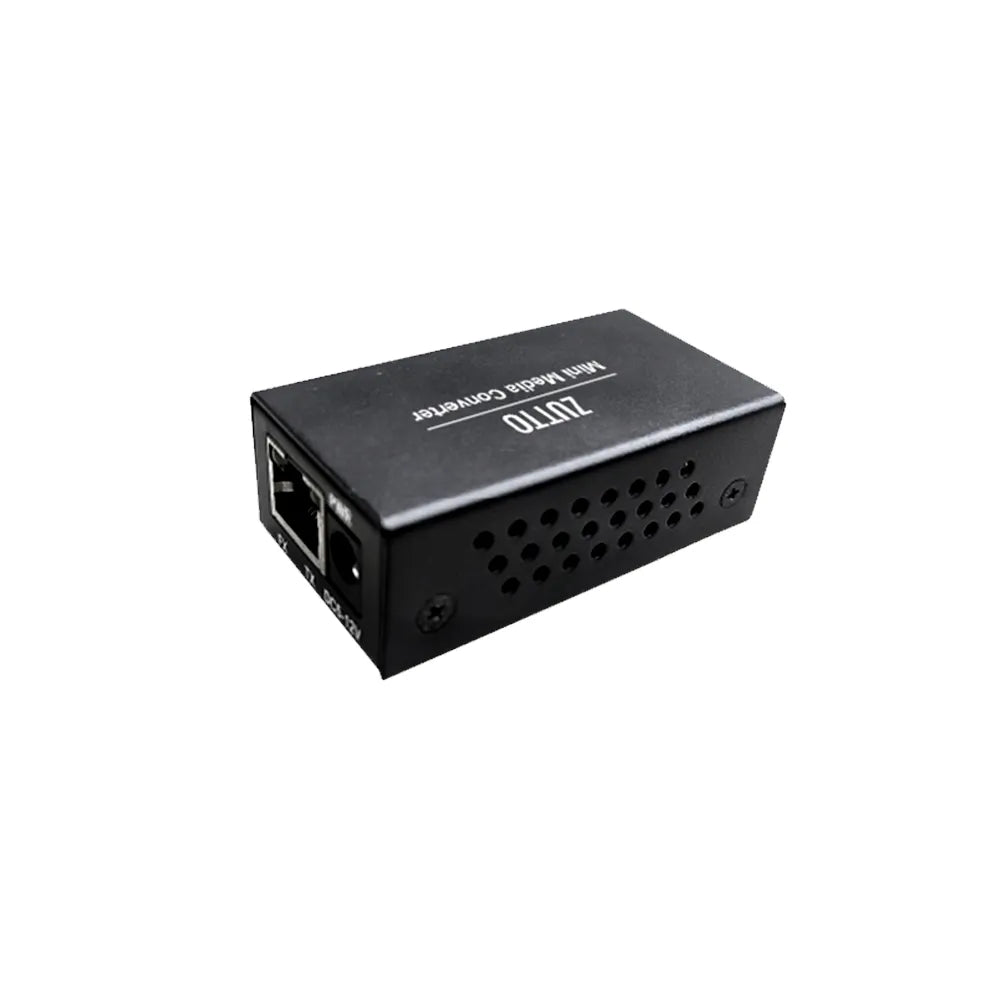

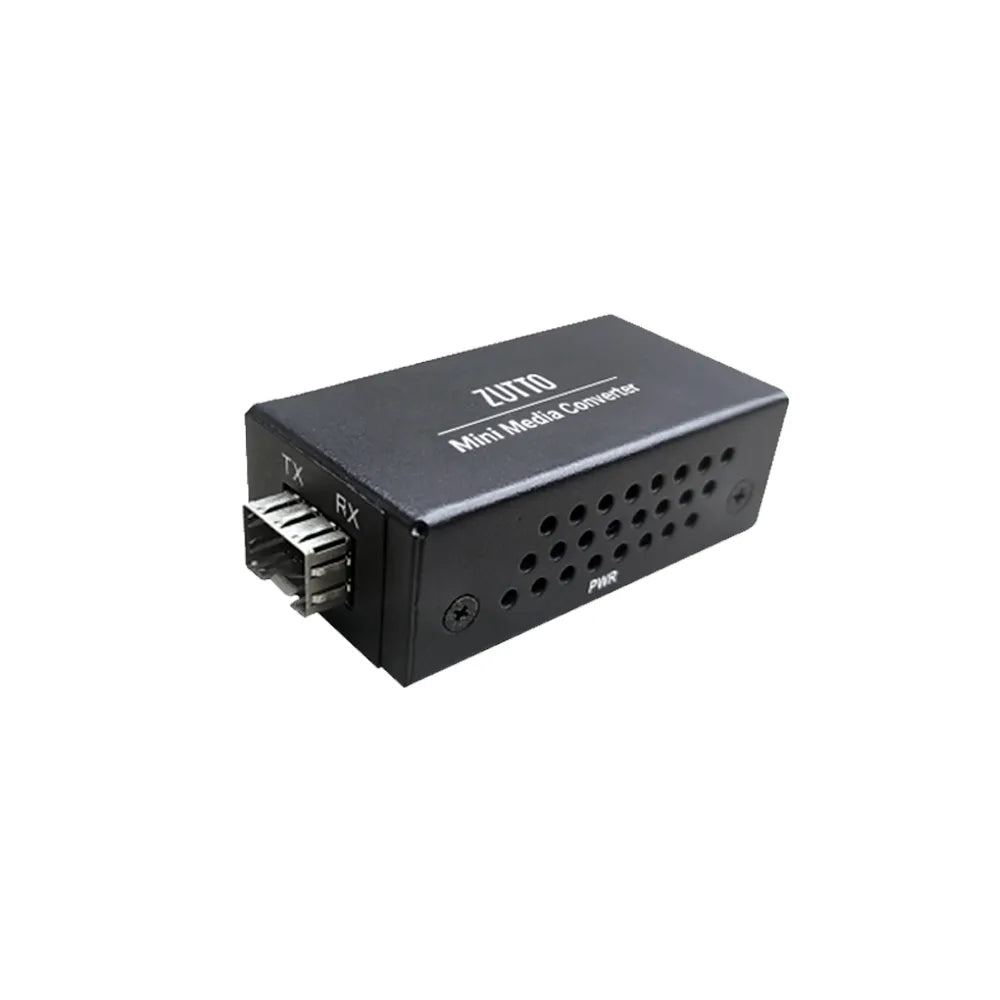

Zutto ZT1GE-1F1E003
2-port 10/100/1000M Media Converter / convert between 1000BASE-X fiber and 10/100/1000Base-T copper media
The Zutto ZT1GE-1F1E003 Mini Gigabit Media Converter is a high-performance fiber optic networking solution that enables seamless conversion between 10/100/1000Base-T Ethernet and 1000Base-X SFP fiber signals. It supports various SFP modules, including multimode dual- fiber, single-mode dual-fiber, and single-mode single-fiber, providing maximum flexibility for different network environments. Built with Taiwan Realtek’s carrier-grade chipset, this media converter ensures superior stability and cost efficiency, making it ideal for security surveillance, wireless coverage, intelligent transportation, and smart city applications.
With a plug-and-play design, the ZT1GE-1F1E003 eliminates the need for complex configurations, simplifying network deployment and ensuring a stable and reliable communication network for enterprise and industrial environments.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Performance Specifications
| Parameter | Symbol |
|---|---|
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 4Gbps |
| Buffer Memory | 3Mpps |
| MAC | 2K |
| LED Indicator | Fiber: FX (green) |
| Rate: SD/SPD1 (green), SPD2: 100/1000 (green) | |
| Data: TP (green) | |
| Single / Duplex: FDX (green) | |
| Power: PWR (green) |
| Parameter | Symbol |
|---|---|
|
Working Voltage
|
DC:5-12V
|
|
Power Consumption
|
Standby<1W, Full load<5W
|
| Parameter | Symbol |
|---|---|
|
Lightning protection
|
Lightning protection: 4KV 8/20us, Protection level: IP30
|
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
|
| Parameter | Symbol |
|---|---|
|
Operation TEMP
|
-20~+55°C;5%~90% RH Non condensing
|
|
Storage TEMP
|
-20~+75°C;5%~95% RH Non condensing
|
|
Dimension
|
77(L))mm* 37(W)mm*23(H)mm
|
|
Installation
|
Desktop
|
Key Features

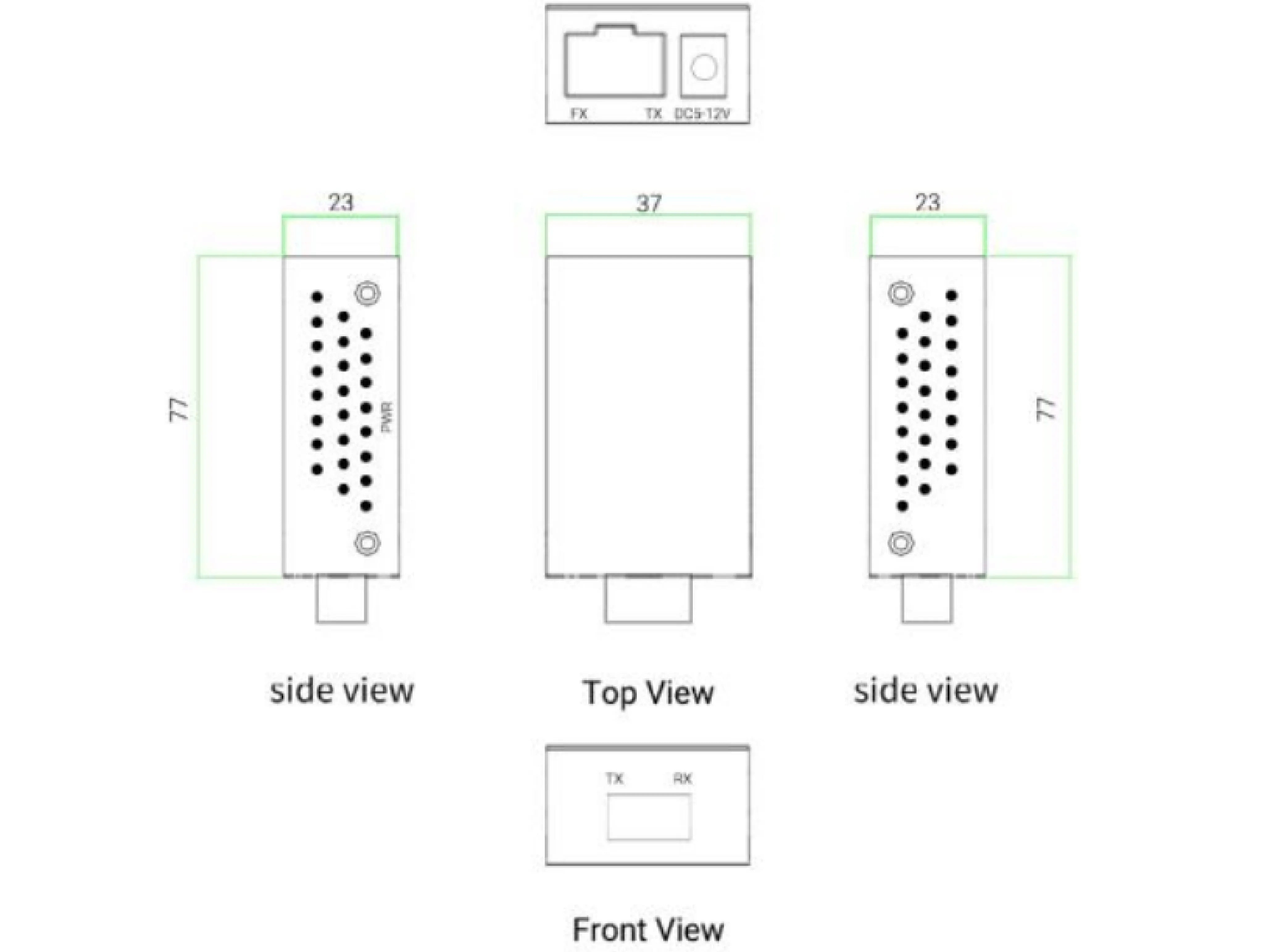

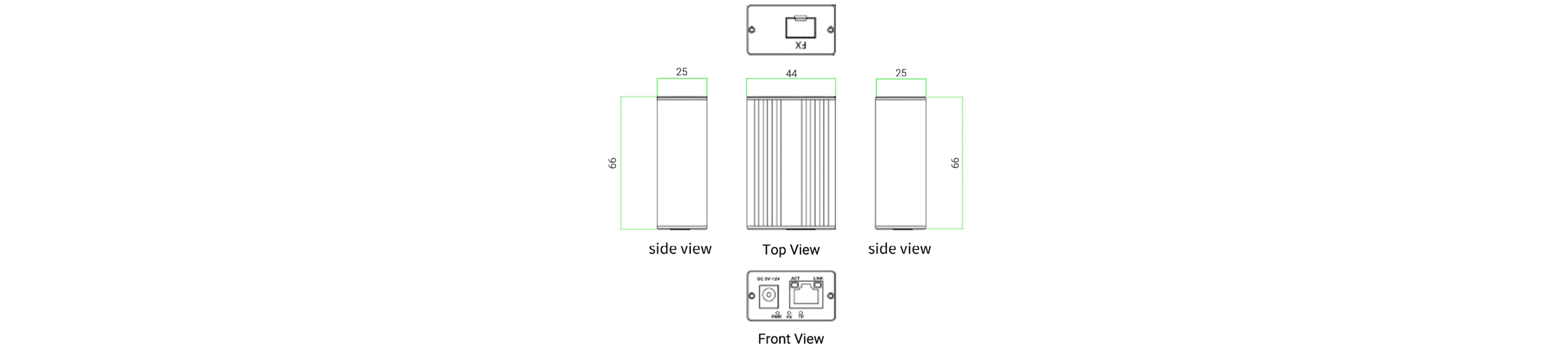

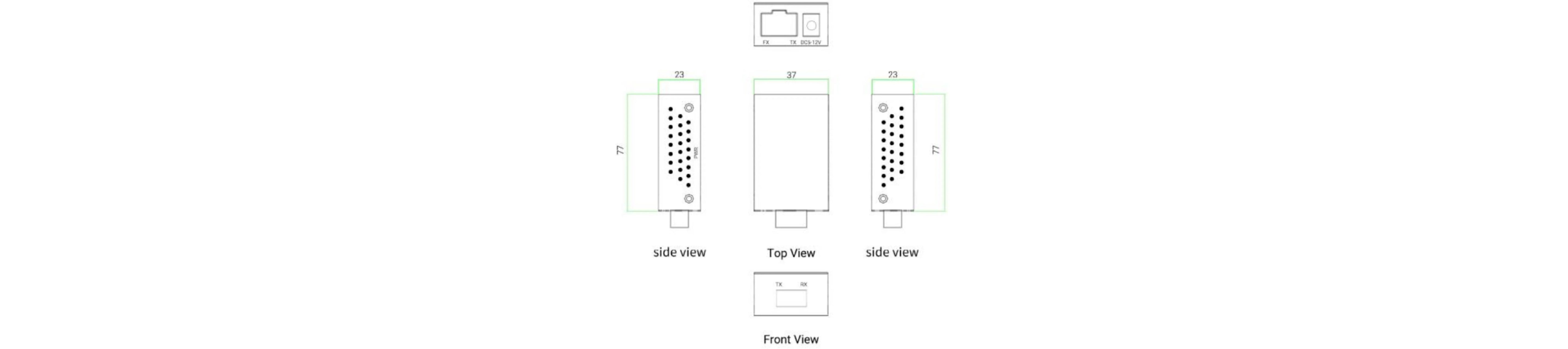

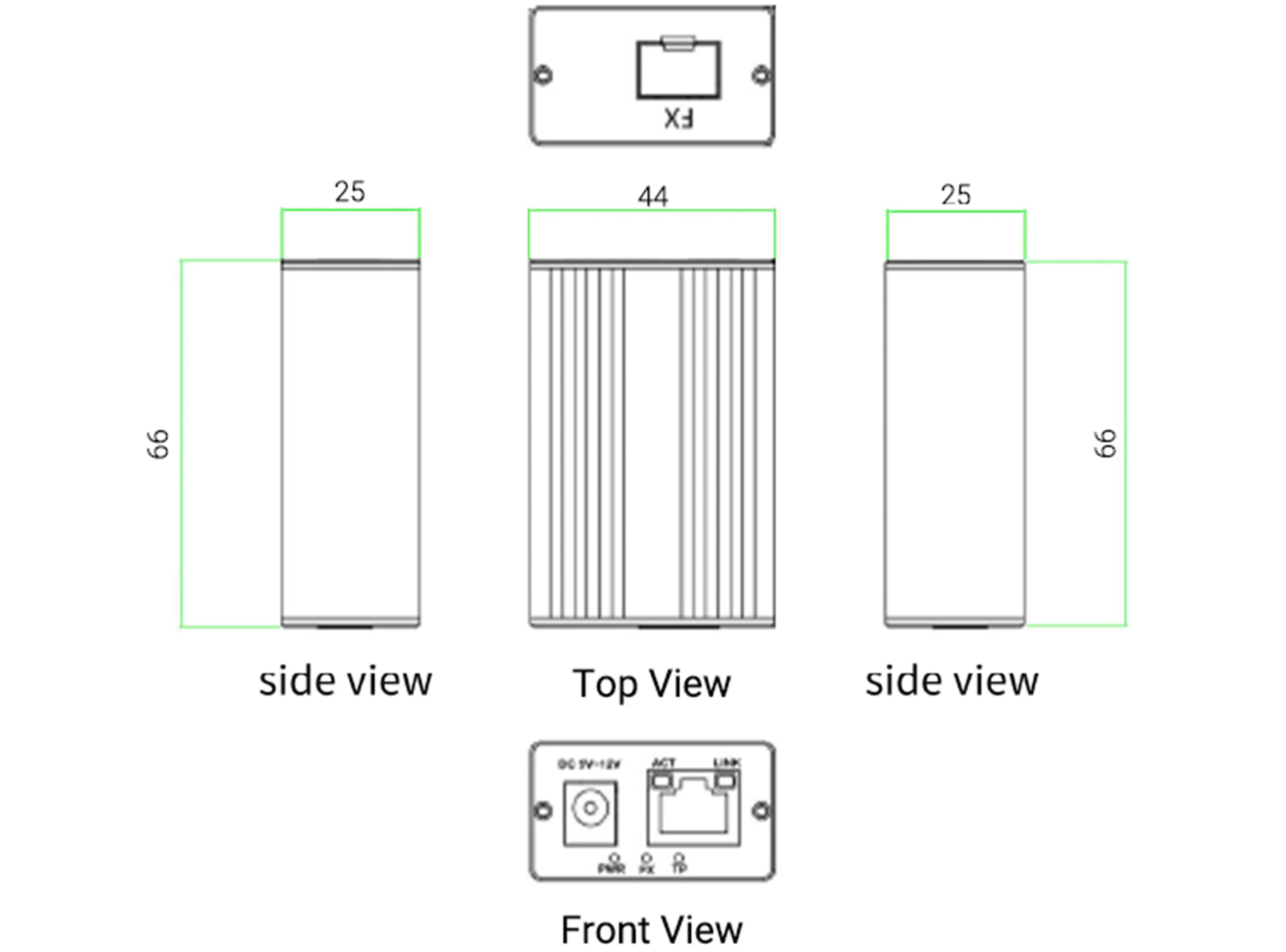

Mechanical Dimensions(Unit:mm)
Quality Certifications
