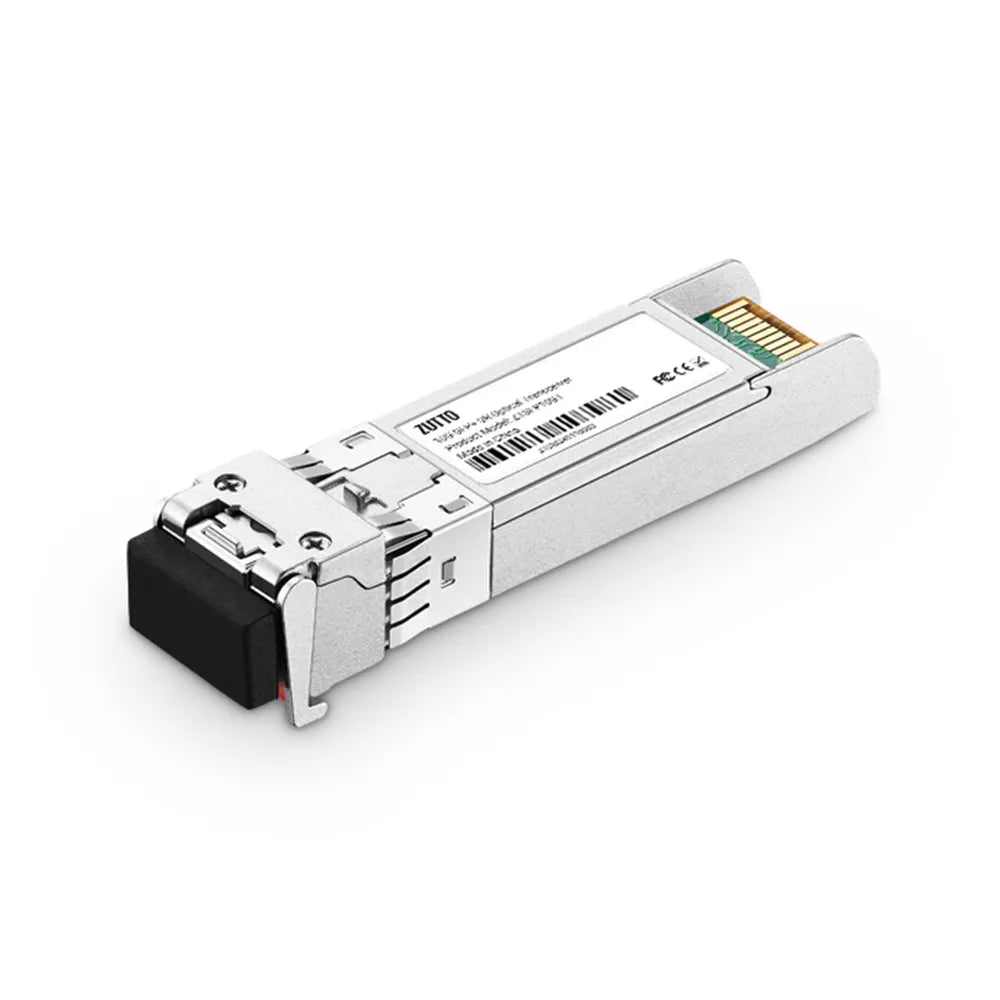

Zutto ZT16SPX-LR001

16G SFP+ LR Optical Transceiver / 10km over 9/125μm SMF

The Zutto ZT16SPX-LR001 is a high-performance  16G SFP+ optical transceiver designed for Fibre  Channel applications. Supporting data rates up to  14.025Gbps, it ensures reliable long-range connectivity of up to 10km over single-mode fiber. Its  hot-pluggable design with a duplex LC connector  and RoHS compliance ensures easy integration  and environmentally friendly operation.

Equipped with a 1310nm DFB laser transmitter and  digital diagnostics via a 2-wire serialinterface, the  ZT16SPX-LR001 combines superior performance  with low power consumption of just 1.5W. Its  robust metal enclosure minimizes EMI, ensuring  efficient and secure networking solutions for  demanding environments.

REQUEST MORE INFO ▶
 Download Data Sheets

Absolute Maximum Ratings


Parameter Symbol Min. Typical Max. Unit
Storage Temperature Ts -40 +85 °C
Case Operating Temperature TA 0 70 °C
Maximum Supply Voltage Vcc -0.5 4 V
Relative Humidity RH 0 85 %

Electrical Characteristics


Parameter Symbol Min. Typical Max. Unit Note
Supply Voltage
VCC
3.135
3.465
V
Supply Current
ICC
300
mA
 1
Power Consumption
 P
1.5
 W
Transmitter Section:
Parameter Symbol Min. Typical Max. Unit Note
Input differential impedance
Rin

100
Ω
 2
Differential input voltage swing
Vin,pp
 90 800
mV
Transmit Disable Voltage
 VD 2
Vcc
 V 3
Transmit Enable Voltage
 VEN Vee
Vee+0.8
V
Receiver Section:
Parameter Symbol Min. Typical Max. Unit Note
Differential output voltage swing
Vout,pp
 185
425
mV
 4
LOS Fault
VLOS fault
2
VCCHOST
V 5
LOS Normal
VLOS norm
Vee
Vee+0.8
V 5
Power Supply Rejection
PSR
100

mVpp
 6
Deterministic Jitter



Key Features


A red speedometer icon with the needle pointing towards high speed, symbolizing fast data transmission and efficient network connectivity.

High-Speed Connectivity

Delivers up to 14.025Gbps data rates, ensuring seamless performance for Fibre Channel networks.
An icon displaying two servers connected by bidirectional arrows, representing extended network coverage and enhanced data transmission performance.

Long-Range Transmission

Supports reliable communication over 10km on single-mode fiber, ideal for extended network setups.
A red battery icon with full charge bars, symbolizing energy-efficient operation and low power consumption for improved energy utilization.

Energy Efficient and Durable Design

Consumes just 1.5W and features a metal enclosure to reduce EMI, ensuring efficient and reliable operation.
A magnifying glass icon with a lightning symbol inside, representing advanced monitoring and compliance management to ensure system security and stability.

Advanced Digital Diagnostics

Offers real-time performance monitoring through a 2-wire interface, enabling proactive network management.

Mechanical Dimensions(Unit:mm)


Dimensional diagram of the Zutto ZT10SPX-ER001 10G SFP+ Optical Transceiver. The diagram illustrates detailed measurements of the transceiver’s length, width, and height, along with front, side, top, and angled views. It includes precise dimensions for LC connectors and pin alignment for seamless integration.Dimensional diagram of the Zutto ZT10SPX-ER001 10G SFP+ Optical Transceiver. The diagram illustrates detailed measurements of the transceiver’s length, width, and height, along with front, side, top, and angled views. It includes precise dimensions for LC connectors and pin alignment for seamless integration.
