Zutto ZT10SPX-ZR004
10G SFP+ ZR Optical Transceiver / Support multi protocol from 9.8Gb/s to 11.3Gb/s with CDR function

Name: Zutto ZT10SPX-ZR004 10G SFP+ ZR Optical Transceiver / Support multi protocol from 9.8Gb/s to 11.3Gb/s with CDR function
Brand: ZUTTO
Availability: OutOfStock

The Zutto ZT10SPX-ZR004 is an advanced 10G SFP+ ZR Optical Transceiver, optimized for high-speed serial optical communication across distances of up to 80km on single-mode fiber (SMF). With data rates ranging from 9.8Gb/s to 11.3Gb/s, this compact module is designed to support various network protocols, including 10G Ethernet, SDH/SONET, and Fibre Channel. The hot-pluggable SFP+ form factor ensures easy installation and maintenance, making it a perfect fit for dynamic networking environments.

Engineered with a cooled 1550nm EML transmitter and an APD receiver, the ZT10SPX-ZR004 offers superior optical performance and reliable data transmission even under demanding conditions. It also features built-in digital diagnostic monitoring, providing real-time feedback on operating parameters to facilitate network management. Its RoHS-compliant, energy-efficient design ensures both environmental sustainability and cost-effectiveness.

REQUEST MORE INFO ▶

Download Data Sheets

Warranty

This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	Ts	-40	+85	°C
Case Operating Temperature	TA	0	70	°C
Maximum Supply Voltage	Vcc	-0.5	4	V
Relative Humidity	RH	0	85	%

Electrical Characteristics

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage	VCC	3.135	3.465	V
Supply Current	ICC		606	mA
Power Consumption	P		2.0	W

Transmitter Section:

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Input differential impedance	Rin		100		Ω	1
Differential input voltage swing	Vin,pp	100		1000	mV
Transmit Disable Voltage	VD	2		VCC	V
Transmit Enable Voltage	VEN	Vee		Vee+0.8	V

Receiver Section:

Parameter	Symbol	Min.	Max.	Unit	Note
Differential output voltage swing	VO	120	800	mV
LOS Fault	VLOS fault	2	VCCHOST	V	2
LOS Normal	VLOS norm	Vee	Vee+0.8	V	2

Key Features

A red speedometer icon with the needle pointing towards high speed, symbolizing fast data transmission and efficient network connectivity.

High-Speed, Long-Distance Connectivity

Capable of supporting up to 11.3Gb/s and transmitting data over 80km, the ZT10SPX-ZR004 is ideal for robust and reliable long-haul communication.

Icon of an integrated circuit (chip) representing advanced PHY chip integration for high-speed data transmission and reliable network performance.

Advanced Optical Technology

Equipped with a high-performance cooled 1550nm EML transmitter and an APD receiver, the transceiver ensures consistent signal integrity and minimal data loss across vast distances.

Icon depicting a plug and socket, symbolizing plug-and-play convenience for easy and fast device setup without configuration.

User-Friendly and Hot-Pluggable

The hot-pluggable SFP+ form factor allows for easy upgrades and replacements, minimizing network downtime and simplifying maintenance.

A magnifying glass icon with a lightning symbol inside, representing advanced monitoring and compliance management to ensure system security and stability.

Real-Time Diagnostics

Integrated digital diagnostic functions provide critical feedback on temperature, voltage, and power levels, enabling proactive network management and reducing the risk of operational failures.

Mechanical Dimensions(Unit:mm)

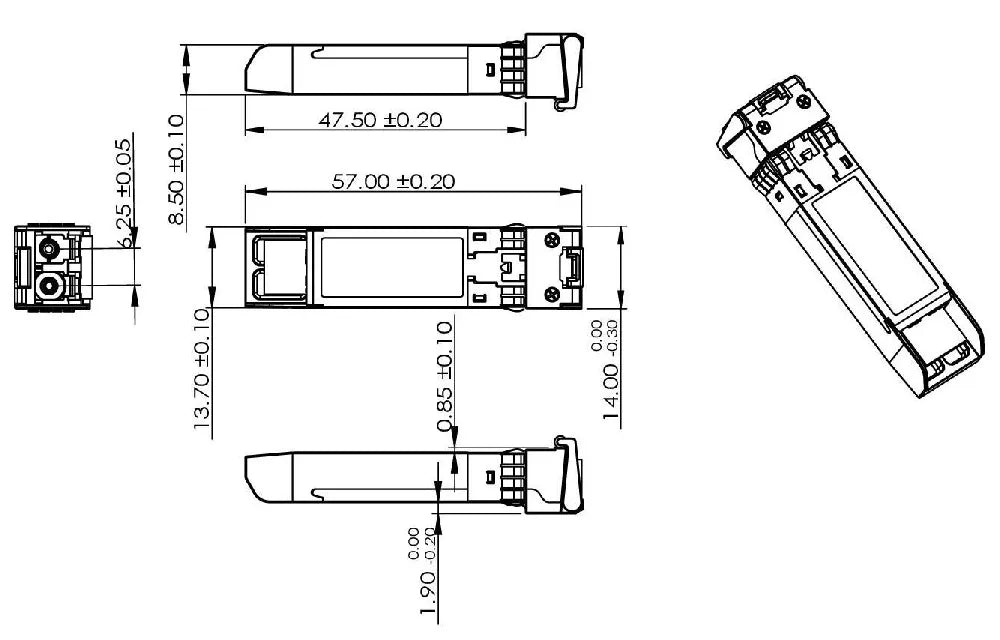

Dimensional diagram of the Zutto ZT10SPX-ER001 10G SFP+ Optical Transceiver. The diagram illustrates detailed measurements of the transceiver’s length, width, and height, along with front, side, top, and angled views. It includes precise dimensions for LC connectors and pin alignment for seamless integration.
