Zutto ZT10SPX-LR002
10G SFP+ LR Optical Transceiver / Dual CDR with 9.8 to 11.3Gb/s bit rates

Name: Zutto ZT10SPX-LR002 10G SFP+ LR Optical Transceiver / Dual CDR with 9.8 to 11.3Gb/s bit rates
Brand: ZUTTO
Availability: OutOfStock

The Zutto ZT10SPX-LR002 is a versatile 10G SFP+ LR Optical Transceiver, purpose-built for high-speed serial optical communication across networks. With support for bit rates from 9.8Gb/s to 11.3Gb/s and utilizing an uncooled 1310nm DFB transmitter paired with a high-sensitivity PIN receiver, this transceiver ensures reliable data transfer over distances up to 10km on single-mode fiber (SMF). Its compact, hot-pluggable SFP+ form factor enables quick and easy integration into various networking setups, providing an efficient solution for seamless communication.

Engineered to meet the demands of 10G Ethernet, SDH/SONET, and Fibre Channel applications, the ZT10SPX-LR002 is equipped with built-in digital diagnostics for real-time monitoring of key parameters. With low power consumption under 1.0W and compliance with RoHS environmental standards, this transceiver strikes the perfect balance between performance, efficiency, and eco-friendlines.

REQUEST MORE INFO ▶

Download Data Sheets

Warranty

This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	Ts	-40	+85	°C
Case Operating Temperature	TA	0	70	°C
Maximum Supply Voltage	Vcc	-0.5	4	V
Relative Humidity	RH	0	85	%

Electrical Characteristics

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage	VCC	3.135	3.465	V
Supply Current	ICC		300	mA
Power Consumption	P		1	W

Transmitter Section:

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Input differential impedance	Rin		100		Ω	1
Differential input voltage swing	Vin,pp	100		1200	mV
Transmit Disable Voltage	VD	2		VCC	V
Transmit Enable Voltage	VEN	Vee		Vee+0.8	V

Receiver Section:

Parameter	Symbol	Min.	Max.	Unit	Note
Differential output voltage swing	VO	120	800	mV
LOS Fault	VLOS fault	2	VCCHOST	V	2
LOS Normal	VLOS norm	Vee	Vee+0.8	V	2

Key Features

An icon displaying two servers connected by bidirectional arrows, representing extended network coverage and enhanced data transmission performance.

Efficient Long-Distance Communication

Delivers consistent and high-speed data transmission up to 10km, ideal for long-reach applications in high-bandwidth environments.

Icon of an integrated circuit (chip) representing advanced PHY chip integration for high-speed data transmission and reliable network performance.

Reliable Optical Technology

Features an uncooled 1310nm DFB transmitter and PIN receiver, ensuring exceptional performance with minimal power consumption and high sensitivity.

Icon depicting a plug and socket, symbolizing plug-and-play convenience for easy and fast device setup without configuration.

Compact and Hot-Pluggable Design

The SFP+ form factor supports easy installation, making network upgrades and maintenance hassle-free while reducing system downtime.

A magnifying glass icon with a lightning symbol inside, representing advanced monitoring and compliance management to ensure system security and stability.

Advanced Monitoring Capabilities

Integrated digital diagnostic functions provide real-time insights into temperature, voltage, and power, enabling proactive and efficient network management.

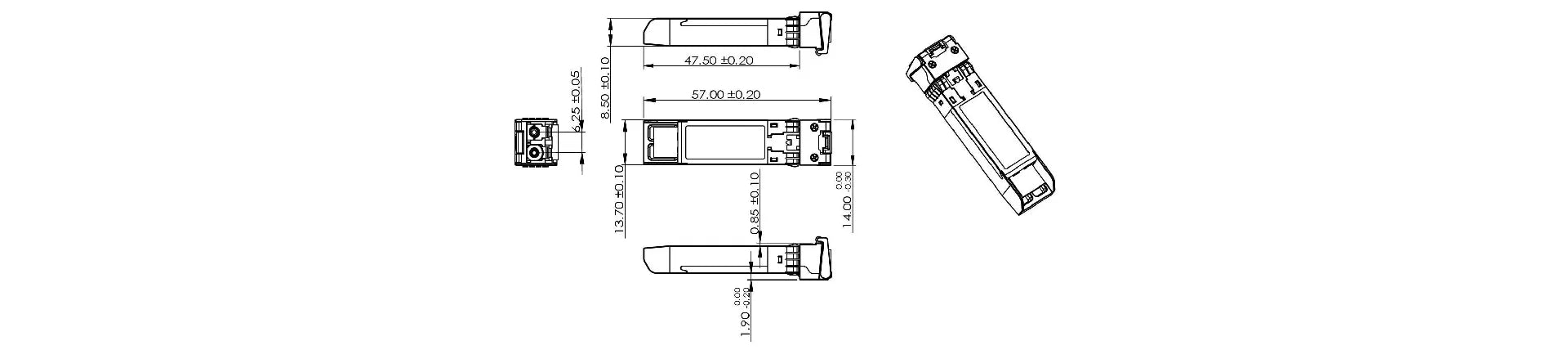

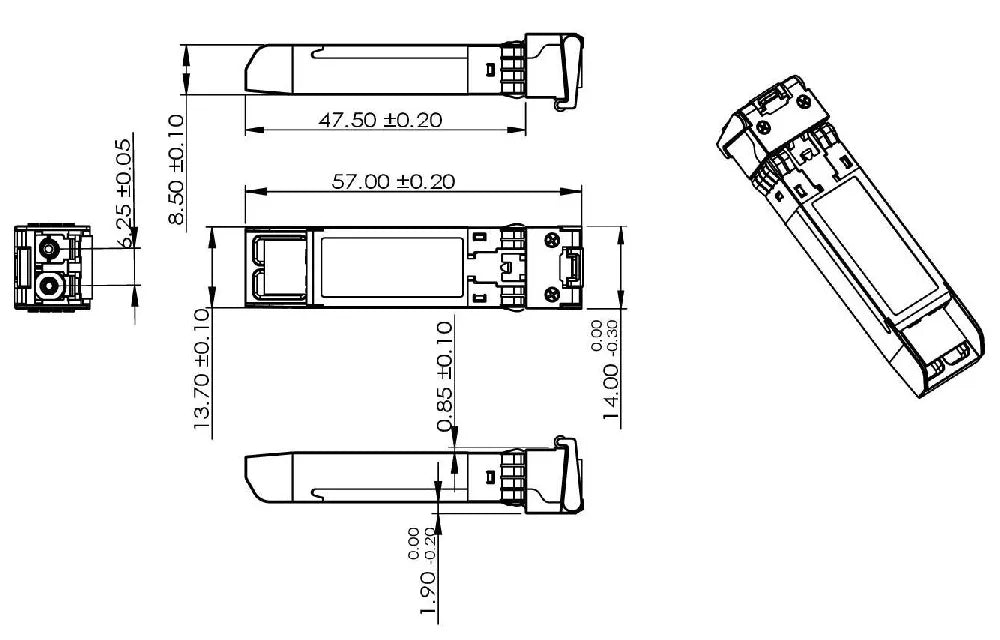

Mechanical Dimensions(Unit:mm)

Dimensional diagram of the Zutto ZT10SPX-ER001 10G SFP+ Optical Transceiver. The diagram illustrates detailed measurements of the transceiver’s length, width, and height, along with front, side, top, and angled views. It includes precise dimensions for LC connectors and pin alignment for seamless integration.

Quality Certifications

FAQs for ZT10SPX-LR002

What is the primary function of the ZT10SPX-LR002 Optical Transceiver?

The ZT10SPX-LR002 is a 10G SFP+ optical transceiver designed for long-distance communication in applications such as 10G Ethernet, Fibre Channel, and SDH/SONET.

What is the maximum transmission distance supported by the ZT10SPX-LR002?

This transceiver supports data transmission over single-mode fiber (SMF) for distances of up to 10 kilometers, making it ideal for long-reach applications.

How energy-efficient is the ZT10SPX-LR002 Optical Transceiver?

The ZT10SPX-LR002 operates with a power consumption of less than 1.0W, providing a cost-effective and energy-efficient solution for high-speed networking.

Does the ZT10SPX-LR002 support real-time monitoring?

Yes, the transceiver includes built-in digital diagnostic monitoring (DDM), allowing users to monitor critical parameters such as temperature, voltage, laser bias current, and optical power.

Is the ZT10SPX-LR002 easy to install and integrate into networks?

Absolutely. The ZT10SPX-LR002 is hot-pluggable, enabling quick installation or replacement without disrupting active network operations, ensuring minimal downtime.
