Zutto ZT10SPX-LMR001

10G SFP+ LRM Optical Transceiver / MMF links up to 220m

The Zutto ZT10SPX-LMR001 is a 10G SFP+ LRM optical transceiver, designed for high-speed data transfer in Ethernet, Fibre Channel, and SONET/SDH applications. It supports data rates up to 11.3Gbps and provides reliable connectivity for distances up to 220m on multimode fiber (MMF). Featuring a 1310nm FP transmitter and PIN photodetector, this transceiver ensures exceptional performance with minimal power consumption.
With hot-pluggable SFP+ compliance and integrated digital diagnostics, the ZT10SPX-LMR001 simplifies network deployment and monitoring. Operating within a temperature range of 0°C to 70°C and consuming less than 1W, it is an energy-efficient and reliable solution for modern network infrastructures.
REQUEST MORE INFO ▶
 Download Data Sheets

Absolute Maximum Ratings


Parameter Symbol Min. Typical Max. Unit
Storage Temperature Ts -40 +85 °C
Case Operating Temperature TA 0 70 °C
Maximum Supply Voltage Vcc -0.5 4 V
Relative Humidity RH 0 85 %

Electrical Characteristics


Parameter Symbol Min. Typical Max. Unit Note
Supply Voltage
VCC
3.135
3.465
V
Supply Current
ICC
300
mA
Power Consumption
 P
1
 W
Transmitter Section:
Parameter Symbol Min. Typical Max. Unit Note
Input differential impedance
Rin

100
Ω
 1
Differential input voltage swing
Vin,pp
 100 1000
mV
Transmit Disable Voltage
 VD 2
VCCHOST
V
Transmit Enable Voltage
 VEN Vee
Vee+0.8
V
Receiver Section:
Parameter Symbol Min. Typical Max. Unit Note
Differential output voltage swing
VO
300
1000
mV
LOS Fault
VLOS fault
2
VCCHOST
V 2
LOS Normal
VLOS norm
Vee
Vee+0.8
V 2

Key Features


A red speedometer icon with the needle pointing towards high speed, symbolizing fast data transmission and efficient network connectivity.

High-Speed Performance

Supports data rates up to 11.3Gbps, ensuring fast and reliable connectivity for demanding applications.
An icon displaying two servers connected by bidirectional arrows, representing extended network coverage and enhanced data transmission performance.

Optimized for Medium-Range Connectivity

Enables links up to 220m on multimode fiber, ideal for enterprise and data center environments.
A red battery icon with full charge bars, symbolizing energy-efficient operation and low power consumption for improved energy utilization.

Energy Efficient Design

Operates with less than 1W power consumption, reducing energy costs in large-scale deployments.
Advanced monitoring and compliance design meets industry standards, enhancing system safety and reliability.

Advanced Diagnostics and Ease of Use

Features built-in digital diagnostics for real-time monitoring and a hot-pluggable design for simple upgrades and maintenance.

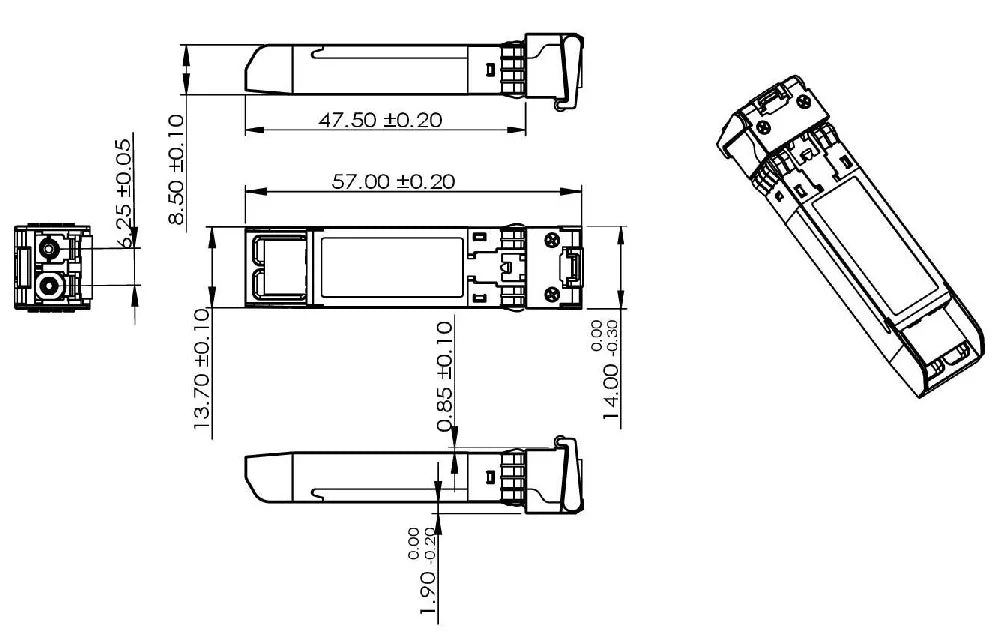

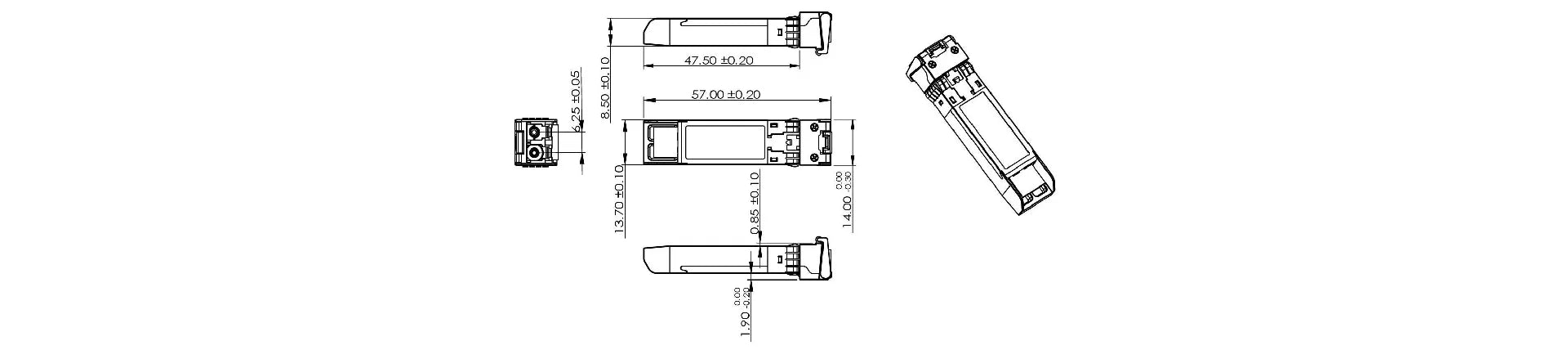

Mechanical Dimensions(Unit:mm)


SFP+ optical transceiver module dimension diagram showing length (57.00mm), width (13.70mm), and height (8.50mm), including front, side, top, and isometric views, intended for mechanical design reference in optical communication equipment.SFP+ optical transceiver module dimension diagram showing length (57.00mm), width (13.70mm), and height (8.50mm), including front, side, top, and isometric views, intended for mechanical design reference in optical communication equipment.

Quality Certifications


Reach_Compliant Certification CE Certification FCC Certification ROHS Certification
