Zutto ZT10SPX-DAC001
10Gb/s SFP+ Direct Attach Passive Cable / Support for multi-gigabit data rates up to 10.5Gbps
The Zutto Direct Attach Passive Cable (ZT10SPX- DAC001) delivers high-performance and cost- effective solutions for 10G Ethernet and 10G Fibre Channel applications. Designed to meet the rigorous demands of data centers, storage area networks, and high-density I/O connections, this SFP+ passive copper cable provides exceptional signal integrity while minimizing power consumption. Its plug-and-play compatibility and compliance with industry standards ensure seamless integration across a variety of networking environments.
With support for multi-gigabit data rates up to 10.5Gbps and backward compatibility to 1Gbps, the Zutto Direct Attach Cable maximizes efficiency and scalability for modern networking setups. Built for durability and reliability, it ensures consistent performance in operating temperatures ranging from 0°C to 70°C, making it a trusted choice for high-speed data transmission.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
%20delivers%20high-performance%20and%20cost-%20effective%20solutions%20for%2010G%20Ethernet%20and%2010G%20Fibre%20Channel%20applications.%20Designed%20to%20meet%20the%20rigorous%20de...
){kind=link}
Ordering Information
| Parameter |
Description
|
Wiregauge（AWG）
|
|---|---|---|
|
ZT10SPX-DAC001
|
SFP+ Passive Direct Attach Copper Cable Assembly, x (x=0.5~3.5m)
|
30 |
|
ZT10SPX-DAC001
|
SFP+ Passive Direct Attach Copper Cable Assembly, x (x=4~7m)
|
24 |
Recommended Operating Environment
| Parameter | Symbol | Min. |
Typical
|
Max.
|
Unit
|
|---|---|---|---|---|---|
|
Storage Ambient Temperature
|
-40 |
+85
|
°C
|
||
|
Operating Case Temperature
|
Tc
|
0 |
+70
|
°C
|
|
|
Relative Humidity
|
RH
|
0 |
85
|
%
|
Pin Function Definitions
|
PIN #
|
Name
|
Function
|
Notes
|
|---|---|---|---|
| 1 |
VeeT
|
Module transmitter ground
|
|
| 2 |
Tx Fault
|
N/A
|
Note 1
|
| 3 |
Tx Disable
|
Transmitter Disable
|
Note 2
|
| 4 |
SDL
|
2 wire serial interface data input/output (SDA)
|
|
| 5 |
SCL
|
2 wire serial interface clock input (SCL)
|
|
| 6 |
MOD-ABS
|
Module present, connect to VeeT
|
|
| 7 |
RS0
|
N/A
|
Note 1
|
| 8 |
LOS
|
Receiver Loss of Signal Indication
|
Note 2
|
| 9 |
RS1
|
N/A
|
Note 1
|
| 10 |
VeeR
|
Module receiver ground
|
|
| 11 |
VeeR
|
Module receiver ground
|
|
| 12 |
RD-
|
Receiver inverted data out put
|
|
| 13 |
RD+
|
Receiver non-inverted data out put
|
|
| 14 |
VeeR
|
Module receiver ground
|
|
| 15 |
VccR
|
Module receiver 3.3V supply
|
|
| 16 |
VccT
|
Module transmitter 3.3V supply
|
|
| 17 |
VeeT
|
Module transmitter ground
|
|
| 18 |
TD+
|
Transmitter inverted data out put
|
|
| 19 |
TD-
|
Transmitter non-inverted data out put
|
|
| 20 |
VeeT
|
Module transmitter ground
|
Note 1) Signals not supported in SFP+ Copper pulled-down to VeeT with 30K ohms resistor
Note 2) Passive cable assemblies do not support LOS and TX_DIS
Key Features

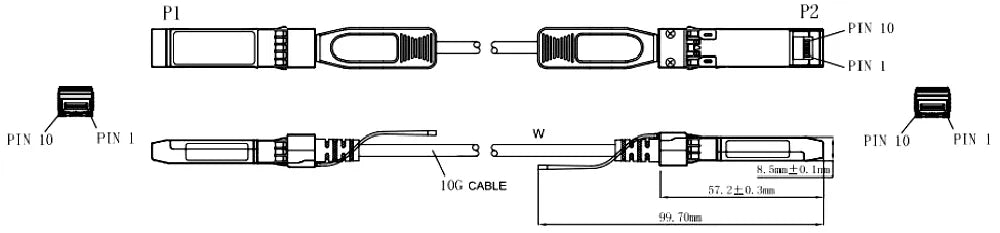

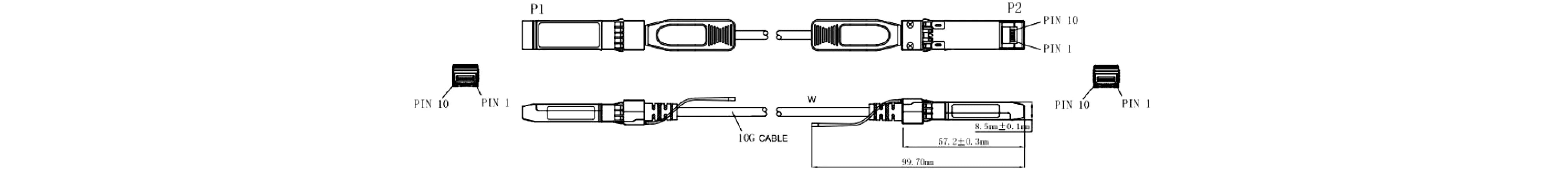

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT10SPX-DAC001
What is the maximum data transfer rate of the Zutto ZT10SPX-DAC001?
The Zutto ZT10SPX-DAC001 supports data transfer rates of up to 10.5Gbps, ensuring fast and reliable connectivity for 10G Ethernet and 10G Fibre Channel applications.
What is the maximum cable length for the Zutto ZT10SPX-DAC001?
The Zutto ZT10SPX-DAC001 comes in cable lengths ranging from 0.5 meters to 7 meters, offering flexibility for different installation requirements.
Is the Zutto ZT10SPX-DAC001 compatible with other devices?
Yes, the Zutto ZT10SPX-DAC001 is compatible with SFP+ MSA standards and features plug-and-play compatibility, making it easy to integrate into existing networking environments.
What are the temperature ranges for the Zutto ZT10SPX-DAC001?
The Zutto ZT10SPX-DAC001 operates within a temperature range of 0°C to 70°C, making it suitable for use in a variety of environments, including data centers and high-density networking.
What are the key applications for the Zutto ZT10SPX-DAC001?
The Zutto ZT10SPX-DAC001 is ideal for applications in storage area networks (SAN), data centers, high-density I/O connections, and ultra-high bandwidth switches and routers.
