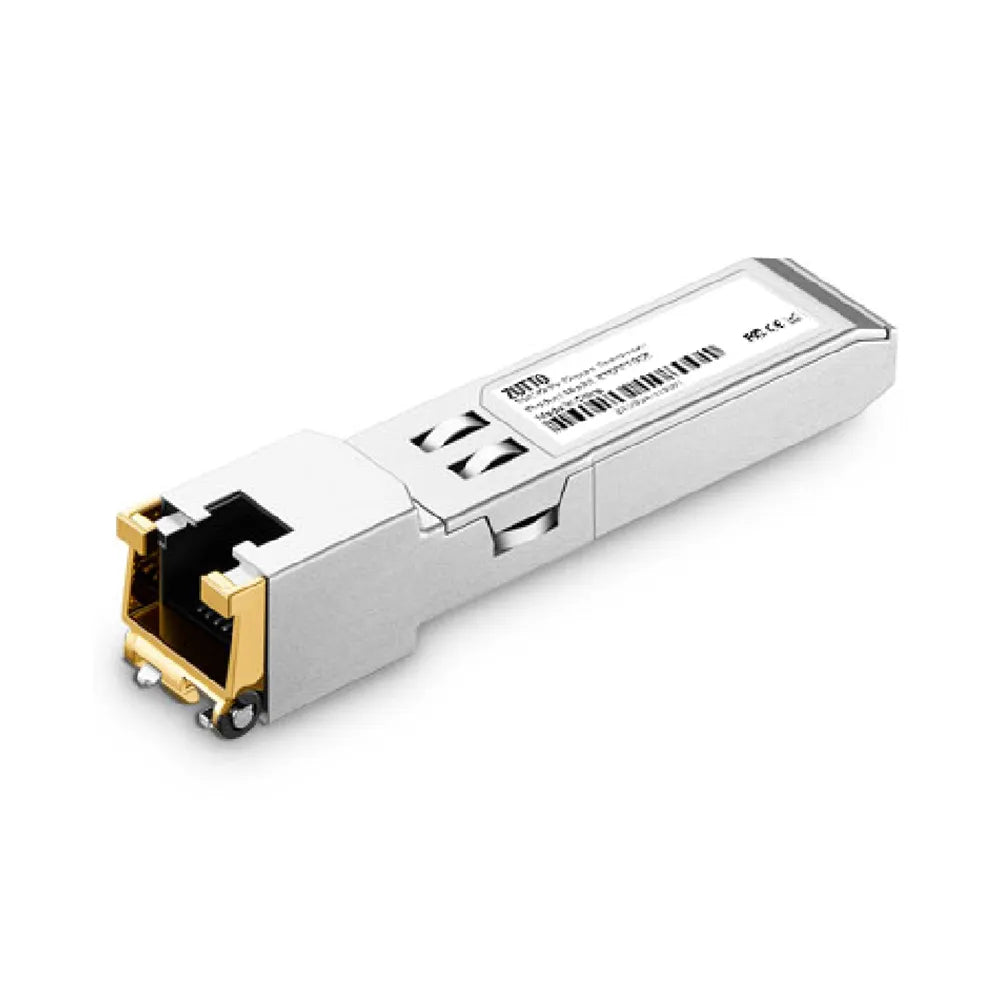

Zutto ZT10SPX-C001
10G SFP+ Copper Transceiver
The Zutto ZT10SPX-C001 is a high-performance 10G SFP+ copper transceiver designed for Ethernet applications requiring short-range connectivity over Cat 6a/7 cables. Supporting data rates up to 10Gbps and a reach of 30m, it ensures reliable and cost-effective performance for data centers and enterprise networks. The hot-pluggable design and compact RJ-45 connector simplify installation and upgrades.
With low power consumption of 3W and a durable metallic enclosure for minimal EMI, the ZT10SPX-C001 is both efficient and robust. Compliant with IEEE 802.3 standards and SFP+ MSA, it is an ideal choice for modern high-speed networking environments.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Cable Length
|
Line Port
|
Cable
|
Reach
|
Host Port
|
|---|---|---|---|
|
10Gbase-T
|
CAT6A/7
|
30m
|
10GBase-R
|
|
5Gbase-T
|
CAT5E
|
50m
|
10GBase-R
|
|
2.5Gbase-T
|
CAT5E
|
50m |
10GBase-R
|
|
1000base-T
|
CAT5E
|
100m |
10GBase-R
|
|
100base-Tx
|
CAT5E
|
100m |
10GBase-R
|
|
10base-Tx
|
CAT5E
|
100m |
10GBase-R
|
+3.3V Volt Electrical Power Interface
| Parameter | Symbol | Min. | Typical | Max. | Unit |
Notes/Conditions
|
|---|---|---|---|---|---|---|
|
Supply Voltage
|
Is
|
900
|
mA
|
3.0W max power over full range of
voltage and temperature.
See caution note below
|
||
|
Input Voltage
|
Vcc
|
3.13
|
3.3 |
3.47
|
V
|
Referenced to GND
|
|
Maximum Voltage
|
Vmax
|
4 |
V
|
|||
|
Surge Current
|
Isurge
|
30 |
mA
|
Hot plug above steady state current.
See caution note below
|
General Specifications
| Parameter | Symbol | Min. | Typical | Max. | Unit |
Notes/Conditions
|
|---|---|---|---|---|---|---|
|
Data Rate
|
BR
|
10.3 |
Gb/sec
|
IEEE 802.3 compatible.
|
||
|
Cable Length
|
L | 30 |
m
|
Category 6a/7 UTP. BER <10-12
|
Environmental Specifications
| Parameter | Symbol | Min. | Typical | Max. | Unit |
Notes/Conditions
|
|---|---|---|---|---|---|---|
|
Operating Temperature
|
Top
|
0
|
70 |
°C
|
Case temperature
|
|
|
Storage Temperature
|
Tsto
|
-40
|
85 |
°C
|
Ambient temperature
|
Key Features

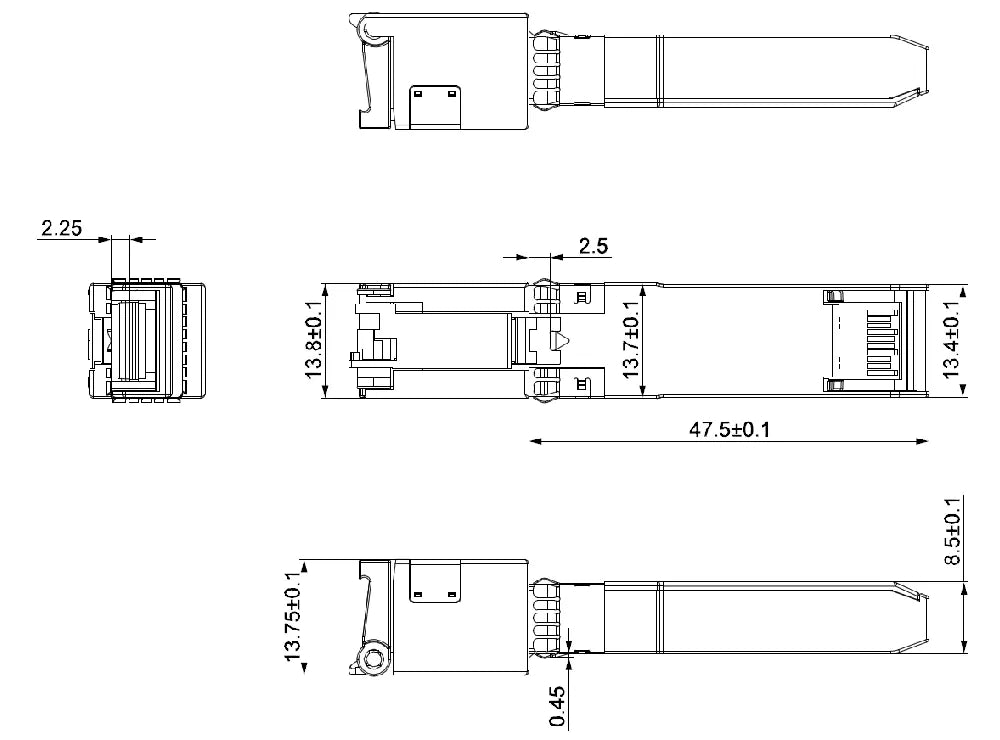

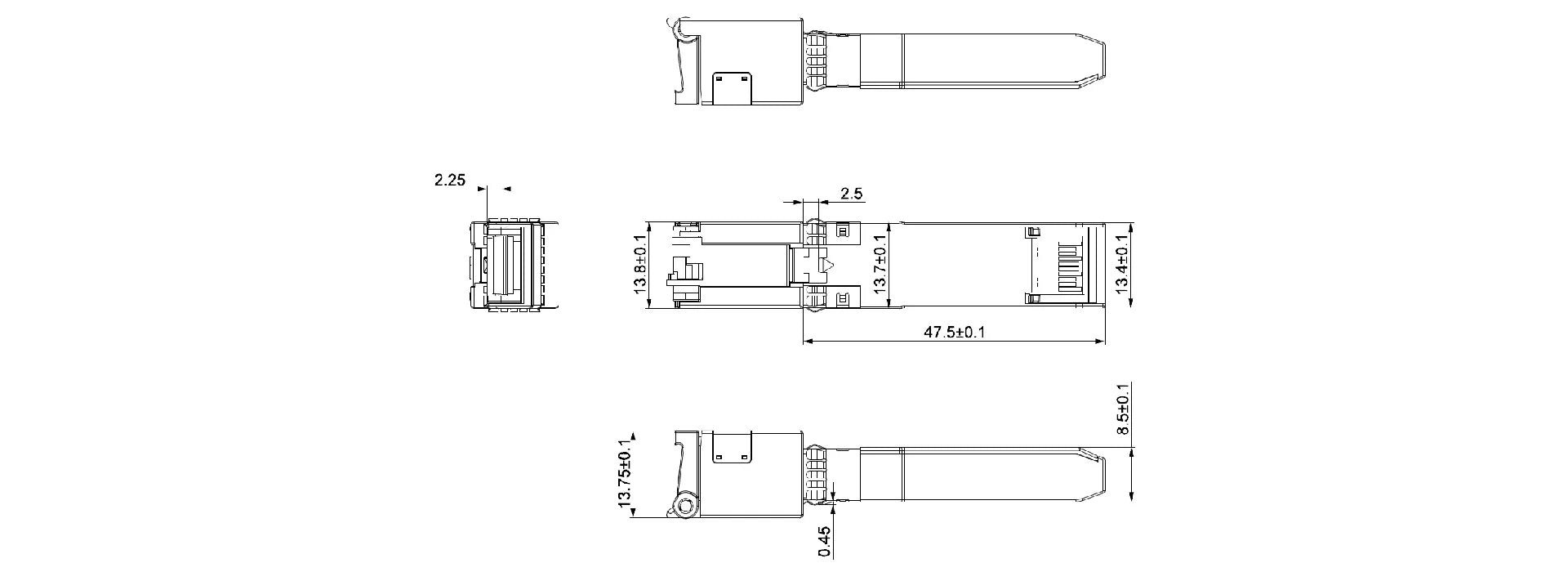

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT10SPX-C001
What is the primary purpose of the ZT10SPX-C001 Copper Transceiver?
The ZT10SPX-C001 is a 10G SFP+ copper transceiver designed for short-range Ethernet connectivity over Cat 6a/7 cables, with a maximum reach of 30 meters.
What makes this transceiver suitable for data centers and enterprise networks?
The ZT10SPX-C001 provides high-speed data transfer rates of up to 10Gbps and features a low power consumption of just 3W, ensuring efficient and cost-effective operation in dense deployments.
Is the ZT10SPX-C001 easy to install and maintain?
Yes, the transceiver is hot-pluggable, allowing for seamless installation or replacement without interrupting network operations.
What types of cables are compatible with this transceiver?
The ZT10SPX-C001 supports various Ethernet standards, including 10GBase-T over Cat 6a/7 cables (up to 30 meters) and 5GBase-T/2.5GBase-T over Cat 5e cables (up to 50 meters).
How does the ZT10SPX-C001 minimize electromagnetic interference (EMI)?
The transceiver features a fully metallic enclosure, which reduces EMI and enhances durability, making it ideal for high-performance networking environments.
