Zutto ZT10SPX-AOC001
10Gbps SFP+ Active Optical Cables / 850nm VCSEL transmitter, PIN photo-detector receiver
The Zutto ZT10SPX-AOC001 Active Optical Cable is a high-performance, energy-efficient solution for 10Gbps Ethernet and Fibre Channel applications. Designed for data centers and high-performance computing environments, it offers seamless connectivity over distances up to 300 meters using OM3 multimode fiber. Its 850nm VCSEL transmitter and PIN photodetector receiver ensure exceptional signal integrity, while its plug-and-play SFP+ form factor simplifies deployment.
With a low power consumption of less than 0.35W per end and compliance with RoHS and SFF-8431 standards, the ZT10SPX-AOC001 is ideal for cost- effective, eco-friendly network setups. It delivers reliable performance across a wide operating temperature range (0°C to 70°C), making it a versatile choice for demanding network infrastructures.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Absolute Maximum Ratings
| Parameter | Symbol | Min |
Max
|
Unit | Note |
|---|---|---|---|---|---|
| Storage Temperature |
TST
|
-20 | 85 | °C | |
|
RelativeHumidity(non-condensing)
|
RH
|
0 | 85 | % | |
|
Operating Case Temperature
|
TOPC
|
0 | 70 | °C | |
|
Supply Voltage
|
VCC
|
-0.3 | 3.6 | V | |
|
Input Voltage
|
Vin
|
-0.3 |
Vcc+0.3
|
V |
Recommended Operating Conditions and Supply Requirements
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
|
Operating Case Temperature
|
TOPC
|
0 | 70 |
℃
|
|
|
Power Supply Voltage
|
VCC
|
3.13 | 3.3 | 3.47 | V |
|
PowerConsumption(per end)
|
- | 0.35 | W | ||
|
Data Rate
|
DR
|
10.3 |
Gbps
|
||
|
Data Speed Tolerance
|
∆DR
|
-100 | +100 |
ppm
|
Optical Characteristics
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Center Wavelength
|
λC
|
840
|
850
|
860
|
nm
|
|
|
Average optical Power
|
PAVG
|
-6
|
dBm
|
|||
|
Rise/Fall Time
|
Tr/Tf
|
50
|
ps
|
|||
|
Extinction Ratio
|
ER
|
3.5
|
dB | |||
|
Relative Intensity Noise
|
Rin
|
-128
|
dB/Hz
|
|||
|
OpticalReturn Loss
|
TOL
|
12
|
dB
|
|||
|
Transmitter Reflectance
|
RT
|
-12
|
dB
|
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Center Wavelength
|
λC
|
840
|
850
|
860
|
nm
|
|
|
Overload,each lane
|
OVL
|
-1
|
dBm
|
|||
|
Receiver Sensitivity in OMA, each Lane
|
SEN
|
-11
|
dBm
|
Key Features

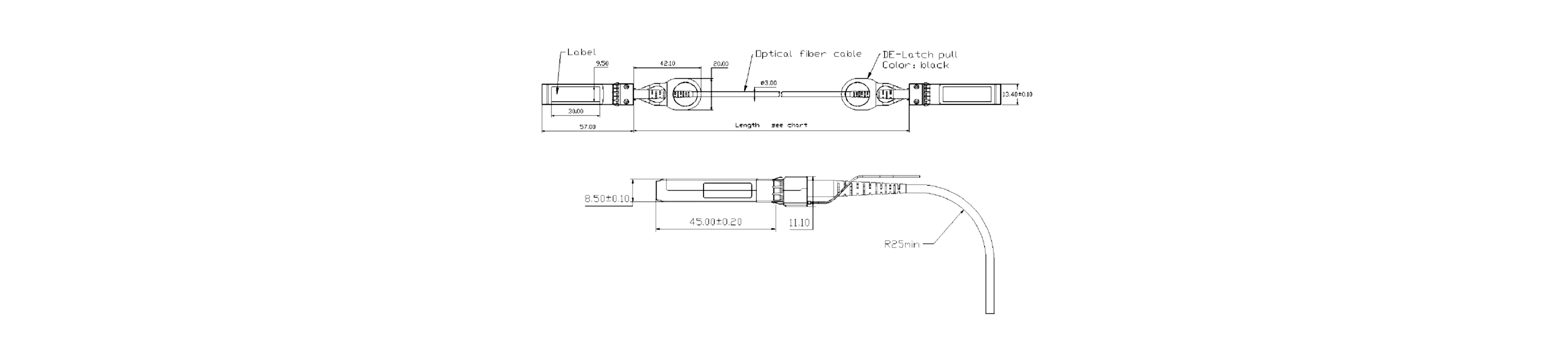

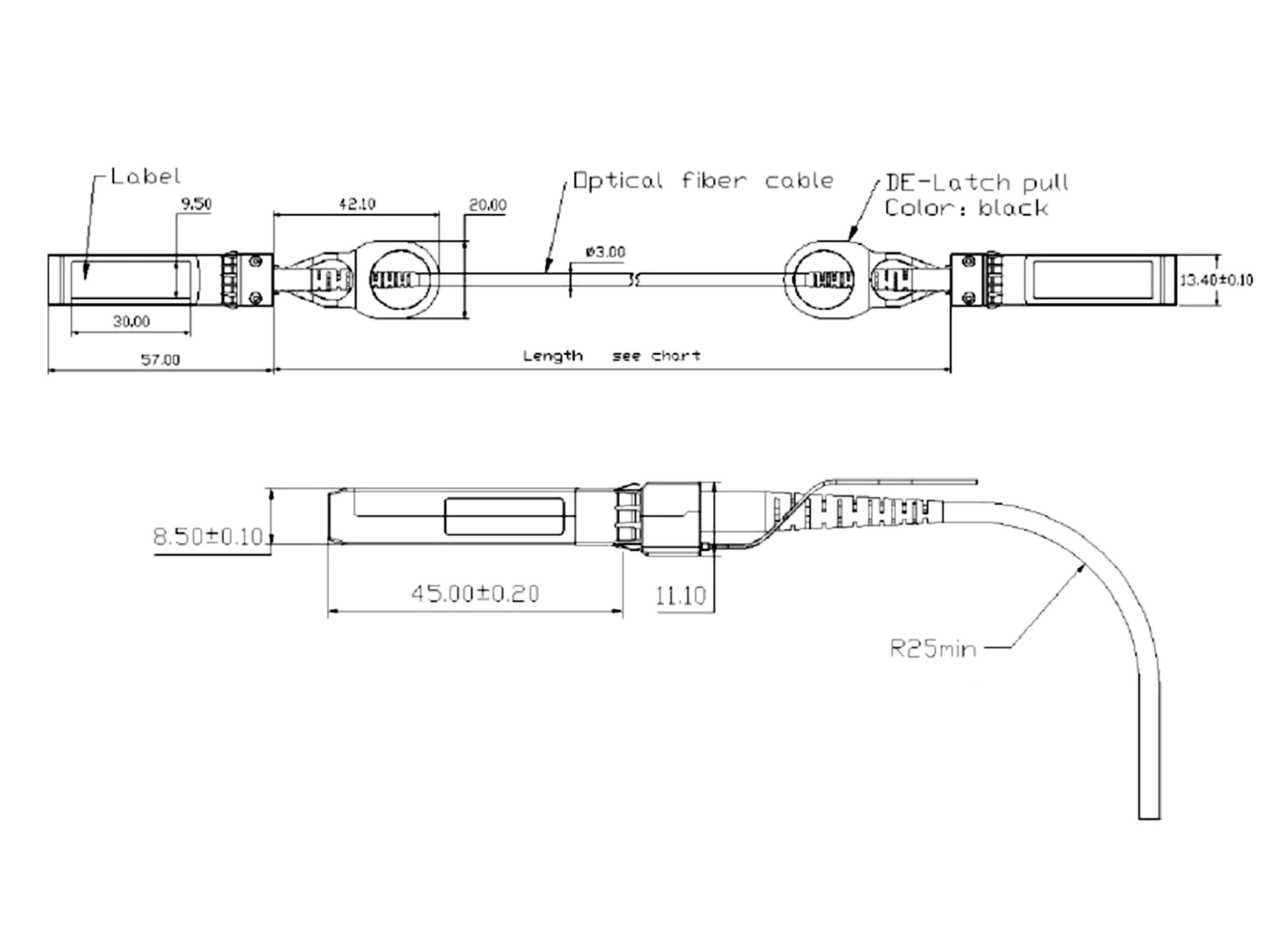

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT10SPX-AOC001
What is the maximum transmission distance of the Zutto ZT10SPX-AOC001?
The Zutto ZT10SPX-AOC001 can transmit data over distances of up to 300 meters using OM3 multimode fiber, providing reliable and high-performance connectivity for data-intensive applications.
What is the power consumption of the Zutto ZT10SPX-AOC001 Active Optical Cable?
The Zutto ZT10SPX-AOC001 operates with a power consumption of less than 0.35W per end, making it an energy-efficient solution for high-speed data transmission.
What applications are suitable for the Zutto ZT10SPX-AOC001?
This active optical cable is designed for 10Gbps Ethernet and Fibre Channel applications, ideal for use in data centers, high-performance computing clusters, 4G and 8G Fibre Channel networks, and server-to-server connectivity.
How does the Zutto ZT10SPX-AOC001 support high-speed data transfer?
The Zutto ZT10SPX-AOC001 features an 850nm VCSEL transmitter and a PIN photodetector receiver, ensuring exceptional signal integrity and enabling high-speed 10Gbps Ethernet and Fibre Channel communications with low latency.
Is the Zutto ZT10SPX-AOC001 easy to install?
Yes, the Zutto ZT10SPX-AOC001 comes with a hot-pluggable SFP+ form factor, making it quick and easy to deploy in diverse network environments without requiring additional configuration.
