Zutto ZT100CP-40K001
100G 40km CFP Optical Transceiver / Up to 40km transmission on SMF
The Zutto ZT100CP-40K001 is a high-performance 100Gbps CFP optical transceiver, designed for Ethernet and telecom applications requiring long- range connectivity. Supporting transmission distances up to 40km over single-mode fiber, it features a LAN-WDM EML laser and PIN receiver with SOA for enhanced performance. Its compliance with IEEE 802.3ba and ITU-T G.959 standards ensures seamless integration and reliable operation.
Equipped with MDIO-based digital diagnostics and a power-efficient design with a maximum consumption of 16W, the ZT100CP-40K001 operates across a wide temperature range of -5°C to 70°C. This transceiver is an ideal solution for scalable, energy-efficient, and robust network infrastructure.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Storage Temperature
|
TS
|
-40 |
-
|
+85 |
°C
|
|
|
Supply Voltage
|
Vcc
|
-0.5 | - |
+4.0
|
V
|
|
|
Operating Relative Humidity
|
RH
|
- |
-
|
+85
|
%
|
Recommended operating conditions
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Operating Case Temperature
|
TC
|
-5
|
-
|
+70 |
°C
|
|
|
Power Supply Voltage
|
VCC
|
3.13 | 3.3 |
3.47
|
V
|
|
|
Power Supply Current
|
ICC
|
- |
-
|
5
|
A
|
|
|
Maximum Power Dissipation
|
PD
|
- | - | 16 |
W
|
|
|
Aggregate Bit Rate
|
BRAVE
|
- | 103.125 |
-
|
Gb/s
|
|
|
Lane Bit Rate
|
BRLANE
|
-
|
25.78
|
- |
Gb/s
|
|
|
Transmission Distance
|
TD
|
- |
40
|
km |
Over SMF
|
Key Features

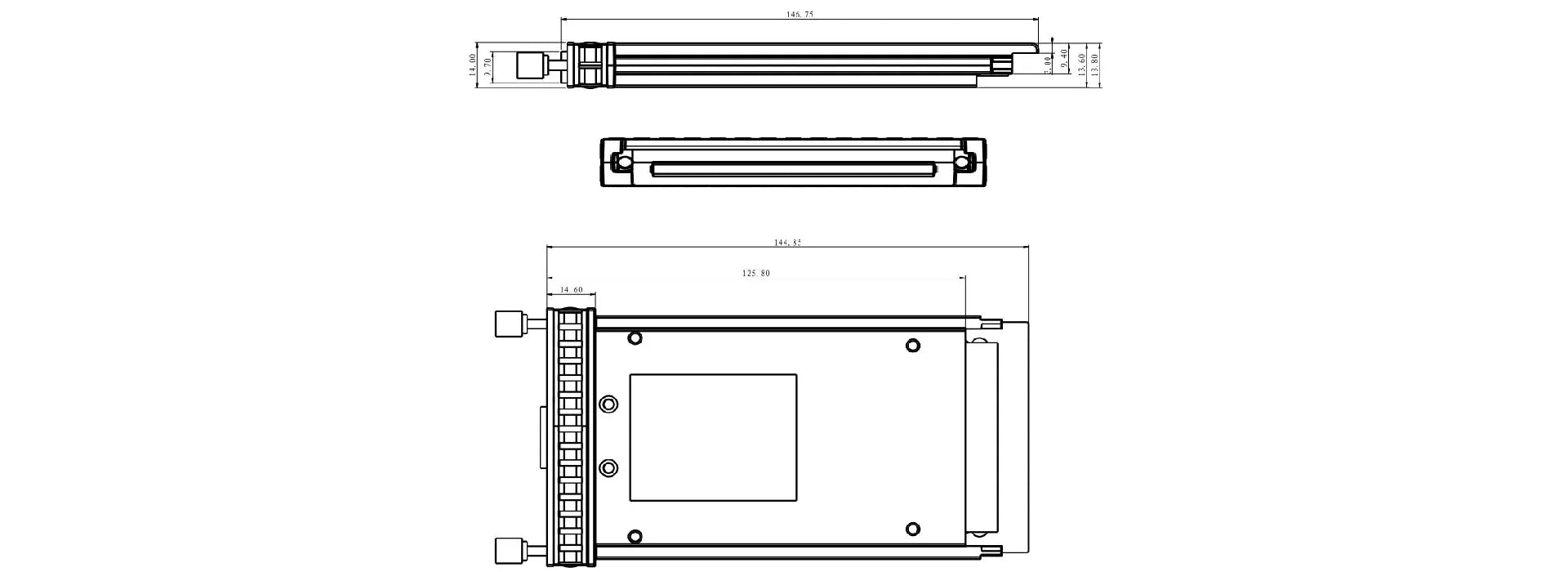

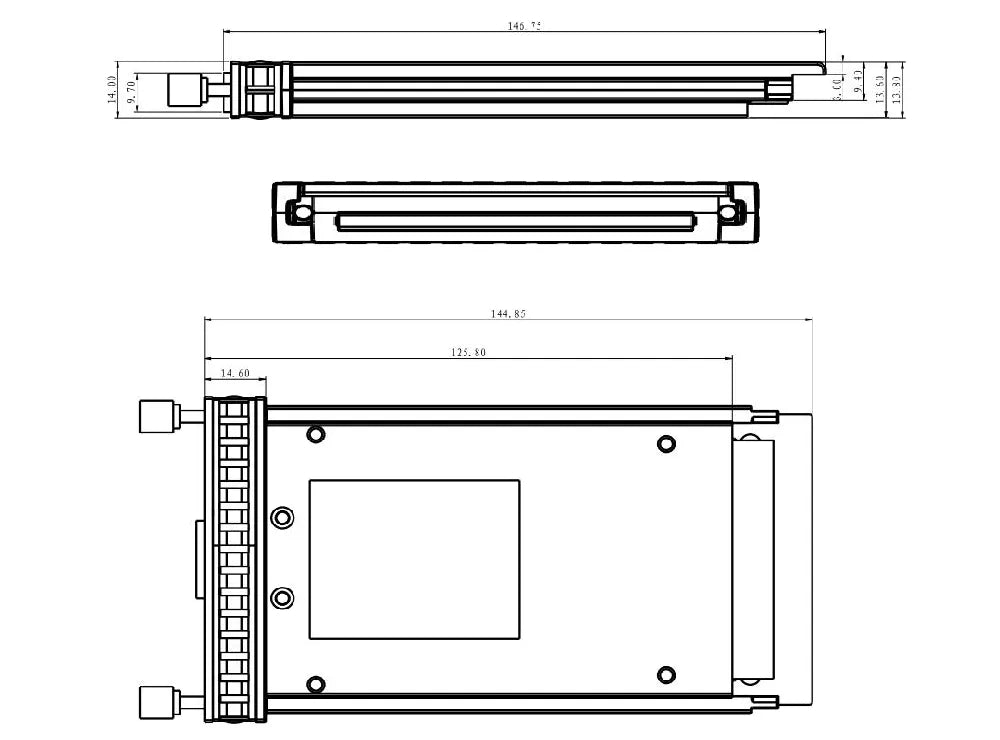

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZT100CP-40K001
What is the primary purpose of the ZT100CP-40K001 Optical Transceiver?
The ZT100CP-40K001 is a high-performance 100Gbps CFP optical transceiver designed for Ethernet and telecom applications, offering long-range connectivity of up to 40 kilometers over single-mode fiber.
What are the supported data rates for this transceiver?
This transceiver supports multi-rate data rates from 103.1Gbps to 111.8Gbps, including 100GBASE-100GE and OTU4, ensuring flexibility for various high-speed network applications.
How energy-efficient is the ZT100CP-40K001?
The transceiver operates with a power consumption of up to 16W, providing an optimized solution for scalable and energy-efficient network infrastructures.
Does the ZT100CP-40K001 support real-time diagnostics?
Yes, the ZT100CP-40K001 features MDIO-based digital diagnostic monitoring, enabling users to track temperature, voltage, laser bias current, and optical power in real time.
Is the ZT100CP-40K001 compliant with industry standards?
Absolutely. It complies with IEEE 802.3ba and ITU-T G.959 standards, ensuring compatibility and seamless integration with modern networking systems.
