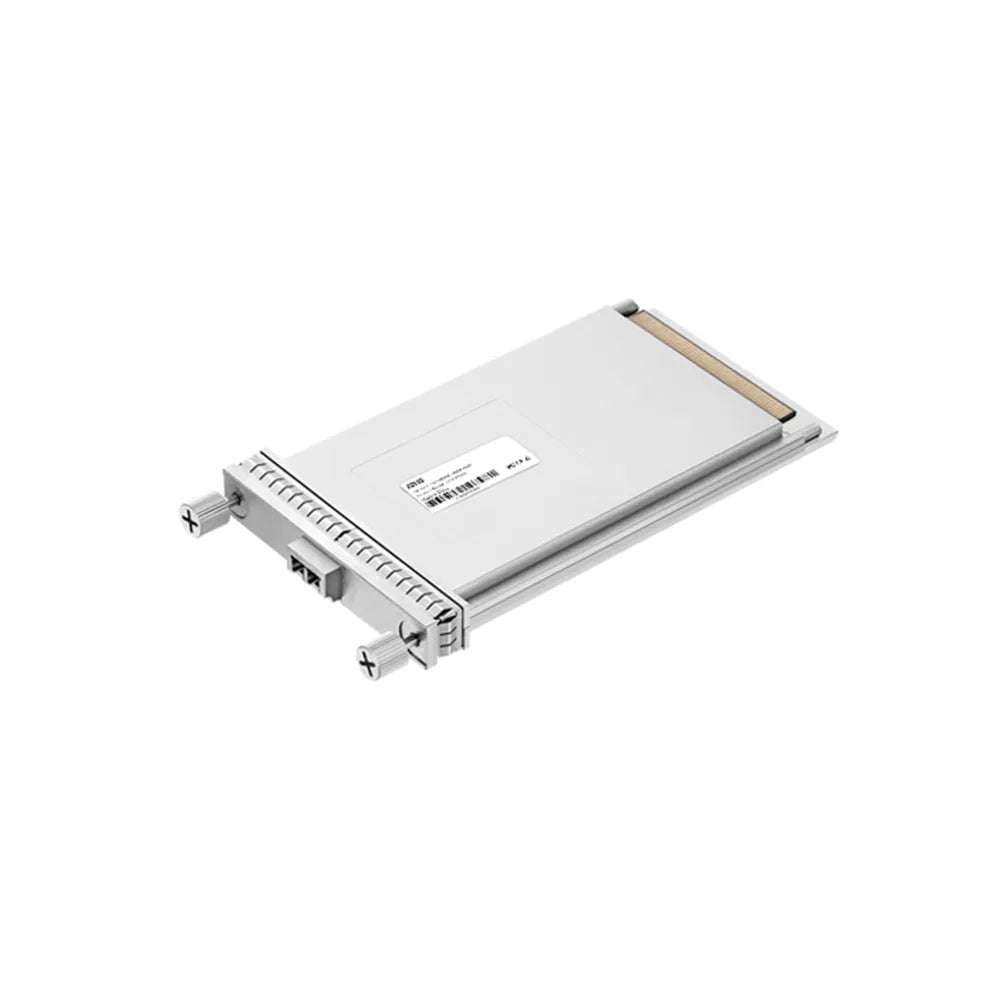

Zutto ZT100CP-10K001
100G 10km CFP Optical Transceiver / Up to 10km for G.652 SMF
The Zutto ZT100CP-10K001 is a 100Gbps CFP optical transceiver designed for long-range, high- speed data transmission over single-mode fiber. Compliant with IEEE 802.3ba 100GBASE-LR4 and CFP MSA standards, it ensures seamless connectivity for Ethernet and ITU-T OTU4 networks. Supporting a 10km range with a LAN-WDM EML transmitter and PIN receiver, it offers superior performance for data centers and telecom applications.
This hot-pluggable transceiver operates with low power consumption under 12W and features a duplex LC connector and robust MDIO management for real-time monitoring. Its advanced design and compliance with RoHS standards make it an energy- efficient and environmentally responsible choice for modern networking solutions.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
Storage temperature(case)
|
Tstg
|
- |
-40
|
+85 |
℃
|
|
|
Relative humidity
|
RH
|
0 | - | 85 |
%
|
|
|
Damage Threshold for Receiver
|
Pmax
|
- | - |
+10.0
|
dBm
|
|
|
Power Supply
|
Vcc 3.3V
|
- |
-0.3
|
+3.6
|
V
|
|
|
Power Supply
|
Vcc 5.0V
|
- | - | - |
V
|
|
|
Input 3.3V LVCMOS signal level
|
Vi
|
- |
-0.3
|
Vcc+0.3
|
V
|
|
|
Input 1.2V LVCMOS signal level
|
Vi
|
-0.3
|
1.6
|
V
|
||
|
ESDSensitivity on module and all host pins
|
HBM
|
Human Body model
R=1.5K,
C=100pF
|
- | 2000 |
V
|
Recommended operating conditions
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
|
OperatingCase Temperature
|
Tc
|
- | - | +70 |
℃
|
|
|
Supply voltage
|
Vcc 3.3V
|
+3.14 |
+3.3
|
+3.47 |
V
|
|
|
Supply Current
|
Icc 3.3V
|
- | - |
3.3
|
A
|
|
|
Power dissipation
|
P
|
- |
-
|
12
|
W
|
|
|
Low Power dissipation
|
PLow
|
2 |
W
|
|||
|
In-rush Curent
|
inrush
|
50
|
mA/us
|
|||
|
Turn-off rush Curent
|
I-turnoff
|
-50
|
mA/us
|
|||
|
Link Distance
|
L
|
2M
|
- |
10km
|
G.652 SMF
|
Key Features

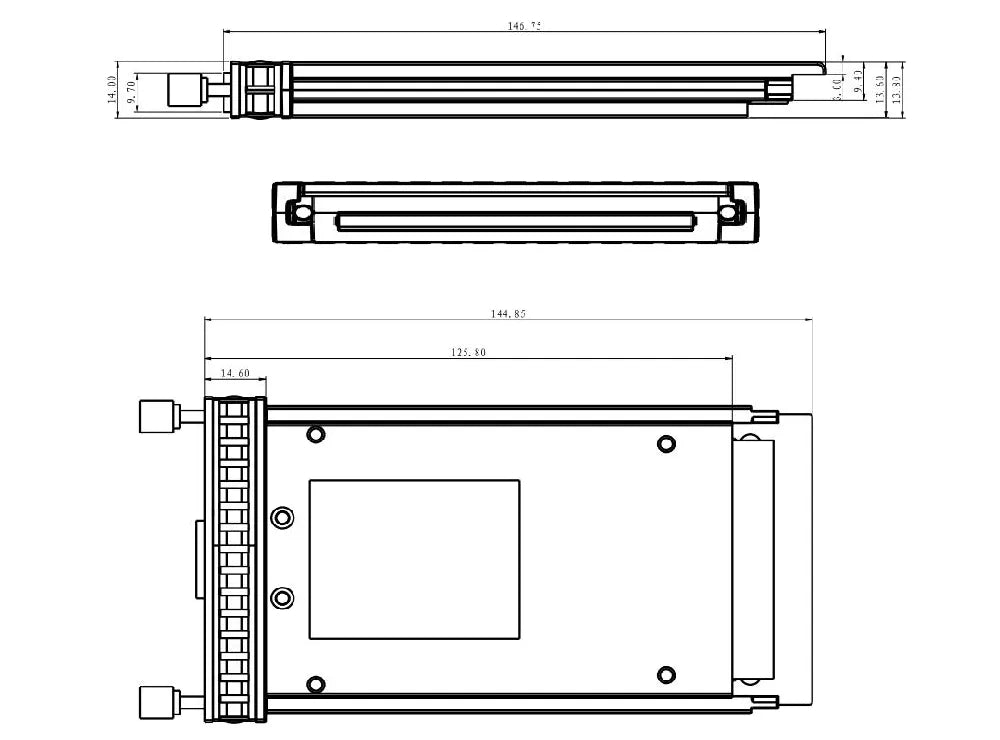

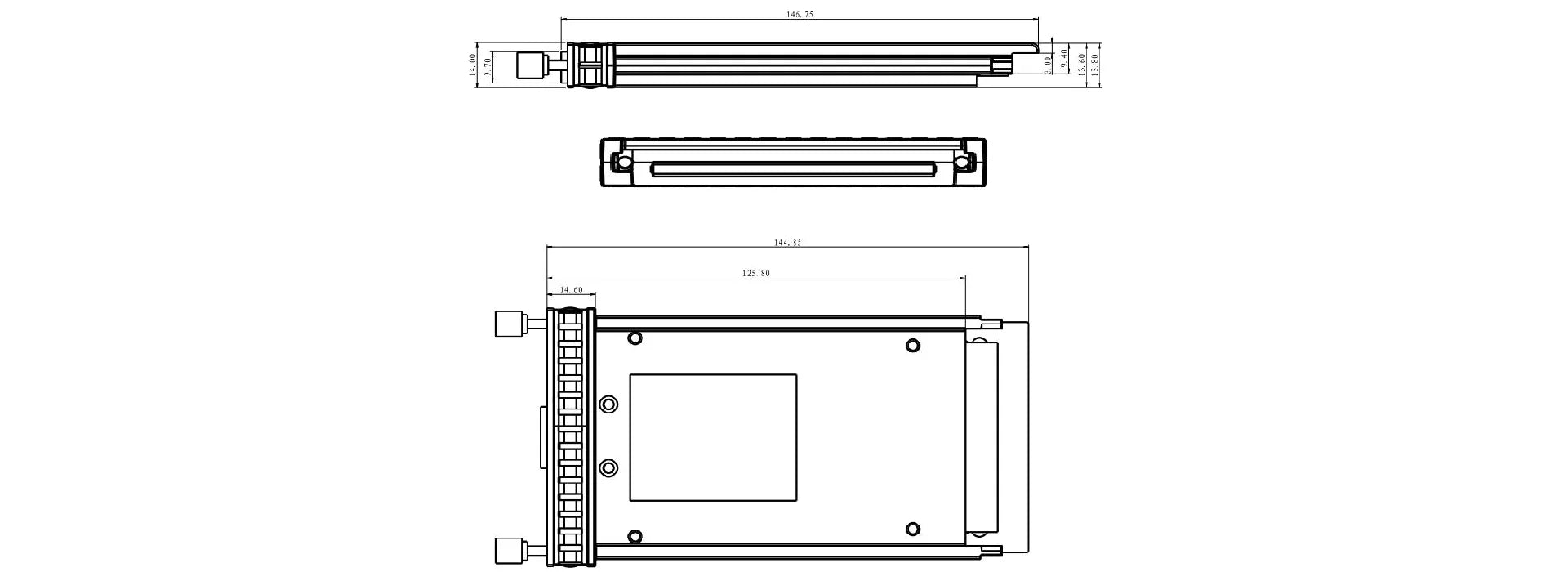

Mechanical Dimensions(Unit:mm)
