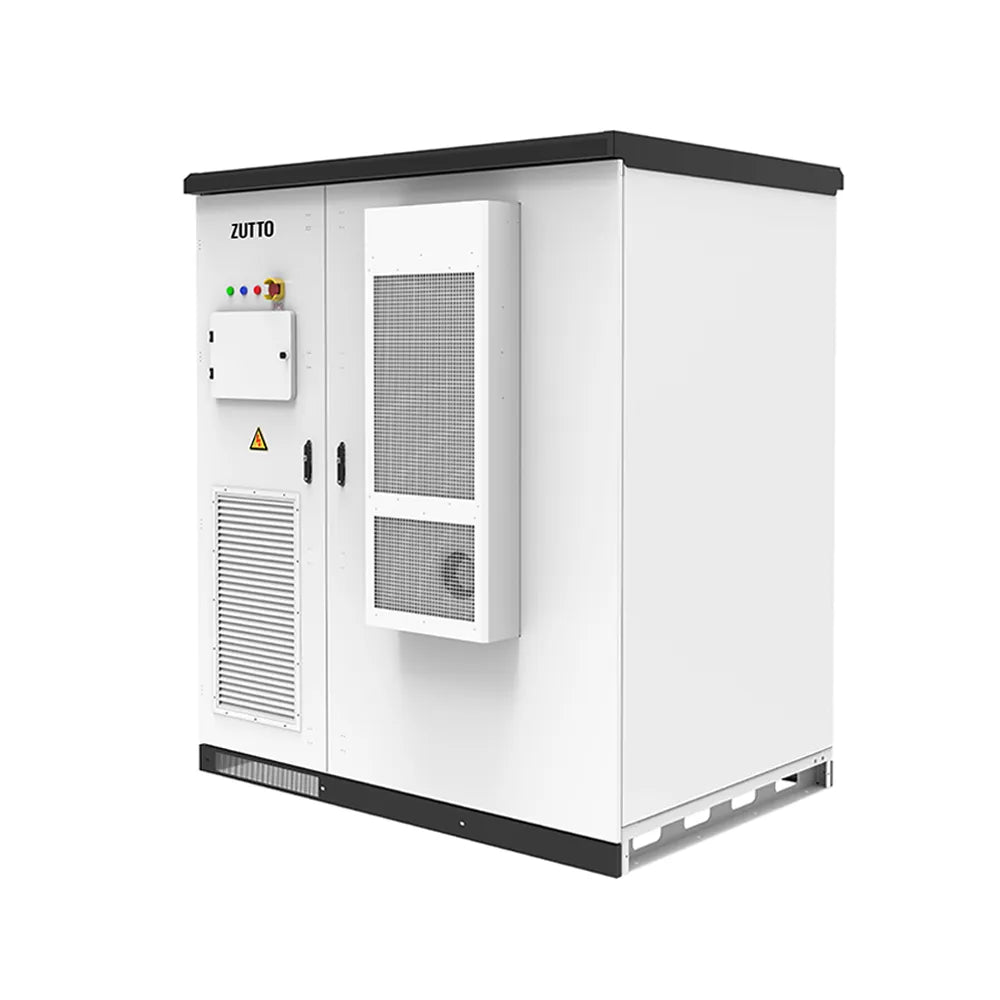

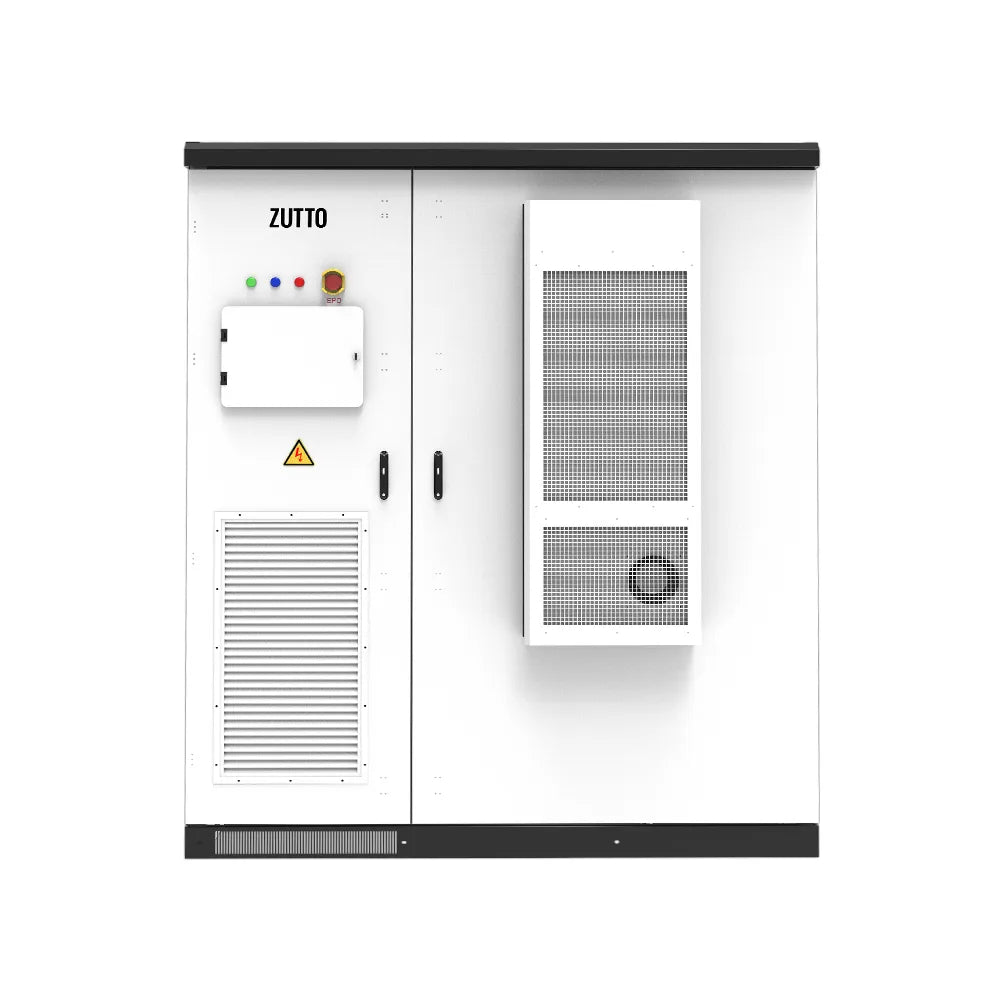

Zutto PowerVault16
Powering the Future, Safeguarding Energy
The Zutto PowerVault16 is a 215kWh/100kW all-in-one cabinet energy storage system, designed for industrial and commercial applications. It features high- performance LiFePO4 battery technology, a modular battery cluster design, and an advanced battery management system (BMS) for real-time monitoring, protection, and efficiency optimization. Equipped with air cooling, fire suppression system, and IP54 enclosure, it ensures long service life and safety. The system supports RS485 and CAN communication, making it a reliable and scalable energy storage solution for backup power, peak shaving, and renewable energy integration.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
System scheme design
1.1 System Overview
According to the project demand,One 1800*1200*2300mm container is needed to place the energy storage containers with the energy storage capacity of 215KWh.
1.2 Scheme design
Scheme configuration
| No. | Name | Unit | Qty | Description |
|---|---|---|---|---|
| 1 | Battery container (1800*1200*2300mm) | Set | 15 | Electric energy storage part, rated capacity 14.336KWh |
| 2 | PCS (100KW) | Set | 1 | Battery voltage range: 420-850V AC Voltage: 3L/N/PE, 320/460Vac Nominal power: 100KW AC frequency: 50/60Hz |
| 3 | Fire fighting system | Set | 1 | Heptafluoropropane gas fire extinguishing system + fire extinguisher, manual alarm system |
| 4 | HMI | Set | 1 | It is set by the PCS |
1.3 Basic Parameters
| No. | Name | Parameter | Remarks |
|---|---|---|---|
| 1 | Enclosure | IP65 | - |
| 2 | Weight | 3000KG | Battery+PCS |
| 3 | Cycle | ≥6000 | 90%DOD |
| 4 | Cooling method | Air cooling | - |
Key Features
Connectivity Solutions
ZTESS030
Powering the Future, Safeguarding Energy

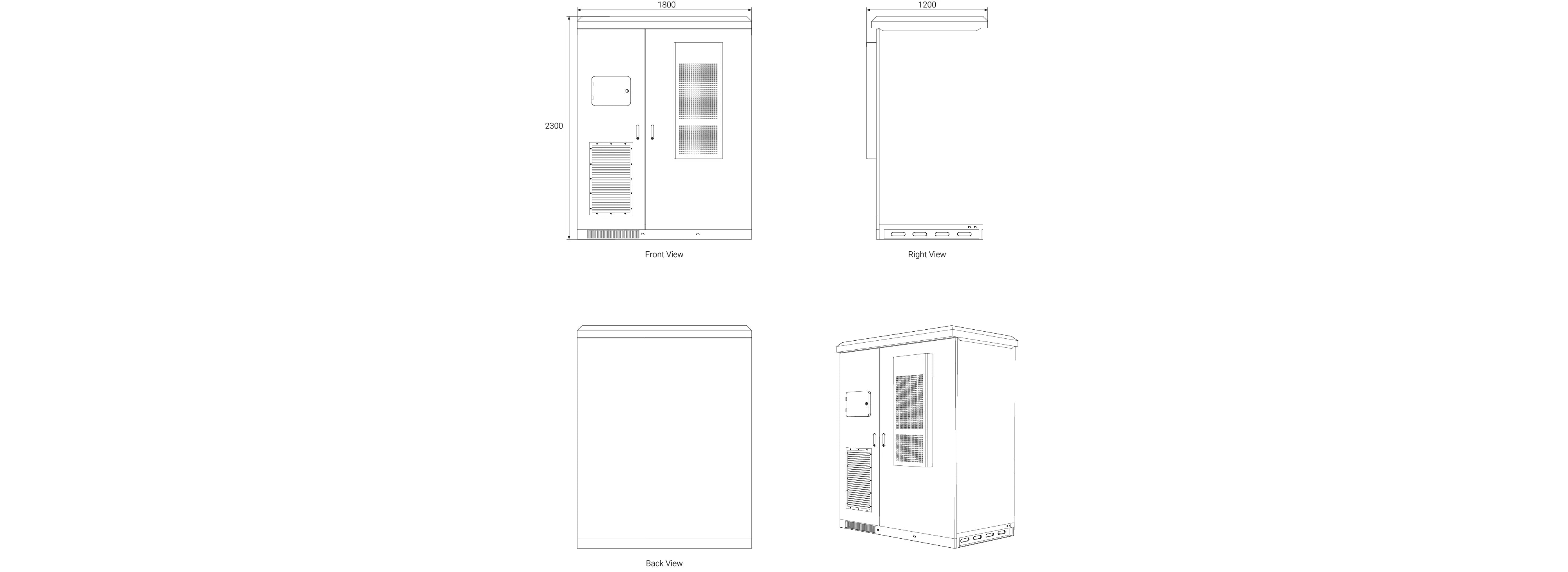

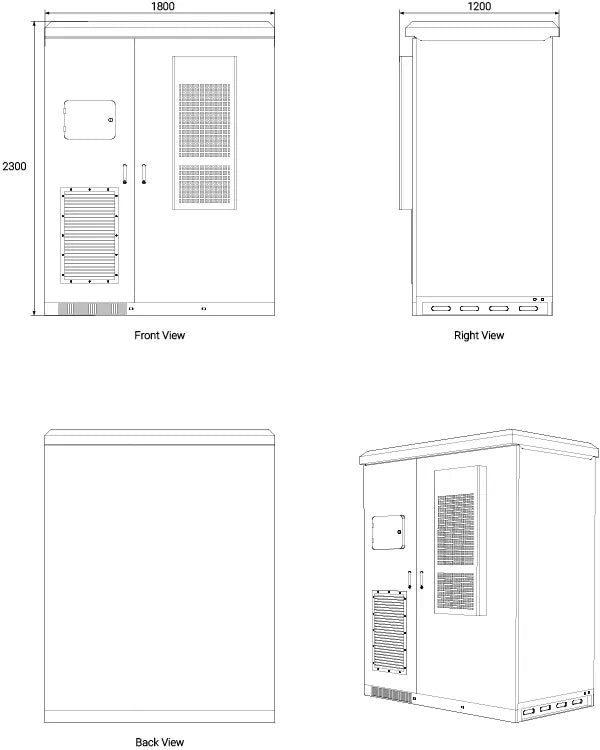

Mechanical Dimensions(Unit:mm)
Quality Certifications
