Zutto PowerVault15, a 51.2V 100Ah LiFePO4 rack-mounted battery with a 3U compact design, offering intelligent BMS protection, scalability, and real-time monitoring via RS232, RS485, and CAN communication.

Zutto PowerVault15
Smart, Safe, and Scalable Energy Storage

Name: Zutto PowerVault15 Smart, Safe, and Scalable Energy Storage
Brand: ZUTTO
Availability: OutOfStock

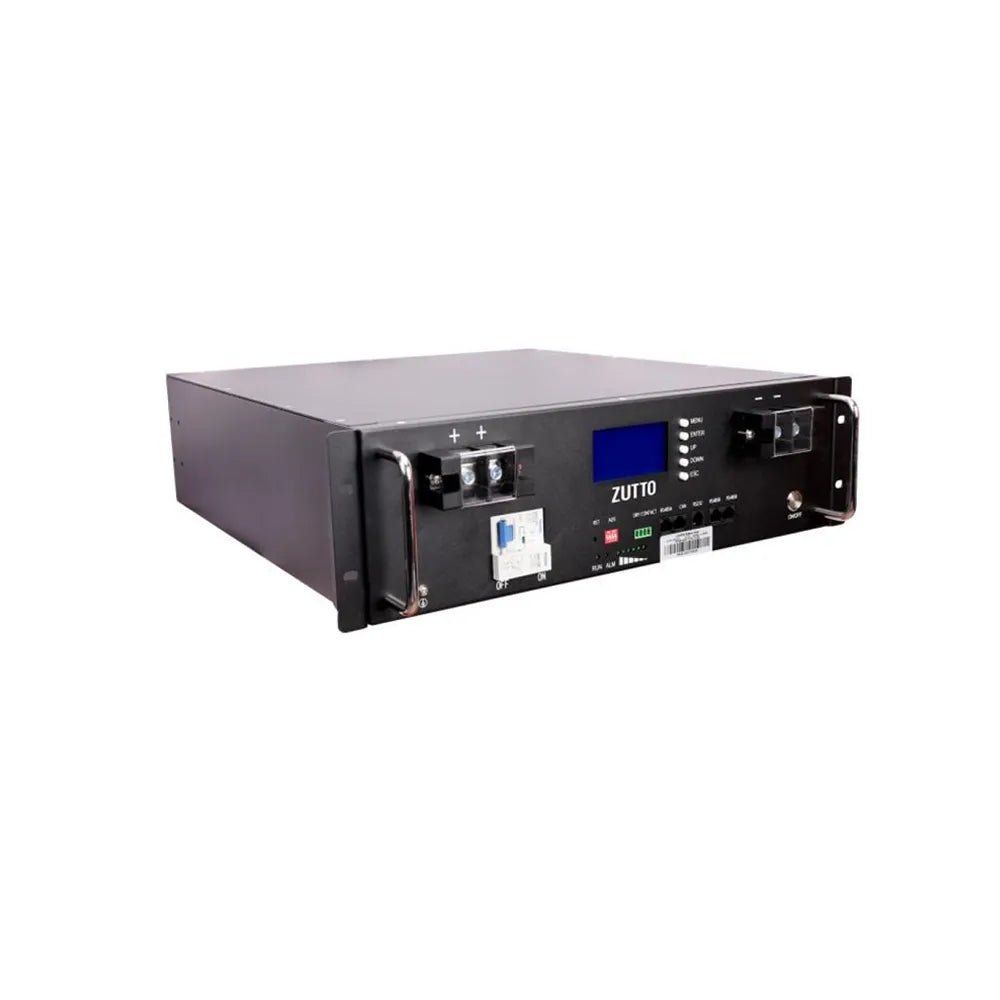

The Zutto PowerVault15 is a 51.2V 100Ah LiFePO4 rack- mounted battery designed for industrial and commercial energy storage. It features a compact 3U design for efficient space utilization and scalability, allowing for parallel expansion. With intelligent BMS protection, it ensures overcharge, over-discharge, short circuit, and temperature control for enhanced safety. The system supports RS232, RS485, and CAN communication, providing real-time monitoring and remote management. With high energy efficiency, long cycle life, and robust protection features, Zutto PowerVault15 is a smart and reliable solution for modern energy storage needs.

REQUEST MORE INFO ▶

Download Data Sheets

Warranty

This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.

Battery Pack Specifications

No.	Item	General Parameter	Remark
1	Combination Method	16S1P	51.2V 100Ah
2	Rated Capacity	Typical: 100Ah Minimum: 98Ah	Standard Discharge after Standard charge (package)
3	Voltage Range	43.2~58.4V
4	Voltage at End of Discharge	43.2V	Discharge Cut-off Voltage
5	Charging Voltage	58.4V
6	Internal Impedance	≤20mΩ	Internalresistance measured atAC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 time
7	Standard Charge	Constant Current 0.2C	Charge time (Approx.): 6.5h
8	Standard Discharge	Constant current: 0.2C end voltage
9	Maximum Continuous Charge Current	100A	T ≥ 10℃
10	Maximum Continuous Discharge Current	100A	T ≥ 10℃
11	Operation Temperature Range	Charge: 0~50℃ Discharge: -20~55℃	60±25% R.H. Bare Cell
12	Storage Temperature Range	Less than 12 months: -10~35℃ Less than 3 months: -10~45℃ Less than 7 days: -20~55℃	60±25% R.H. at the shipment state
13	Dimensions	L514W486H132.5mm	L514W486H132.5mm
14	Weight (Approx.)	44.3kg	44.3kg

Key Features

robust safety features with 15-layer protection for reliable and secure energy storage.

Advanced BMS Protection

Intelligent battery management system prevents overcharge, over-discharge, overcurrent, and overheating.

Advanced safety technology for improved battery reliability | Singapore high-security energy solutions

Scalable & Space-Saving Design

Compact 3U rack-mounted structure, ideal for parallel expansion and modular
systems.

Solar inverter integrated energy management icon, enabling intelligent power monitoring and optimization for improved energy efficiency, designed for sustainable energy solutions in Singapore.

Seamless Communication & Monitoring

Supports RS232, RS485, and CAN
interfaces for remote monitoring and system integration.

Customizable battery capacity options for various needs | Singapore energy storage solutions

Scalable and Efficient

Supports over 6000 charge/discharge cycles, ensuring durability and costeffectiveness.

Connectivity Solutions

Diagram illustrating the working principle of Zutto PowerVault energy storage system in Singapore. The system integrates AC and DC power sources, using an inverter to convert DC from PV and battery BMS to AC for grid and load management, ensuring seamless energy flow and backup through diesel generators and uninterrupted power sources.

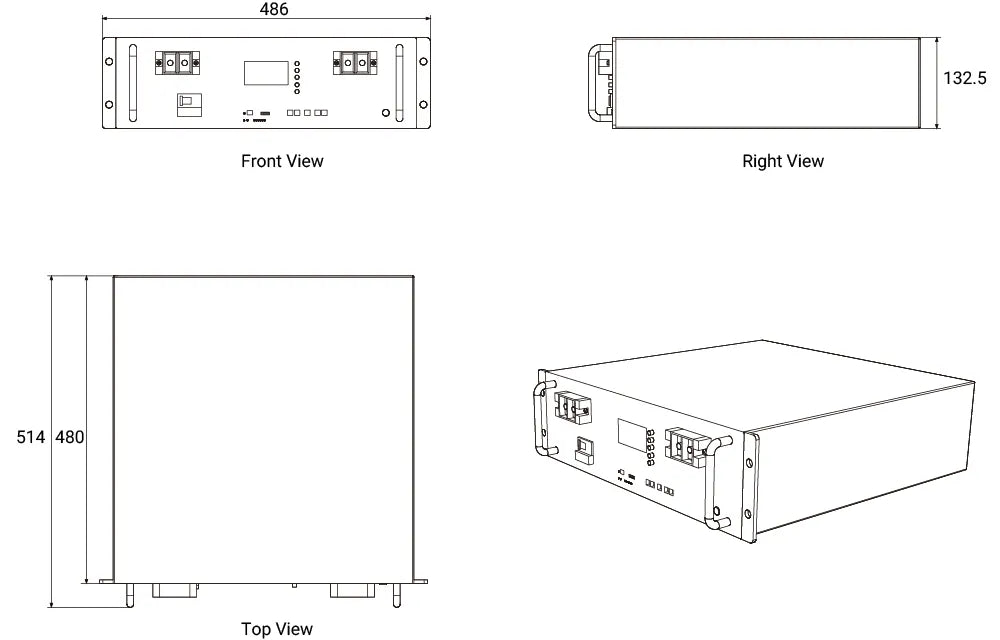

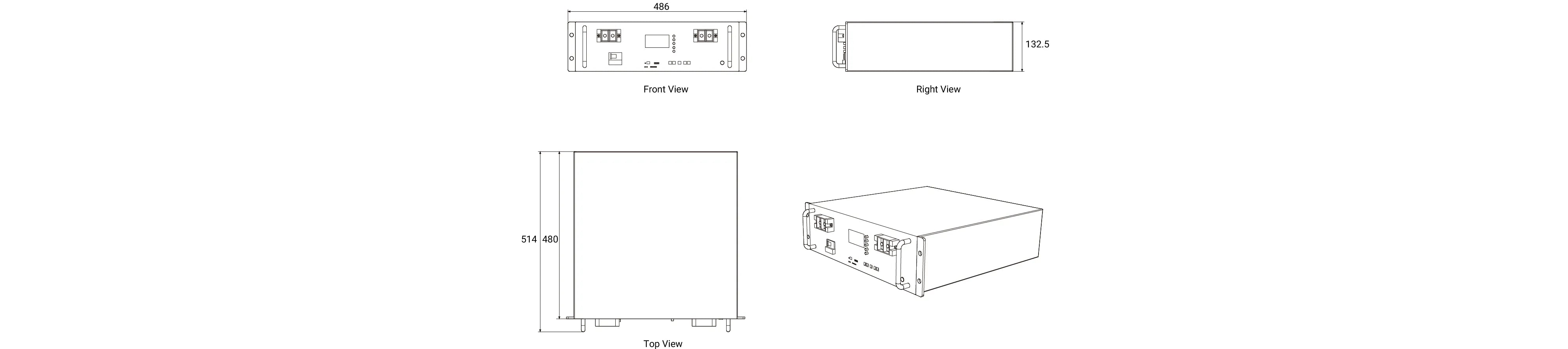

Mechanical Dimensions(Unit:mm)

Mechanical dimensions of Zutto powervault15 showing front, left, back, and top views for precise installation and planning.

Quality Certifications

Zutto PowerVault15Smart, Safe, and Scalable Energy Storage
