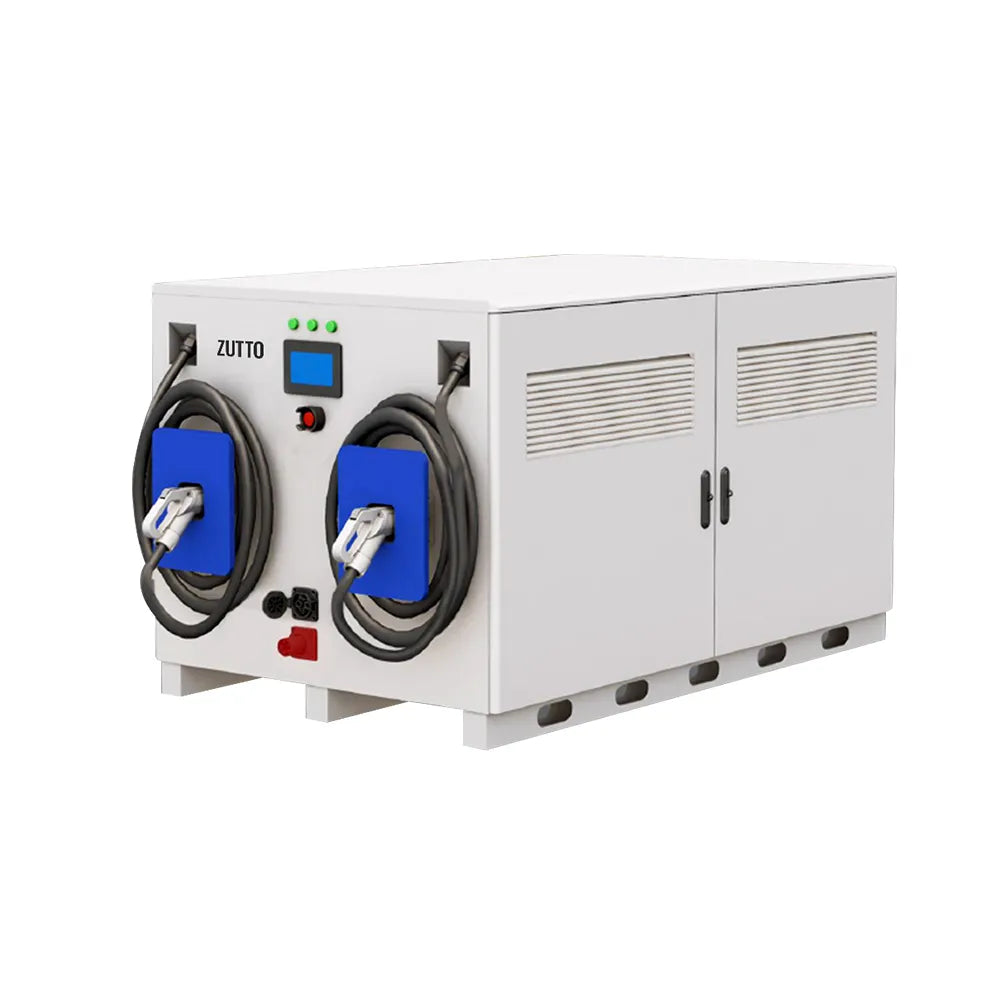

Zutto PowerVault14
Empowering EV Charging Futures

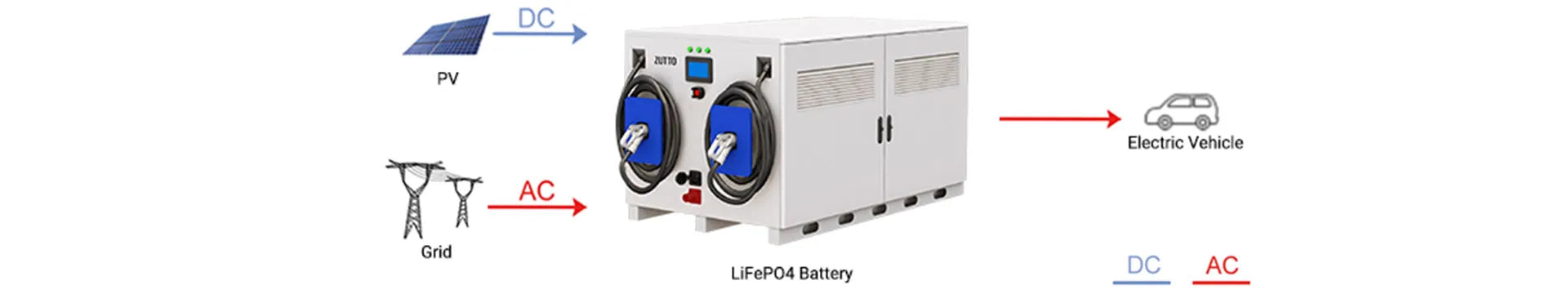

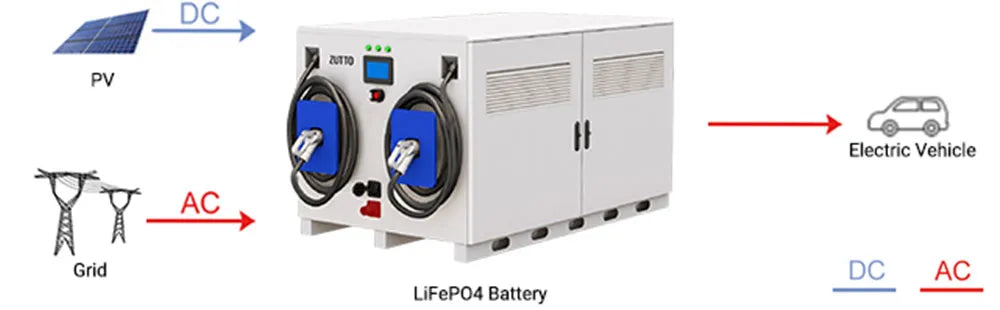

The Zutto PowerVault14 is an all-in-one energy storage and fast-charging solution, designed to seamlessly integrate solar, DC, and AC charging systems. With capacities ranging up to 343kWh and 240kW fast-charging capabilities, it ensures efficient and sustainable energy delivery for electric vehicle infrastructure. This system offers IP54-rated durability, supports global charging standards, and combines advanced energy storage with fast-charging modules to power the transition to green mobility.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 60KWh+60KW | 141KWh+120KW | 172KWh+120KW | 343KWh+240KW |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 60KWh | 141KWh | 172KWh | 343KWh |
| Fast Charging Power | 60KW | 120KW | 120KW | 240KW | |
| Maximum DC Charging Power | 30KW | 70KW | 80KW | 120KW | |
| Maximum AC Charging Power | 30KW | 70KW | 60KW | 30KW | |
| Maximum PV Charging Power | 38KW | 70KW | 70KW | 120KW | |
| Communication Method | RS485/WiFi/4G | RS485/WiFi/4G | RS485/WiFi/4G | RS485/WiFi/4G | |
| Protection Level | IP54 | IP54 | IP54 | IP54 | |
| Parameter | Dimension | 1100*850*1050mm | 1700*1350*1000mm | 1800*1650*1050mm | / |
| Weight | 750kg (approx.) | 1400kg (approx.) | 1550kg (approx.) | / | |
| Temperature | Charge: 0°C-50°C Discharge: -15°C-60°C |
Charge: 0°C-50°C Discharge: -15°C-60°C |
Charge: 0°C-50°C Discharge: -15°C-60°C |
Charge: 0°C-50°C Discharge: -15°C-60°C |
|
| Material / Colour | Metal / White | Metal / White | Metal / White | Metal / White |
Key Features
Connectivity Solutions
ZTESS027
Empowering EV Charging Futures
Quality Certifications
FAQs for Zutto PowerVault14
What is the battery capacity range of the Zutto PowerVault14?
The Zutto PowerVault14 offers flexible battery capacity options, ranging from 60kWh to 343kWh, allowing businesses and industries to scale their energy storage according to their needs.
What is the fast-charging capability of the Zutto PowerVault14?
The Zutto PowerVault14 can deliver up to 240kW of fast-charging power, making it an ideal solution for electric vehicle (EV) infrastructure, providing rapid recharging capabilities.
What types of power sources can the Zutto PowerVault14 integrate with?
The Zutto PowerVault14 supports DC, AC, and PV energy inputs, seamlessly integrating with solar, grid, and other energy systems to provide a sustainable and versatile energy solution.
What is the protection rating of the Zutto PowerVault14?
The Zutto PowerVault14 has an IP54 protection rating, ensuring it is dust and water-resistant, making it suitable for both indoor and outdoor installation in various environmental conditions.
What communication protocols are supported by the Zutto PowerVault14?
The Zutto PowerVault14 supports RS485, WiFi, and 4G communication, allowing for remote monitoring and integration with various energy management systems, ensuring efficient operation and management.
