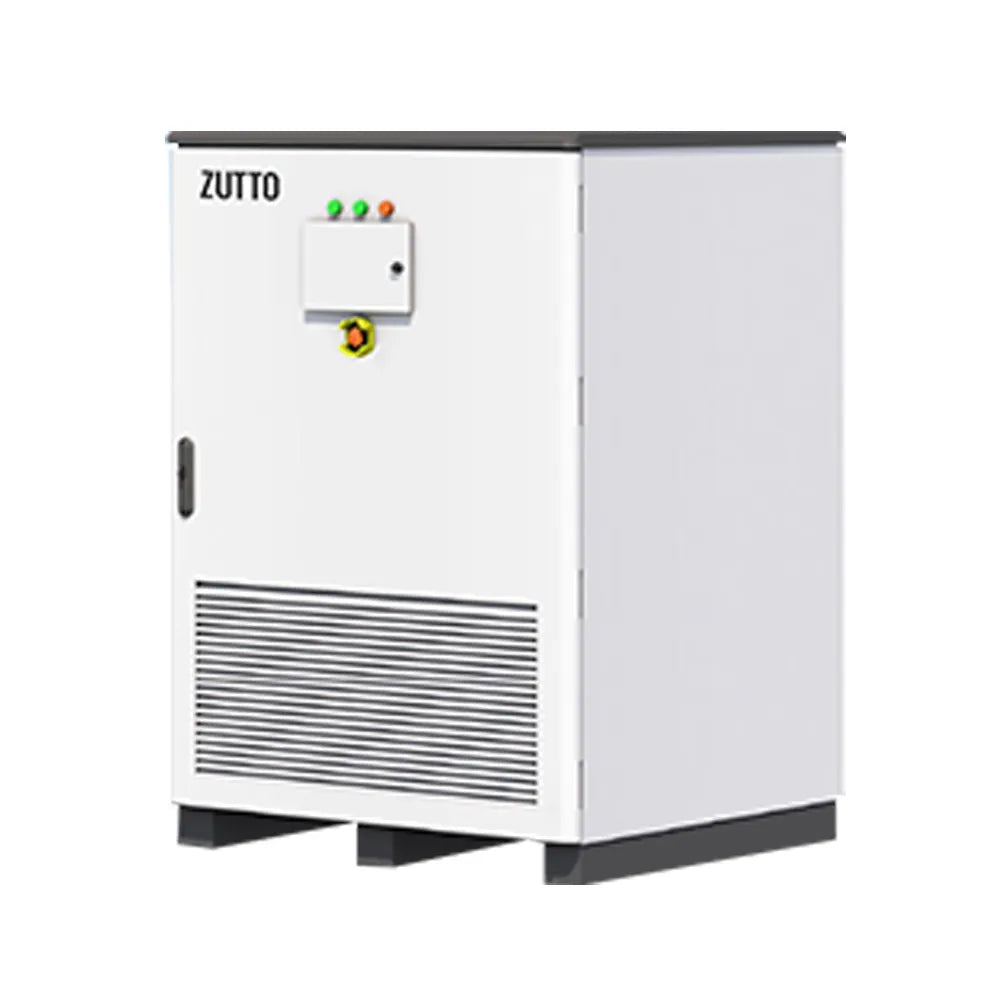

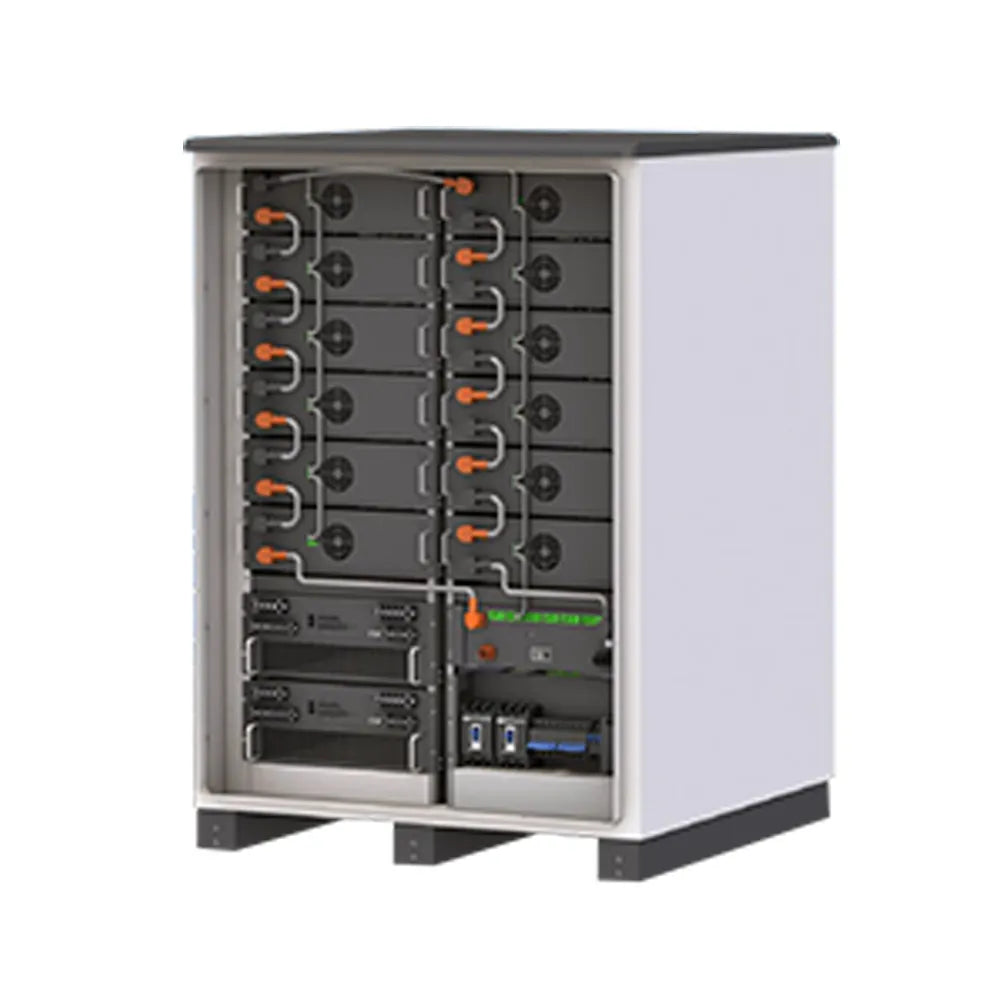

Zutto PowerVault11
Turbocharge Your Energy Efficiency
The Zutto PowerVault11 is an advanced hybrid energy storage solution, built to deliver exceptional power efficiency and scalability. With capacities ranging from 32kWh to 215kWh and PCS output up to 100kW, it integrates BMS, PCS, and EMS seamlessly into a robust IP54-rated enclosure. Its high MPPT efficiency and ability to support hybrid grid applications make it the ideal choice for demanding industrial and commercial energy needs.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 32KWh+15KW | 50KWh+30KW | 115KWh+50KW | 215KWh+100KW |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 32kWh | 50kWh | 115kWh | 215kWh |
| AC Voltage | 400Vac/230Vac | 400Vac/230Vac | 400Vac/230Vac | 400Vac/230Vac | |
| Support Diesel Engine | YES | YES | YES | YES | |
| Integrated Transformer | YES | YES | YES | YES | |
| System Parallel | 5 | 5 | 5 | 5 | |
| Hybrid Inverter | PCS Power | 15KW | 30KW | 50KW | 100KW |
| MPPT Power | 15KW | 30KW | 50KW | 120KW | |
| MPPT Voltage | 90~450Vdc (4-Way) | 200~820Vdc (2-Way) | 200~800Vdc (4-Way) | 250~850Vdc (4-Way) | |
| Protection Level | IP54 | IP54 | IP54 | IP54 | |
| Parameter | Dimension | 600*900*1150mm | 600*1000*1950mm | 1060*1355*1850mm | 1450*1355*2190mm |
| Weight | 500kg (approx.) | 740kg (approx.) | 1350kg (approx.) | 2930kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/ Colour | Metal / White+Black | ||||
Key Features
Connectivity Solutions
ZTESS024
Turbocharge Your Energy Efficiency
Quality Certifications
FAQs for Zutto PowerVault11
What is the battery capacity range of the Zutto PowerVault11?
The Zutto PowerVault11 offers flexible battery capacity options ranging from 32kWh to 215kWh, making it suitable for various energy storage needs in both residential and commercial applications.
What is the maximum PCS power output of the Zutto PowerVault11?
The Zutto PowerVault11 supports PCS power outputs of 15kW, 30kW, 50kW, and 100kW, offering scalable options to meet different power requirements in industrial and commercial settings.
What types of power sources does the Zutto PowerVault11 support?
The Zutto PowerVault11 supports integration with solar MPPT systems, diesel engines, and grid power, providing a versatile solution for energy storage and management in hybrid systems.
What is the protection rating of the Zutto PowerVault11?
The Zutto PowerVault11 comes with an IP54 protection rating, ensuring it is resistant to dust and water, making it suitable for deployment in diverse environments, both indoors and outdoors.
What is the operating temperature range for the Zutto PowerVault11?
The Zutto PowerVault11 can be charged within a temperature range of 0°C to 50°C and discharged within -15°C to 60°C, providing reliable performance in a wide range of environments.
