Zutto PowerVault09
Maximum Power, Unmatched Efficiency

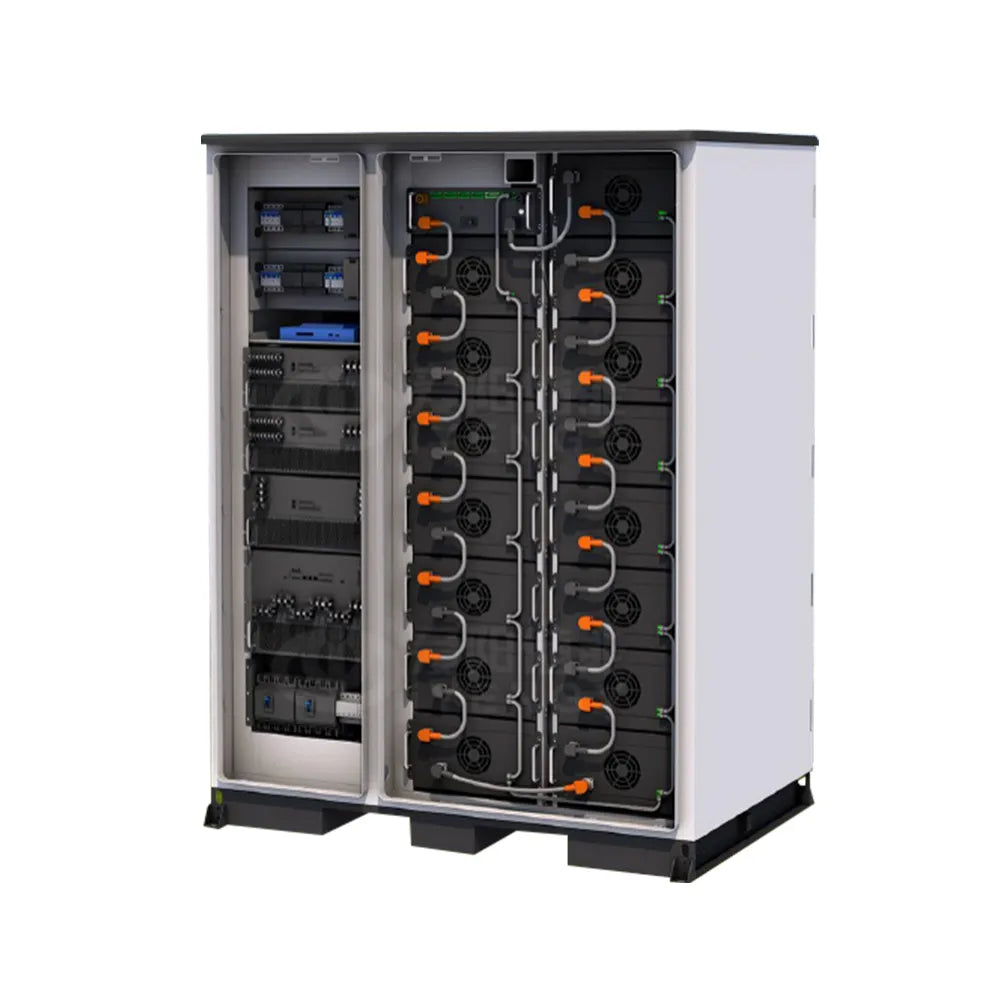

The Zutto PowerVault09 is a cutting-edge hybrid energy storage solution, offering a capacity range of 287kWh to 362kWh with a robust 100kW PCS output. Designed for industrial-scale applications, it integrates solar MPPT, diesel generator compatibility, and advanced safety systems. With support for up to 10 parallel units, this solution ensures scalable energy storage with superior performance and reliability.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 287KWh+100KW | 305KWh+100KW | 321KWh+100KW | 341KWh+100KW | 362KWh+100KW |
|---|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 287kWh | 305kWh | 321kWh | 341kWh | 362kWh |
| AC Voltage | 400Vac/230Vac | |||||
| Support Diesel Engine | YES | YES | YES | YES | YES | |
| System Parallel | 10 | 10 | 10 | 10 | 10 | |
| Hybrid Inverter | PCS Power | 100KW | 100KW | 100KW | 100KW | 100KW |
| MPPT Power | 120KW | 120KW | 120KW | 120KW | 120KW | |
| MPPT Voltage | 250~850Vdc (1 or 4 Way) | 250~850Vdc (1 or 4 Way) | 250~850Vdc (1 or 4 Way) | 250~850Vdc (1 or 4 Way) | 250~850Vdc (1 or 4 Way) | |
| Protection Level | IP54 | IP54 | IP54 | IP54 | IP54 | |
| Parameter | Modules Dimension | 1580*1190*2140mm | 1580*1190*2355mm | 1580*1050*2090mm | 1580*1190*2355mm | 1580*1190*2355mm |
| Modules Weight | 2800kg (approx.) | 2930kg (approx.) | 2950kg (approx.) | 3100kg (approx.) | 3230kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
|||||
| Material/ Colour | Metal / White+Black | |||||
Key Features
Connectivity Solutions
ZTESS022
Maximum Power, Unmatched Efficiency
Quality Certifications
FAQs for Zutto PowerVault09
What is the battery capacity range of the Zutto PowerVault09?
The Zutto PowerVault09 offers a flexible capacity range from 287kWh to 362kWh, allowing for scalable energy storage solutions for large-scale commercial and industrial applications.
What is the PCS (Power Conversion System) output of the Zutto PowerVault09?
The Zutto PowerVault09 is equipped with a reliable 100kW PCS output, providing efficient energy conversion for commercial and industrial energy storage needs.
How many units of the Zutto PowerVault09 can be connected in parallel?
The Zutto PowerVault09 supports parallel configurations of up to 10 units, ensuring scalability and flexibility for expanding energy storage as demand increases.
What types of power sources can the Zutto PowerVault09 integrate with?
The Zutto PowerVault09 is compatible with solar MPPT systems, diesel generators, and grid power, offering flexibility for diverse energy management requirements and enabling uninterrupted power supply.
What safety features are included in the Zutto PowerVault09?
The Zutto PowerVault09 includes advanced safety features such as fire suppression systems and cooling systems, ensuring safe operation under various conditions and enhancing system reliability.
