Zutto PowerVault08
Advanced Power for Every Need

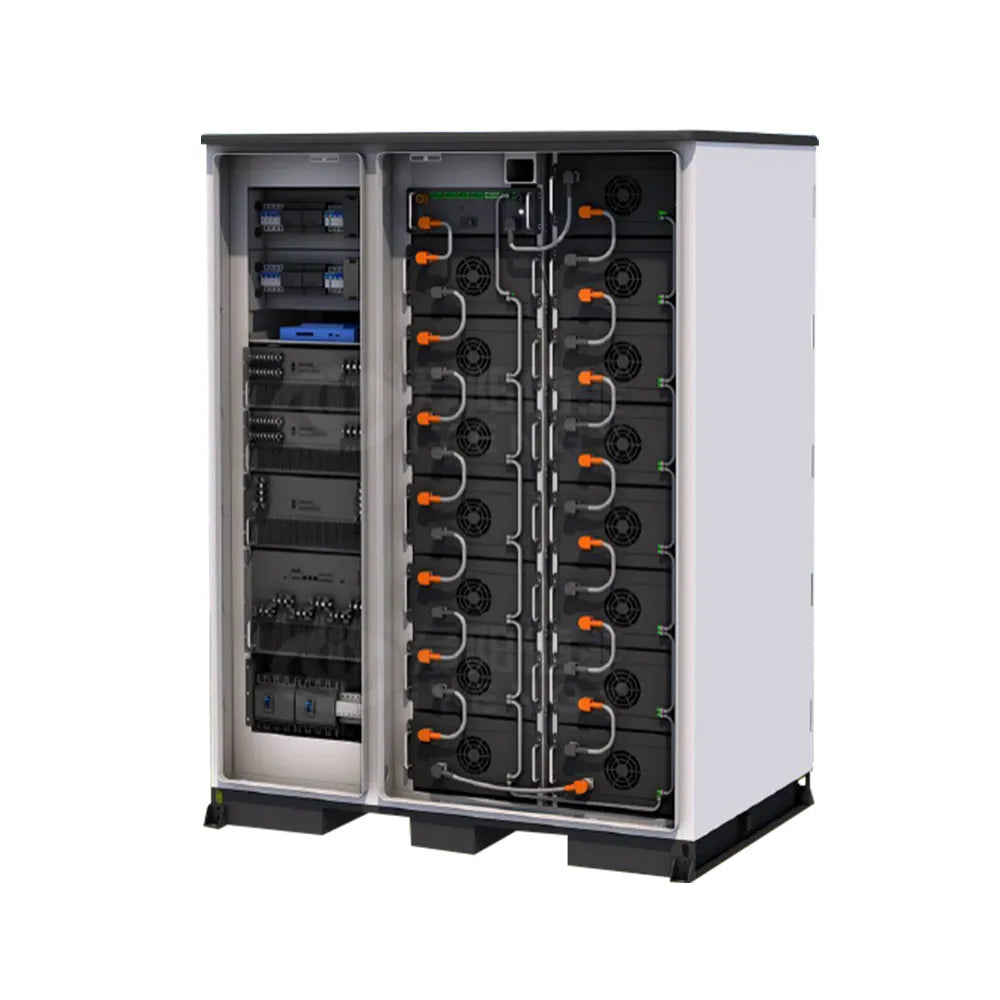

The Zutto PowerVault08 is a robust hybrid energy storage system, offering up to 241kWh of storage and 100kW PCS power for large-scale industrial and commercial applications. With integrated solar MPPT, diesel generator compatibility, and modular scalability supporting up to 10 units, it ensures seamless energy management. Engineered with automotive-grade craftsmanship, this system combines safety, reliability, and efficiency to deliver unmatched energy solutions.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 48KWh+30KW | 100KWh+50KW | 160KWh+80KW | 215KWh+100KW | 241KWh+100KW |
|---|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 48kWh | 100kWh | 160kWh | 215kWh | 241kWh |
| AC Voltage | 208Vac/120Vac, 230Vac/133Vac, 480Vac/277Vac | |||||
| Support Diesel Engine | / | YES | YES | YES | YES | |
| System Parallel | 6 | 4 | 10 | 10 | 10 | |
| Hybrid Inverter | PCS Power | 30KW | 50KW | 80KW | 100KW | 100KW |
| MPPT Power | 30KW | 60KW | 80KW | 120KW | 120KW | |
| MPPT Voltage | 200~800Vdc | 200~800Vdc | 250~850Vdc | 250~850Vdc | 250~850Vdc | |
| Protection Level | IP20 | IP54 | IP54 | IP54 | IP54 | |
| Parameter | Modules Dimension | 600*600*1850mm | 1060*1035*1850mm | 1060*1035*2090mm | 1580*1050*2090mm | 1580*1050*2090mm |
| Modules Weight | 500kg (approx.) | 1470kg (approx.) | 1900kg (approx.) | 2700kg (approx.) | 2750kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
|||||
| Material/ Colour | Metal / White+Black | |||||
Key Features
Connectivity Solutions
ZTESS021
Advanced Power for Every Need
Quality Certifications
FAQs for Zutto PowerVault08
What is the maximum battery capacity of the Zutto PowerVault08?
The Zutto PowerVault08 offers a flexible battery capacity range, with options available from 48kWh to 241kWh, catering to the large-scale energy storage needs of commercial and industrial applications.
What is the output power of the Zutto PowerVault08?
The Zutto PowerVault08 supports PCS output ranging from 30kW to 100kW, ensuring robust power delivery for demanding energy applications in large-scale commercial and industrial environments.
How many units can be connected in parallel with the Zutto PowerVault08?
The Zutto PowerVault08 supports parallel system connections of up to 10 units, providing scalable and modular solutions to meet growing energy demands in commercial and industrial sectors.
What is the protection rating of the Zutto PowerVault08?
The Zutto PowerVault08 features an IP54 protection rating, ensuring it is resistant to dust and water, making it suitable for use in diverse outdoor and indoor environments.
What types of energy sources are compatible with the Zutto PowerVault08?
The Zutto PowerVault08 supports integration with solar MPPT systems, diesel generators, and grid power, offering versatile energy management options for different operational needs and ensuring seamless energy storage and distribution.
