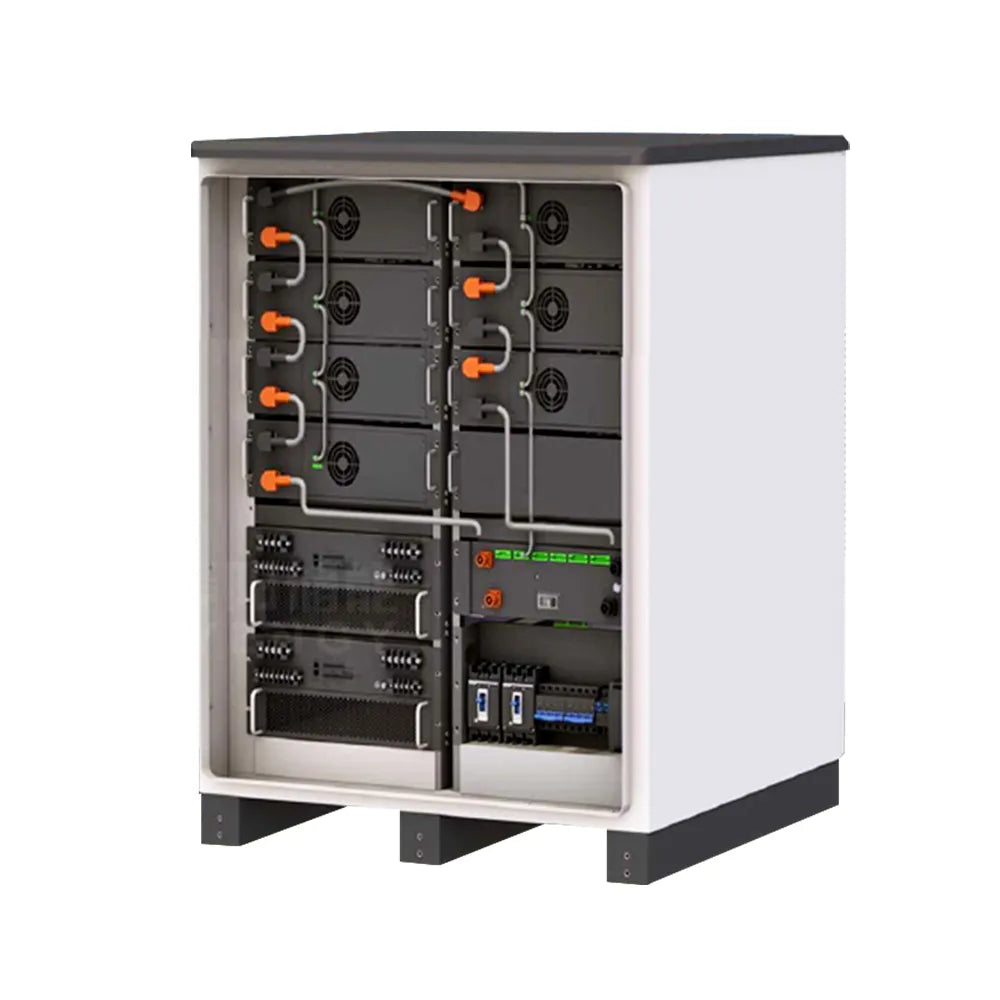

Zutto PowerVault06
Scalable Power, Secure Energy
The Zutto PowerVault06 is a robust and scalable hybrid energy storage solution designed for large-scale energy applications. With up to 128kWh capacity and a PCS power rating of 50kW, it seamlessly integrates solar MPPT, battery storage, and diesel generator connectivity. The system supports up to 5 parallel units for flexible deployment and includes built-in fire suppression, air conditioning, and an IP54-rated enclosure for reliable operation in diverse environments.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 100KWh+50KW/IP54 | 115KWh+50KW/IP54 | 128KWh+50KW/IP54 |
|---|---|---|---|---|
| Battery Module | Battery Capacity | 100kWh | 115kWh | 128kWh |
| AC Voltage | 400Vac/230Vac | 400Vac/230Vac | 400Vac/230Vac | |
| Support Diesel Engine | YES | YES | YES | |
| System Parallel | 5 | 5 | 5 | |
| Hybrid Inverter | PCS Power | 50KW | 50KW | 50KW |
| MPPT Power | 70KW | 70KW | 70KW | |
| MPPT Voltage | 200~800Vdc (4-Way) | 200~800Vdc (4-Way) | 200~800Vdc (4-Way) | |
| Protection Level | IP54 | IP54 | IP54 | |
| Parameter | Modules Dimension | 1060*1035*1850mm | 1060*1035*1850mm | 1060*1035*1850mm |
| Modules Weight | 1200Kg (approx.) | 1320Kg (approx.) | 1350Kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
|||
| Material/ Colour | Metal / White+Black | |||
Key Features
Connectivity Solutions
ZTESS019
Scalable Power, Secure Energy
Quality Certifications
FAQs for Zutto PowerVault06
What is the battery capacity range of the Zutto PowerVault06?
The Zutto PowerVault06 offers flexible energy storage with capacities ranging from 100kWh to 128kWh, making it ideal for large-scale commercial and industrial applications.
What is the inverter power rating of the Zutto PowerVault06?
The Zutto PowerVault06 is equipped with a 50kW PCS (Power Conversion System), providing efficient power conversion for large-scale energy storage systems and applications.
What communication protocols are supported by the Zutto PowerVault06?
The Zutto PowerVault06 supports RS485 and CAN communication protocols, enabling easy integration with a wide range of energy management systems and inverters.
What is the protection rating for the Zutto PowerVault06?
The Zutto PowerVault06 is designed with an IP54-rated enclosure, ensuring protection against dust and water, making it suitable for use in outdoor and harsh environments.
Does the Zutto PowerVault06 include any safety features?
Yes, the Zutto PowerVault06 includes integrated fire suppression systems, air conditioning, and various safety protections such as overcharge, overcurrent, and temperature protection to ensure reliable and safe operation.
