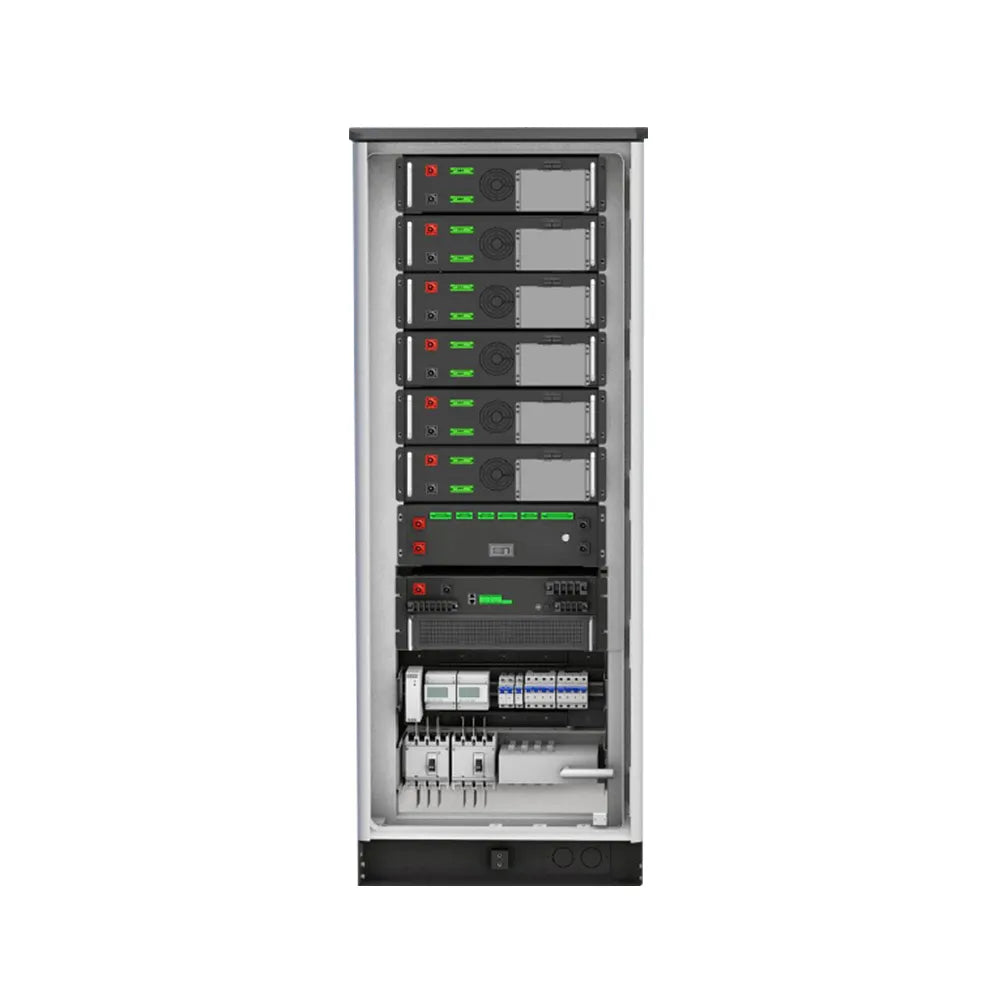

Zutto PowerVault05
Integrated Power, Ultimate Efficiency
The Zutto PowerVault05 is a state-of-the-art hybridenergy storage system designed for seamless integration with solar, grid, and diesel generator setups. With a capacity of up to 60kWh and PCS power of 30kW, it is equipped to support up to 10 parallel connections for expansive applications. Built with a robust IP54-rated enclosure and incorporating an advanced cooling and fire suppression system, the PowerVault05 ensures operational safety and optimal performance in demanding environments.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 50KWh+30KW/IP54 | 60KWh+30KW/IP54 |
|---|---|---|---|
| Battery Module | Battery Capacity | 50kWh | 60kWh |
| AC Voltage | 400Vac/230Vac | 400Vac/230Vac | |
| Support Diesel Engine | YES | YES | |
| System Parallel | 10 | 10 | |
| Hybrid Inverter | PCS Power | 30KW | 30KW |
| MPPT Power | 38KW | 38KW | |
| MPPT Voltage | 200~800Vdc (2-Way) | 200~800Vdc (2-Way) | |
| Protection Level | IP54 | IP54 | |
| Parameter | Modules Dimension | 660*990*1885mm | 660*990*1885mm |
| Modules Weight | 750Kg (approx.) | 830Kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||
| Material/ Colour | Metal / White+Black | ||
Key Features

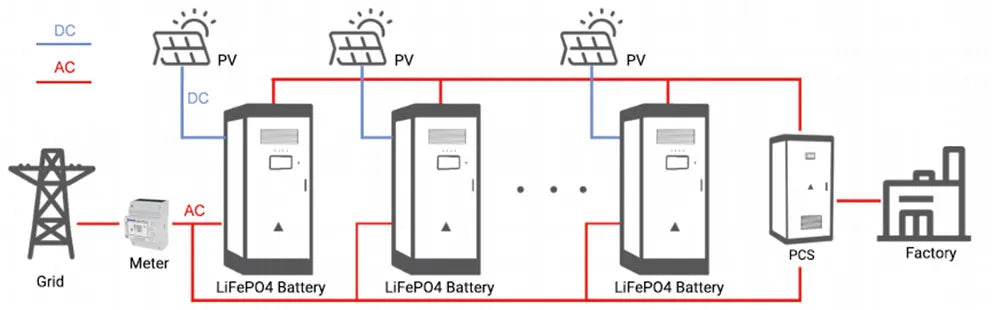

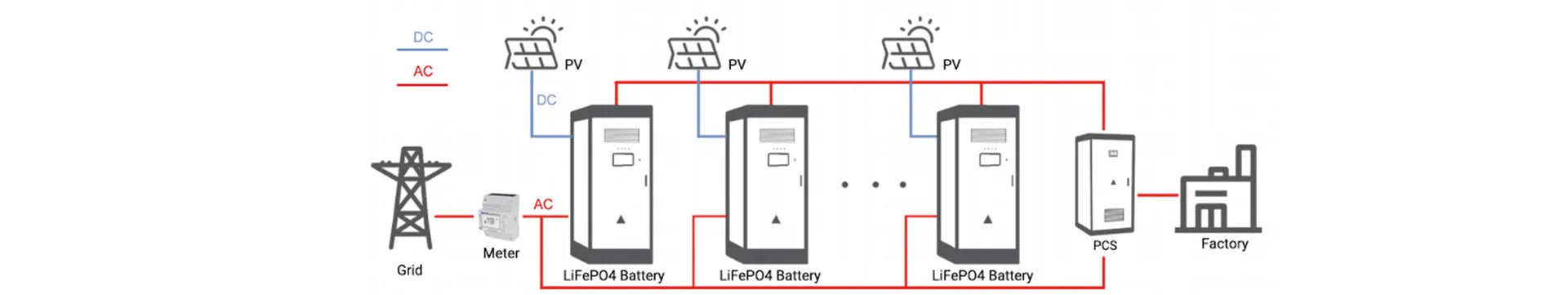

Connectivity Solutions
ZTESS018
Integrated Power, Ultimate Efficiency
Quality Certifications
FAQs for Zutto PowerVault05
What is the capacity of the Zutto PowerVault05?
The Zutto PowerVault05 offers a flexible battery capacity of 50kWh or 60kWh, providing scalable energy storage solutions for large-scale commercial and industrial applications.
What is the power output of the Zutto PowerVault05?
The Zutto PowerVault05 is equipped with a 30kW PCS (Power Conversion System), delivering high-performance energy conversion for commercial and industrial power needs.
What types of power sources can the Zutto PowerVault05 support?
The Zutto PowerVault05 is compatible with solar MPPT systems, grid power, and diesel generators, providing unmatched flexibility for diverse energy management setups.
What is the protection rating of the Zutto PowerVault05?
The Zutto PowerVault05 is built with an IP54-rated enclosure, ensuring durability and reliable performance in challenging environmental conditions, with protection against dust and water ingress.
What are the temperature ranges for charging and discharging the Zutto PowerVault05?
The Zutto PowerVault05 can be charged within a temperature range of 0°C to 50°C and discharged within -15°C to 60°C, making it suitable for a variety of operational environments.
