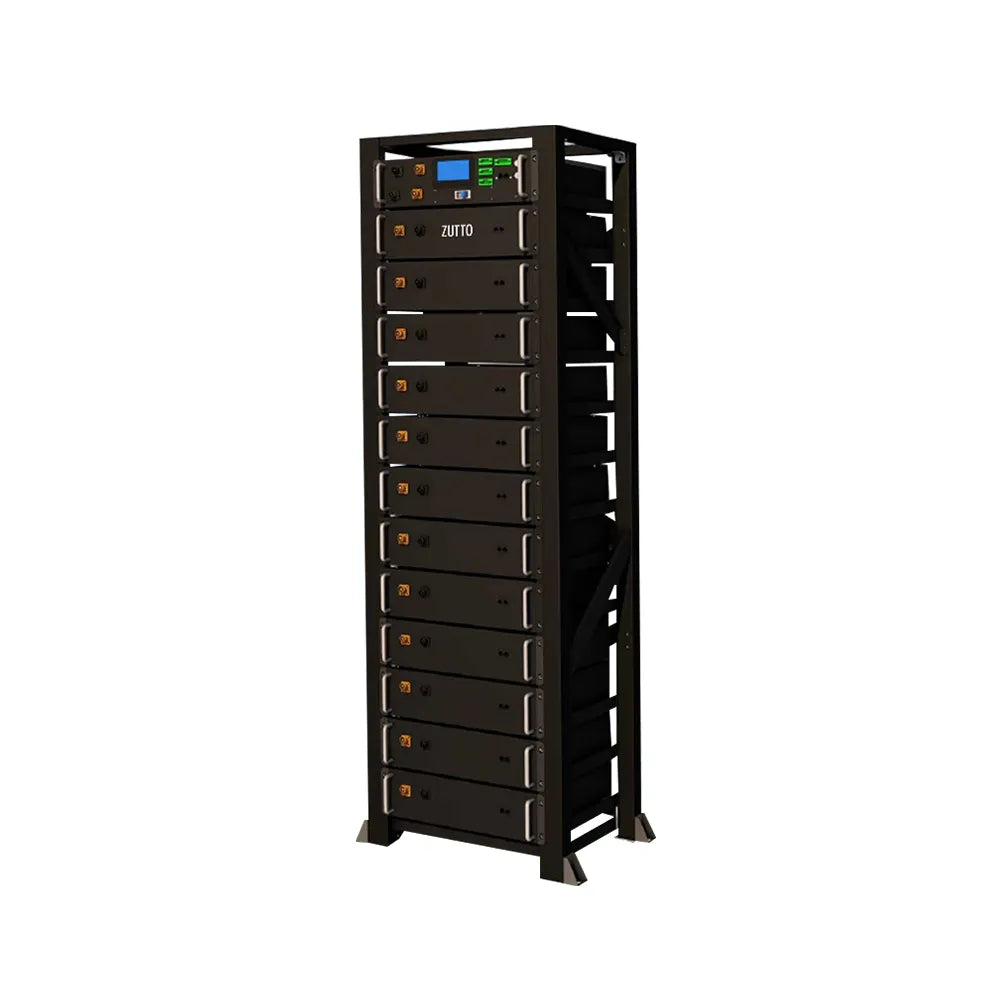

The Zutto PowerVault04 high-voltage energy storage system features a sleek, black modular cabinet design with multiple battery modules stacked vertically. The top section includes a digital control panel for real-time monitoring and diagnostics. With an energy capacity ranging from 30.7kWh to 61.4kWh and a voltage of up to 614V, this scalable system is ideal for industrial and commercial applications requiring reliable and efficient energy management.

Zutto PowerVault04
High-Voltage Energy, Maximum Reliability

Name: Zutto PowerVault04 High-Voltage Energy, Maximum Reliability
Brand: ZUTTO
Availability: OutOfStock

The Zutto PowerVault04 is a cutting-edge high-voltage energy storage system, tailored for industrial and commercial applications requiring large-scale energy solutions. With flexible capacities ranging from 30.7kWh to 61.4kWh and robust voltage levels of up to 614V, this system offers unmatched efficiency, safety, and reliability. Its modular design supports seamless integration with primary systems, ensuring uninterrupted power management and scalability for diverse energy needs.

REQUEST MORE INFO ▶

Download Data Sheets

Warranty

This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.

Specifications

Item	Model	30.7kWh	40.9kWh	51.2kWh	61.4kWh
Battery Module	Battery Capacity	30.7kWh	40.9kWh	51.2kWh	61.4kWh
	Voltage	307V	409V	512V	614V
	Rated Capacity	100Ah	100Ah	100Ah	100Ah
	Charge Voltage	350V	467V	576V	700.8V
	Discharge Cut-off Voltage	259V	345V	432V	480V
	Max Charge Current	50A	50A	50A	50A
	Max Discharge Current	100A	100A	100A	100A
	Communication	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN
Parameter	Dimension	5505001600mm	5505001700mm	5505001800mm	5505001900mm
	Weight	345Kg (approx.)	445Kg (approx.)	530Kg (approx.)	615Kg (approx.)
	Temperature	Charge: 0°C~50°C Discharge: -15°C~60°C
	Material/ Colour	Metal / Black

Key Features

Solar inverter wide voltage input range icon, supporting multiple battery voltage levels for enhanced system compatibility and stability, ideal for residential and commercial PV storage solutions in Singapore.

High-Voltage Energy Storage

Provides voltage levels up to 614V, ensuring powerful and efficient energy management for large-scale needs.

robust safety features with 15-layer protection for reliable and secure energy storage.

Advanced Safety and Reliability

Equipped with high-grade safety measures and robust build quality, ensuring uninterrupted and secure performance.

Flexible capacity and power outpu, a customizable energy storage solution for various energy needs.

Modular and Scalable Design

Features a modular structure supporting two-tier and three-tier configurations for flexible capacity expansion.

Smart Communication Interfaces

Supports RS485 and CAN protocols for seamless system integration and advanced monitoring capabilities.

Connectivity Solutions

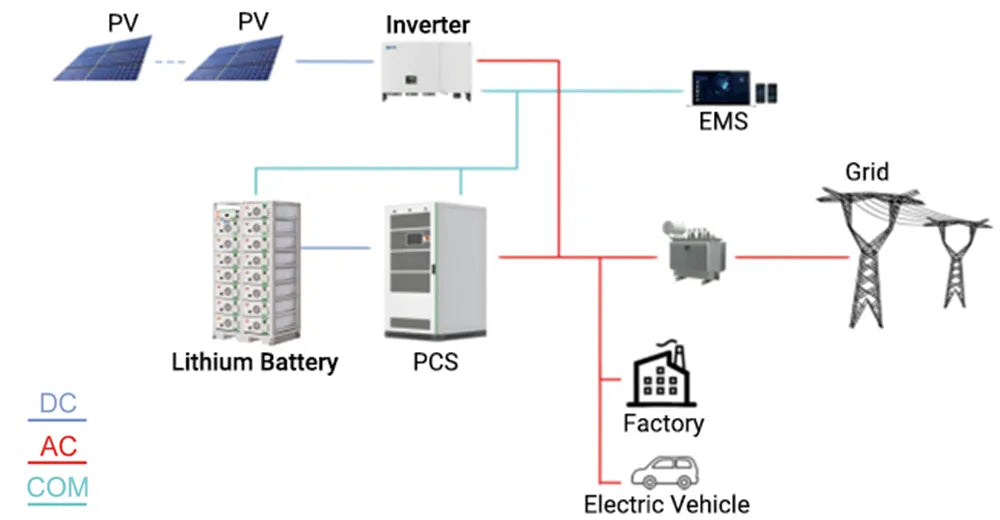

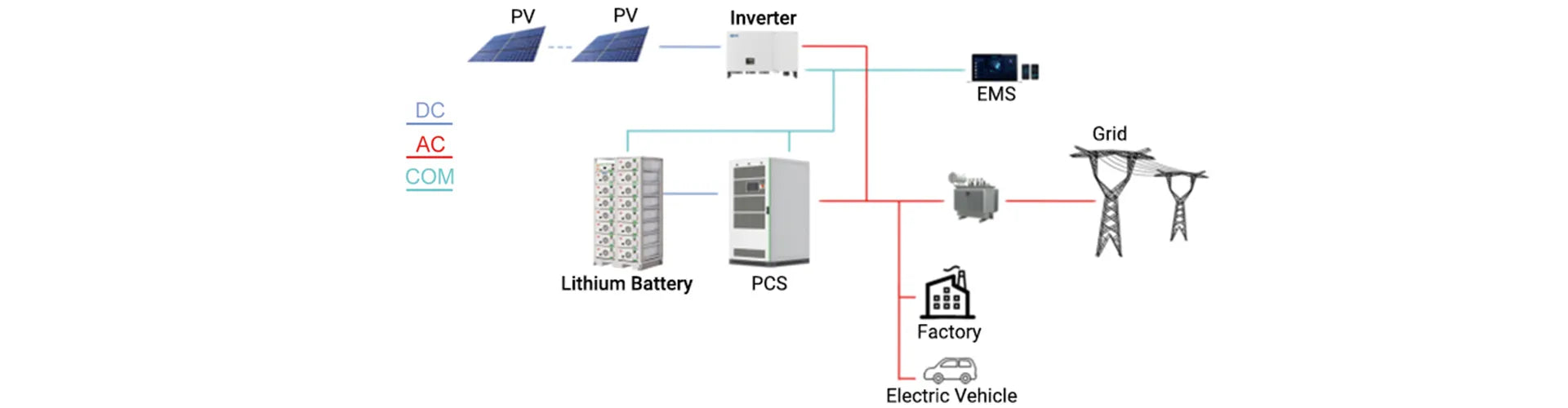

A system flow diagram of the Zutto PowerVault04 energy storage solution. It depicts the energy flow from solar panels (PV) to an inverter, connecting to a lithium battery and Power Conversion System (PCS). The PCS distributes energy to the electrical grid, factories, and electric vehicle charging stations. Communication (COM), direct current (DC), and alternating current (AC) paths are clearly marked for seamless energy management and integration.

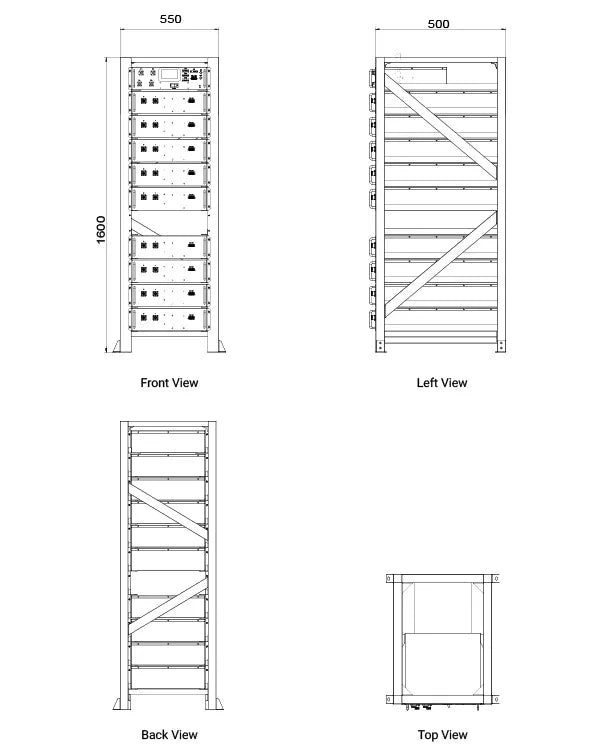

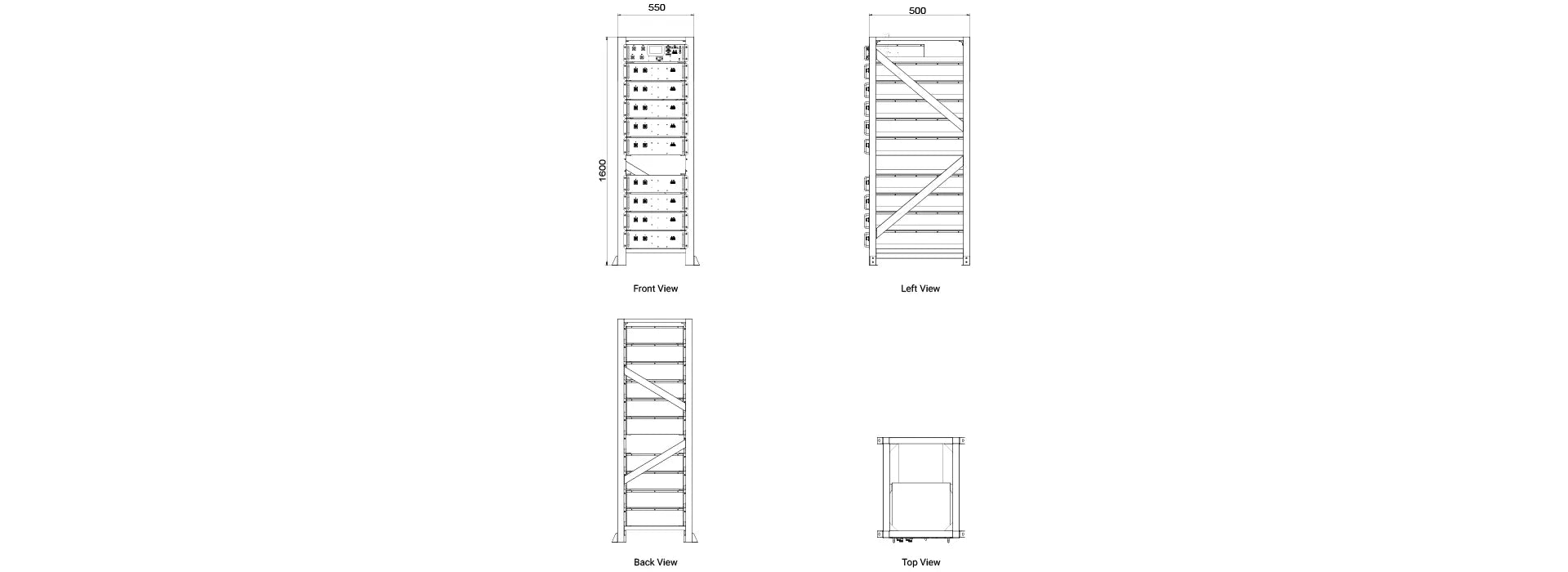

Mechanical Dimensions(Unit:mm)

Zutto PowerVault04 high-voltage energy storage system technical dimension drawing, featuring front, left, back, and top views. Designed for large-scale industrial and commercial energy storage applications, it offers flexible battery capacities from 30.7kWh to 61.4kWh, with a maximum voltage of 614V. The modular design allows seamless integration with primary power grids or backup energy systems, ensuring efficient, safe, and stable energy management. Ideal for data centers, microgrids, renewable energy sto

Quality Certifications

FAQs for Zutto PowerVault04

What is the battery capacity of the Zutto PowerVault04?

The Zutto PowerVault04 is available in four different capacity configurations: 30.7kWh, 40.9kWh, 51.2kWh, and 61.4kWh, providing flexibility for various residential, commercial, and industrial energy storage needs.

What is the voltage range for the Zutto PowerVault04?

The Zutto PowerVault04 operates at voltages ranging from 307V to 614V, with different configurations available depending on your energy requirements.

What communication protocols are supported by the Zutto PowerVault04?

The Zutto PowerVault04 supports both RS485 and CAN communication protocols, making it compatible with a wide range of inverters and energy management systems for seamless integration.

What are the temperature ranges for charging and discharging the Zutto PowerVault04?

The Zutto PowerVault04 can be charged within a temperature range of 0°C to 50°C and discharged within -15°C to 60°C, ensuring reliable operation across a broad range of environments.

What safety features does the Zutto PowerVault04 have?

The Zutto PowerVault04 is equipped with advanced safety features, including overcharge, overdischarge, overcurrent protection, and temperature protection, as well as short-circuit protection, ensuring safe and efficient operation at all times.
