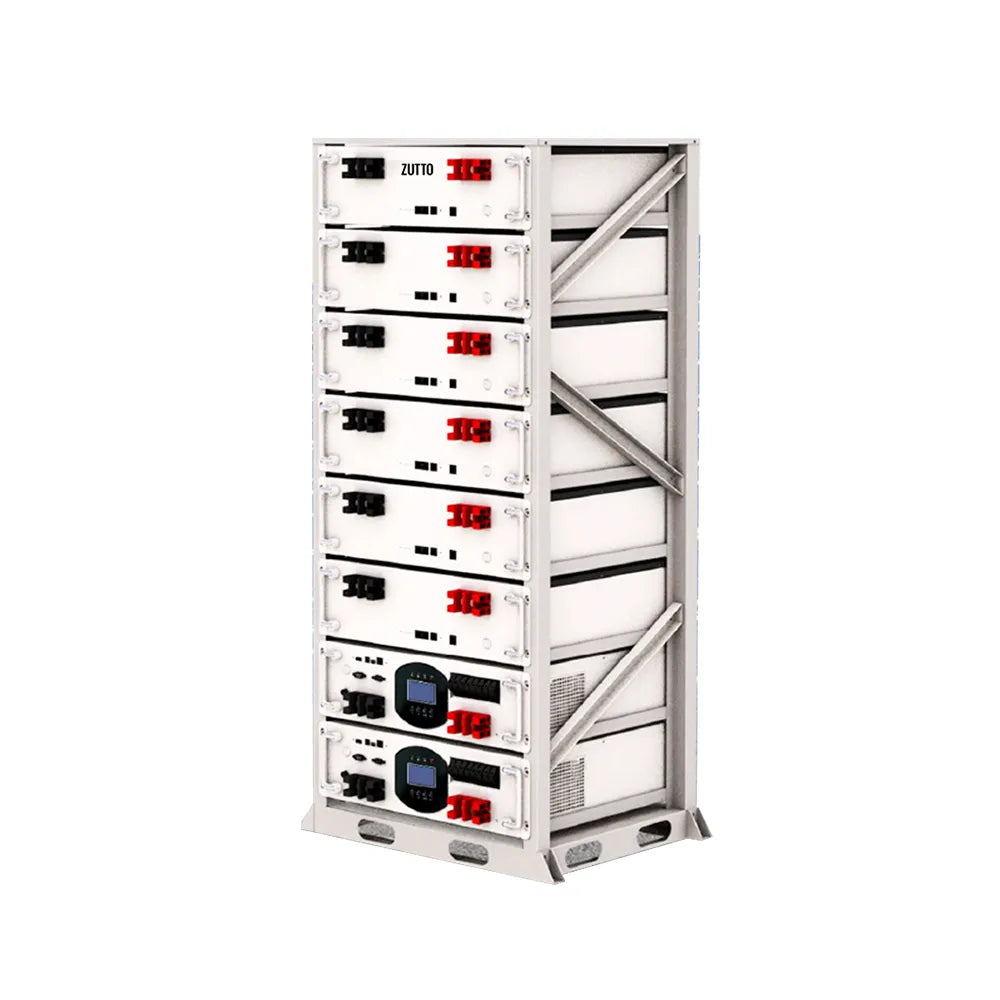

Zutto PowerVault03
Empower Scalability, Maximize Efficiency
The Zutto PowerVault03 is a high-performance integrated cabinet energy storage solution, designed for industrial and large-scale commercial applications. With flexible energy storage capacities ranging from 28.6kWh to 57kWh and PCS power outputs of 10kW to 30kW, it offers unmatched scalability and adaptability. Supporting both solar and grid power inputs, this system ensures seamless energy management while maximizing reliability and efficiency. Its robust design, coupled with advanced safety protocols and smart communication interfaces (RS485/WiFi), makes it a leading choice for sustainable energy storage.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 28.6kWh + 10KW | 42kWh + 10KW | 48kWh + 30KW | 57kWh + 30KW |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 28.6kWh | 42kWh | 48kWh | 57kWh |
| PCS | 10KW | 10KW | 30KW | 30KW | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| AC Voltage | 230VAC | 230VAC | 400VAC/230VAC | 400VAC/230VAC | |
| Input Power | 10KW (2-way) | 10KW (2-way) | 30KW (6-way) | 30KW (6-way) | |
| MPPT Voltage | 90~500VDC | 90~500VDC | 90~500VDC | 90~500VDC | |
| Hybrid Inverter | Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi |
| Protection Level | IP20 | IP20 | IP20 | IP20 | |
| Modules Dimension | 600×900×800mm | 600×600×1650mm | 600×600×1850mm | 600×900×1300mm | |
| Modules Weight | 230kg (approx.) | 350kg (approx.) | 395kg (approx.) | 430kg (approx.) | |
| Parameter | Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
|||
| Material/Colour | Metal / White & Black | ||||
Key Features
Connectivity Solutions
ZTESS016
Empower Scalability, Maximize Efficiency
Quality Certifications
FAQs for Zutto PowerVault03
What is the battery capacity of the Zutto PowerVault03?
The Zutto PowerVault03 offers flexible energy storage capacities ranging from 28.6kWh to 57kWh, providing a scalable solution for large-scale commercial and industrial applications.
What is the power output of the Zutto PowerVault03?
The Zutto PowerVault03 is equipped with PCS outputs ranging from 10kW to 30kW, ensuring reliable and powerful energy distribution for demanding commercial and industrial energy storage needs.
What types of inputs does the Zutto PowerVault03 support?

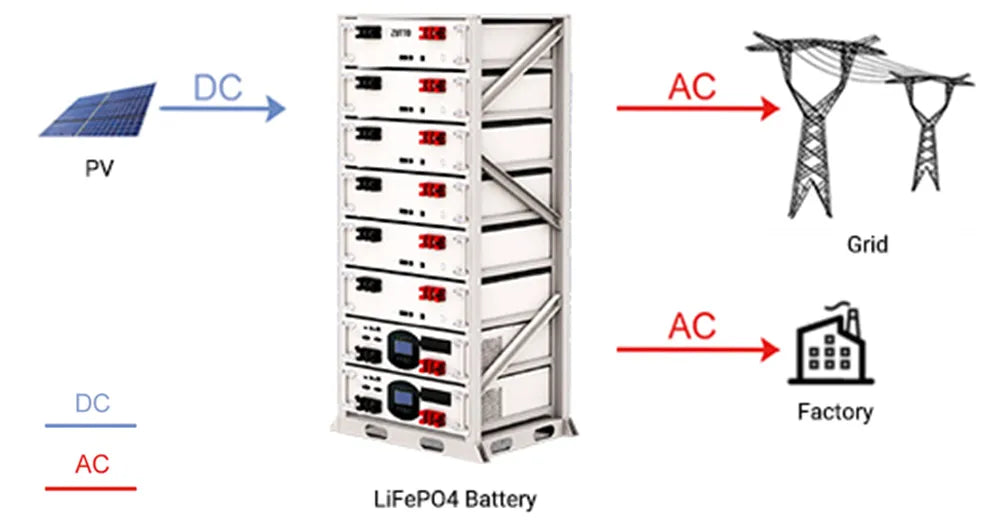

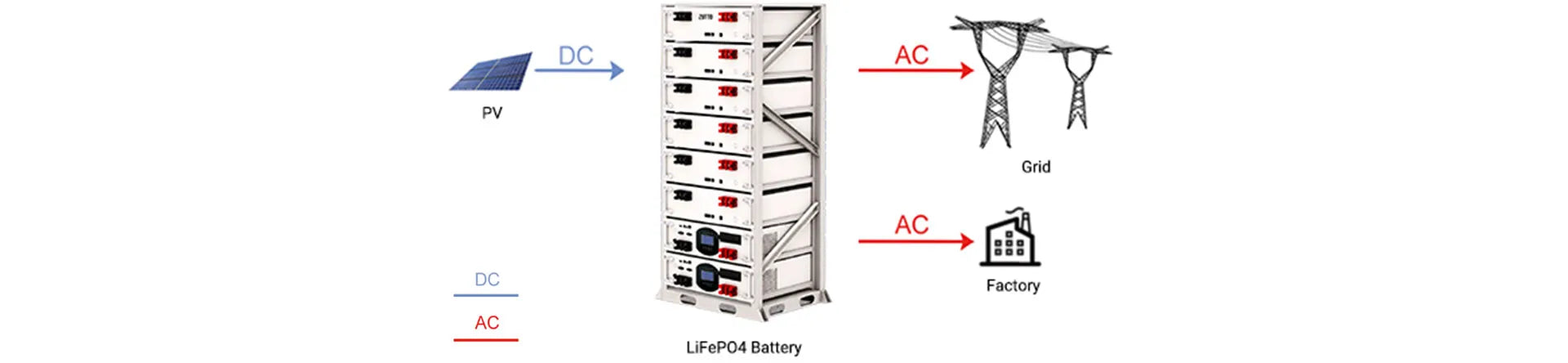

The Zutto PowerVault03 supports dual input power sources: solar and grid power, ensuring an uninterrupted energy supply and efficient integration with existing infrastructure.
What communication methods are available with the Zutto PowerVault03?
The Zutto PowerVault03 supports RS485 and WiFi communication, enabling easy integration with energy management systems for real-time monitoring and optimized operation.
What is the protection rating for the Zutto PowerVault03?
The Zutto PowerVault03 has an IP20 protection rating, making it suitable for indoor environments with minimal dust and moisture exposure, ensuring long-lasting reliability.
