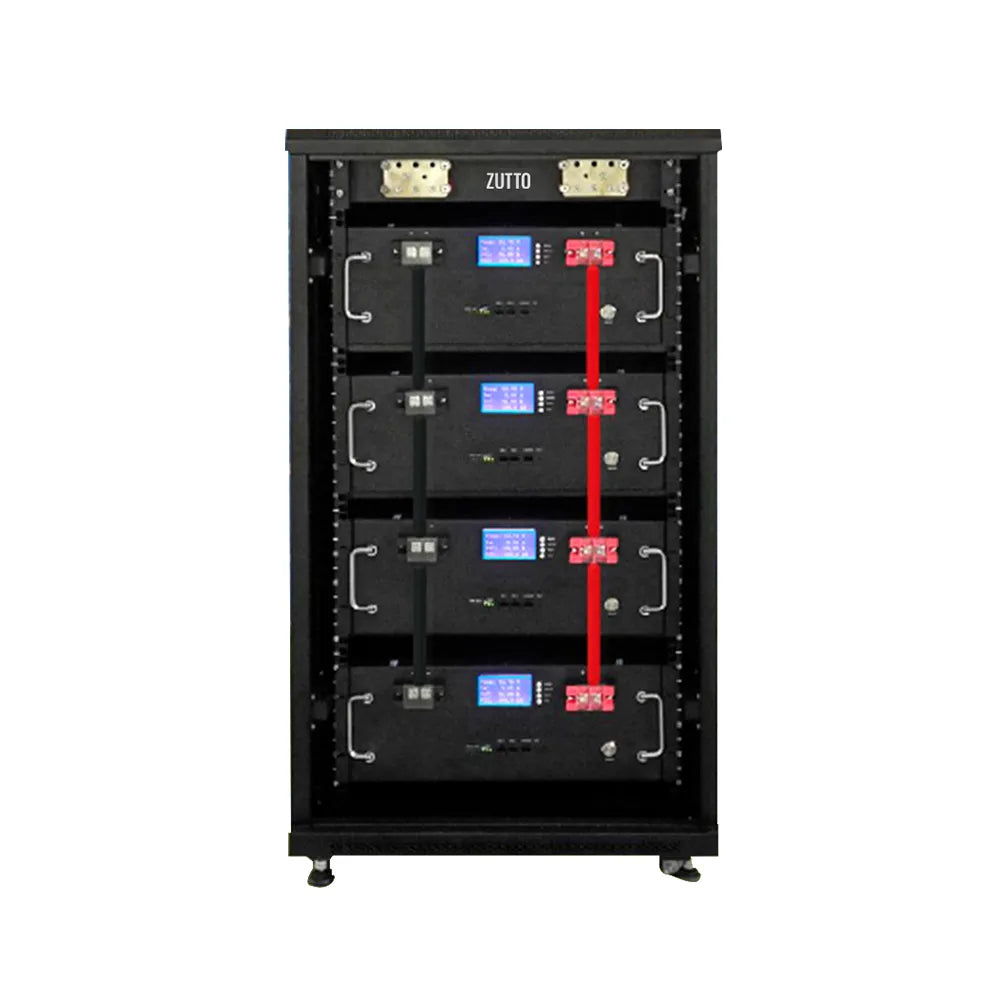

Zutto PowerVault02
Scalable Power, Trusted Reliability
The Zutto PowerVault02 is a high-capacity, modular low-voltage energy storage solution designed for commercial and industrial applications. With configurations ranging from 25kWh to 50kWh, this system offers superior compatibility with over 20 mainstream inverters, ensuring seamless integration. Engineered for optimal safety and reliability, it supports power outputs of 5kW to 30kW, making it an ideal choice for large-scale energy demands. Its robust design and advanced communication interfaces (RS485/CAN) enable easy scalability and efficient energy management.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 25kWh | 30kWh | 40kWh | 50kWh |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 25kWh | 30kWh | 40kWh | 50kWh |
| Voltage | 51.2V | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 500Ah | 600Ah | 800Ah | 1000Ah | |
| Charge Voltage | 58V | 58V | 58V | 58V | |
| Discharge Cut-off Voltage | 42V | 42V | 42V | 42V | |
| Max Charge Current | 300A | 300A | 300A | 300A | |
| Max Discharge Current | 400A | 400A | 500A | 500A | |
| Communication Method | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | |
| Parameter | Dimension | 600*600*950mm | 600*600*1100mm | 600*600*1400mm | 600*600*1700mm |
| Weight | 300Kg (approx.) | 370Kg (approx.) | 500Kg (approx.) | 600Kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/ Colour | Metal / White+Black | ||||
Key Features

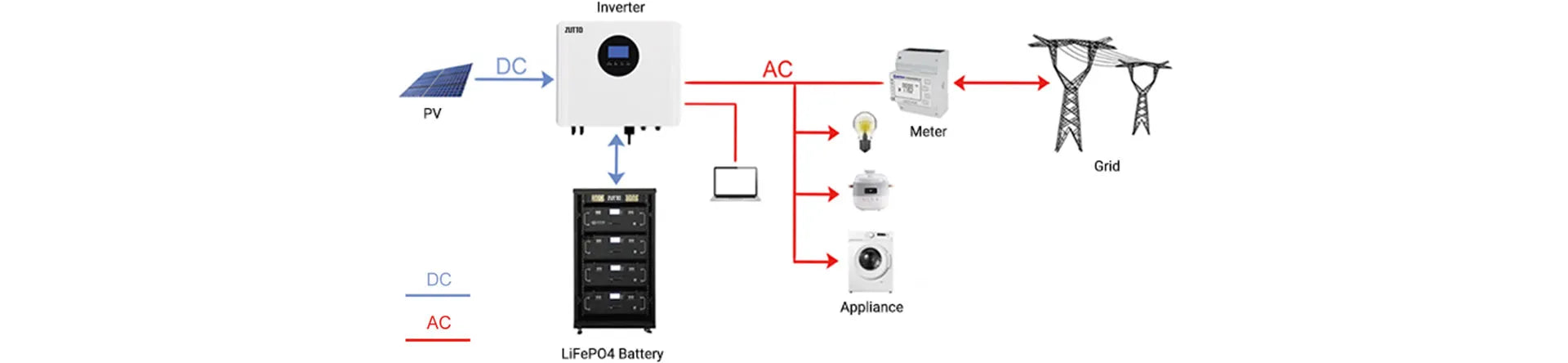

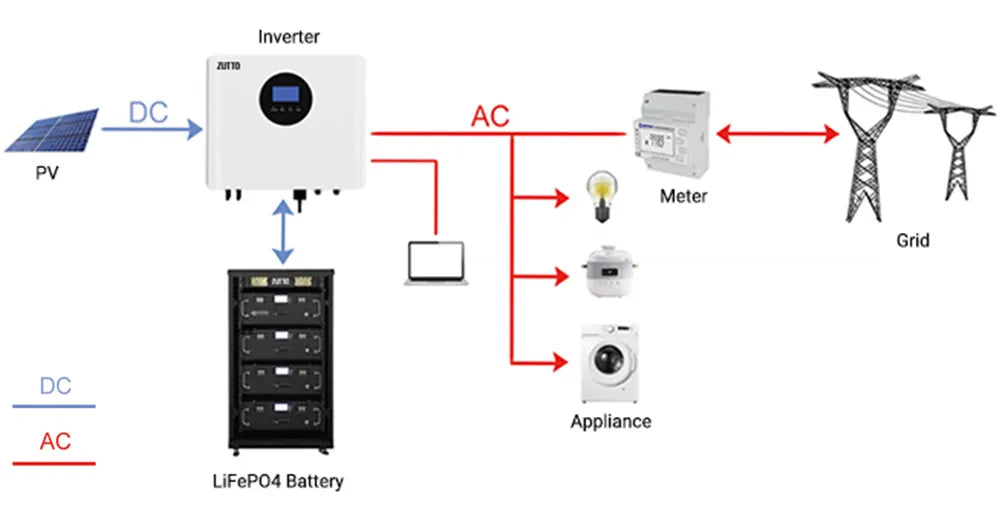

Connectivity Solutions
ZTESS015
Scalable Power, Trusted Reliability
Quality Certifications
FAQs for Zutto PowerVault02
What is the battery capacity range of the Zutto PowerVault02?
The Zutto PowerVault02 offers scalable battery capacities ranging from 25kWh to 50kWh, making it suitable for both commercial and industrial energy storage applications.
What is the power output of the Zutto PowerVault02?
The Zutto PowerVault02 supports power outputs ranging from 5kW to 30kW, providing sufficient energy to meet the demands of large-scale operations and energy management systems.
What are the communication options for the Zutto PowerVault02?
The Zutto PowerVault02 supports RS485 and CAN communication protocols, enabling seamless integration with over 20 mainstream inverter brands for efficient energy management and system scalability.
What is the temperature range for the Zutto PowerVault02?
The Zutto PowerVault02 operates within a charging temperature range of 0°C to 50°C and a discharge temperature range of -15°C to 60°C, making it ideal for use in various environments with differing temperature conditions.
What safety features are included with the Zutto PowerVault02?
The Zutto PowerVault02 is equipped with multiple safety features, including overcharge protection, overdischarge protection, overcurrent protection, and temperature protection, ensuring the safe and reliable operation of the energy storage system.
