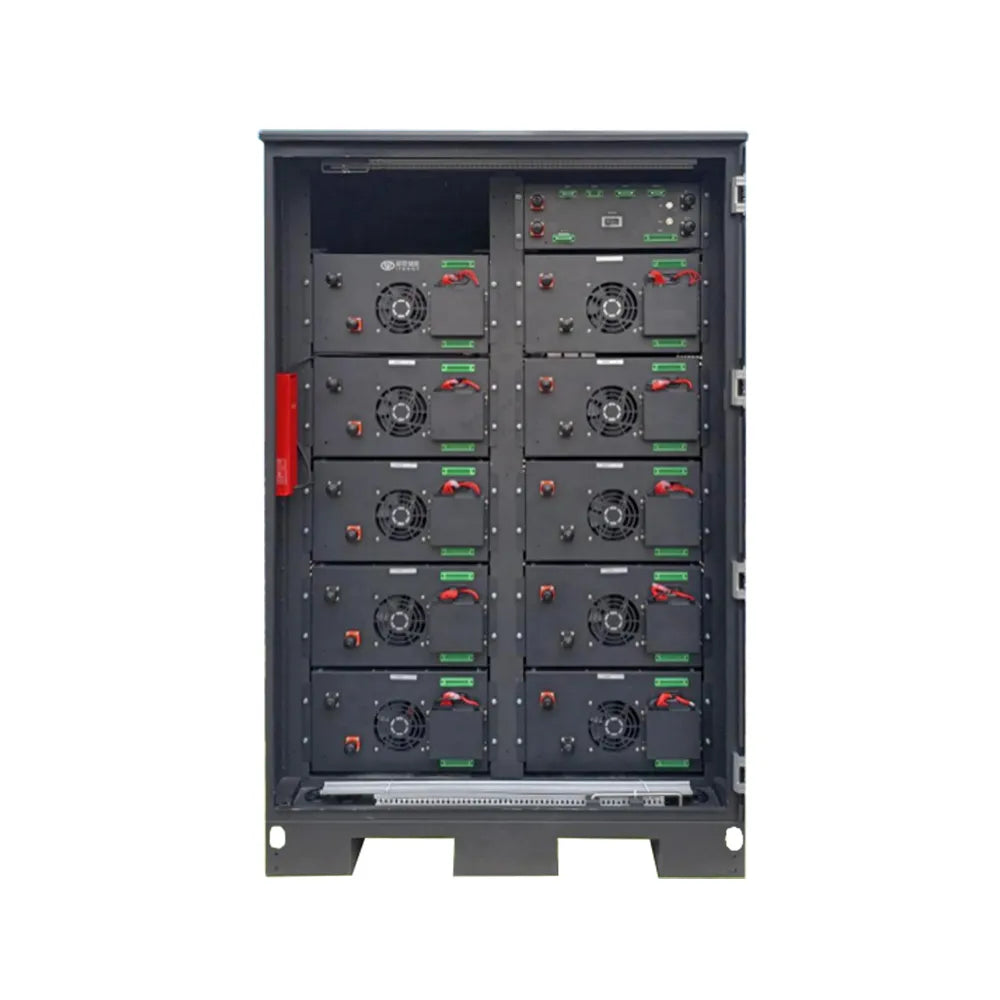

Zutto PowerVault01
Industrial-Grade Energy Storage Solution
The Zutto ZTESS004 is a high-voltage modular energy storage system designed for industrial and large-scale applications. Supporting a wide voltage range from 512V to 768V and capacities up to 280Ah, it offers scalable battery capacity from 143kWh to 215kWh. Its two-level and three-level architecture ensures structural efficiency, making it suitable for complex energy management systems.
Equipped with advanced safety features, including 15-layer protection, and robust communication via RS485 and CAN, the ZTESS004 is designed for reliability and ease of integration. Its compact and stackable design simplifies installation, while the all-in-one host architecture minimizes space requirements for maximum operational efficiency.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 143kWh | 172kWh | 200kWh | 215kWh |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 143kWh | 172kWh | 200kWh | 215kWh |
| Voltage | 512V | 614V | 716V | 768V | |
| Rated Capacity | 280Ah | 280Ah | 280Ah | 280Ah | |
| Charge Voltage | 576V | 691.2V | 806.4V | 864V | |
| Discharge Cut-off Voltage | 448V | 537.6V | 627.2V | 672V | |
| Max Charge Current | 140A | 140A | 140A | 140A | |
| Max Discharge Current | 200A | 200A | 200A | 200A | |
| Communication | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | |
| Parameter | Dimension | 1000×800×1620mm | 1000×800×1850mm | 1000×800×2000mm | 1000×800×2050mm |
| Weight | 1500Kg (approx.) | 1850Kg (approx.) | 2000Kg (approx.) | 2008Kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/ Colour | Metal / White & Black | ||||
Key Features

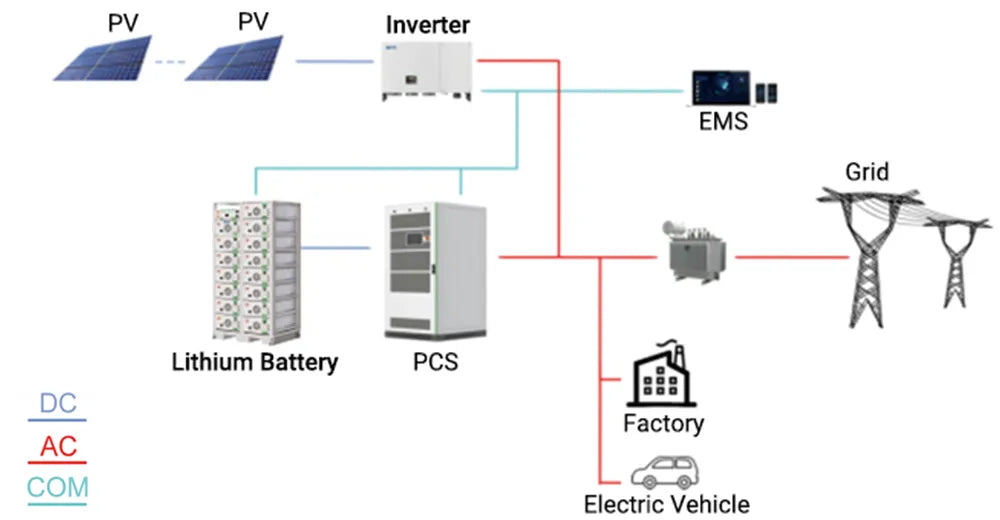

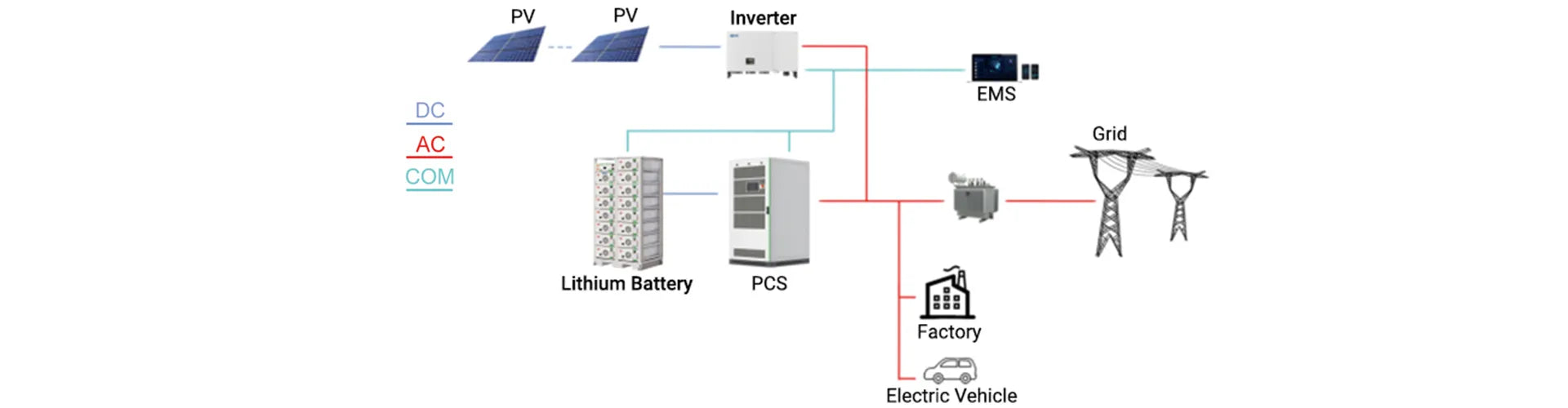

Connectivity Solutions
ZTESS004
Industrial-Grade Energy Storage Solution

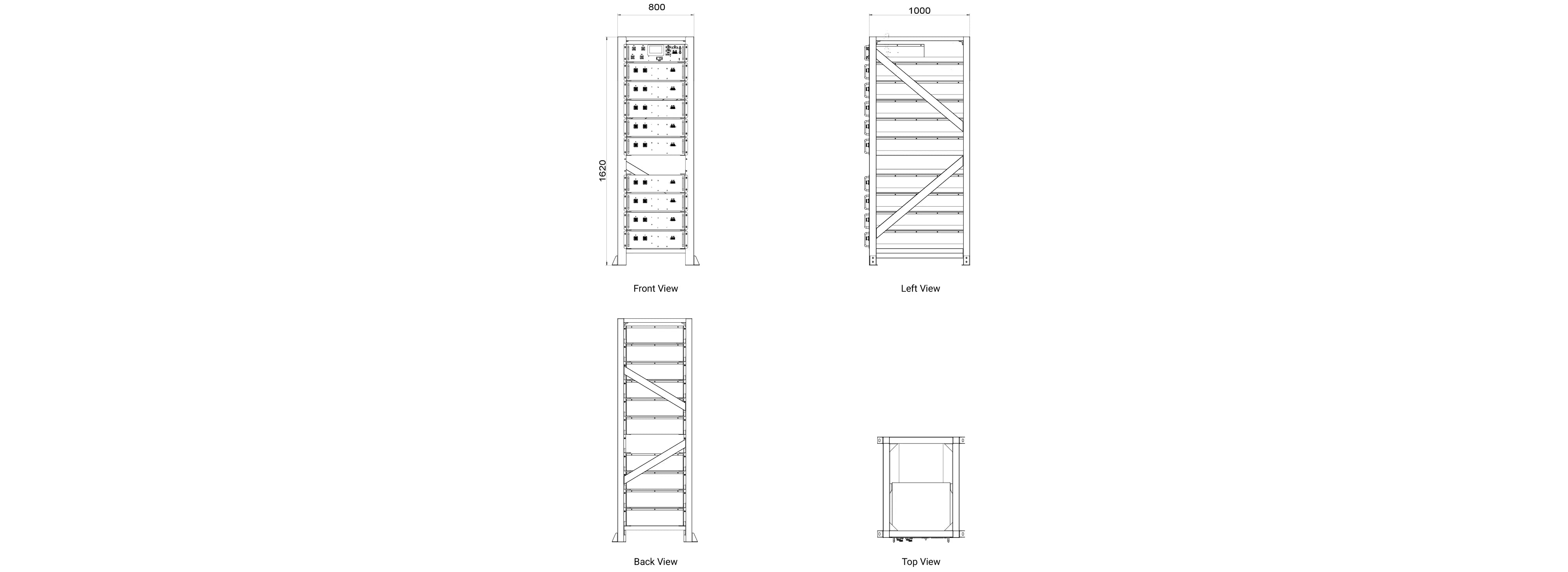

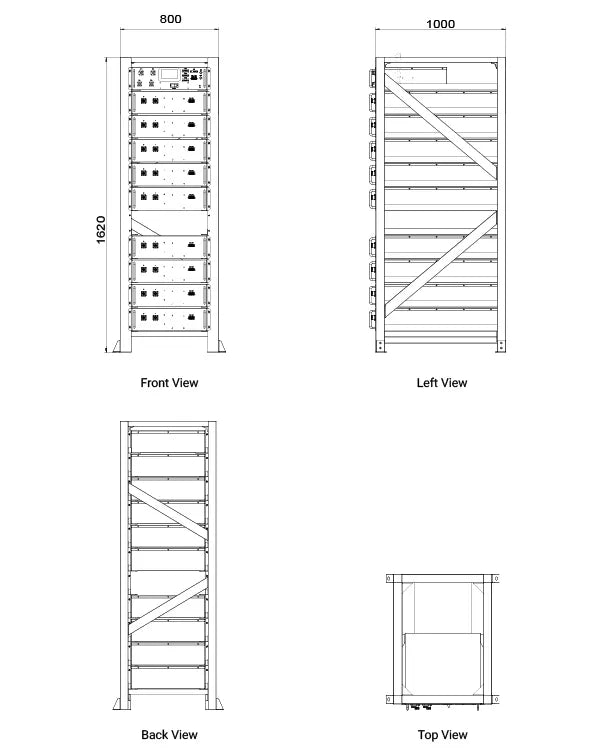

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZTESS004
What industries is the ZTESS004 designed for?
The ZTESS004 is designed for industrial and large-scale commercial applications requiring high-voltage energy storage.
What is the voltage range of the ZTESS004?
The ZTESS004 supports high voltages ranging from 307V to 768V, making it ideal for large-scale operations.
What is the maximum power output of the ZTESS004?
The ZTESS004 can deliver up to 215kW of power, supporting heavy-duty energy demands.
What communication methods does the ZTESS004 use?
It features RS485 and CAN communication interfaces for efficient system monitoring and integration.
How does the ZTESS004 ensure safety?
With 15-layer protection, it provides safeguards against overcharge, over-discharge, overheating, and short-circuits, ensuring reliable performance in critical applications.
