Zutto PowerShield01 Engineered for Stability, Built for Reliability

Zutto PowerShield01

Engineered for Stability, Built for Reliability

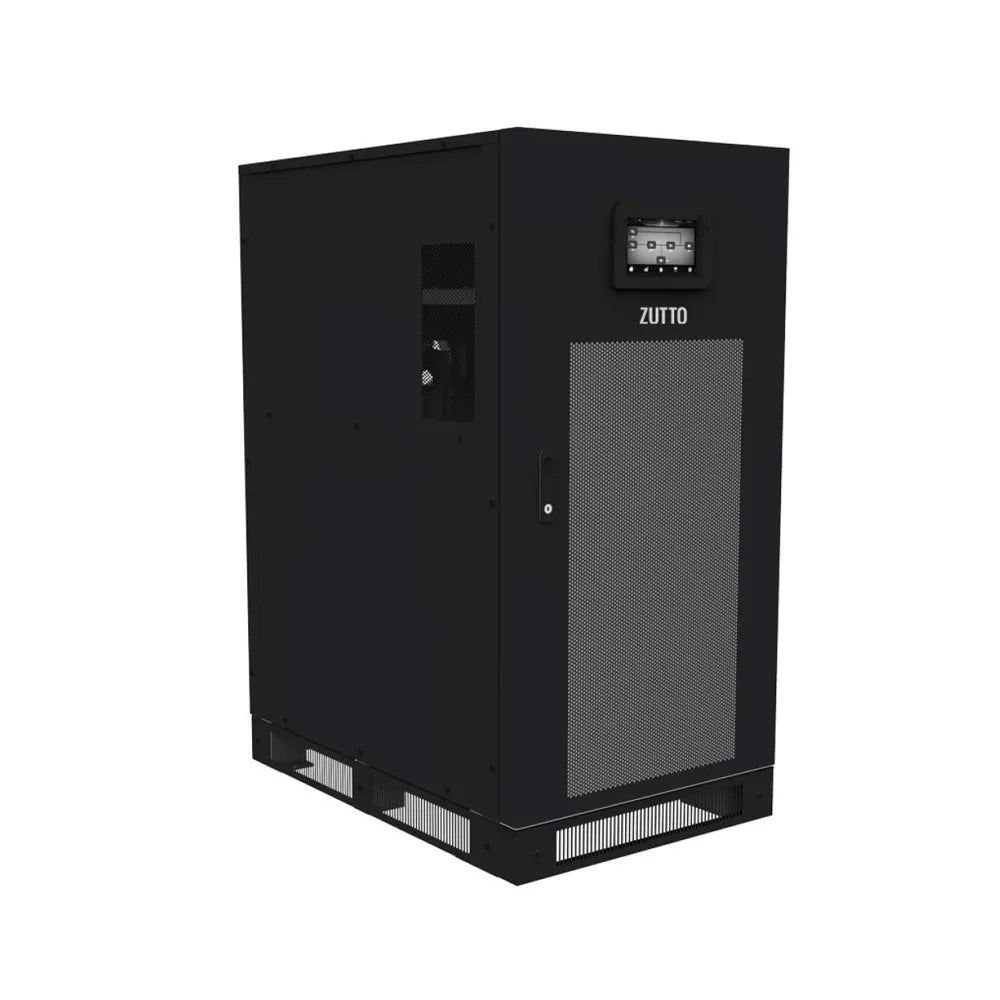

TheZutto PowerShield01 Series UPS (10kVA-120kVA) is an advanced three-phase in, three-phase out industrial UPS, designed for high-performance power protection. It features DSP full digital control and IGBT SVPWM technology, ensuring fast, precise, and stable operation. With a power factor of 1.0 and efficiency up to 98% in ECO mode, it optimizes energy usage. The system supports parallel operation of up to 8 units, offers strong load adaptability, and includes intelligent battery management for enhanced reliability. A 7-inch LCD touch screen provides an intuitive user interface, making monitoring and control effortless.

REQUEST MORE INFO ▶
 Download Data Sheets

Product Specifications


Model 3310 3315 3320 3330 3340 3360 3380 33100 33120
Rated Capacity 10kVA/10KW 15kVA/15KW 20kVA/20KW 30kVA/30KW 40kVA/40KW 60kVA/60KW 80kVA/80KW 100kVA/100KW 120kVA/120KW
Dimension 400(W) × 800(D) × 850(H)mm 400(W) × 800(D) × 850(H)mm 400(W) × 800(D) × 850(H)mm 400(W) × 800(D) × 1100(H)mm 400(W) × 800(D) × 1100(H)mm 600(W) × 800(D) × 1100(H)mm 600(W) × 800(D) × 1100(H)mm 700(W) × 800(D) × 1800(H)mm 700(W) × 800(D) × 1800(H)mm
Net Weight 150kg (approx.) 160kg (approx.) 165kg (approx.) 200kg (approx.) 240kg (approx.) 440kg (approx.) 560kg (approx.) 600kg (approx.) 650kg (approx.)
Input Index Specification
Input Phase Number 3 phases 5 wires (3Φ+N+PE)
Input Rated Voltage 380VAC/400VAC/415VAC (Default 380VAC)
Variable Input Voltage Range 304V-456V
Input Frequency Variation Range 40Hz-70Hz
Input Power Factor >0.95
Input Current Limit 1.25 times the rated current (0.1-1.25 can be set)
Rectifier Delay Start Range Default 10s (1-300 can be set)
Bypass Input Voltage Range Upper limit: 10%, 15%, 20%, 25% (Default 20%)
Lower limit: 10%, 20%, 30%, 40%, 50%, 60% (Default 20%)
Battery Voltage Default 360VDC (Can be set to 336VDC, 348VDC, 372VDC, 384VDC)
Number of Batteries Default 12V 30 section (28, 29, 31, 32 sections can be set)
Battery Charging Current Charge rate × battery capacity × battery pack number (charge rate, battery capacity, battery pack number can be set)
ECO Mode
Bypass Voltage Range Upper limit 5%,10%,15% can be set, Default 5%; Lower limit 5%,10%,15% can be set, Default 5%
Bypass Frequency Range ±1Hz, ±2Hz, ±3Hz can be set, Default ±2Hz
Output Index
Output Phase Number 3 phases 5 wires (3Φ+N+PE)
Rated Output Voltage 380VAC/400VAC/415VAC (Default 380VAC)
Output Voltage Regulation Accuracy ±1%
Output Voltage Fine Adjustment 0V(±1~±5V can be set)
Output Frequency Accuracy Mains mode: tracking bypass input in synchronization state; Battery mode: 50Hz/60Hz±0.1%
Output Power Factor 1.0
Output Waveform Distortion ≤2%(Resistive load); ≤5%(non-linear load)
Waveform Pure sine wave
Output Current Crest Factor 3:1
Inverter Overload Capacity When the load is <105%, it can work for a long time; when 105% < load <110%, it will switch to bypass output after 60 minutes; when 110% < load < 125%, switch to bypass output after 10 minutes; when 125% < load < 150%, switch to bypass output after 1 minute; when load > 150%, switch to bypass output after 200 milliseconds;
System Indicators
System Efficiency Online mode≥93%, ECO mode≥98%
Switching Time 0ms
Number of Parallel ≤8 sets
Protective Function Output short circuit protection, output overload protection, over temperature protection, battery low voltage protection, over and under voltage protection, fan failure protection, etc.
Communication Interface Standard configuration: USB, CAN, EPO, RS232, RS485, dry contact; Optional configuration: SNMP card, temperature compensation accessories
Display 7 inch LCD touch screen
Working Environment
Operating Temperature
0~40°C
Storage Temperature
-22~55°C(exclude battery)
Relative Humidity
0%-95% (No condensation)
Altitude
Altitude≤1000M, Mexceed 1000M, Power with increase of 100M it will reduce 1%
Degree Otprotection
IP30
Noise
<65 dB (1 meter from the device)

Key Features


Modular and scalable design for flexible and efficient energy storage.

High Output Power Factor

Offers 1.0 power factor for maximum efficiency and reliability, even under heavy loads.
Smart integration feature, enabling seamless communication with smart energy systems.

Advanced Digital Control

Utilizes DSP and IGBT SVPWM for faster, more accurate system control.
Smart Connectivity Icon – Efficient and Intelligent Connection

Pure Sine Wave Output

Provides clean, stable power ideal for sensitive equipment.
Advanced safety technology for improved battery reliability | Singapore high-security energy solutions

Scalable & Flexible

upports parallel operation with up to 8 units, offering flexibility for growing demands.

Mechanical Dimensions(Unit:mm)

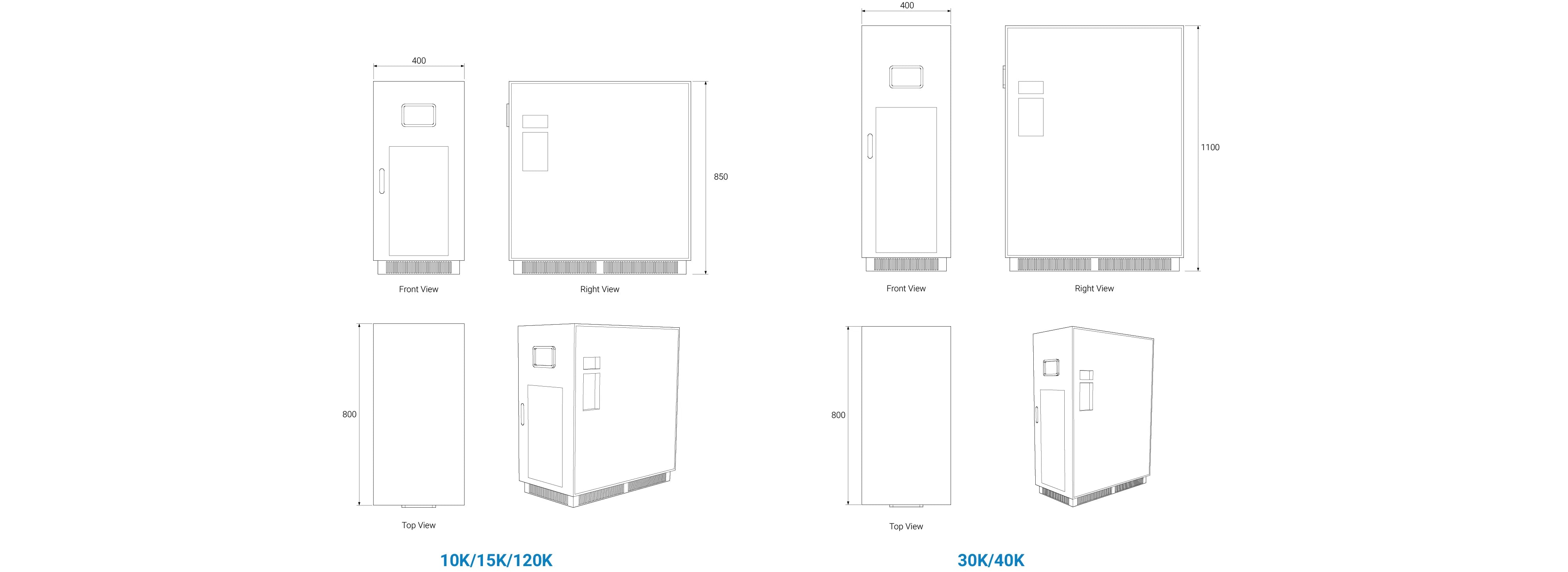

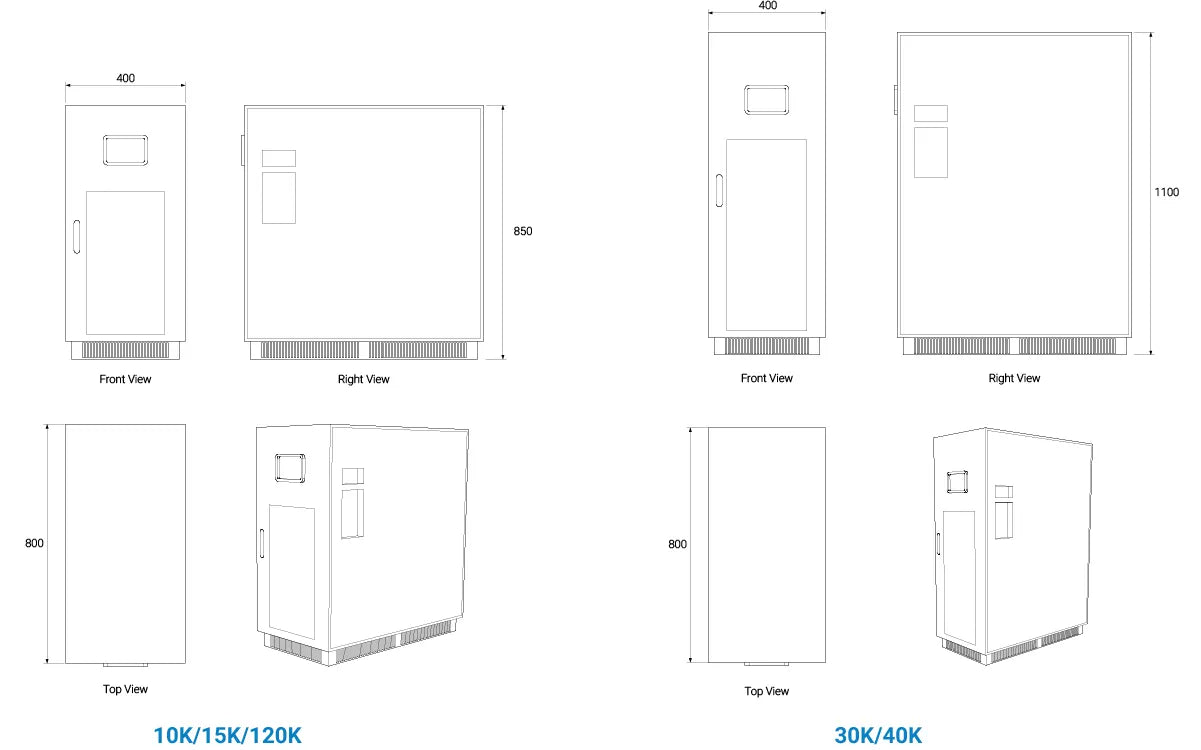

Detailed dimension specifications of Zutto PowerShield01 UPS for 10K, 15K, 20K, 30K, and 40K models. This industrial-grade uninterruptible power supply (UPS) is designed for stable power backup in critical applications such as data centers, factories, and large-scale commercial buildings in Singapore.Detailed dimension specifications of Zutto PowerShield01 UPS for 10K, 15K, 20K, 30K, and 40K models. This industrial-grade uninterruptible power supply (UPS) is designed for stable power backup in critical applications such as data centers, factories, and large-scale commercial buildings in Singapore.

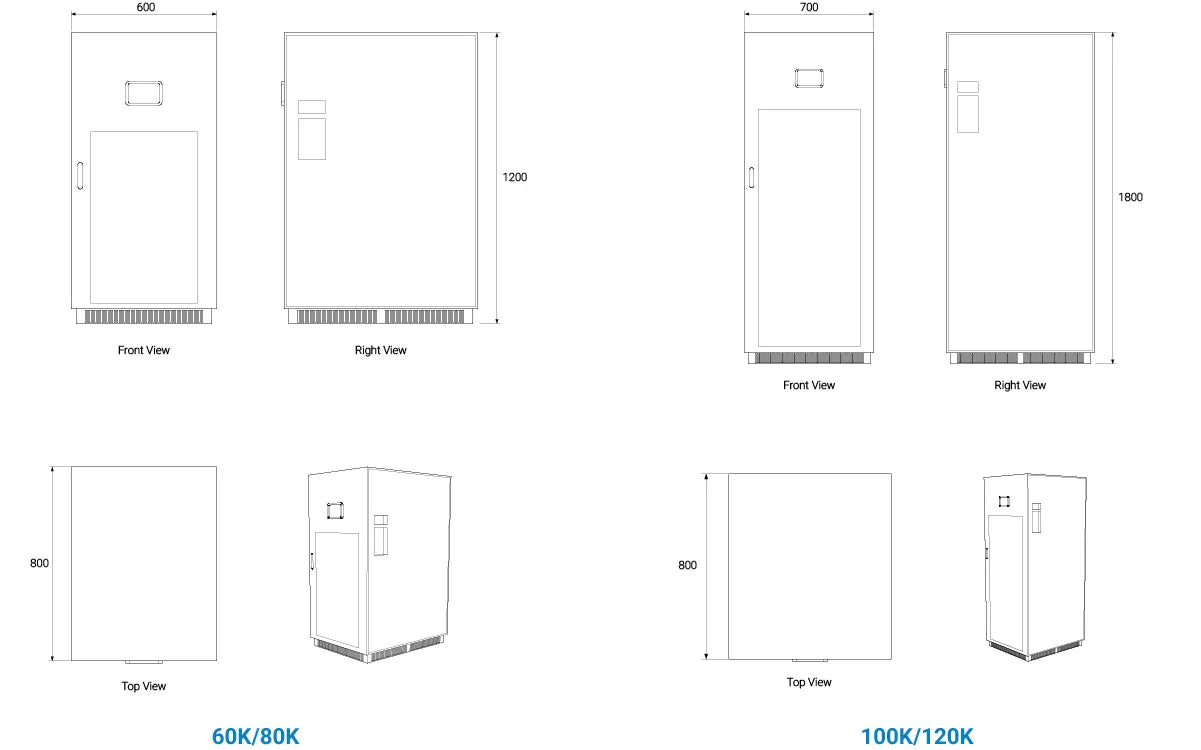

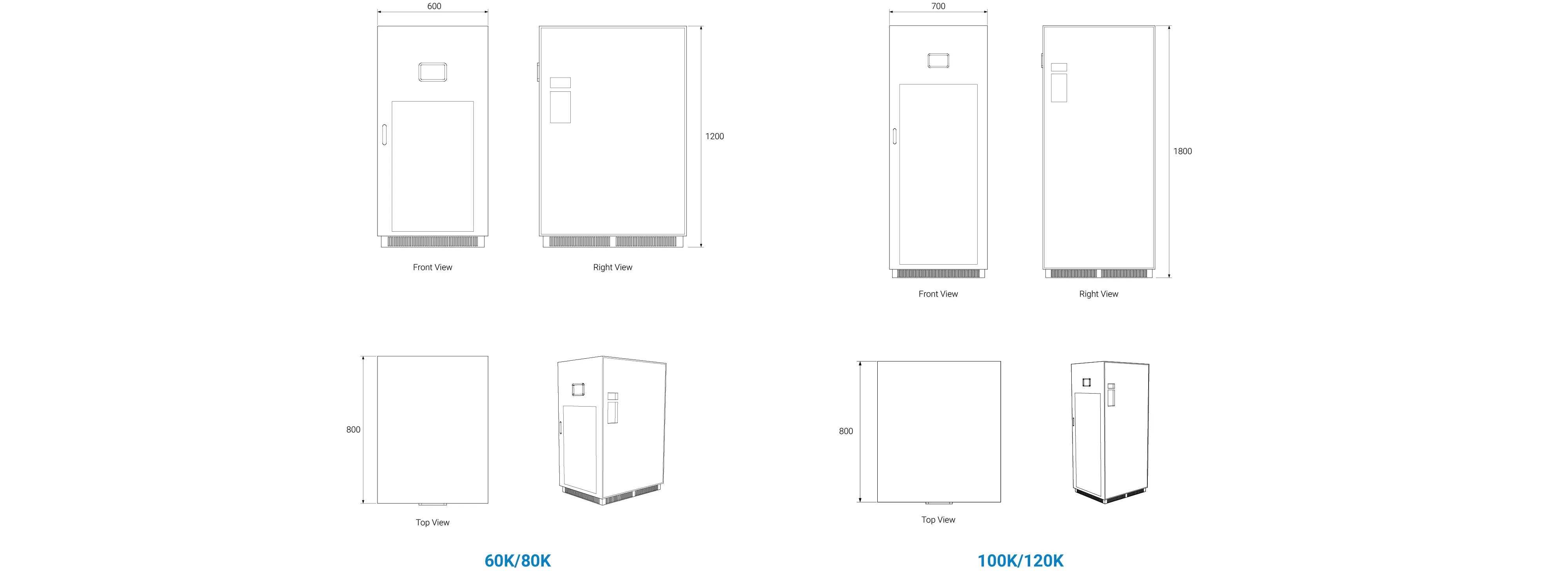

Comprehensive size chart for Zutto PowerShield01 industrial UPS models 60K, 80K, 100K, and 120K. Engineered for high-capacity power backup in mission-critical environments, including manufacturing plants, hospitals, and telecommunication facilities in Singapore.Comprehensive size chart for Zutto PowerShield01 industrial UPS models 60K, 80K, 100K, and 120K. Engineered for high-capacity power backup in mission-critical environments, including manufacturing plants, hospitals, and telecommunication facilities in Singapore.

Quality Certifications


UL Certification IEC Certification ISO Certification CE Certification UN Certification MSDS Certification FCC Certification PSE Certification ROHS Certification
