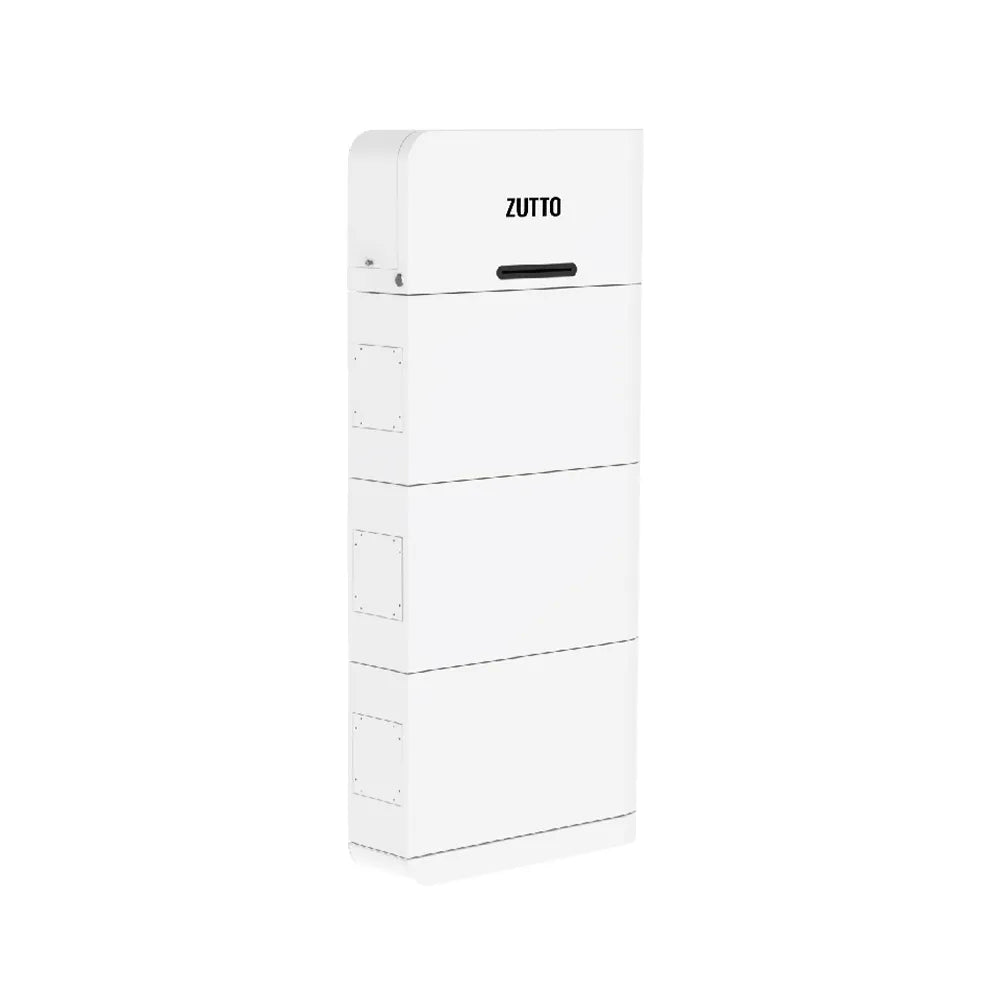

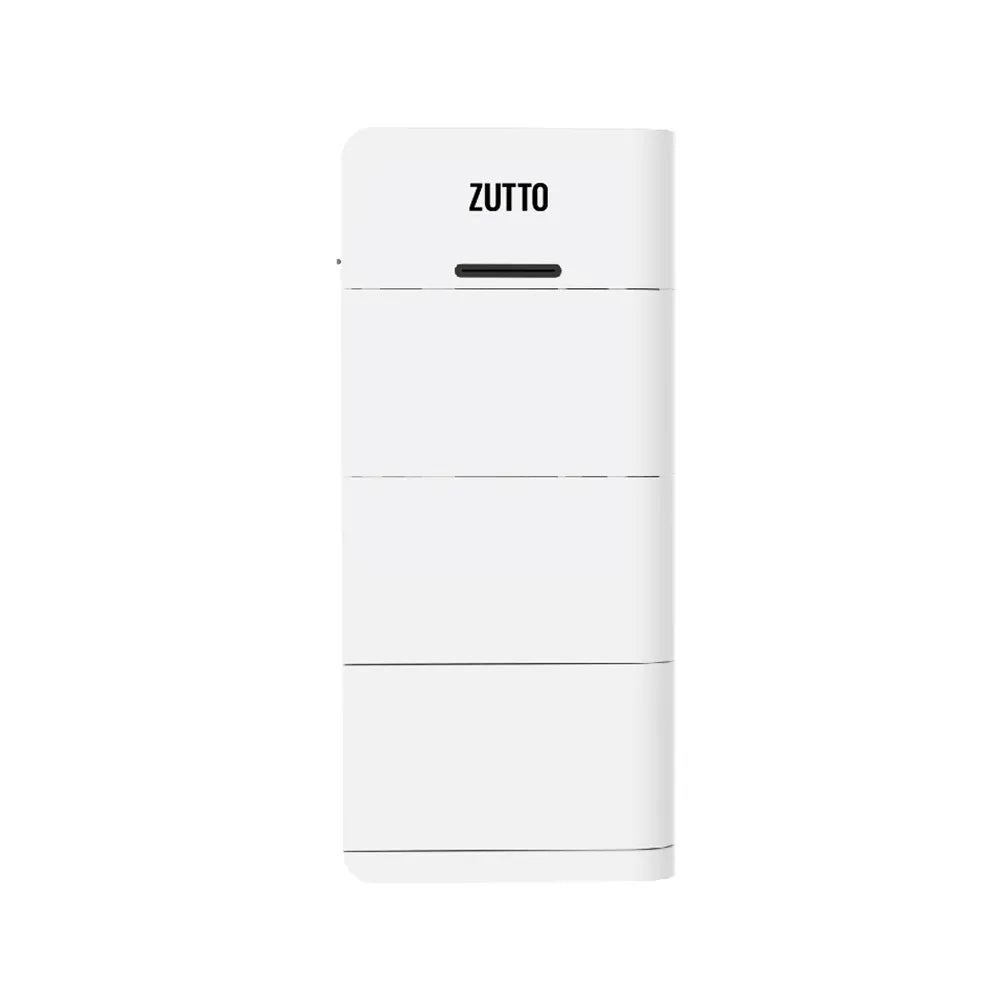

Zutto PowerCore08
Efficient Energy Storage, Reliable Power Anytime
The Zutto PowerCore08 is a 204.8V 50Ah LiFePO4 energy storage system, designed for industrial and commercial power backup and energy storage. Built with high-efficiency lithium iron phosphate (LiFePO4) technology, it ensures long lifespan, stable performance, and enhanced safety. The system integrates an advanced Battery Management System (BMS) for real-time monitoring, overcharge and discharge protection, and temperature control. It supports RS232, RS485, and CAN communication, allowing for seamless remote monitoring and system integration. With its compact design and high energy efficiency, Zutto PowerCore04 is an ideal solution for renewable energy storage, UPS backup, and grid stabilization.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Battery Pack Specifications
| No. | Item | General Parameter | Remark |
|---|---|---|---|
| 1 | Combination method | 64S1P | 204.8V 100Ah |
| 2 | Rated Capacity | Typical: 50Ah Minimum: 48Ah |
Standard discharge after Standard charge (package) |
| 3 | Voltage Range | 172.8~224V | |
| 4 | Voltage at end of Discharge | 172.8V | Discharge Cut-off Voltage |
| 5 | Charging Voltage | 224V | |
| 6 | Internal Impedance | ≤100mΩ |
Internal resistance measured
atAC 1KHZ after 50% charge
The measure must uses the new batteries
that within one week after shipment
and cycles less than 5 time
|
| 7 | Standard charge | Constant Current 0.2C Constant | Charge time (Approx.): 6.5h |
| 8 | Standard discharge | Constant current: 0.2C end voltage | |
| 9 | Maximum Continuous Charge Current | 50A | T ≥ 10℃ |
| 10 | Maximum Continuous Discharge Current | 50A | T ≥ 10℃ |
| 11 | Operation Temperature Range | Charge: 0~50℃ Discharge: -20~55℃ |
60±25% R.H. Bare Cell |
| 12 | Storage Temperature Range | Less than 12 months: -10~35℃ Less than 3 months: -10~45℃ Less than 7 days: -20~55℃ |
60±25% R.H. at the shipment state |
| 13 | Single module Size | L630*W185*H345mm | L630*W185*H345mm |
| 14 | Main control box | L630*W185*H200mm | L630*W185*H200mm |
| 15 | System size | L630*W185*H955mm | L630*W185*H955mm |
| 16 | Weight (Approx.) | 120kg | 120kg |
Key Features
Connectivity Solutions
ZTESS028
Smart, Safe, and Scalable Energy Storage

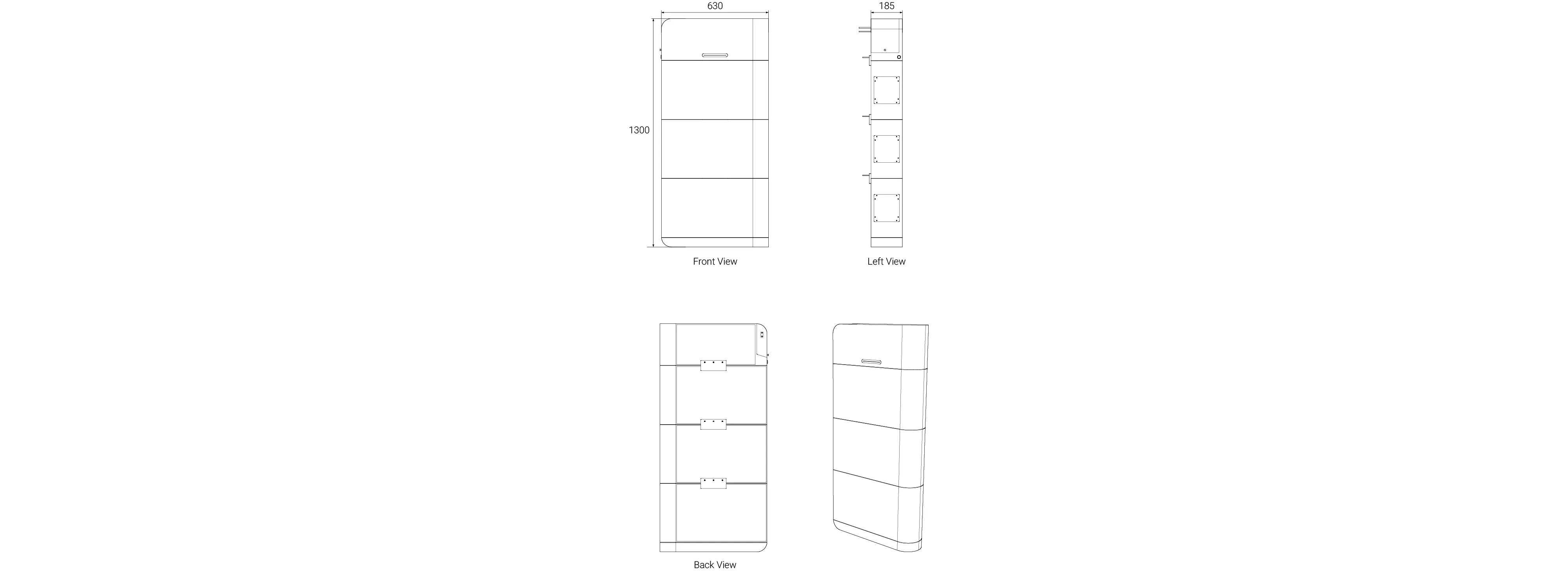

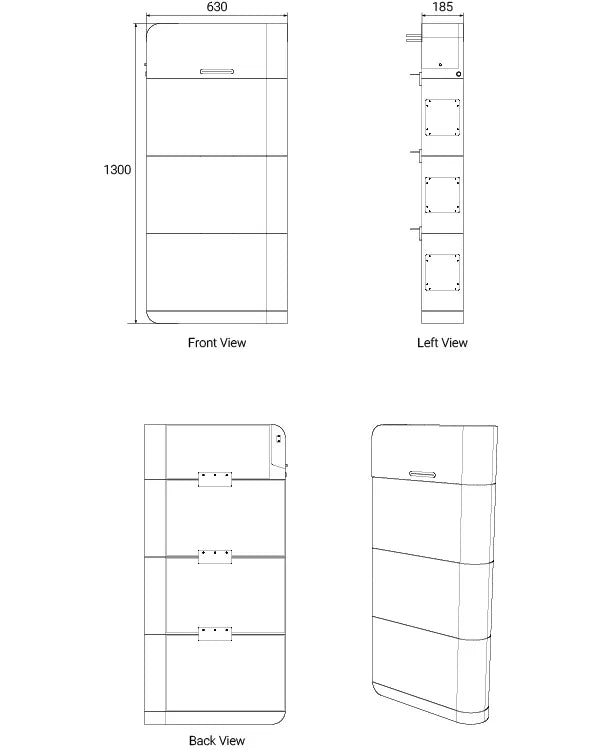

Mechanical Dimensions(Unit:mm)
Quality Certifications
