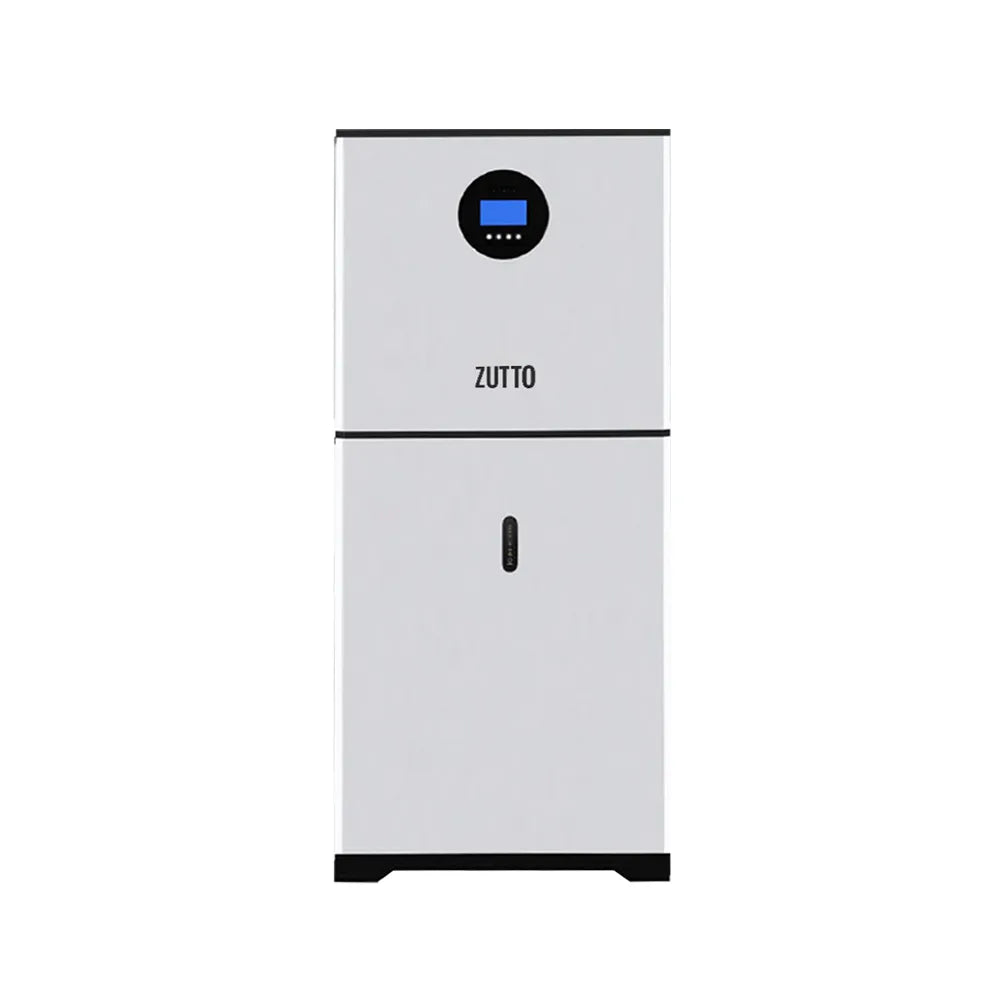

Zutto PowerCore06
Efficient Energy Storage for Diverse Needs
The Zutto PowerCore06 is a robust and efficient energy storage system designed for residential and commercial use. With capacities of 14.3kWh to 16kWh and power output of 6kW, it integrates lithium battery storage, inverter, and UPS functionality for seamless energy management. Featuring smart RS485/WiFi communication and an IP20-rated design, the PowerCore06 ensures reliable performance and easy integration for diverse power needs.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 14.3kWh+6kW | 16kWh+6kW |
|---|---|---|---|
| Battery Module | Battery Capacity | 14.3kWh | 16kWh |
| Voltage | 51.2V | 51.2V | |
| Rated Capacity | 280Ah | 314Ah | |
| Communication Method | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC |
| Input Power | 6kW | 6kW | |
| MPPT Voltage | 90~450VDC | 90~450VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP20 | IP20 | |
| Parameter | Modules Dimension | 1120*480*225mm | 1120*480*225mm |
| Modules Weight | 124kg (approx.) | 130kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||
| Material/ Colour | Metal / White+Black | ||
Key Features

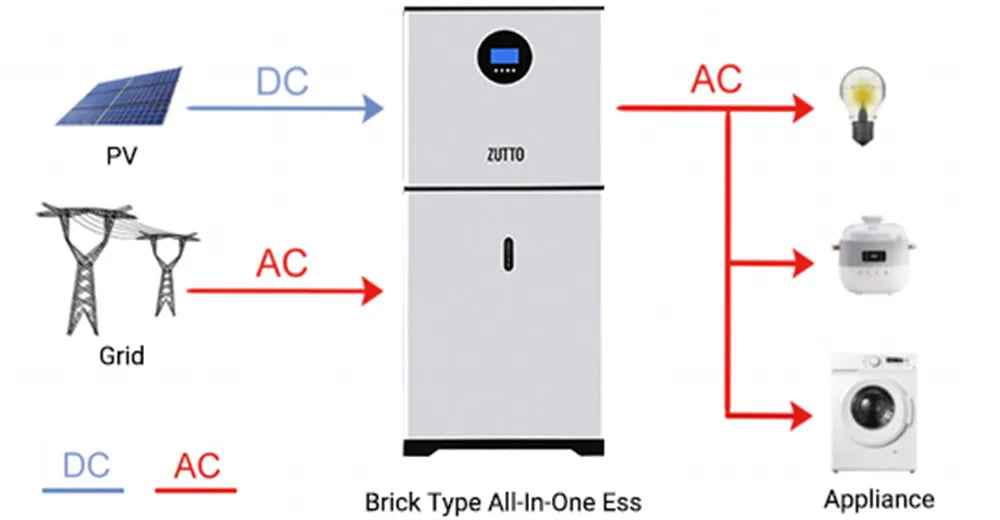

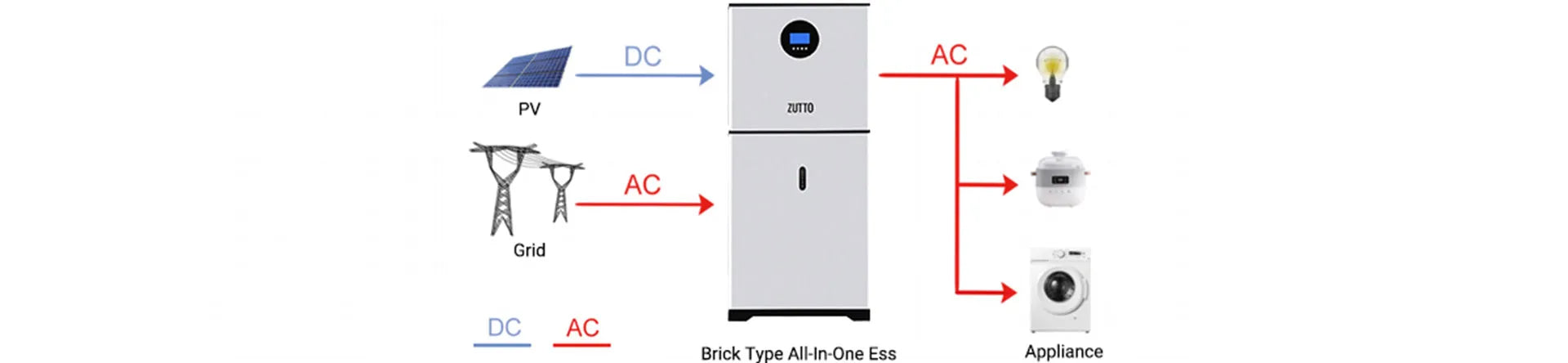

Connectivity Solutions
ZTESS014
Efficient Energy Storage for Diverse Needs

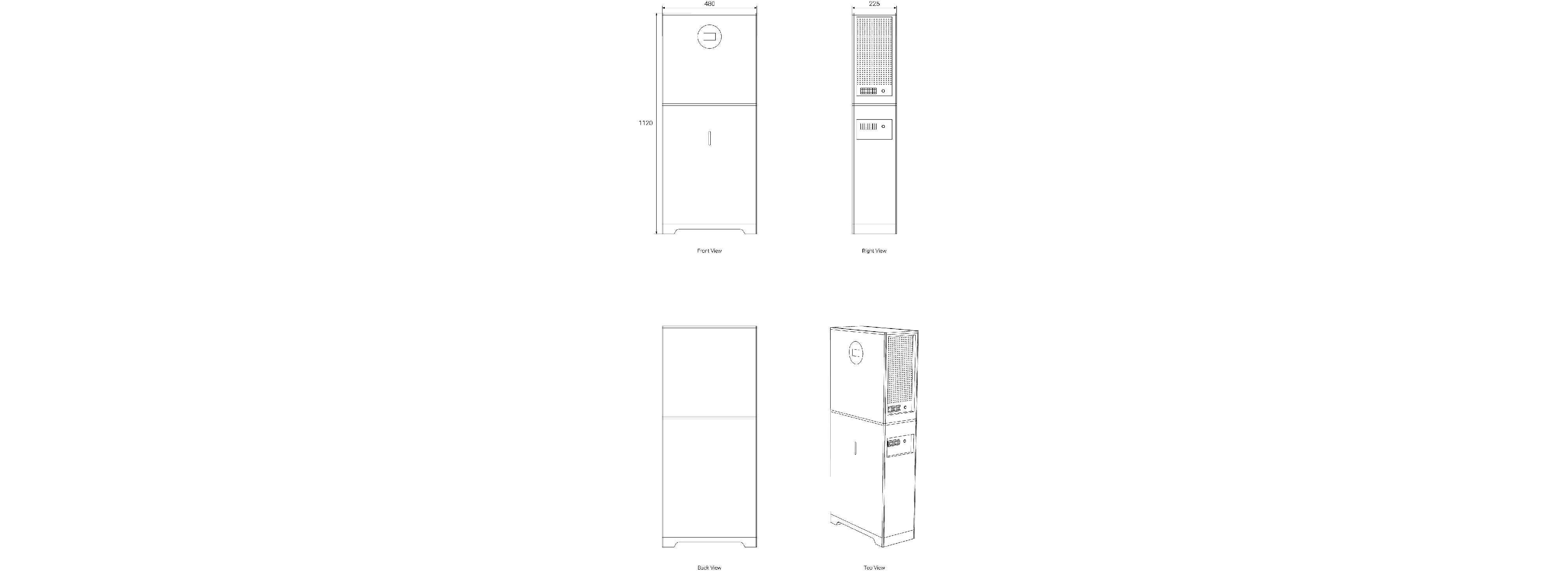

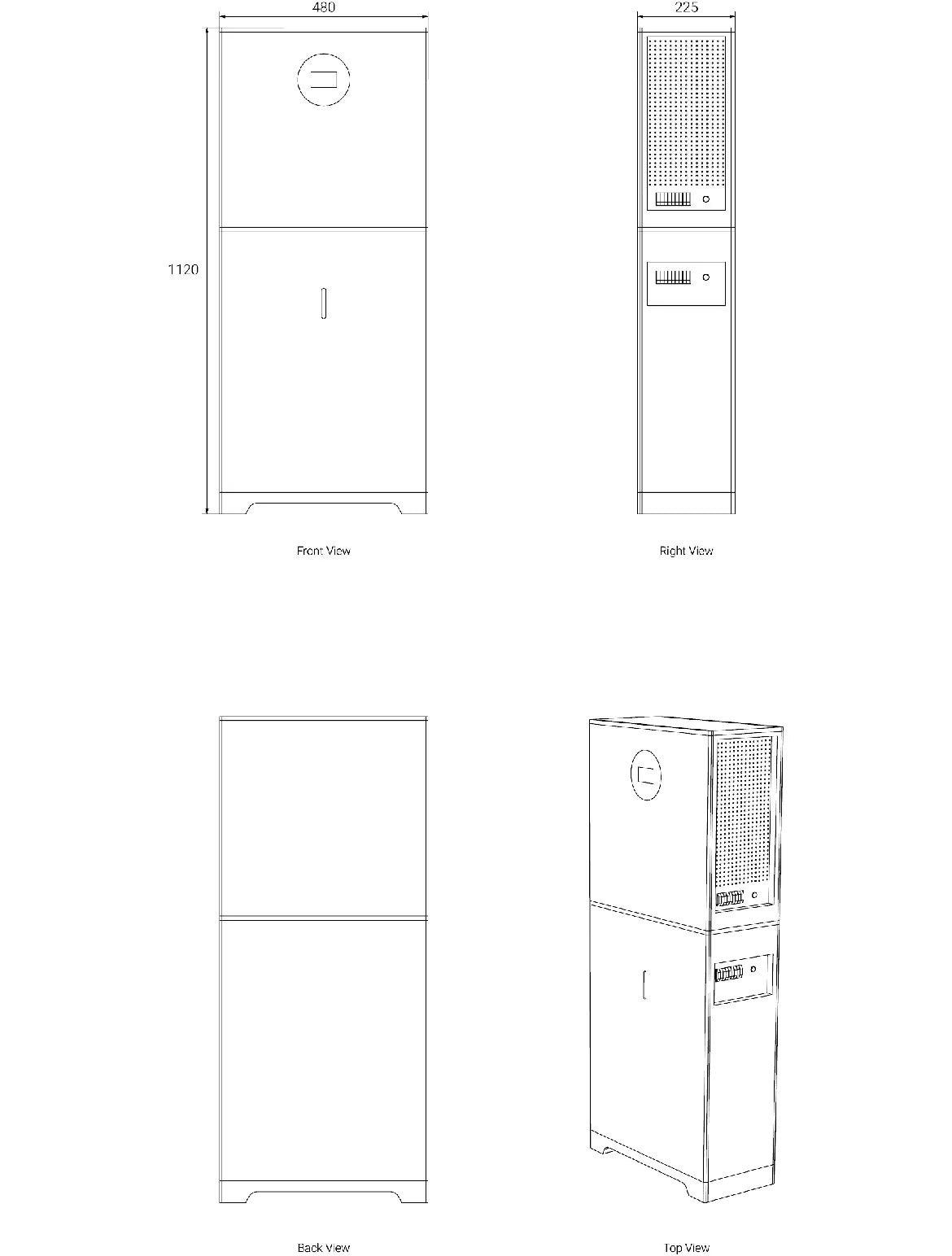

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto PowerCore06
What is the capacity range of the Zutto PowerCore06?
The Zutto PowerCore06 is available in two capacity options: 14.3kWh and 16kWh, providing flexible storage solutions for various residential and commercial applications.
What is the power output of the Zutto PowerCore06?
The Zutto PowerCore06 features a 6kW hybrid inverter, making it suitable for efficient energy storage, conversion, and backup power for homes and businesses.
What communication methods are supported by the Zutto PowerCore06?
The Zutto PowerCore06 supports RS485 and WiFi communication, allowing for easy monitoring and integration into energy management systems for better control and efficiency.
What is the operating temperature range for charging and discharging?
The Zutto PowerCore06 operates with a charging temperature range of 0°C to 50°C and a discharging temperature range of -15°C to 60°C, ensuring reliable performance in various environmental conditions.
What safety features are included in the Zutto PowerCore06?
The Zutto PowerCore06 includes several safety protections, such as overcharge, overdischarge, overcurrent, and short-circuit protection, along with temperature monitoring to ensure safe and efficient operation.
