Zutto PowerCore07 48V 200Ah LiFePO4 wall-mounted battery, designed for residential and commercial energy storage. Featuring a compact, space-saving design with intelligent BMS for protection against overcharge, over-discharge, short circuit, and overheating. Supports RS232, RS485, and CAN communication for real-time monitoring and remote management. Ideal for solar storage, backup power, and off-grid applications.

Zutto PowerCore07

Reliable Power, Smarter Storage

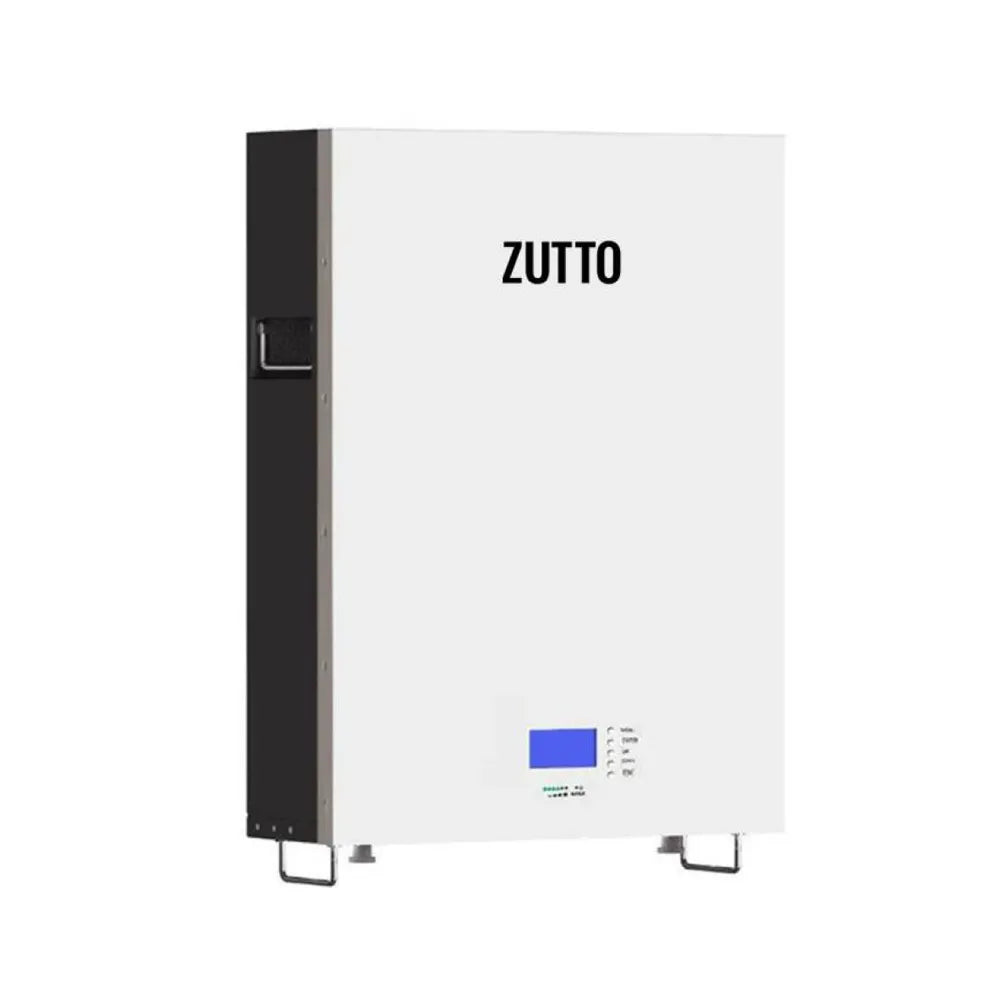

The Zutto PowerCore07 is a 48V 200Ah LiFePO4 wall- mounted battery, designed for residential and commercial energy storage. With a compact and space-saving design, it offers reliable and scalable power solutions. Equipped with an intelligent BMS, it provides comprehensive protection against overcharge, over-discharge, short circuit, and overheating. Supporting RS232, RS485, and CAN communication, it enables real-time monitoring and remote management. With high efficiency, long lifespan, and strong adaptability, the Zutto PowerCore07 is ideal for solar storage, backup power, and off-grid applications.

REQUEST MORE INFO ▶
 Download Data Sheets

Battery Pack Specifications


No. Item General Parameter Remark
1 Combination Method 15S2P 48V 200Ah
2 Rated Capacity Typical: 200Ah
Minimum: 198Ah		 Standard discharge after standard charge (package)
3 Voltage Range 40.5~54.75V
4 Voltage at End of Discharge 40.5V Discharge Cut-off Voltage
5 Charging Voltage 54.75V
6 Internal Impedance ≤20mΩ Internal resistance measured at AC 1KHz after 50% charge
The measure must use the new batteries within one week after shipment
Cycles less than 5 times
7 Standard Charge Constant Current 0.2C Charge time (Approx.): 6.5h
8 Standard Discharge Constant current: 0.2C end voltage
9 Maximum Continuous Charge Current 100A T ≥ 10℃
10 Maximum Continuous Discharge Current 100A T ≥ 10℃
11 Operation Temperature Range Charge: 0~50℃
Discharge: -20~55℃		 60±25% R.H. Bare Cell
12 Storage Temperature Range Less than 12 months: -10~35℃
Less than 3 months: -10~45℃
Less than 7 days: -20~55℃		 60±25% R.H. at the shipment state
13 Dimensions L723*W485*H185.8mm L723*W485*H185.8mm
14 Weight (Approx.) 103kg 103kg

Key Features


Modular and scalable design for flexible and efficient energy storage.

High-Capacity LiFePO4 Battery

48V 200Ah lithium iron phosphate
battery for long-lasting, stable power.
Solar inverter integrated energy management icon, enabling intelligent power monitoring and optimization for improved energy efficiency, designed for sustainable energy solutions in Singapore.

Seamless Communication

Supports RS232, RS485, and CAN for efficient remote monitoring and integration.
robust safety features with 15-layer protection for reliable and secure energy storage.

Advanced BMS Protection

Ensures overcharge, over-discharge, short circuit, and temperature control.
Compact and durable design icon for solar energy storage and inverter solutions in Singapore

Compact Wall-Mounted Design

Saves space while offering scalability for modular energy storage solutions.

Connectivity Solutions


Diagram illustrating the working principle of Zutto PowerVault energy storage system in Singapore. The system integrates AC and DC power sources, using an inverter to convert DC from PV and battery BMS to AC for grid and load management, ensuring seamless energy flow and backup through diesel generators and uninterrupted power sources.

ZTESS029

Reliable Power, Smarter Storage

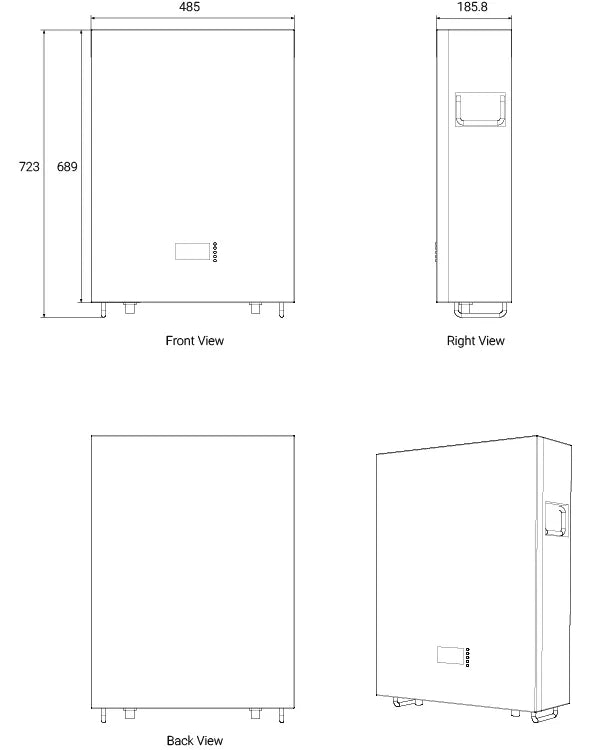

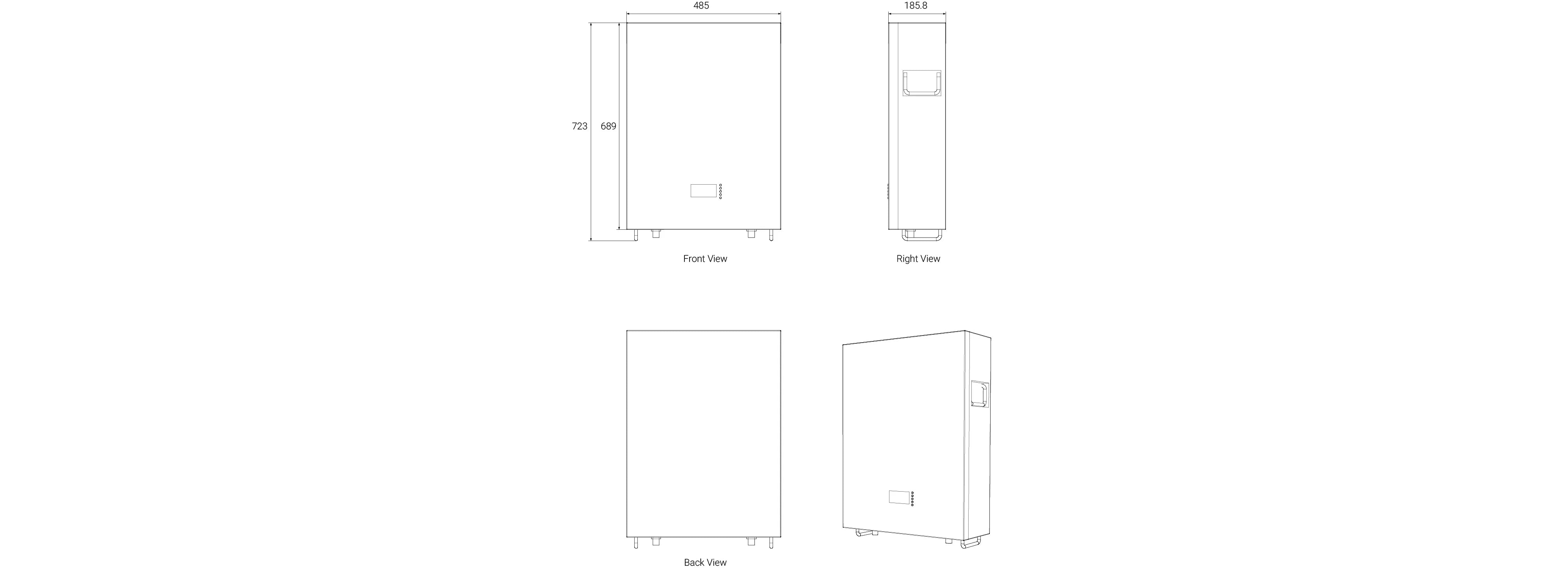

Mechanical Dimensions(Unit:mm)


Mechanical dimensions of Zutto powercore07 showing front, left, back, and top views for precise installation and planning.Mechanical dimensions of Zutto powercore07 showing front, left, back, and top views for precise installation and planning.

Quality Certifications


UL Certification IEC Certification ISO Certification CE Certification UN Certification MSDS Certification FCC Certification PSE Certification ROHS Certification
