Zutto LifeGrid05
Flexible Power Backup for Homes & Businesses

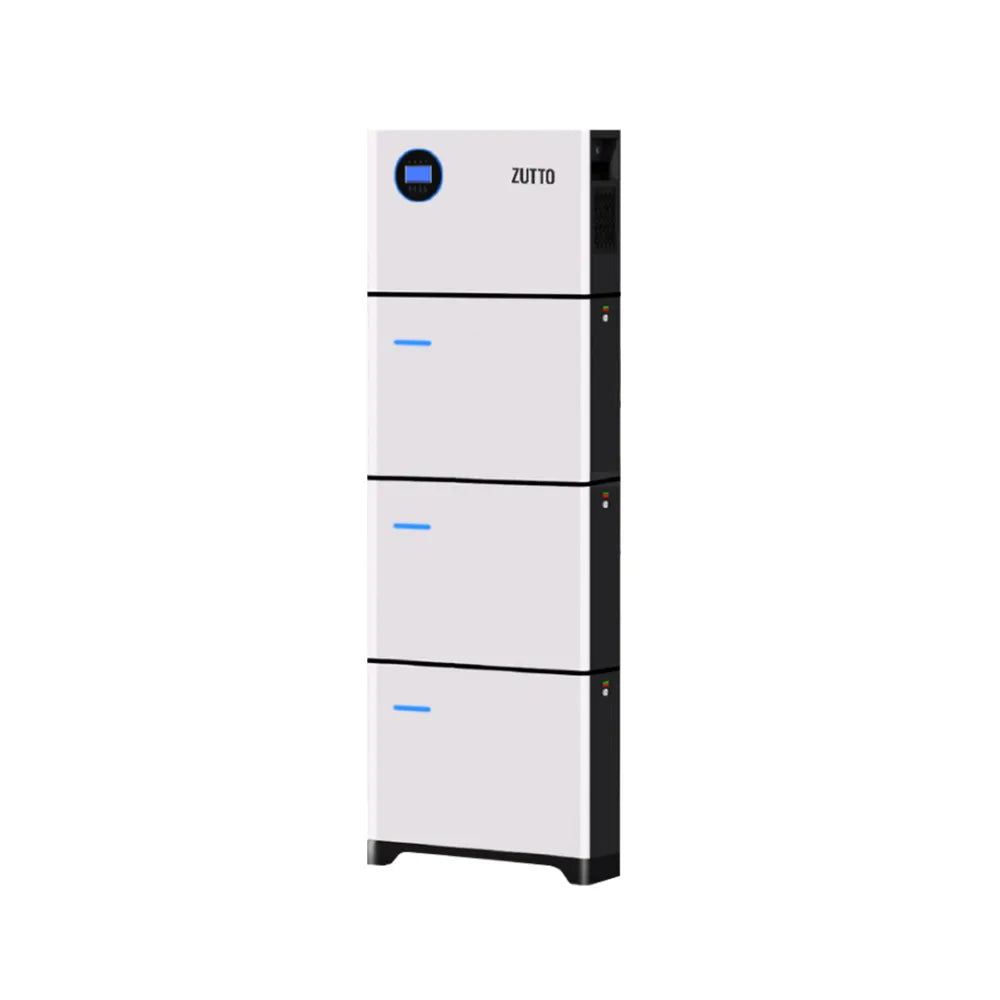

The Zutto PowerCore05 is a wall-mounted, modular energy storage system tailored for residential and commercial use. With scalable capacities starting from 5kWh per module and integrated power outputs of 5kW, it combines advanced inverter and UPS functionality for seamless energy management. Featuring RS485/WiFi communication, compact design, and IP20-rated protection, the PowerCore05 delivers reliable and efficient energy solutions in a sleek and adaptable format.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 5kWh+5KW/A1 | 5kWh+n+5KW/B1 | 5kWh+n+5KW/P1 |
|---|---|---|---|---|
| Battery Module | Battery Capacity | 5kWh | 5kWh (n≥2) | 5kWh (n≥2) |
| Voltage | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 100Ah*n | 100Ah*n | 100Ah*n | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC | 230VAC |
| Input Power | 5KW | 5KW | 5KW | |
| MPPT Voltage | 120~430VDC | 120~430VDC | 120~430VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP20 | IP20 | IP20 | |
| Parameter | Modules Dimension | 430×230×850mm | 430×230×850mm | 550×170×865mm |
| Modules Weight | 55kg (approx.) | 55kg (approx.) | 57kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
|||
| Material/ Colour | Metal / White+Black | |||
Key Features

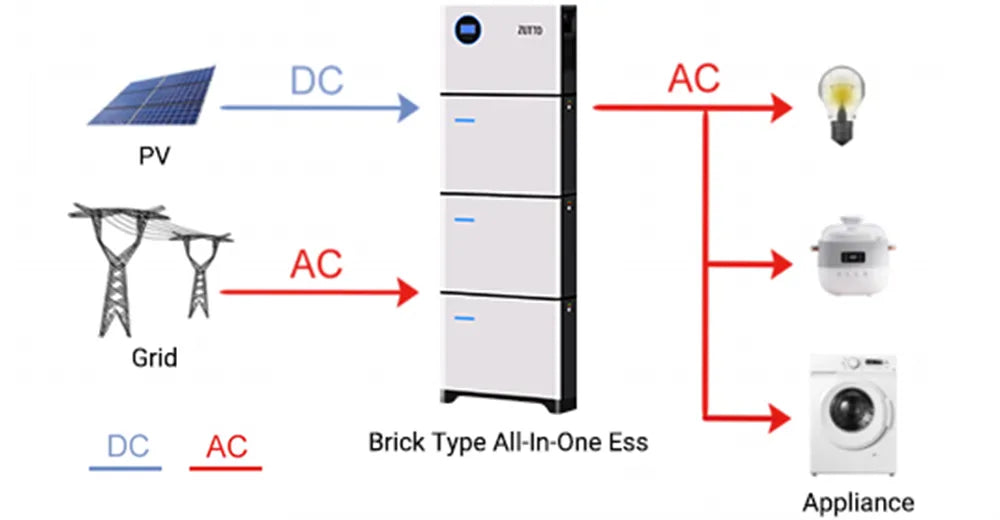

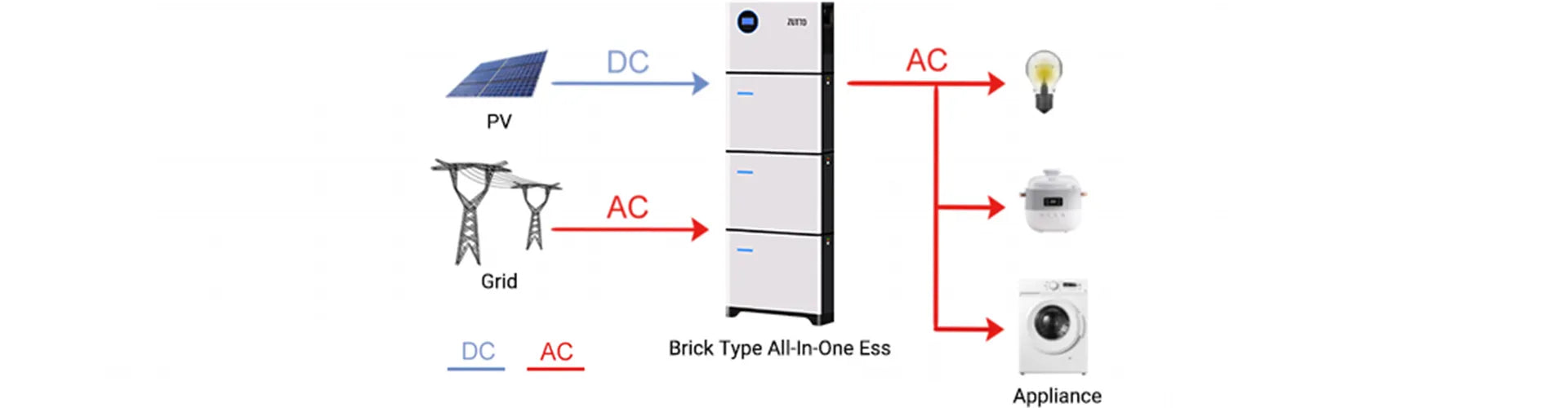

Connectivity Solutions
ZTESS013
Flexible Power Backup for Homes & Businesses

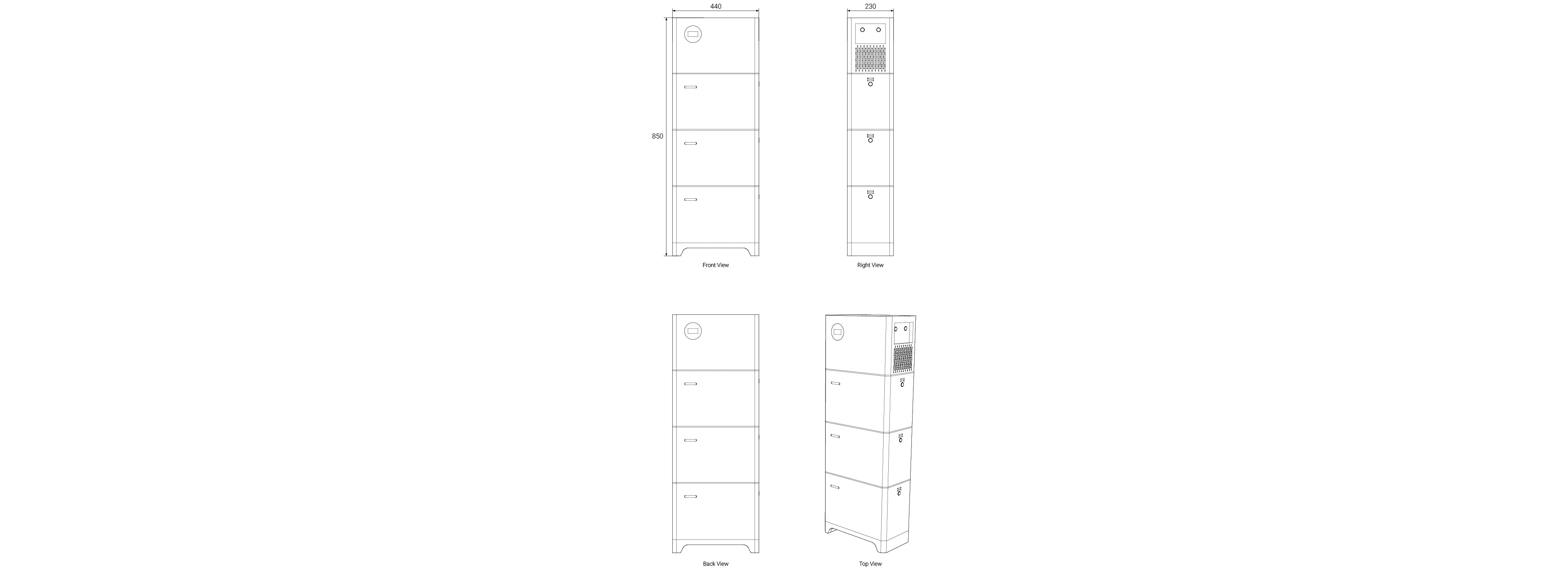

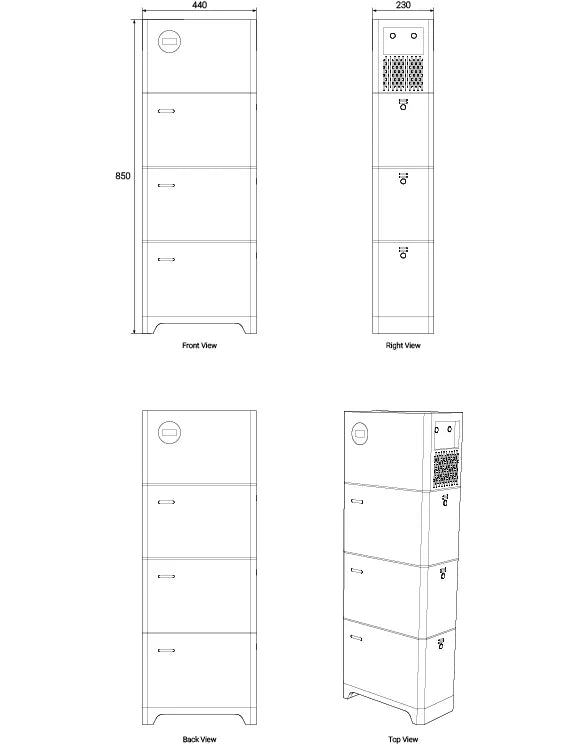

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto PowerCore05
What is the capacity of the Zutto PowerCore05?
The Zutto PowerCore05 is a modular energy storage system with a battery capacity of 5kWh per module. It allows for scalable energy storage, with additional modules available for extended storage.
What are the communication options for the Zutto PowerCore05?
The Zutto PowerCore05 supports communication via both RS485 and WiFi, providing flexibility for remote monitoring and integration with other energy management systems.
What is the output power of the Zutto PowerCore05?
The Zutto PowerCore05 features an inverter with a power output of 5kW, making it suitable for both residential and commercial applications requiring efficient energy management and backup.
What are the temperature ranges for charging and discharging the Zutto PowerCore05?
The Zutto PowerCore05 supports a charging temperature range from 0°C to 50°C and a discharging temperature range from -15°C to 60°C, ensuring reliable operation in varying environmental conditions.
Is the Zutto PowerCore05 suitable for residential and commercial use?
Yes, the Zutto PowerCore05 is designed for both residential and commercial use, offering scalable energy storage, power backup, and integrated inverter functionality in a compact and adaptable format.
