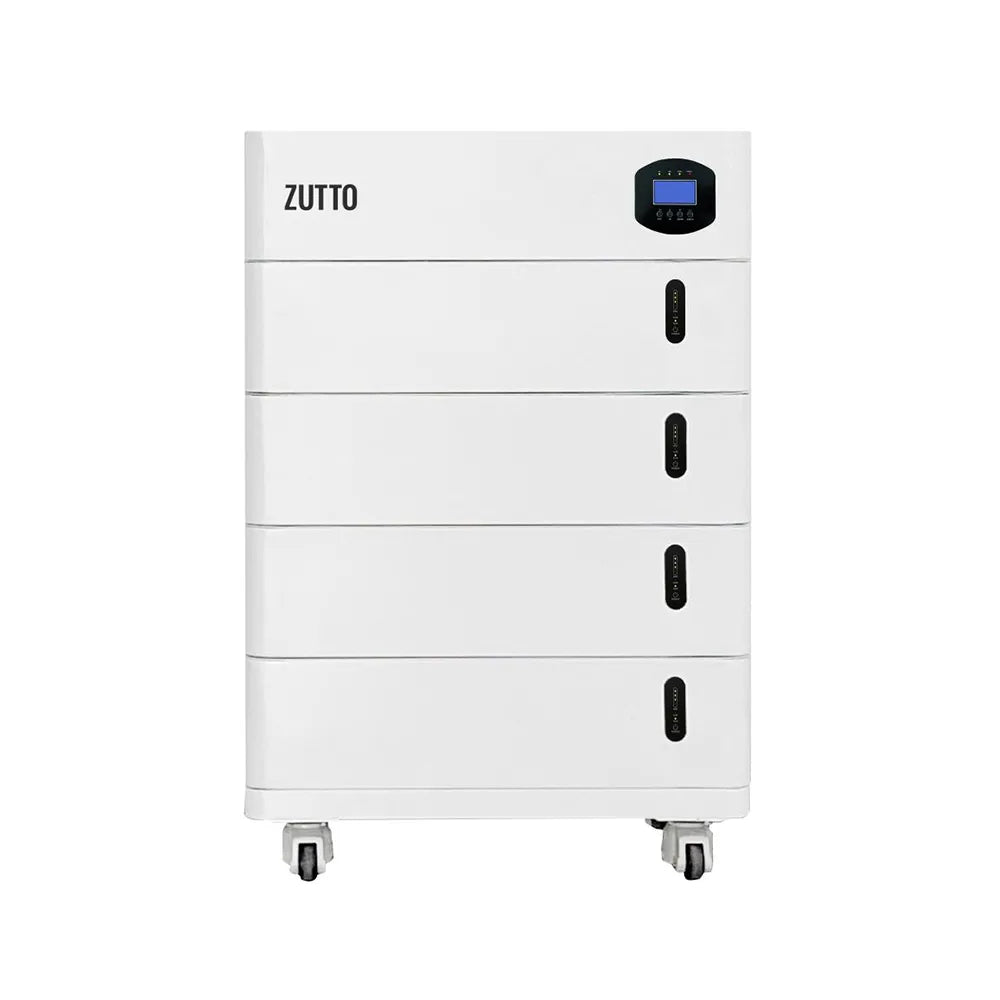

Zutto PowerCore04
Flexible Energy Solution for Every Needs
The Zutto PowerCore04 is a modular, stackable energy storage system designed for residential and commercial hybrid power applications. With scalable capacities starting from 5kWh per module and integrated power outputs of 6kW, it offers customizable and efficient energy solutions. Featuring an IP65-rated enclosure for durability, RS485/WiFi communication for seamless monitoring, and integrated UPS functionality, the PowerCore04 ensures reliable and uninterrupted power in diverse environments.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 5kWh+n+6kW | 10kWh+n+6kW | 15kWh+n+6kW |
|---|---|---|---|---|
| Battery Module | Battery Capacity | 5kWh*n (ns8) | 10kWh*n (ns5) | 15kWh*n (ns4) |
| Voltage | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 100Ah*n | 100Ah*n | 280Ah*n | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC | 230VAC |
| Input Power | 6kW | 6kW | 6kW | |
| MPPT Voltage | 90~450VDC | 90~450VDC | 90~450VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP65 | IP65 | IP65 | |
| Parameter | Modules Dimension | 590×550×462mm | 590×550×545mm | 590×550×760mm |
| Modules Weight | 71kg (approx.) | 113kg (approx.) | 115kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
|||
| Material/ Colour | Metal / White + Black | |||
Key Features

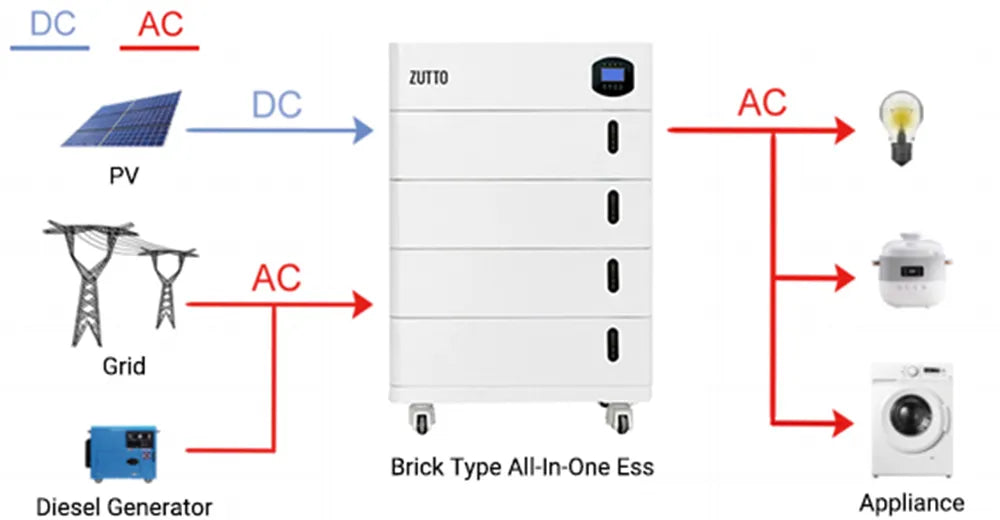

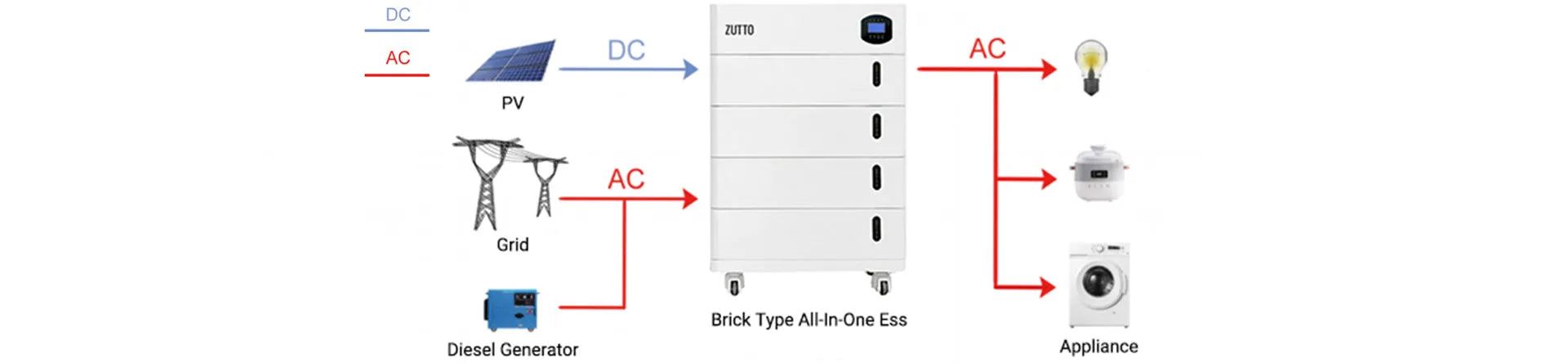

Connectivity Solutions
ZTESS012
Flexible Energy Solution for Every Needs

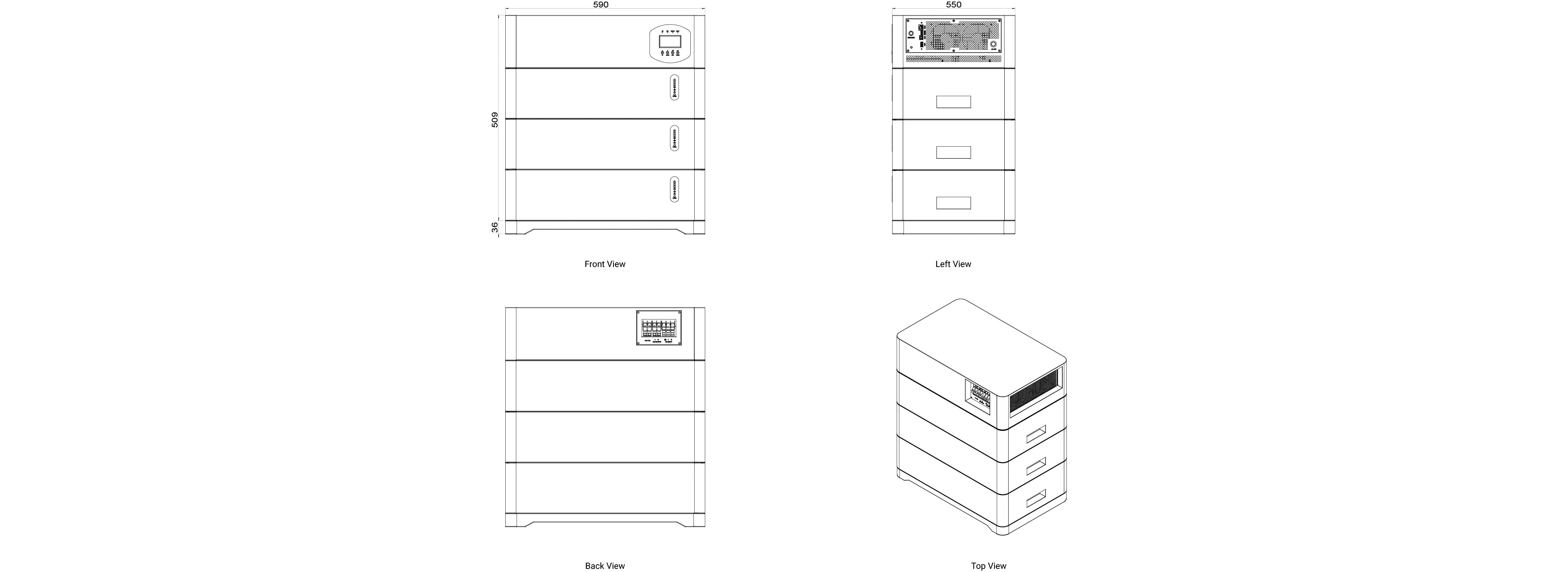

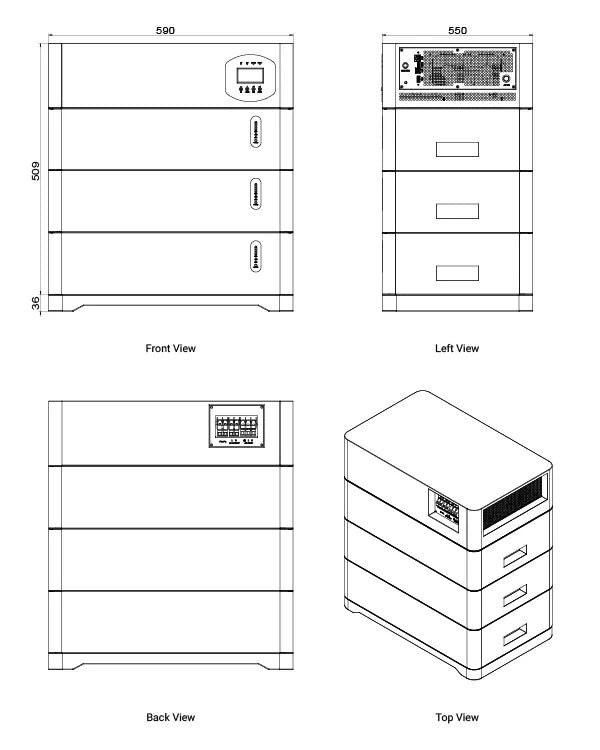

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto PowerCore04
What is the capacity of the Zutto PowerCore04?
The Zutto PowerCore04 is a modular energy storage system with scalable capacities, starting from 5kWh per module. The system can be expanded with additional modules to reach up to 15kWh for larger storage needs.
What is the inverter capacity of the Zutto PowerCore04?
The Zutto PowerCore04 features a hybrid inverter with a 6kW output, making it suitable for both residential and commercial hybrid power applications, ensuring efficient energy conversion and utilization.
What are the temperature ranges for the Zutto PowerCore04?
The Zutto PowerCore04 can be charged in temperatures between 0°C and 50°C and discharged in temperatures ranging from -15°C to 60°C, making it reliable for various environments.
How does the Zutto PowerCore04 communicate with other systems?
The Zutto PowerCore04 supports RS485 and WiFi communication, enabling seamless monitoring and integration with energy management systems for efficient power usage and remote management.
What protection features are included in the Zutto PowerCore04?
The Zutto PowerCore04 includes a range of protection features such as overcharge, overdischarge, overcurrent, short-circuit protection, and temperature safety mechanisms to ensure the safety and longevity of the system.
