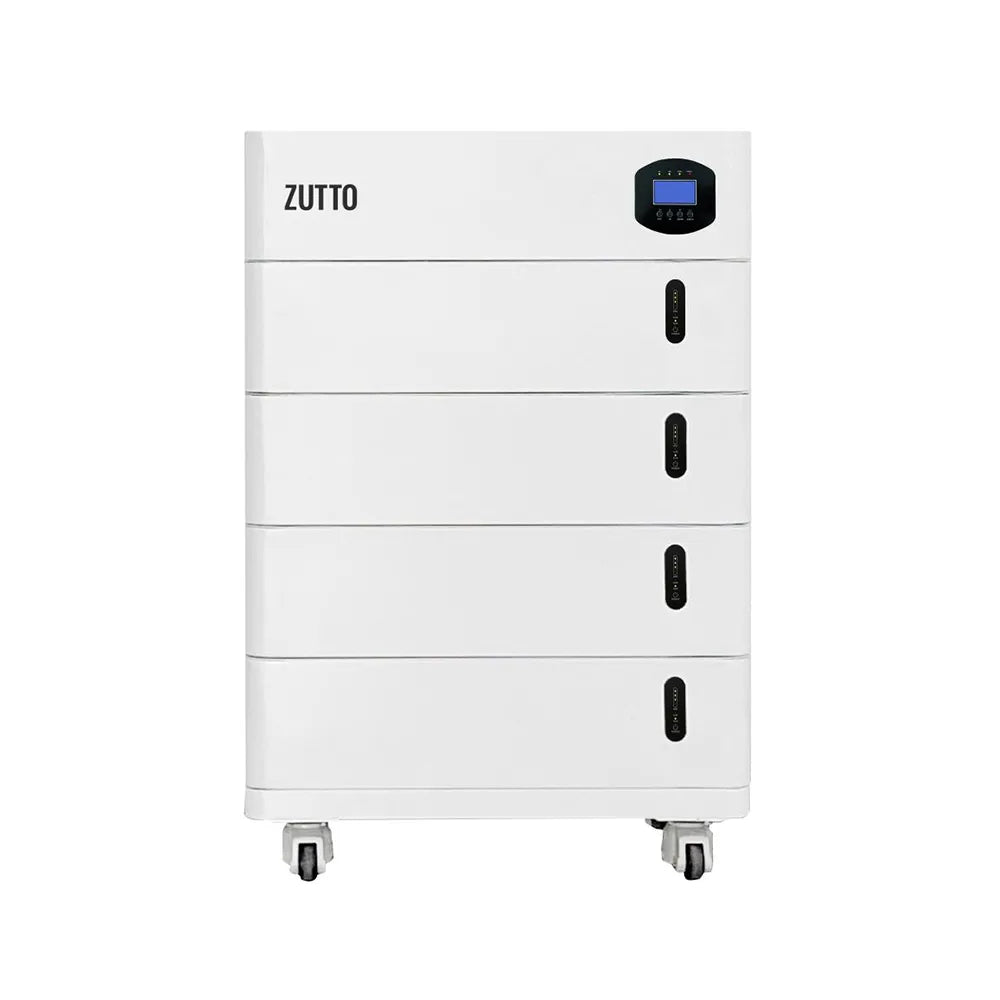

Zutto PowerCore03
High-Performance Energy Storage System
The Zutto ZTESS003 is a high-capacity modular energy storage system designed for residential and commercial applications requiring efficient and scalable energy solutions. With a voltage of 51.2V and customizable capacities ranging from 300Ah to 600Ah, the battery capacity from 10kWh to 30kWh, ensuring reliable energy management. Its modular design facilitates easy stacking and seamless expansion, making it suitable for diverse energy needs.
Equipped with advanced safety features, including 15-layer protection, and robust communication via RS485 and CAN interfaces, the ZTESS003 ensures safe, reliable, and smart energy storage. Its compact design and compatibility with over 20 mainstream inverter brands make it an ideal choice for flexible, durable, and efficient energy solutions.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 5kWh*n (n=2~8) | 10kWh*n (n=2~6) | 15kWh*n (n=2~5) |
|---|---|---|---|---|
| Battery Module | Battery Capacity | 5kWh*n | 10kWh*n | 15kWh*n |
| Voltage | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 100Ah*n | 200Ah*n | 300Ah | |
| Charge Voltage | 58V | 58V | 58V | |
| Discharge Cut-off Voltage | 42V | 42V | 42V | |
| Max Charge Current | 100A | 100A | 100A | |
| Max Discharge Current | 100A | 100A | 100A | |
| Communication Method | RS485/CAN | RS485/CAN | RS485/CAN | |
| Parameter | Dimension | 580×360×150mm | 590×500×245mm | 670×550×265mm |
| Weight | 42Kg (approx.) | 75Kg (approx.) | 112Kg (approx.) | |
| Temperature | Charge: 0°C~50°C; Discharge: -15°C~60°C | |||
| Material/ Colour | Metal/ White+black | |||
Key Features

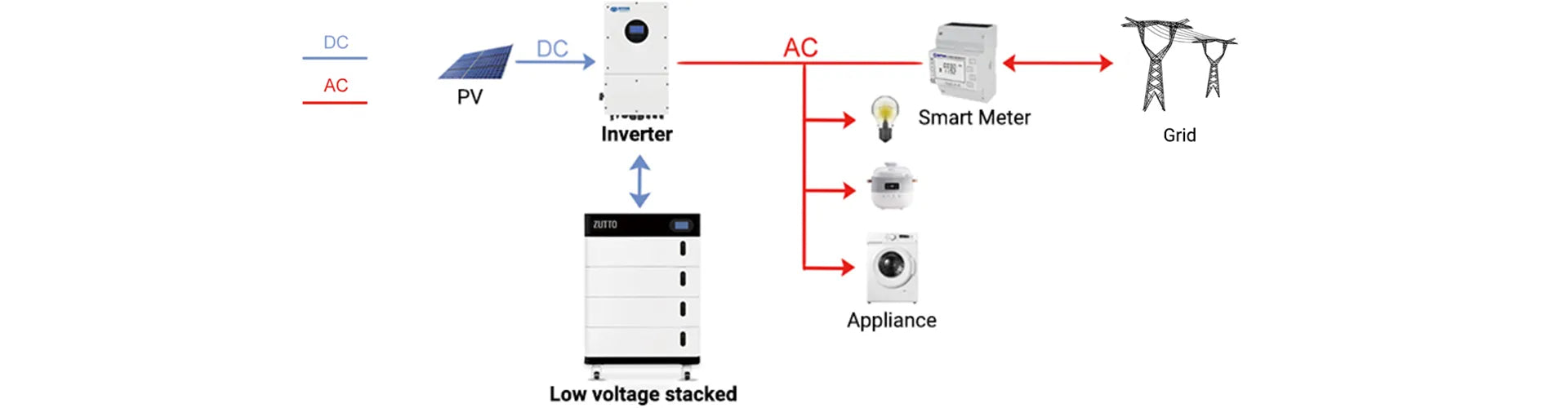

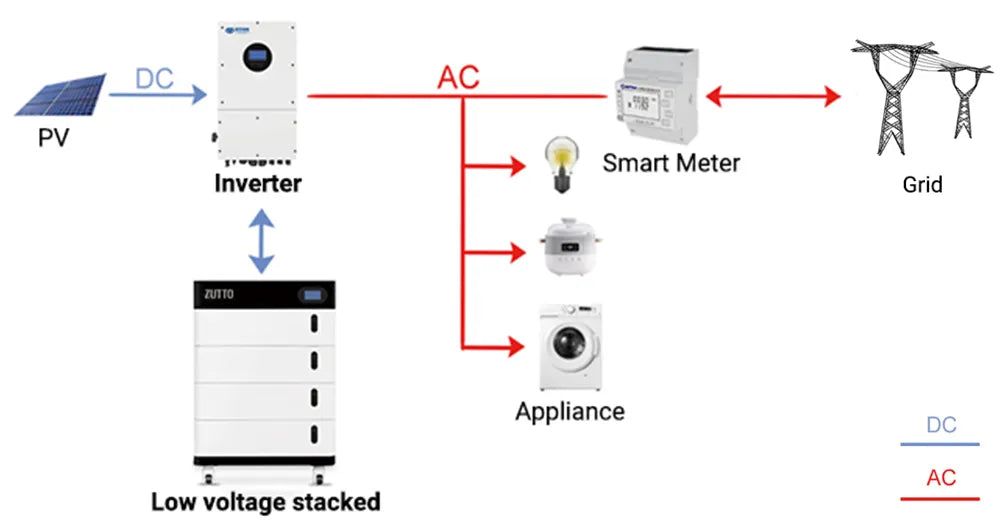

Connectivity Solutions
ZTESS003
High-Performance Energy Storage System

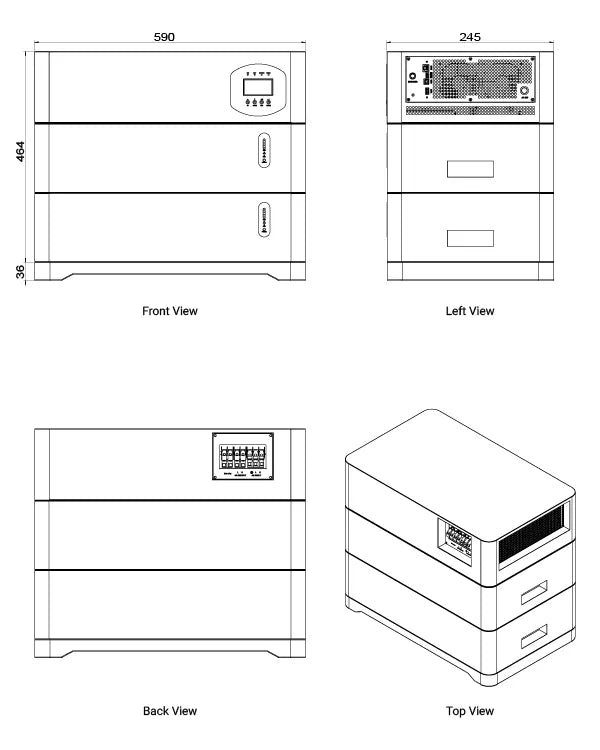

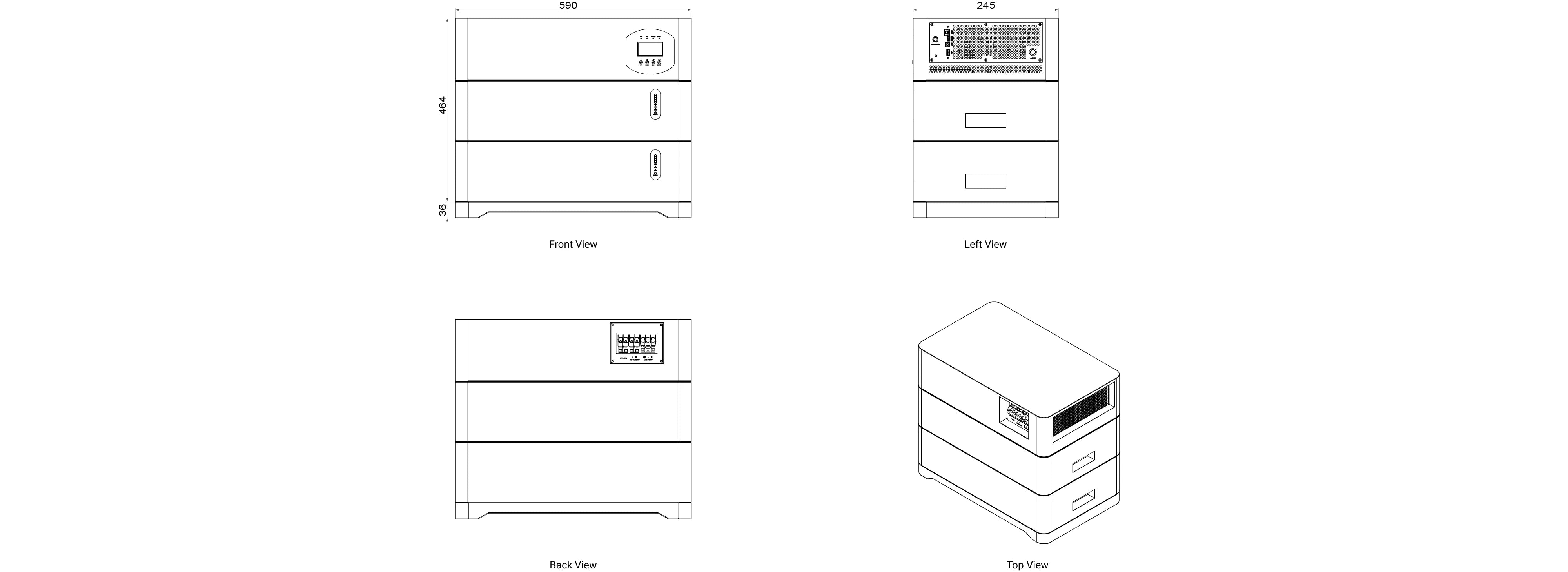

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZTESS003
What is the maximum capacity of the ZTESS003?
The ZTESS003 supports capacities ranging from 300Ah to 600Ah, catering to larger residential and commercial energy needs.
What is the maximum power output of the ZTESS003?
It provides scalable power outputs up to 30kW, suitable for mid-sized commercial setups.
Does the ZTESS003 support stacking?
Yes, the ZTESS003 features a modular design that allows for flexible stacking to increase energy storage.
What safety measures are included in the ZTESS003?
It includes 15-layer safety protection, ensuring safe and reliable operations even in demanding environments.
Can the ZTESS003 integrate with mainstream inverters?
Yes, the ZTESS003 is compatible with over 20 mainstream inverter brands, providing seamless system integration.
