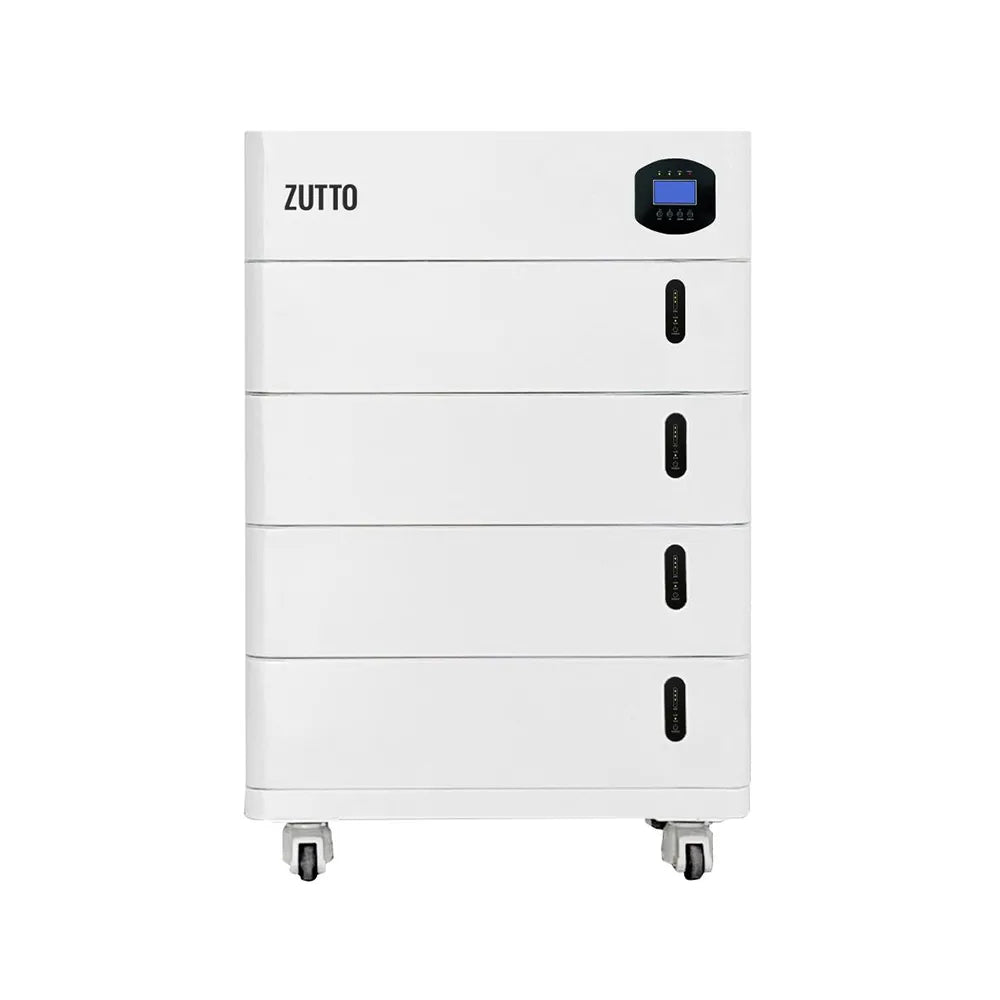

Zutto PowerCore02
Scalable Energy Storage for Modern Needs
The Zutto ZTESS002 is a modular low-voltage energy storage system designed for efficient and reliable energy management in residential and small commercial applications. With a base voltage of 51.2V and capacities up to 280Ah, it offers flexible configurations to meet diverse energy requirements. Its compact design ensures ease of installation, making it a perfect fit for modern energy storage solutions.
Equipped with advanced safety features, including 15-layer protection, and communication interfaces such as RS485 and WiFi, the ZTESS002 supports seamless integration with smart energy systems. Its ability to handle power outputs from 5kW to 15kW ensures scalable and efficient energy utilization.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 5kWh*n=5KW | 10kWh*n=10KW | 15kWh*n=11KW |
|---|---|---|---|---|
| Battery Module | Battery Capacity | 5kWh*n (n≤8) | 10kWh*n (n≤5) | 15kWh*n (n≤4) |
| Voltage | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 100Ah*n | 200Ah*n | 280Ah*n | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC | 230VAC |
| Input Power | 5KW | 10KW | 11KW | |
| MPPT Voltage | 120~450VDC | 90~450VDC | 90~450VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP20 | IP20 | IP20 | |
| Parameter | Modules Dimension | 590×550×462mm | 590×550×545mm | 590×550×760mm |
| Modules Weight | 71Kg (approx.) | 113Kg (approx.) | 115Kg (approx.) | |
| Temperature | Charge: 0°C~50°C; Discharge: -15°C~60°C | |||
| Material/ Colour | Metal/ White/ Black | |||
Key Features
Connectivity Solutions
ZTESS002
Scalable Energy Storage for Modern Needs

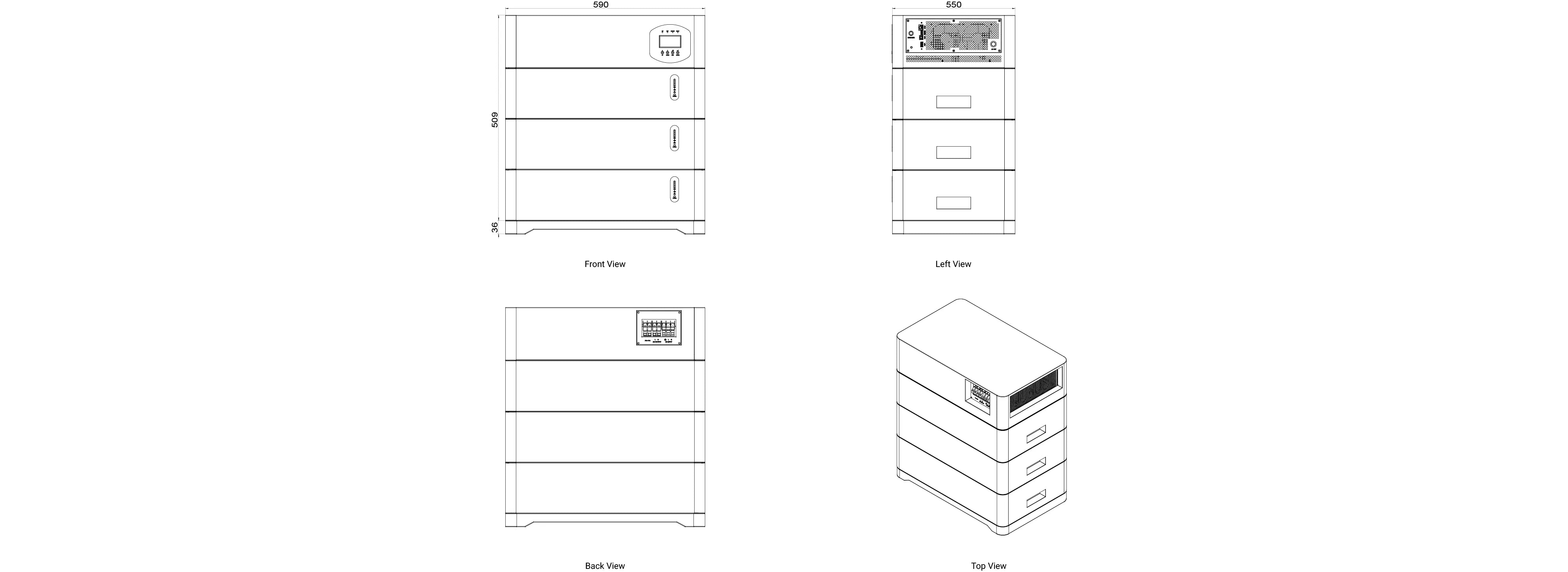

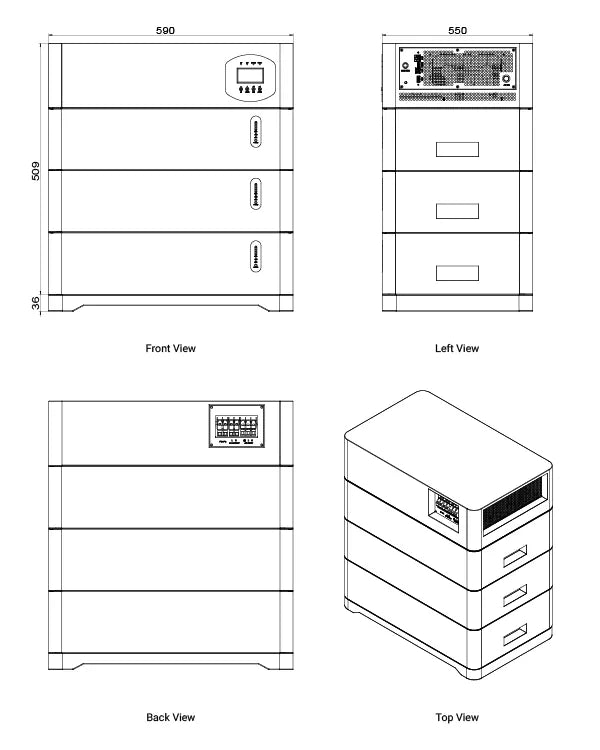

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for ZTESS002
What is the primary application of the ZTESS002?
The ZTESS002 is designed for residential and small commercial setups requiring low-voltage energy storage.
What is the maximum power output for the ZTESS002?
The ZTESS002 delivers power outputs of up to 15kW, making it suitable for smaller energy demands.
Can the ZTESS002 be expanded for greater capacity?
Yes, the modular design supports capacity expansions up to 280Ah, ensuring flexibility for growing energy requirements.
What communication interfaces does the ZTESS002 use?
It supports RS485 and WiFi interfaces, enabling seamless integration with smart energy systems.
What is the operating temperature range for the ZTESS002?
The ZTESS002 operates between 0°C to 50°C for charging and -15°C to 60°C for discharging, ensuring reliable performance in various environments.
