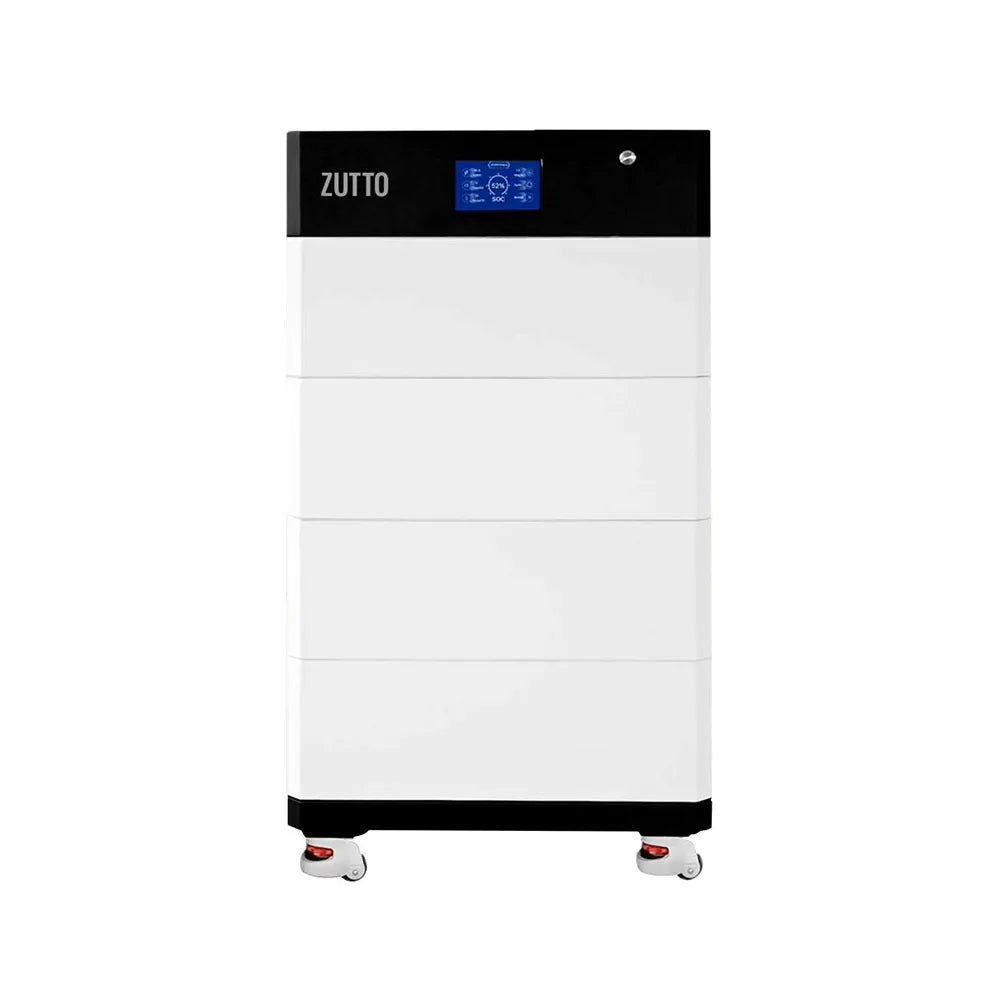

Zutto PowerCore 01 High-Voltage Energy Storage System with modular design for residential and commercial energy management.

Zutto PowerCore01
Advanced Energy Storage Solution

Name: Zutto PowerCore01 Advanced Energy Storage Solution
Brand: ZUTTO
Availability: OutOfStock

The Zutto ZTESS001 is a cutting-edge modular high-voltage energy storage system designed for reliable and efficient energy management in residential and commercial applications. With a voltage range of 204V to 409V and capacities starting at 50Ah, it offers customizable configurations to meet diverse energy needs. Its advanced battery technology ensures durability, while 15-layer protection guarantees safe and stable performance.

Featuring a compact and lightweight design, the ZTESS001 is easy to install and expand, supporting battery capacity from 10kWh to 20kWh. Equipped with RS485 and CAN communication interfaces, it provides seamless integration into smart energy systems, making it an ideal solution for scalable and sustainable energy storage.

REQUEST MORE INFO ▶

Download Data Sheets

Warranty

This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.

Specifications

Item	Model	10kWh	15kWh	20kWh
Battery Module	Battery Capacity	204V	307V	409V
	Rated Capacity	50Ah	50Ah	50Ah
	Charge Voltage	233V	350V	467V
	Discharge Cut-off Voltage	166V	249V	332V
	Charge Current	25A	25A	25A
	Max Charge Current	50A	50A	50A
	Max Discharge Current	50A	50A	50A
	Communication Method	RS485/CAN	RS485/CAN	RS485/CAN
Parameter	Dimension	580×360×570mm	580×360×720mm	580×360×870mm
	Weight	100Kg (approx.)	140Kg (approx.)	188Kg (approx.)
	Temperature	Charge: 0°C~50°C; Discharge: -15°C~60°C
	Material/ Colour	Metal/White+Black

Key Features

Flexible capacity and power outpu, a customizable energy storage solution for various energy needs.

Flexible Capacity and Power Output

Modular design supports power outputs from 10kWh to 20kWh and voltage options up to 409V, catering to varied energy requirements.

Robust Safety Features

Includes 15-layer protection, ensuring reliable and secure energy storage even under demanding conditions.

Customizable battery capacity options for various needs | Singapore energy storage solutions

Durable and Long-Lasting

Advanced battery technology provides extended service life and consistent performance.

Seamless Integration and Expansion

Compact design with RS485 and CAN communication interfaces allows for easy installation, monitoring, and scalability.

Connectivity Solutions

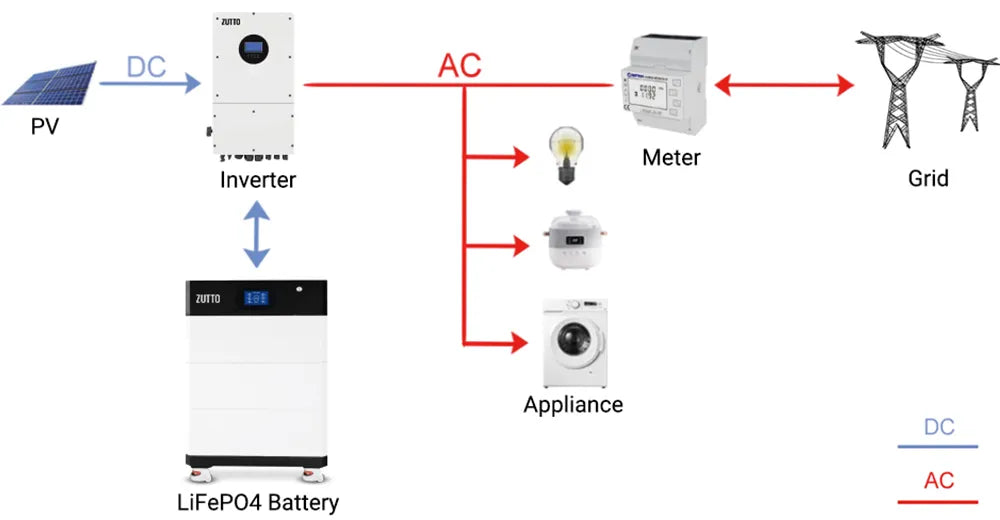

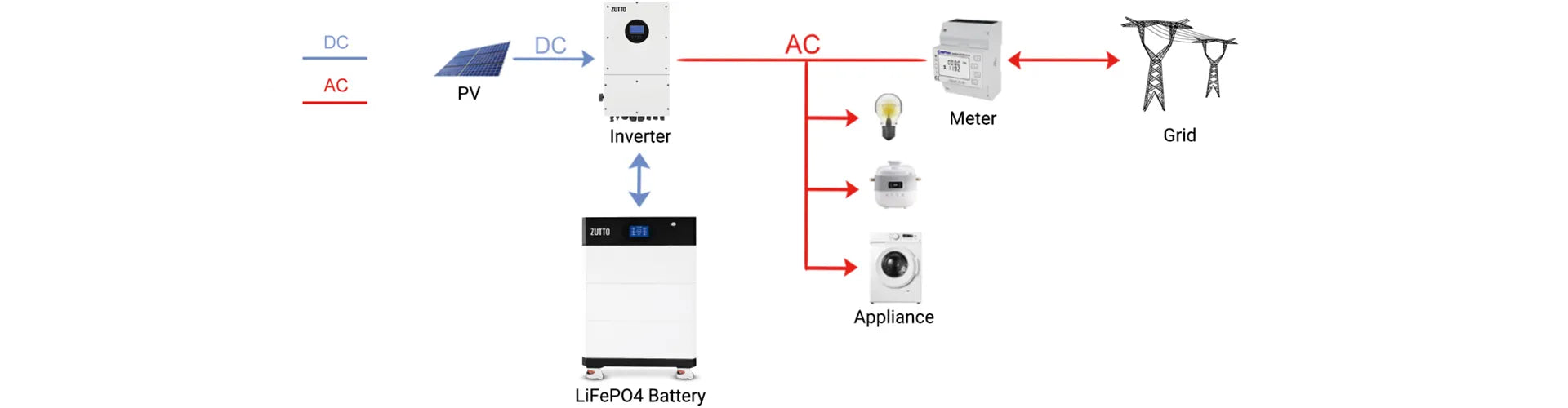

Energy flow diagram showing Zutto PowerCore 01 integration with solar panels, inverter, and appliances for efficient energy management.

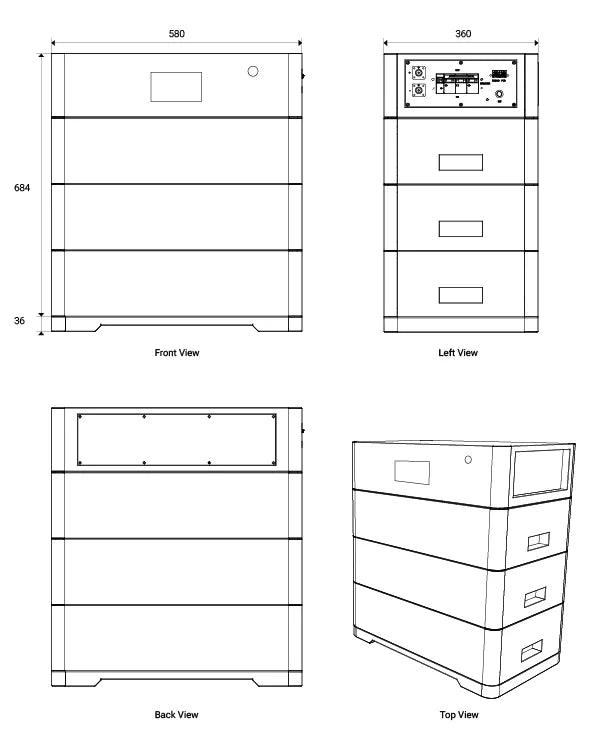

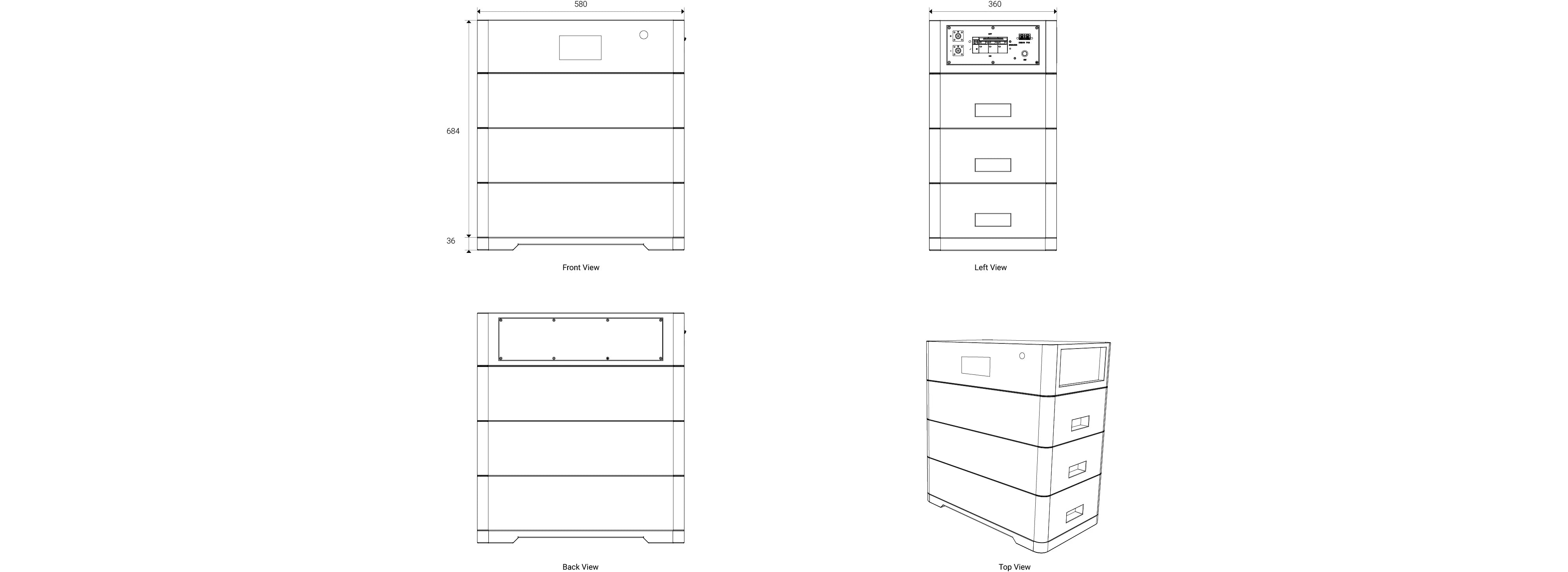

Mechanical Dimensions(Unit:mm)

Mechanical dimensions of Zutto PowerCore 01 showing front, left, back, and top views for accurate installation planning.

Quality Certifications

FAQs for ZTESS001

What is the maximum power output of the ZTESS001?

The ZTESS001 supports power outputs up to 25kW, making it suitable for residential and small commercial applications.

What is the voltage range of the ZTESS001?

The ZTESS001 operates at a low voltage of 51.2V, ensuring safety and reliability for residential energy storage needs.

How much capacity can the ZTESS001 handle?

It supports up to 280Ah, with modular flexibility for future capacity expansion.

What safety features are included in the ZTESS001?

It features 15-layer protection, including safeguards against overcharge, over-discharge, and short-circuits, ensuring secure operation.

Is the ZTESS001 easy to install?

Yes, the ZTESS001 has a compact and lightweight design, making it convenient to set up in residential spaces.
