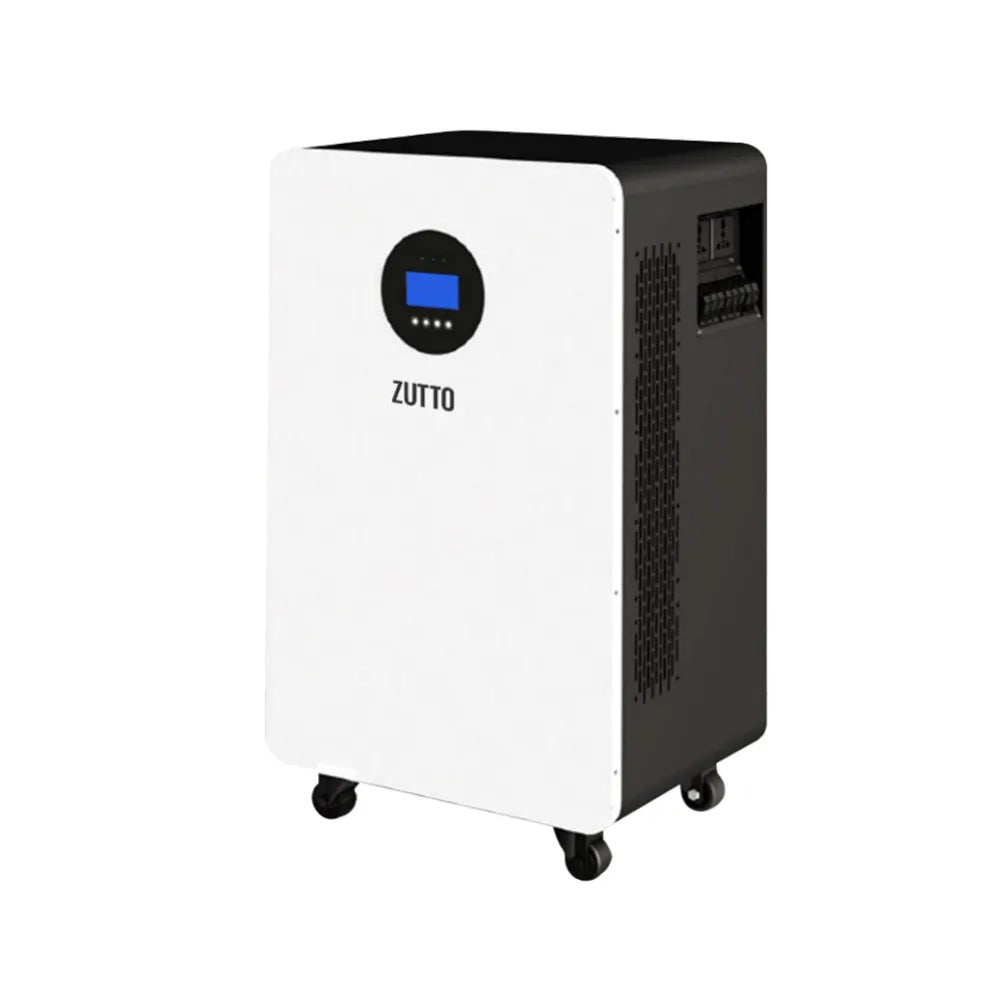

Zutto LifeGrid07
The Future of Energy Storage System
The Zutto LifeGrid07 is a versatile all-in-one energy storage system with integrated lithium battery, inverter, and UPS functionality, tailored for residential and commercial applications. Supporting capacities from 3kWh to 14.3kWh and power outputs up to 12kW, it ensures reliable and efficient energy management. With support for American standard voltage, RS485/WiFi communication, and an IP20-rated enclosure, LifeGrid07 offers a smart and seamless energy solution for diverse power needs.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 3kWh+3kW | 6kWh+6kW | 14.3kWh+12kW |
|---|---|---|---|---|
| Battery Module | Battery Capacity | 3kWh | 6kWh | 14.3kWh |
| Voltage | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 100Ah | 100Ah | 280Ah | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 120VAC | 120VAC/240VAC | 120VAC/240VAC |
| Input Power | 3kW | 6kW | 12kW | |
| MPPT Voltage | 80~300VDC | 80~300VDC | 80~300VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP20 | IP20 | IP20 | |
| Parameter | Modules Dimension | 465×360×360mm | 600×440×390mm | 510×377×770mm |
| Modules Weight | 40kg (approx.) | 80kg (approx.) | 120kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
|||
| Material/Colour | Metal / White+Black | |||
Key Features

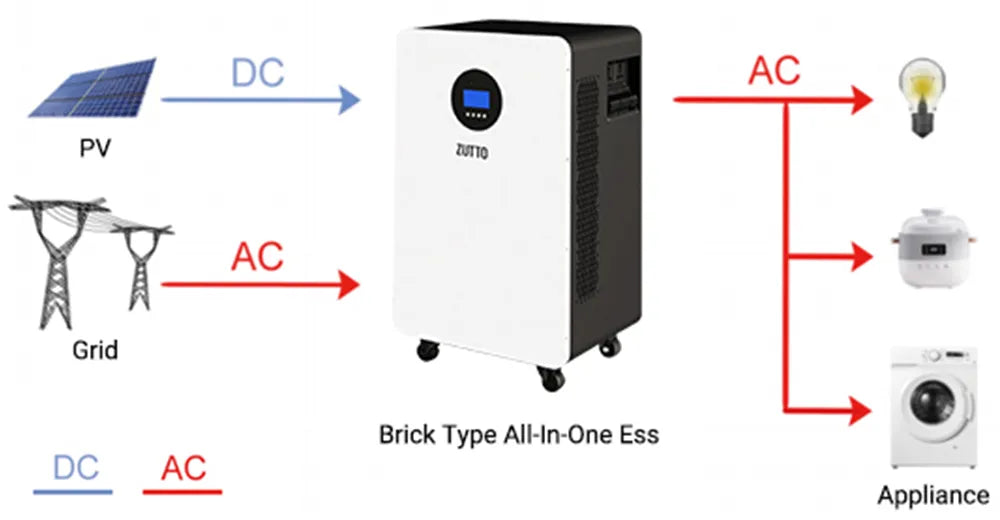

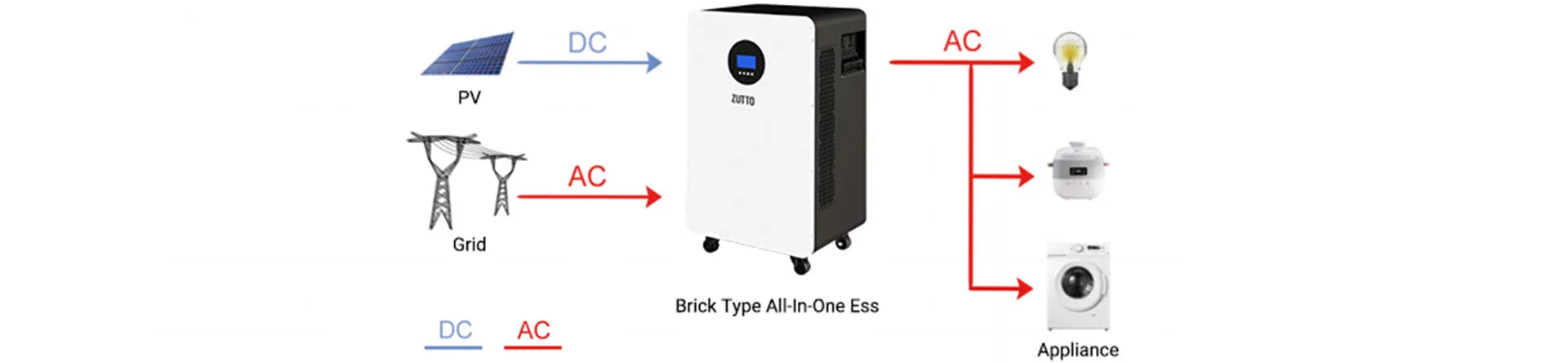

Connectivity Solutions
ZTESS011
The Future of Energy Storage System

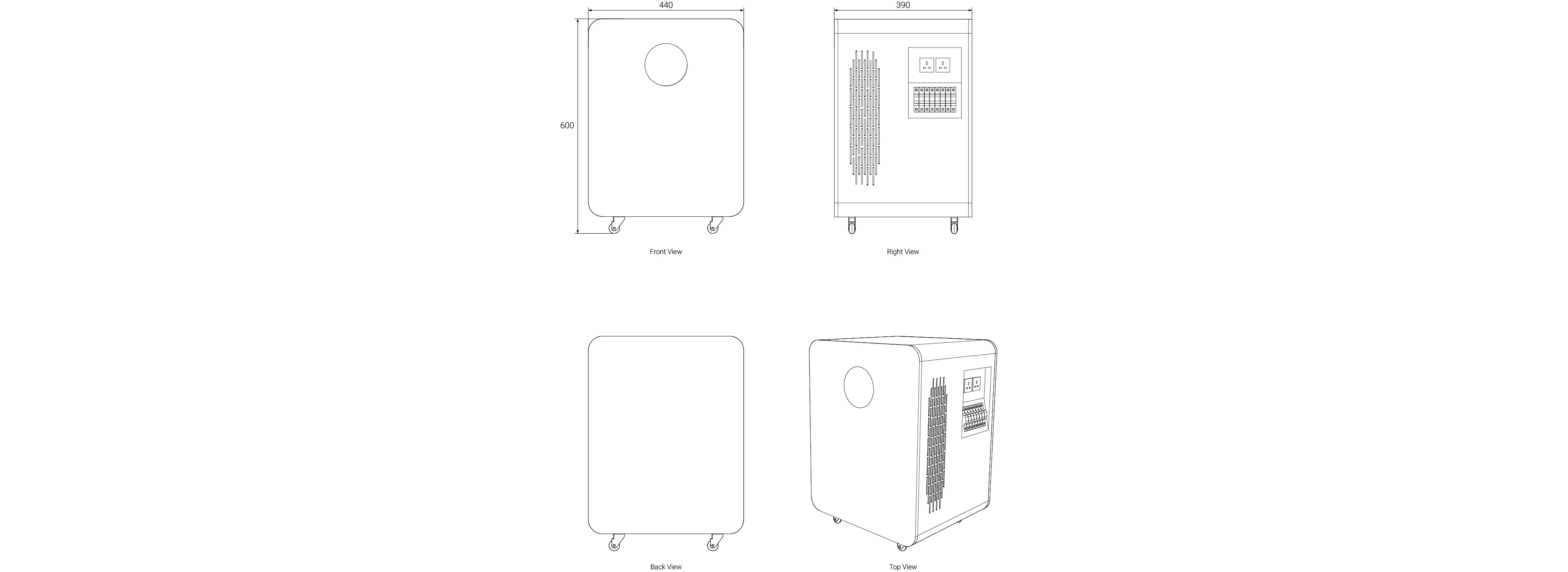

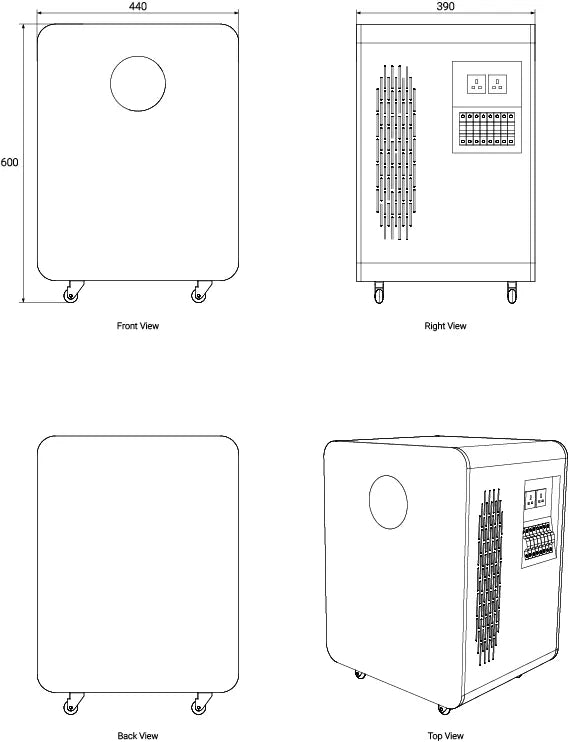

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto LifeGrid07
What is the capacity range of the Zutto LifeGrid07?
The Zutto LifeGrid07 offers flexible capacity options ranging from 3kWh to 14.3kWh, making it suitable for a variety of residential and commercial energy storage needs.
What is the inverter output power for the Zutto LifeGrid07?
The Zutto LifeGrid07 supports three inverter output configurations: 3kW, 6kW, and 12kW, providing sufficient power for efficient energy management in homes and businesses.
What communication methods does the Zutto LifeGrid07 support?
The Zutto LifeGrid07 supports communication via RS485 and WiFi, allowing for seamless integration with various inverters and energy management systems for remote monitoring and control.
What is the protection rating of the Zutto LifeGrid07?
The Zutto LifeGrid07 has an IP20 protection rating, providing adequate protection against dust and accidental contact, making it suitable for indoor use.
What are the temperature ranges for the Zutto LifeGrid07?
The Zutto LifeGrid07 can be charged in temperatures between 0°C to 50°C and discharged within the range of -15°C to 60°C, ensuring reliable operation in a wide range of environments.
