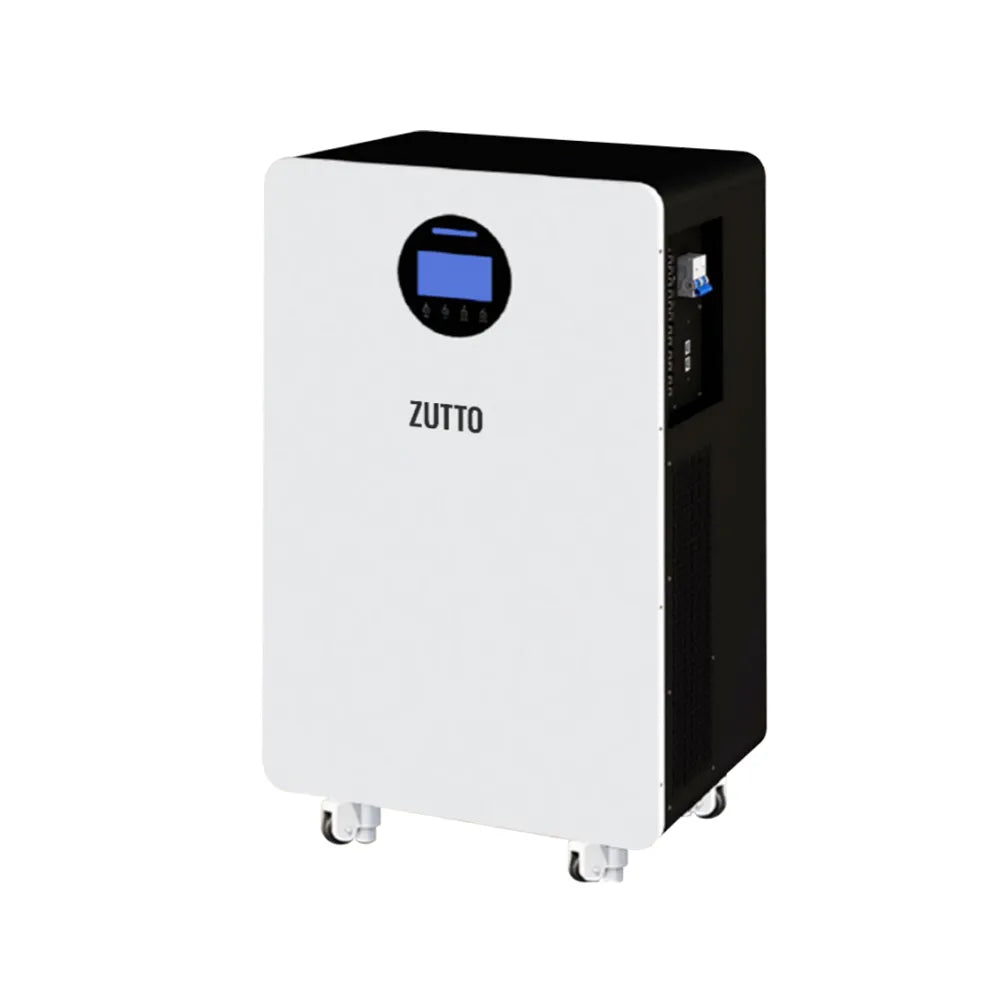

Zutto LifeGrid06
Powers Your World With Scalable Energy
The Zutto LifeGrid06 is a high-capacity, stand-alone energy storage system designed for residential and commercial applications. With scalable capacities from 5.12kWh to 14.3kWh and integrated power outputs up to 11kW, it delivers reliable, efficient energy management. Featuring advanced inverter and UPS functionality, along with RS485/WiFi communication, the LifeGrid06 ensures seamless integration and optimal performance for modern energy systems.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 5.12kWh+5KW | 10kWh+5KW | 10kWh+10KW | 14.3kWh+11KW |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 5.12kWh | 10.24kWh | 10.24kWh | 14.3kWh |
| Voltage | 51.2V | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 100Ah | 200Ah | 200Ah | 280Ah | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC | 230VAC | 230VAC |
| Input Power | 5KW | 5KW | 10KW | 11KW | |
| MPPT Voltage | 120~430VDC | 120~430VDC | 90~450VDC | 90~450VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP20 | IP20 | IP20 | IP20 | |
| Parameter | Modules Dimension | 450×270×610mm | 485×270×760mm | 505×306×820mm | 510×377×770mm |
| Modules Weight | 51kg (approx.) | 88kg (approx.) | 105kg (approx.) | 120kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/ Colour | Metal / White + Black | ||||
Key Features
Connectivity Solutions
ZTESS010
Powers Your World With Scalable Energy

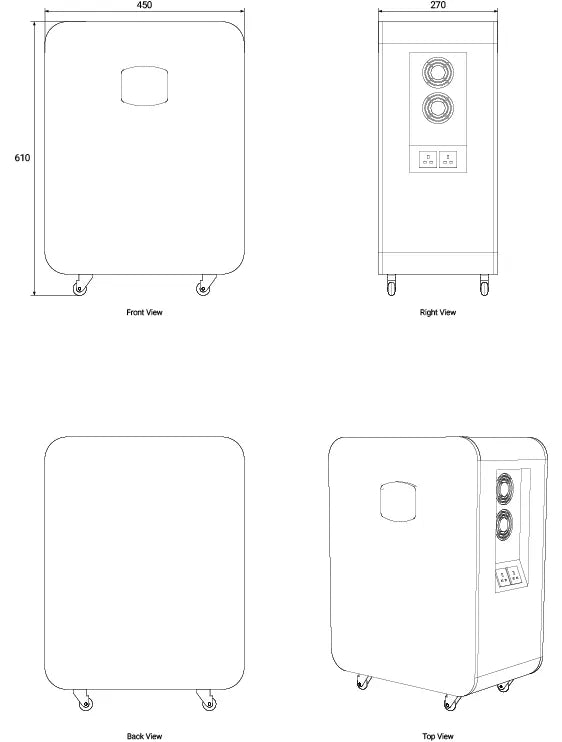

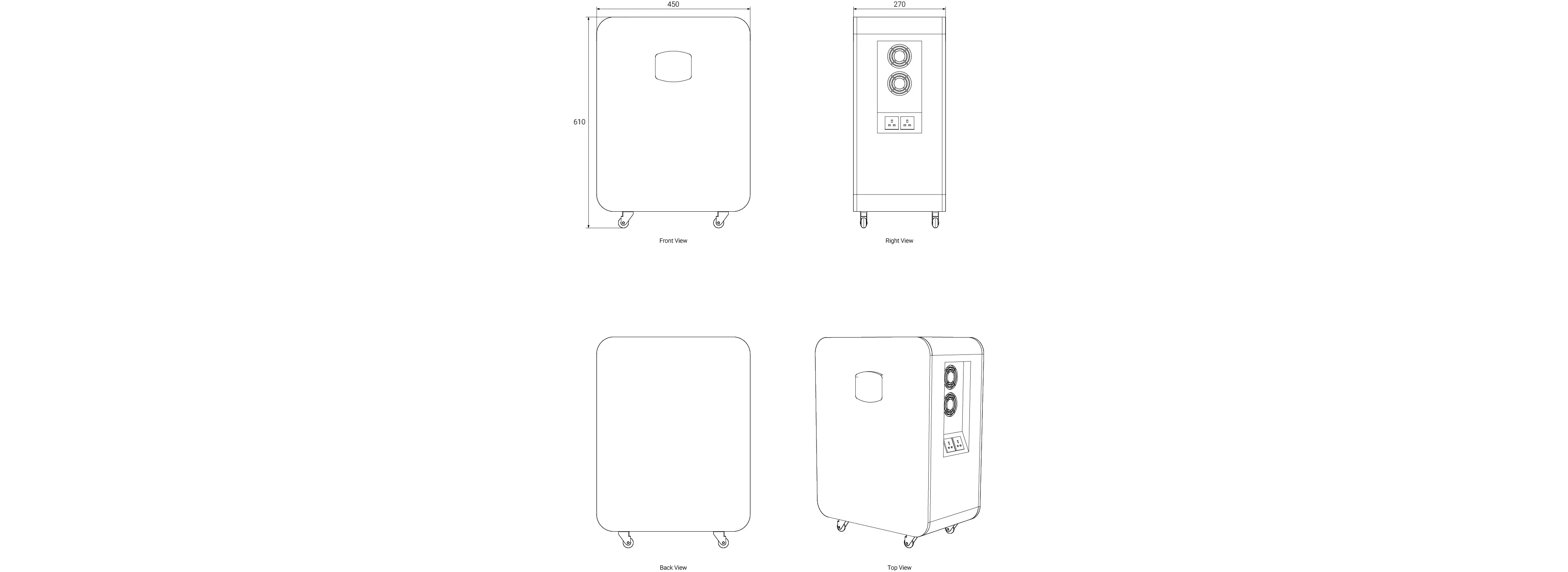

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto LifeGrid06
What is the battery capacity of the Zutto LifeGrid06?
The Zutto LifeGrid06 comes with flexible battery capacity options ranging from 5.12kWh to 14.3kWh, offering scalable energy storage for residential and commercial applications.
What inverter power outputs are available with the Zutto LifeGrid06?
The Zutto LifeGrid06 features inverter options with power outputs of 5kW, 10kW, and 11kW, making it suitable for a wide range of energy demands in both residential and commercial setups.
What communication options are supported by the Zutto LifeGrid06?
The Zutto LifeGrid06 supports RS485 and WiFi communication, enabling seamless integration with various inverters and energy management systems for optimized performance and remote monitoring.
What is the operating temperature range for the Zutto LifeGrid06?
The Zutto LifeGrid06 can be charged within a temperature range of 0°C to 50°C and discharged between -15°C to 60°C, ensuring reliable operation in diverse environmental conditions.
What safety features are included in the Zutto LifeGrid06?
The Zutto LifeGrid06 is equipped with multiple safety features, including overcharge, overdischarge, overcurrent protection, and temperature protection, ensuring the safe and efficient operation of the system.
