Zutto LifeGrid05
Portable Energy Storage For Modern Homes

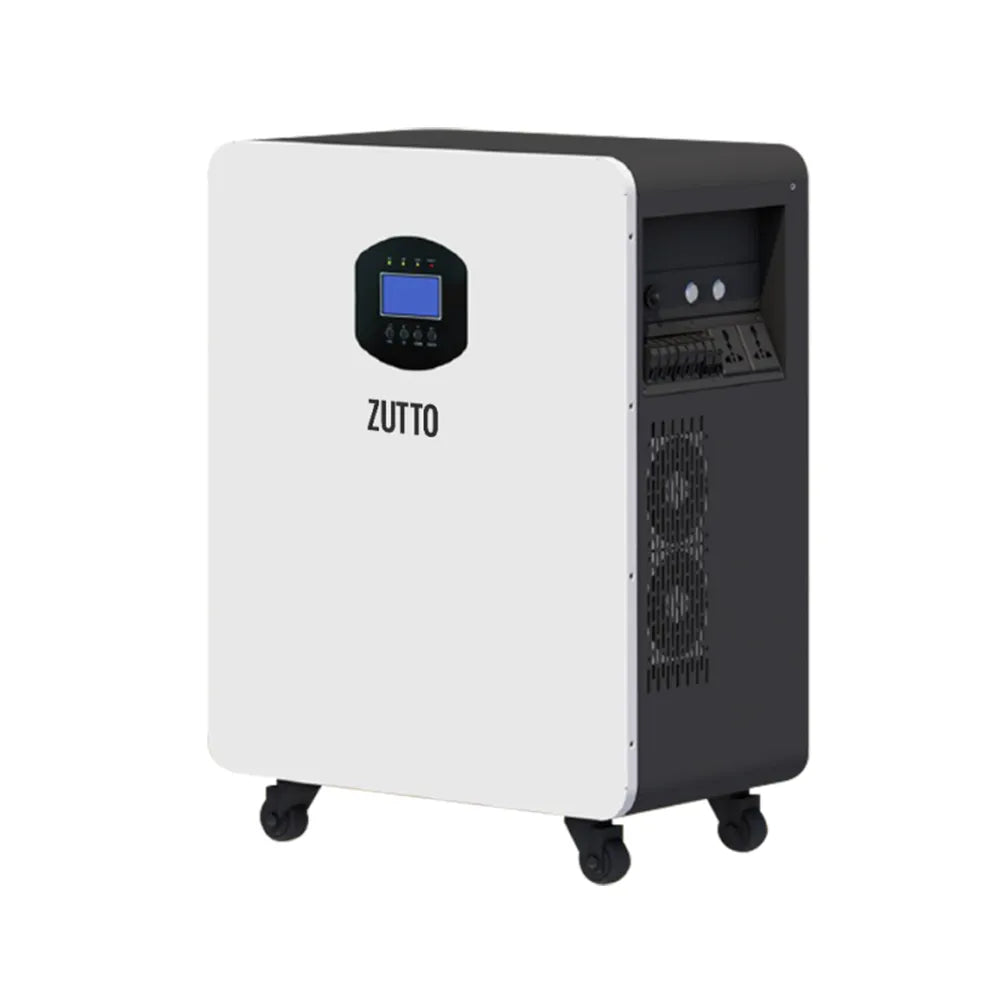

The Zutto LifeGrid05 is a compact, stand-alone energy storage solution with integrated inverter and UPS functionality, designed for residential and small commercial applications. With capacities ranging from 1.28kWh to 7.17kWh and power outputs up to 3.6kW, it provides reliable energy management in a portable design. Equipped with RS485/WiFi communication and an IP20-rated enclosure, LifeGrid05 ensures seamless integration and efficient power backup for modern energy needs.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 1.28kWh+1KW | 2.56kWh+3KW | 3kWh+3KW | 7.17kWh+3.6KW |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 1.28kWh | 2.56kWh | 3kWh | 7.17kWh |
| Voltage | 12.8V | 25.6V | 25.6V | 25.6V | |
| Rated Capacity | 100Ah | 100Ah | 120Ah | 280Ah | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC | 230VAC | 230VAC |
| Input Power | 1KW | 3KW | 3KW | 3.6KW | |
| MPPT Voltage | 20~100VDC | 40~450VDC | 40~450VDC | 120~430VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP20 | IP20 | IP20 | IP20 | |
| Parameter | Modules Dimension | 355×220×415mm | 370×225×515mm | 360×310×470mm | 480×240×741mm |
| Modules Weight | 18kg (approx.) | 32kg (approx.) | 32kg (approx.) | 60kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/ Colour | Metal / White & Black | ||||
Key Features

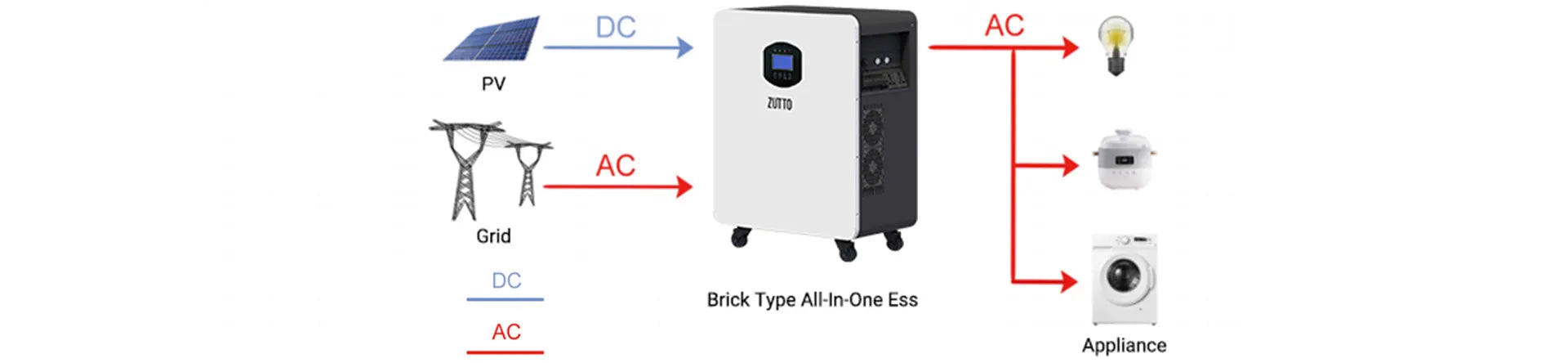

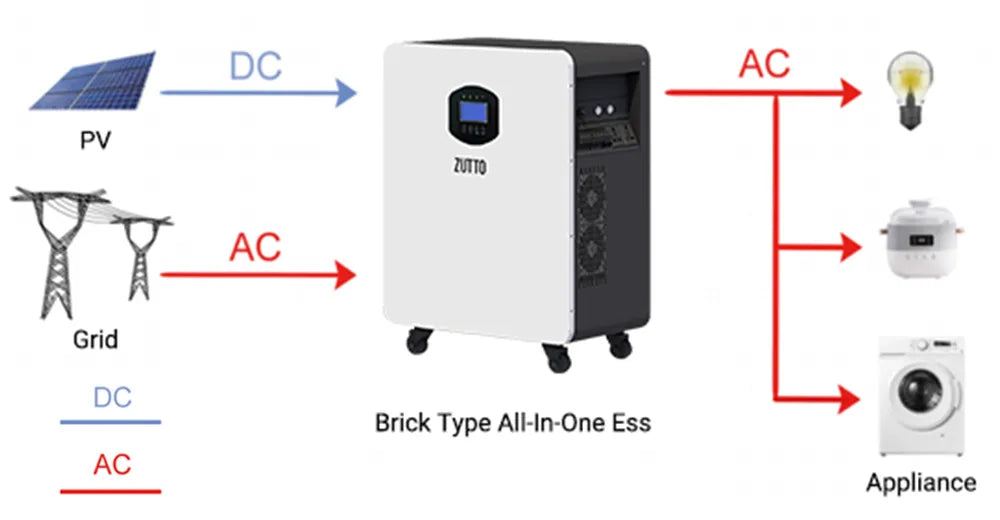

Connectivity Solutions
ZTESS009
Portable Energy Storage For Modern Homes

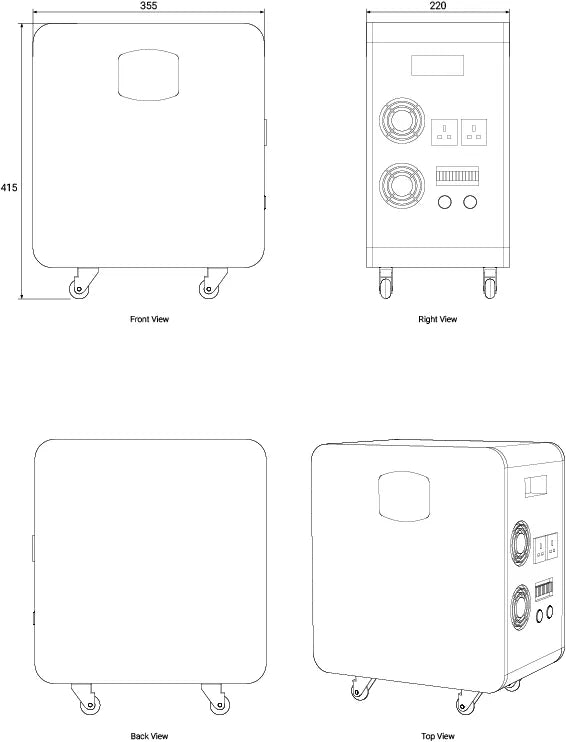

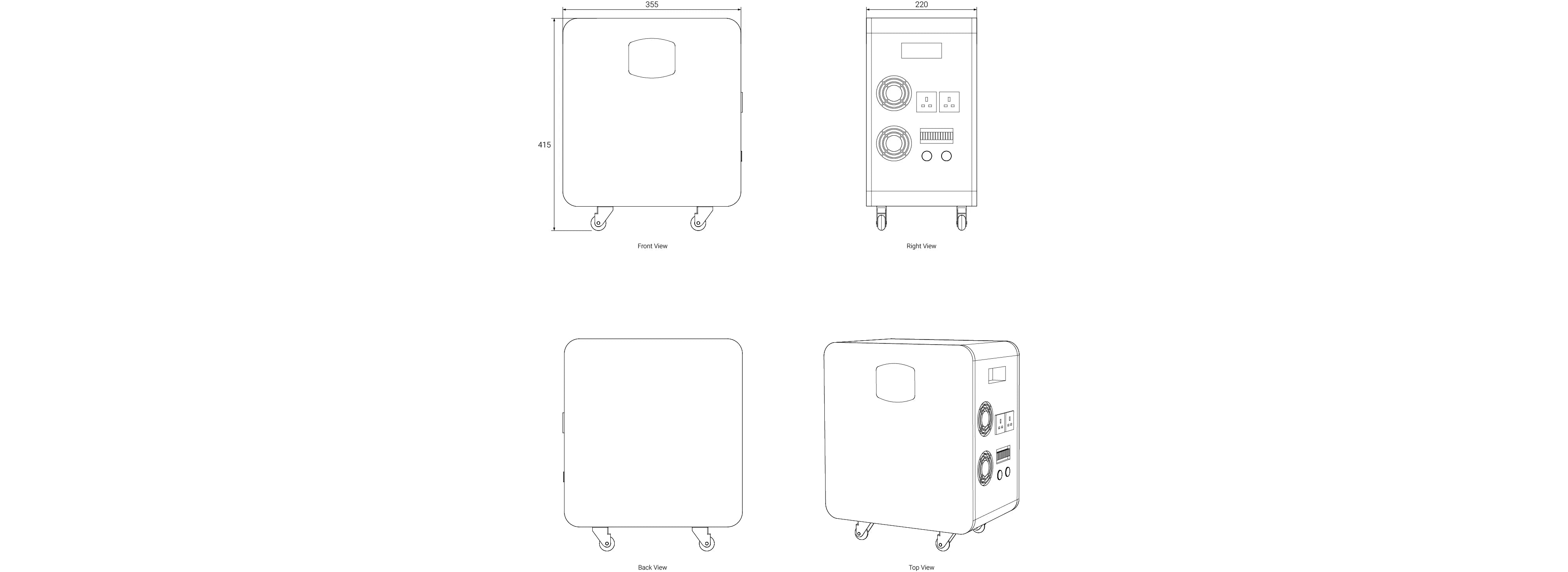

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto LifeGrid05
What is the battery capacity of the Zutto LifeGrid05?
The Zutto LifeGrid05 offers flexible capacity options, ranging from 1.28kWh to 7.17kWh, allowing it to meet various residential and small commercial energy storage needs.
What is the inverter power output of the Zutto LifeGrid05?
The Zutto LifeGrid05 supports a maximum inverter output of 3.6kW, making it capable of efficiently managing energy storage and backup power for homes and small businesses.
What are the communication options for the Zutto LifeGrid05?
The Zutto LifeGrid05 is equipped with RS485 and WiFi communication, enabling easy integration with energy management systems for remote monitoring and control.
What is the operating temperature range for charging and discharging the Zutto LifeGrid05?
The Zutto LifeGrid05 operates within a charging temperature range of 0°C to 50°C and a discharging temperature range of -15°C to 60°C, ensuring reliable performance in various environmental conditions.
Is the Zutto LifeGrid05 easy to install?
Yes, the Zutto LifeGrid05 features a wall-mounted design with IP20 protection, ensuring a sleek and space-saving installation that is easy to set up in modern residential environments.
