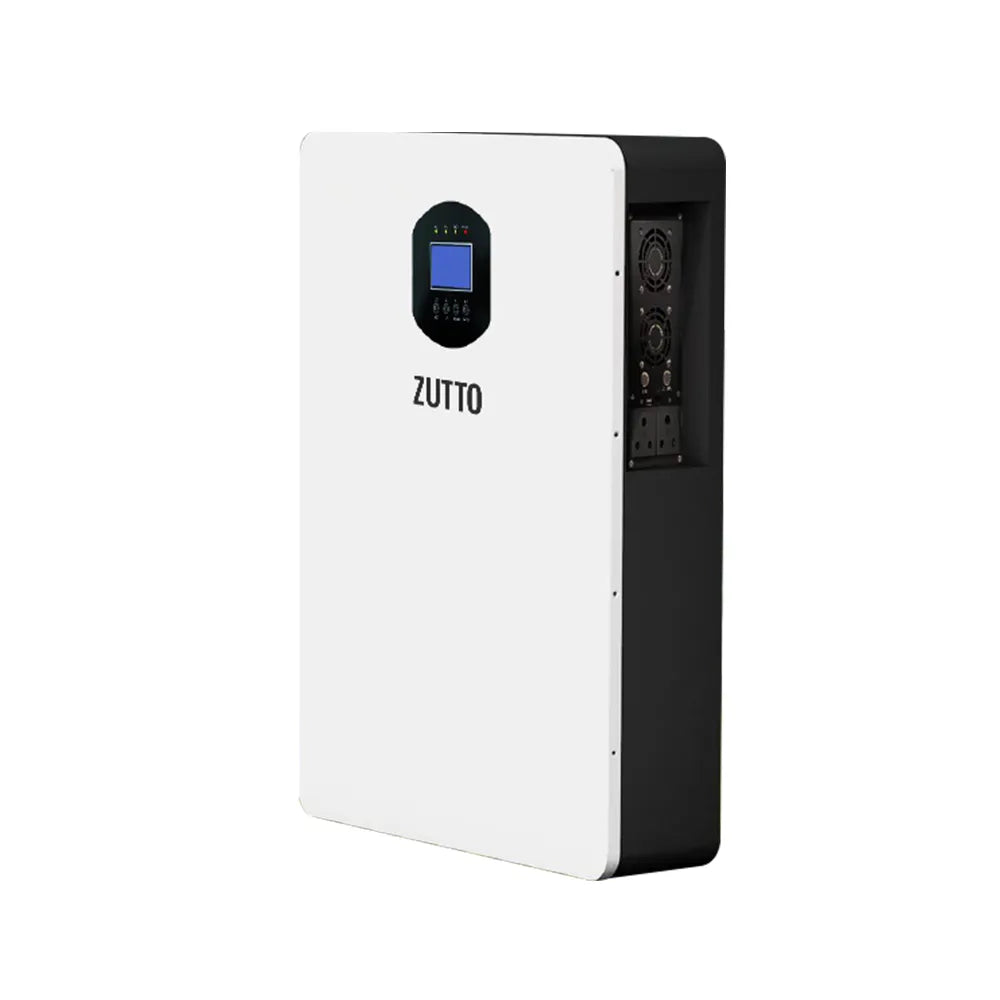

Zutto LifeGrid04
Smart Energy Solutions For Modern Life
The Zutto LifeGrid04 is a wall-mounted, all-in-one energy storage system combining a lithium battery, inverter, and UPS functionality for seamless power management. With capacities ranging from 1.28kWh to 10.24kWh and integrated power outputs up to 10kW, it is ideal for residential and light commercial applications. Its RS485/WiFi communication and IP20-rated design ensure efficient monitoring and reliable performance, delivering sustainable energy for modern homes.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 1.28kWh+1KW | 2.56kWh+3KW | 5.12kWh+5KW | 10.24kWh+10KW |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 1.28kWh | 2.56kWh | 5.12kWh | 10.24kWh |
| Voltage | 12.8V | 25.6V | 51.2V | 51.2V | |
| Rated Capacity | 100Ah | 100Ah | 100Ah | 200Ah | |
| Communication Method | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC | 230VAC | 230VAC |
| Input Power | 1KW | 3KW | 5KW | 10KW | |
| MPPT Voltage | 20~100VDC | 40~450VDC | 120~430VDC | 90~450VDC | |
| Communication Connect Port | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi | |
| Protection Level | IP20 | IP20 | IP20 | IP20 | |
| Modules Dimension | 280*150*400mm | 450*140*570mm | 500*150*730mm | 620*150*1300mm | |
| Parameter | Modules Weight | 16kg (approx.) | 30kg (approx.) | 58kg (approx.) | 95kg (approx.) |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/Colour | Metal / White & Black | ||||
Key Features
Connectivity Solutions
ZTESS008
Smart Energy Solutions For Modern Life

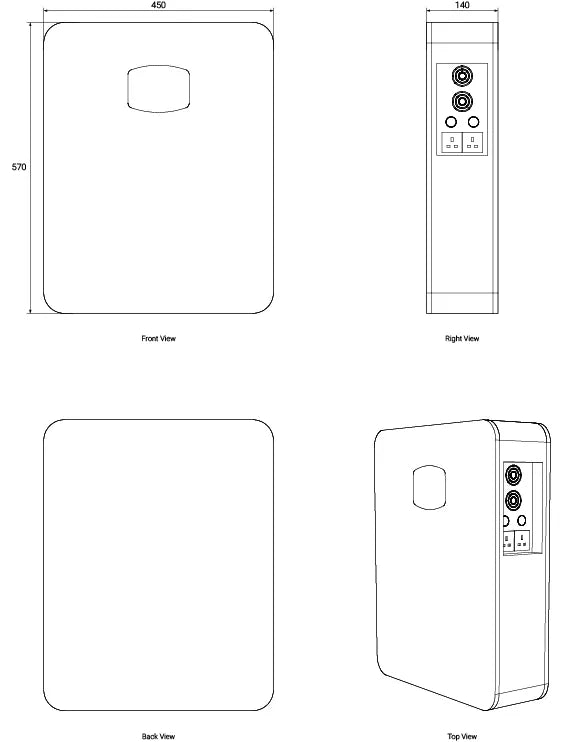

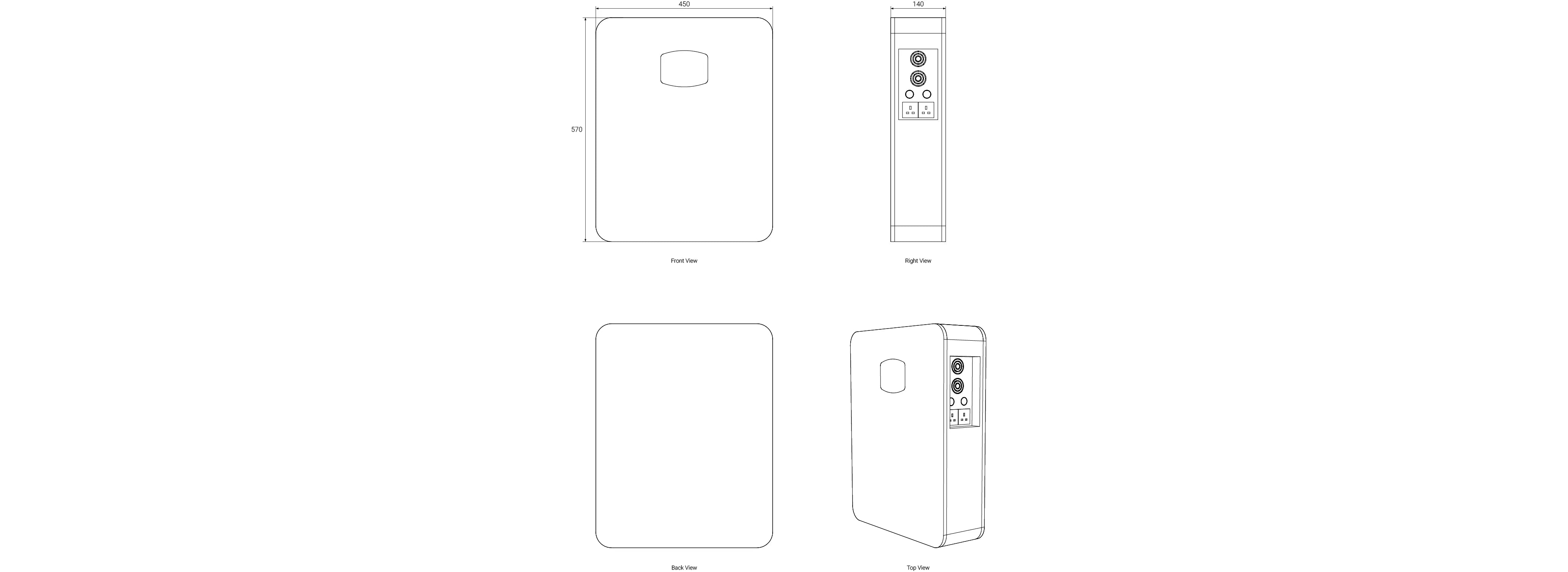

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto LifeGrid04
What is the capacity range of the Zutto LifeGrid04?
The Zutto LifeGrid04 comes with flexible battery capacities ranging from 1.28kWh to 10.24kWh, providing a scalable solution for energy storage to meet varying residential and light commercial needs.
What is the power output of the Zutto LifeGrid04?
The Zutto LifeGrid04 supports power outputs ranging from 1kW to 10kW, offering a wide range of options to suit different energy requirements for both residential and light commercial use.
What communication options are available for the Zutto LifeGrid04?
The Zutto LifeGrid04 supports RS485 and WiFi communication, enabling remote monitoring and easy integration with other energy management systems for efficient energy utilization and control.
What is the operating temperature range for the Zutto LifeGrid04?
The Zutto LifeGrid04 operates efficiently within a charging temperature range of 0°C to 50°C and a discharging temperature range of -15°C to 60°C, ensuring reliable performance in diverse environments.
Does the Zutto LifeGrid04 have any protection features?
Yes, the Zutto LifeGrid04 is equipped with various protection features, including overcharge, overdischarge, overcurrent protection, and temperature safety mechanisms, ensuring both operational safety and longevity.
