Zutto LifeGrid03
High-efficiency Solar Energy Storage System
The Zutto LifeGrid03 is an all-in-one solar energy storage and micro-inverter system, tailored for residential use. With a nominal voltage of 51.2V and integrated capacities of 2.56kWh + 800W or 1.2kW configurations, it delivers efficient, plug-and-play energy solutions. Its IP65-rated waterproof design ensures durability, while its compact size and wall-mounted setup make it ideal for modern homes seeking reliable, sustainable power.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 2.56KWh+800W (EU) | 2.56KWh+1.2KW (JP/US) |
|---|---|---|---|
| Battery Module | Battery Capacity | 2.56kWh | 2.56kWh |
| Voltage | 51.2V | 51.2V | |
| Rated Capacity | 50Ah | 50Ah | |
| Rated Power | 800W | 1200W | |
| Hybrid Inverter | AC Voltage | 230VAC | 230VAC |
| Input Power | 800W | 1.2KW | |
| MPPT Voltage | 22~60VDC | 22~60VDC | |
| Number of Channels | 2 | 2 | |
| Protection Level | IP65 | IP65 | |
| Parameter | Modules Dimension | 505*105*690mm | 505*105*690mm |
| Modules Weight | 31kg (approx.) | 31kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||
| Material/ Colour | Metal / White | ||
Key Features
Connectivity Solutions
ZTESS007
High-efficiency Solar Energy Storage System

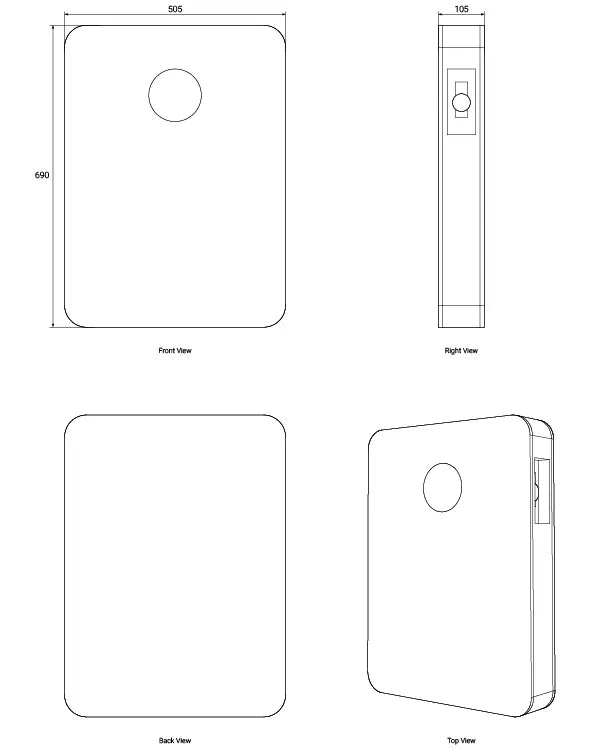

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto LifeGrid03
What is the battery capacity of the Zutto LifeGrid03?
The Zutto LifeGrid03 comes with a battery capacity of 2.56kWh and is available in configurations of 800W or 1.2kW, offering an efficient solar energy storage solution for residential use.
What is the protection rating of the Zutto LifeGrid03?
The Zutto LifeGrid03 is rated with an IP65 protection level, ensuring that it is resistant to dust and water, making it suitable for installation in various environmental conditions.
What is the operating temperature range for the Zutto LifeGrid03?
The Zutto LifeGrid03 can be charged within a temperature range of 0°C to 50°C and discharged within a temperature range of -15°C to 60°C, making it adaptable to various climates.
How does the Zutto LifeGrid03 support solar energy storage?
The Zutto LifeGrid03 integrates a hybrid inverter and energy storage system, providing a plug-and-play solar energy solution with the ability to store energy and deliver continuous power efficiently.
What safety features does the Zutto LifeGrid03 include?
The Zutto LifeGrid03 is equipped with multiple safety features, including overcharge, over-discharge, overcurrent, and temperature protection, ensuring the system operates safely and efficiently under different conditions.
