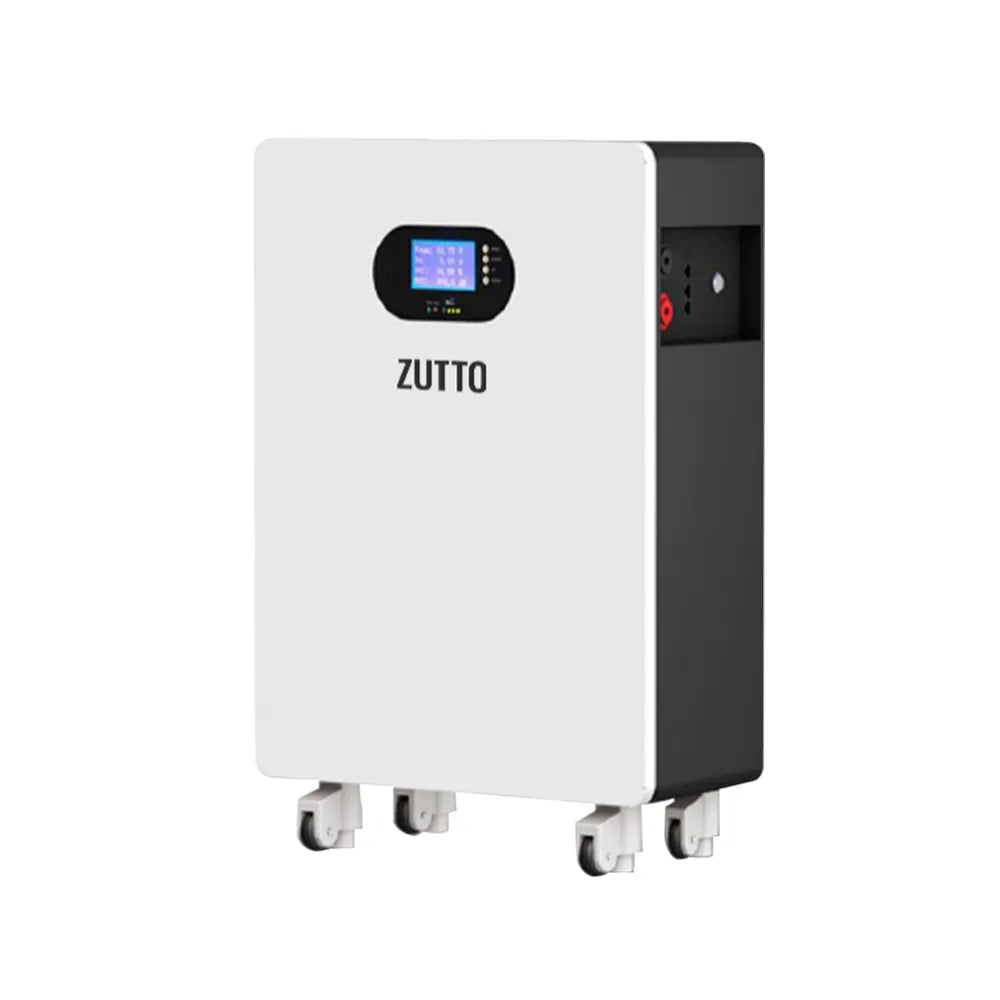

Zutto LifeGrid02
Stand-Alone Energy Independence System
The Zutto LifeGrid02 is a high-capacity, stand-alone energy storage system designed for residential and light commercial applications. With a nominal voltage of 51.2V and capacity options ranging from 14.3kWh to 20kWh, it delivers reliable and scalable power solutions. Its integrated heavy-duty wheels ensure easy mobility, while the robust design allows for seamless integration with existing solar systems.
Equipped with advanced safety features and communication protocols such as RS485 and CAN, the LifeGrid02 ensures compatibility with various inverter systems. Its durable construction and user-friendly operation make it a versatile choice for enhancing energy independence in modern households and businesses.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 14.3kWhA1 | 15kWhA1 | 16kWh/A1 | 20kWh/A1 |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 14.3kWh | 15kWh | 16kWh | 20kWh |
| Voltage | 51.2V | 51.2V | 51.2V | 51.2V | |
| Rated Capacity | 280Ah | 300Ah | 314Ah | 400Ah | |
| Charge Voltage | 58V | 58V | 58V | 58V | |
| Discharge Cut-off Voltage | 42V | 42V | 42V | 42V | |
| Max Charge Current | 200A | 200A | 200A | 200A | |
| Max Discharge Current | 200A | 200A | 200A | 200A | |
| Communication Method | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | |
| Parameter | Dimension | 420×240×840mm | 470×237×690mm | 490×255×740mm | 510×293×970mm |
| Weight | 119Kg (approx.) | 118Kg (approx.) | 119Kg (approx.) | 162Kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/ Colour | Metal / White + Black | ||||
Key Features

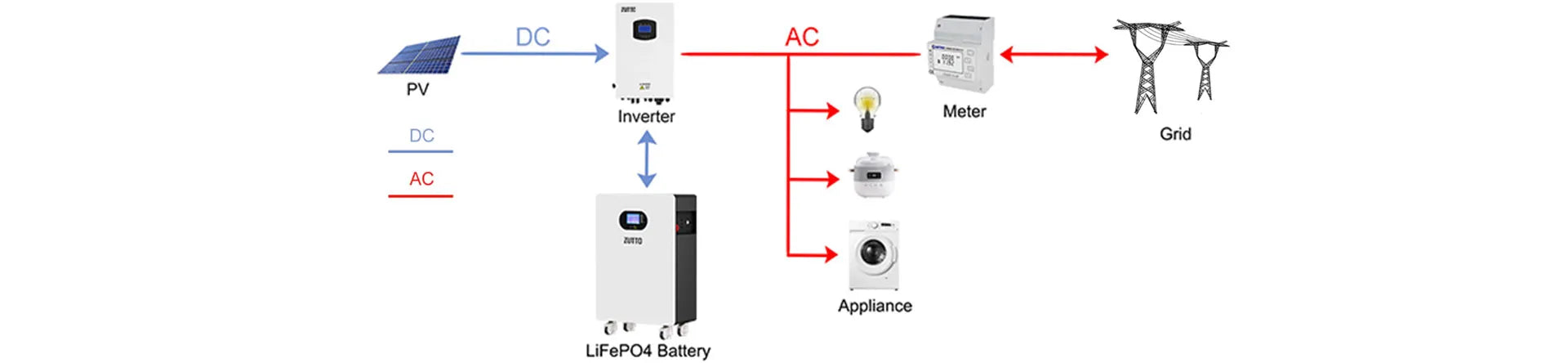

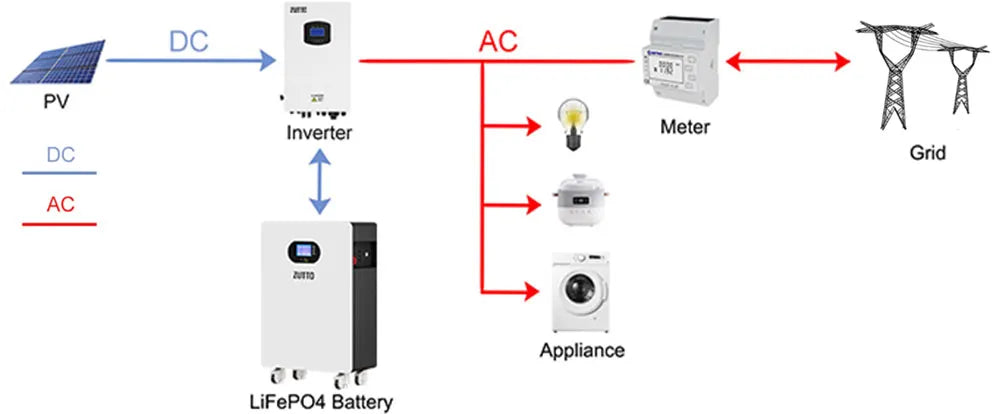

Connectivity Solutions
ZTESS006
Stand-Alone Energy Independence System

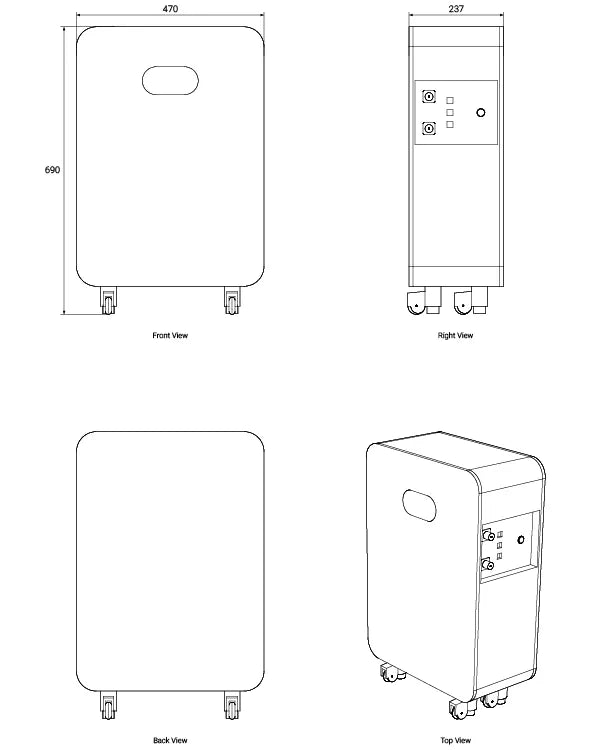

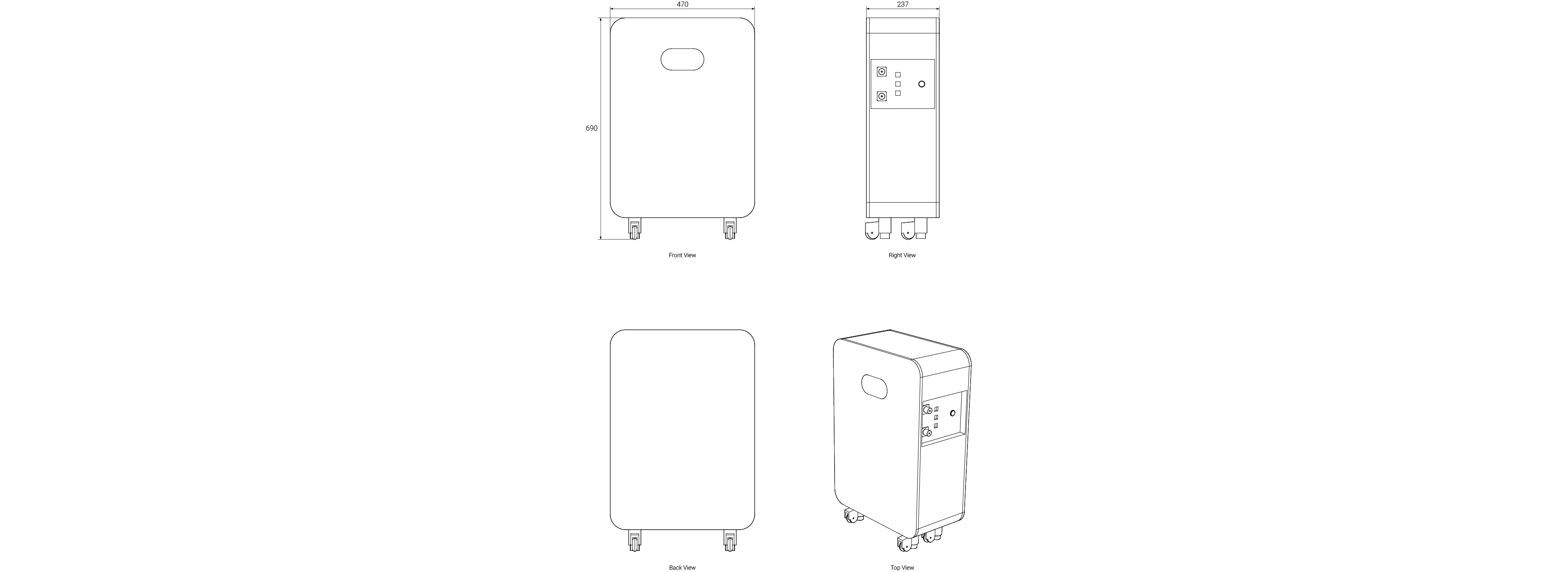

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto LifeGrid02
What is the capacity of the Zutto LifeGrid02?
The Zutto LifeGrid02 offers flexible capacity options ranging from 14.3kWh to 20kWh, allowing users to choose the appropriate size based on their energy storage requirements for residential or light commercial use.
What communication protocols are supported by the Zutto LifeGrid02?
The Zutto LifeGrid02 supports RS485 and CAN communication protocols, ensuring compatibility with various inverter systems for efficient energy management and integration.
What is the temperature range for charging and discharging the Zutto LifeGrid02?
The Zutto LifeGrid02 can be charged within a temperature range of 0°C to 50°C and discharged between -15°C and 60°C, making it suitable for use in a wide range of climates and environments.
Does the Zutto LifeGrid02 feature any mobility options?
Yes, the Zutto LifeGrid02 is equipped with integrated heavy-duty wheels, making it easy to move and install, providing added convenience for users in various settings.
What safety features does the Zutto LifeGrid02 have?
The Zutto LifeGrid02 is equipped with advanced safety features such as overcharge, overdischarge, overcurrent, and temperature protection, as well as short-circuit protection, ensuring the safe operation of the system.
