Zutto LifeGrid01
Sleek Wall-Mounted Solar Storage
The Zutto LifeGrid01 is a compact, wall-mounted energy storage solution designed for residential solar systems. With a voltage of 48V/51.2V and capacity options ranging from 5kWh to 14.3kWh, it provides reliable, scalable energy storage to optimize solar power usage. Its sleek, ultra-thin design allows for easy installation, making it an ideal choice for modern households.
Equipped with advanced safety features, including 15-parallel connection support, and robust communication interfaces like RS485 and CAN, the LifeGrid01 ensures seamless integration with over 20 inverter brands. Its IP65-rated enclosure ensures durability and reliability in various environmental conditions, ensuring long-term energy efficiency.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 5kWh/IP65 | 5kWhA1 | 10kWh/A1 | 14.3kWh/A1 |
|---|---|---|---|---|---|
| Battery Module | Battery Capacity | 5kWh | 5kWh | 10kWh | 14.3kWh |
| Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V | 48V/51.2V | |
| Rated Capacity | 100Ah | 100Ah | 200Ah | 280Ah | |
| Charge Voltage | 54/58V | 54/58V | 54/58V | 54/58V | |
| Discharge Cut-off Voltage | 39/42V | 39/42V | 39/42V | 39/42V | |
| Max Charge Current | 100A | 100A | 100A | 100A/150A | |
| Max Discharge Current | 100A | 100A | 100A/200A | 100A/200A | |
| Communication Method | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | |
| Parameter | Dimension | 770×520×90mm | 600×410×140mm | 850×485×145mm | 850×420×230mm |
| Weight | 42/44Kg (approx.) | 43/45Kg (approx.) | 84/89Kg (approx.) | 105/110Kg (approx.) | |
| Temperature | Charge: 0°C~50°C Discharge: -15°C~60°C |
||||
| Material/ Colour | Metal / White + Black | ||||
Key Features

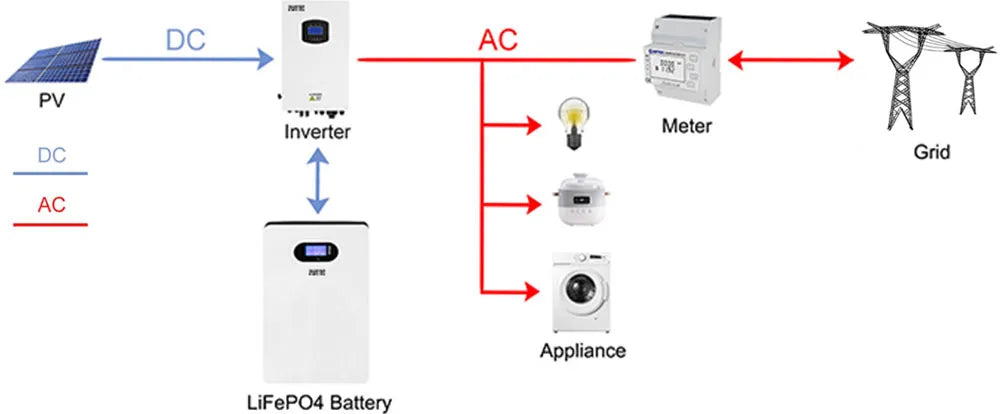

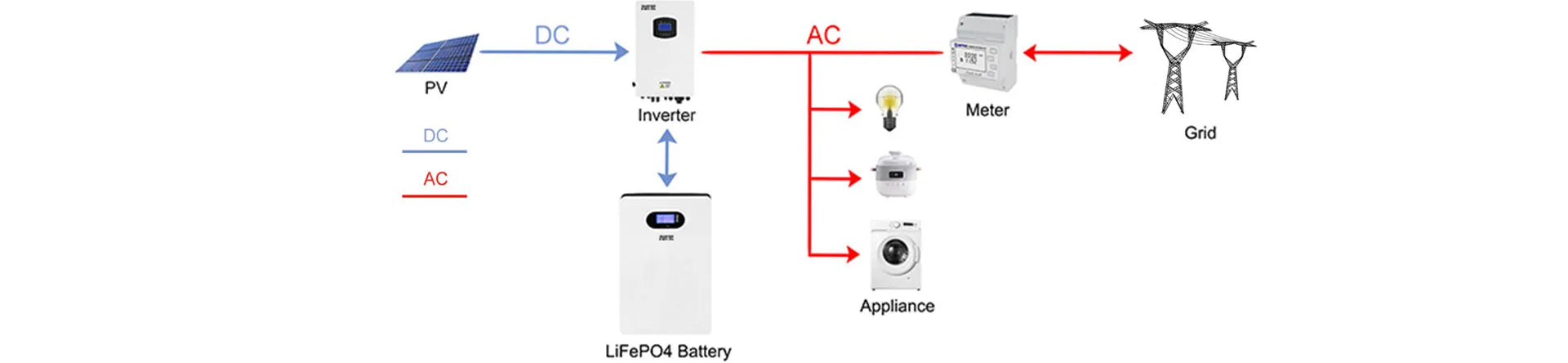

Connectivity Solutions

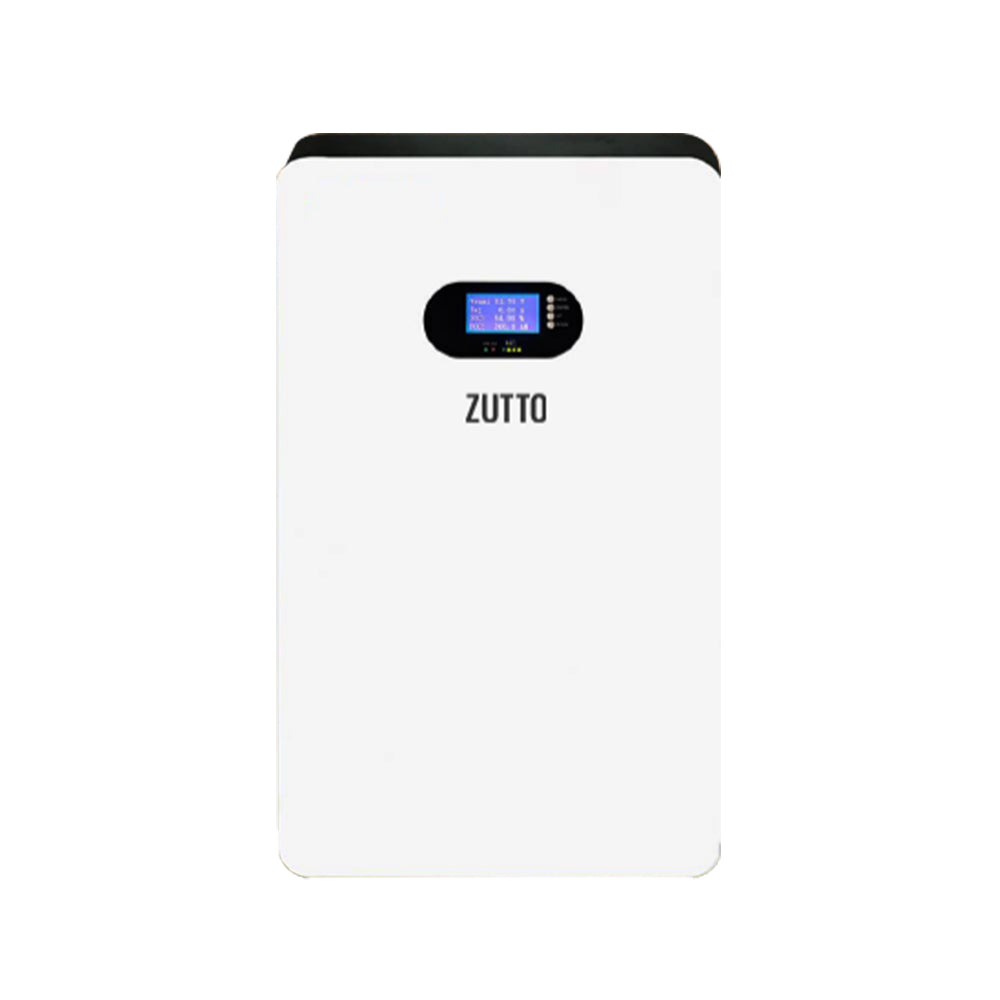

ZTESS005
Sleek Wall-Mounted Solar Storage

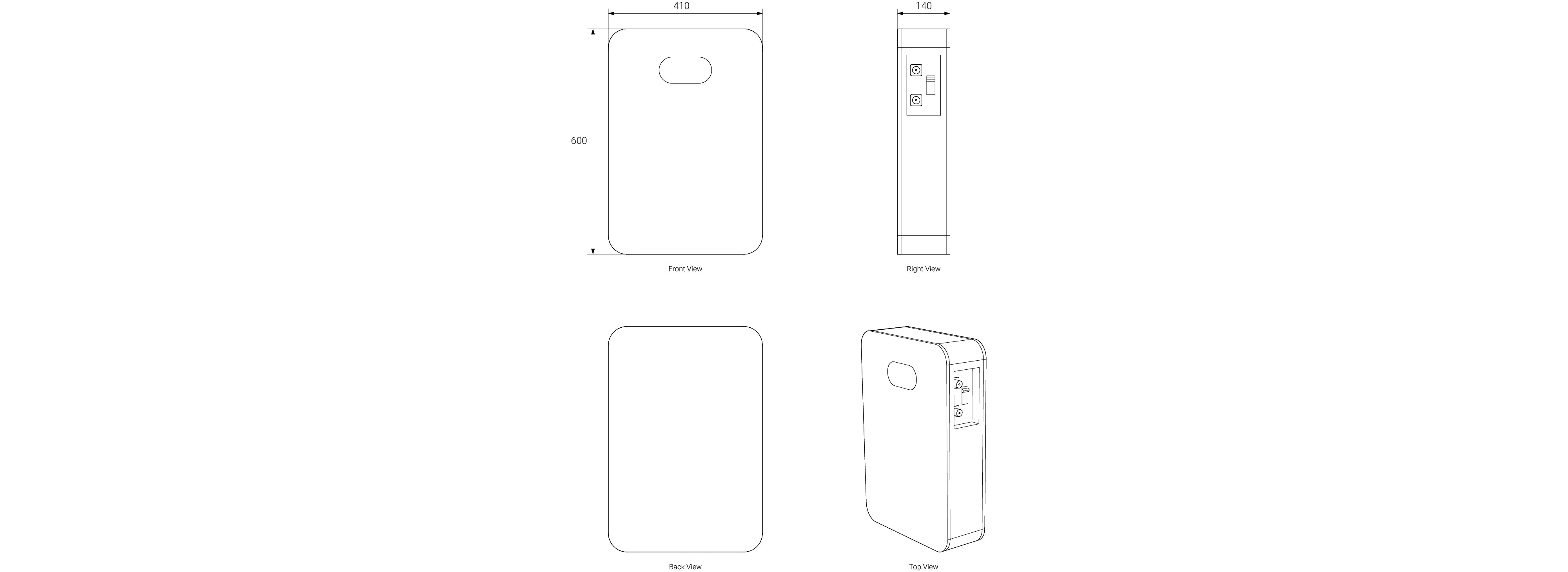

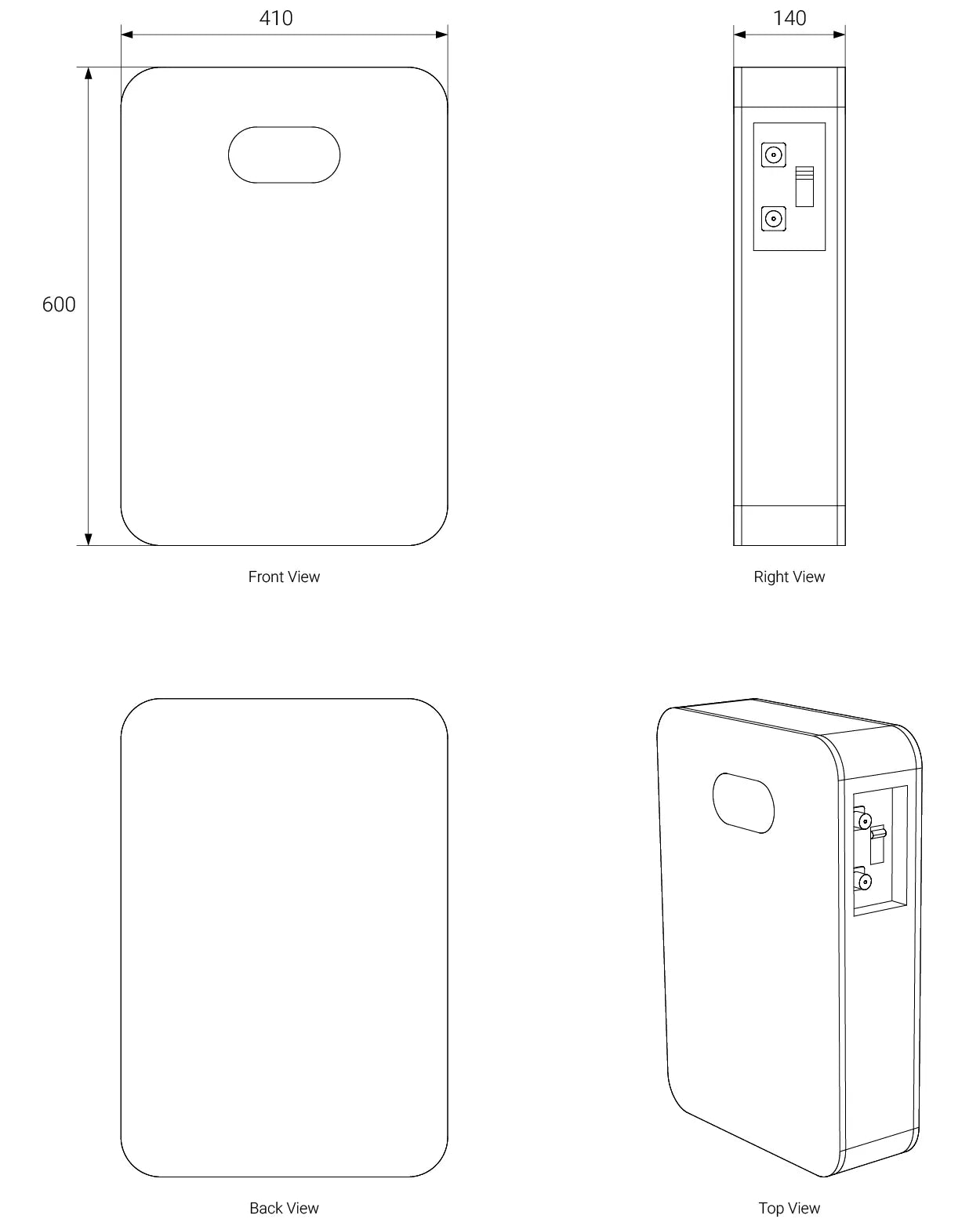

Mechanical Dimensions(Unit:mm)
Quality Certifications
FAQs for Zutto LifeGrid01
What is the capacity range of the Zutto LifeGrid01?
The Zutto LifeGrid01 is available in three different battery capacities: 5kWh, 10kWh, and 14.3kWh, providing flexible storage options for various residential energy needs.
What communication methods does the Zutto LifeGrid01 support?
The Zutto LifeGrid01 supports communication through RS485 and CAN interfaces, enabling seamless integration with over 20 different inverter brands for optimized energy management.
What is the temperature range for charging and discharging the Zutto LifeGrid01?
The Zutto LifeGrid01 can be charged within a temperature range of 0°C to 50°C and discharged between -15°C and 60°C, making it suitable for a wide range of environmental conditions.
Is the Zutto LifeGrid01 designed for easy installation?
Yes, the Zutto LifeGrid01 is a wall-mounted energy storage solution with a sleek and ultra-thin design, allowing for easy installation in modern residential setups.
What are the safety features of the Zutto LifeGrid01?
The Zutto LifeGrid01 is equipped with multiple safety features, including overcharge, overdischarge, overcurrent, and temperature protection. It also supports 15-parallel connections for enhanced scalability and reliability.
