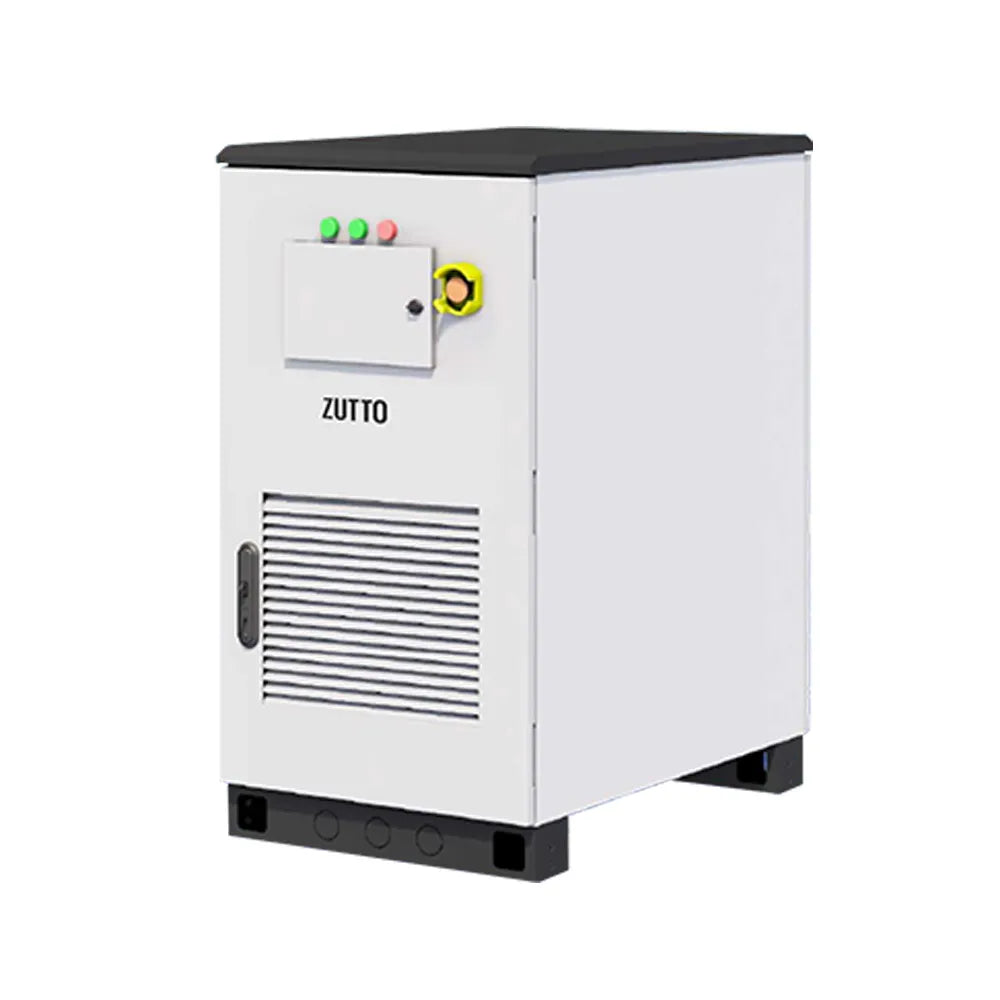

Zutto InverCore06
Unmatched Power, Maximum Control
The Zutto InverCore06 is a cutting-edge integrated PCS and MPPT system designed for large-scale commercial and industrial energy solutions. Offering configurations of 100kW, 200kW, 300kW, and 500kW, it delivers unmatched performance with a wide voltage input range (250–850VDC) and multiple MPPT channels. Its robust design integrates PCS, MPPT, and EMS functionalities, ensuring seamless energy management, superior efficiency, and optimal solar power utilization.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 20KH3/B1 | 30KH3/B1 | 50KH3/B1 |
|---|---|---|---|---|
| Inverter Module | Battery Voltage | 1000VDC | 1000VDC | 1000VDC |
| Rated Power | 20KW | 30KW | 50KW | |
| AC Voltage | 400VAC / 230VAC | 400VAC / 230VAC | 400VAC / 230VAC | |
| MPPT PV Power | 29KW | 30KW | 65KW | |
| Maximum MPPT Voltage | 1000VDC | 1000VDC | 1000VDC | |
| MPPT Voltage | 325-850VDC | 150-850VDC | 150-850VDC | |
| Protection Level | IP65 | IP65 | IP65 | |
| Parameter | Dimension | 460*250*685mm | 570*320*945mm | 570*320*945mm |
| Weight | 30kg (approx.) | 82kg (approx.) | 84kg (approx.) | |
| Material/Colour | Metal / White+Black | Metal / White+Black | Metal / White+Black |
Key Features
Connectivity Solutions
ZTINV006
Unmatched Power, Maximum Control
Quality Certifications
FAQs for Zutto InverCore06
What is the power output range of the Zutto InverCore06?
The Zutto InverCore06 is available in multiple configurations with power outputs of 100kW, 200kW, 300kW, and 500kW, making it suitable for large-scale commercial and industrial energy solutions.
How many MPPT channels does the Zutto InverCore06 support?
The Zutto InverCore06 supports up to 6 MPPT channels, allowing for precise and efficient solar energy harvesting and maximizing the overall energy conversion.
What is the input voltage range for the Zutto InverCore06?
The Zutto InverCore06 supports a wide MPPT voltage input range of 200V to 900VDC, ensuring compatibility with a variety of solar panel configurations for optimal energy utilization.
What is the protection rating of the Zutto InverCore06?
The Zutto InverCore06 features an IP54 protection rating, making it suitable for both indoor and outdoor installations, ensuring protection from dust and water ingress in various environmental conditions.
What types of applications is the Zutto InverCore06 suitable for?
The Zutto InverCore06 is designed for large-scale energy applications, including commercial and industrial solar systems, and is ideal for businesses seeking reliable and efficient energy management with a high power output.
