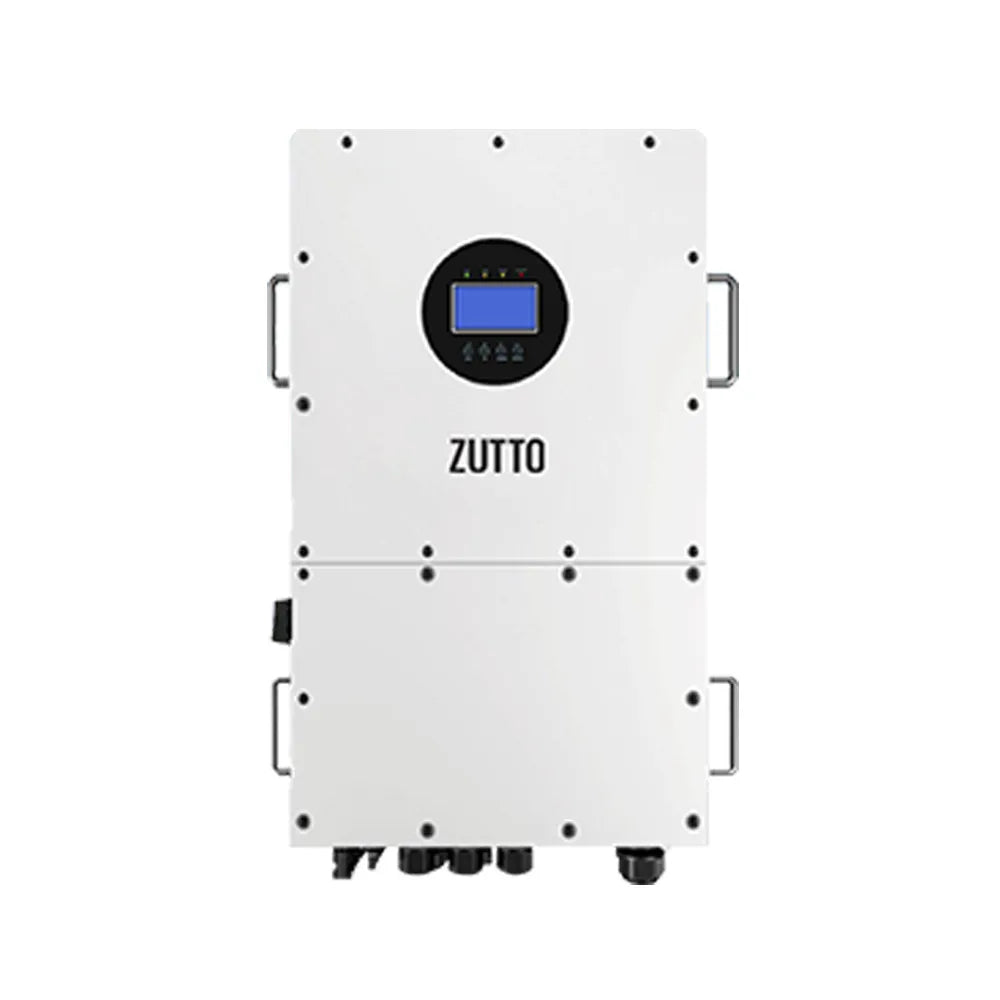

Zutto InverCore05
Scalable Power for Large Demands
The Zutto InverCore05 is a high-capacity hybrid inverter tailored for large-scale residential and commercial solar systems. Supporting power outputs of 20kW, 30kW, and 50kW, and compatible with 1000VDC high-voltage lithium batteries, it ensures efficient energy management through advanced MPPT technology, IP65-rated durability, and integrated UPS functionality. Designed for three-phase power applications, it offers exceptional reliability and scalability for demanding energy setups.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 20KH3/B1 | 30KH3/B1 | 50KH3/B1 |
|---|---|---|---|---|
| Inverter Module | Battery Voltage | 1000VDC | 1000VDC | 1000VDC |
| Rated Power | 20KW | 30KW | 50KW | |
| AC Voltage | 400VAC / 230VAC | 400VAC / 230VAC | 400VAC / 230VAC | |
| MPPT PV Power | 29KW | 30KW | 65KW | |
| Maximum MPPT Voltage | 1000VDC | 1000VDC | 1000VDC | |
| MPPT Voltage | 325-850VDC | 150-850VDC | 150-850VDC | |
| Protection Level | IP65 | IP65 | IP65 | |
| Parameter | Dimension | 460*250*685mm | 570*320*945mm | 570*320*945mm |
| Weight | 30kg (approx.) | 82kg (approx.) | 84kg (approx.) | |
| Material/Colour | Metal / White+Black | Metal / White+Black | Metal / White+Black |
Key Features
Connectivity Solutions
ZTINV005
Scalable Power for Large Demands
Quality Certifications
FAQs for Zutto InverCore05
What power outputs are available with the Zutto InverCore05?
The Zutto InverCore05 is available in three power output options: 20kW, 30kW, and 50kW, making it ideal for large-scale residential and commercial solar systems.
What is the maximum MPPT voltage of the Zutto InverCore05?
The Zutto InverCore05 supports a maximum MPPT voltage of 1000VDC, ensuring efficient energy conversion and optimal solar power utilization.
What is the protection rating of the Zutto InverCore05?
The Zutto InverCore05 features an IP65 protection rating, making it suitable for outdoor installations and ensuring durability and protection against dust and water.
What types of AC voltages does the Zutto InverCore05 support?
The Zutto InverCore05 supports 400VAC and 230VAC, allowing it to integrate with both standard and high-demand three-phase power systems for robust energy distribution.
What is the MPPT PV power capability of the Zutto InverCore05?
of the Zutto InverCore05?
The Zutto InverCore05 supports MPPT PV power of up to 65kW, with a wide input range of 150VDC to 850VDC, ensuring maximum solar energy capture and conversion efficiency.
