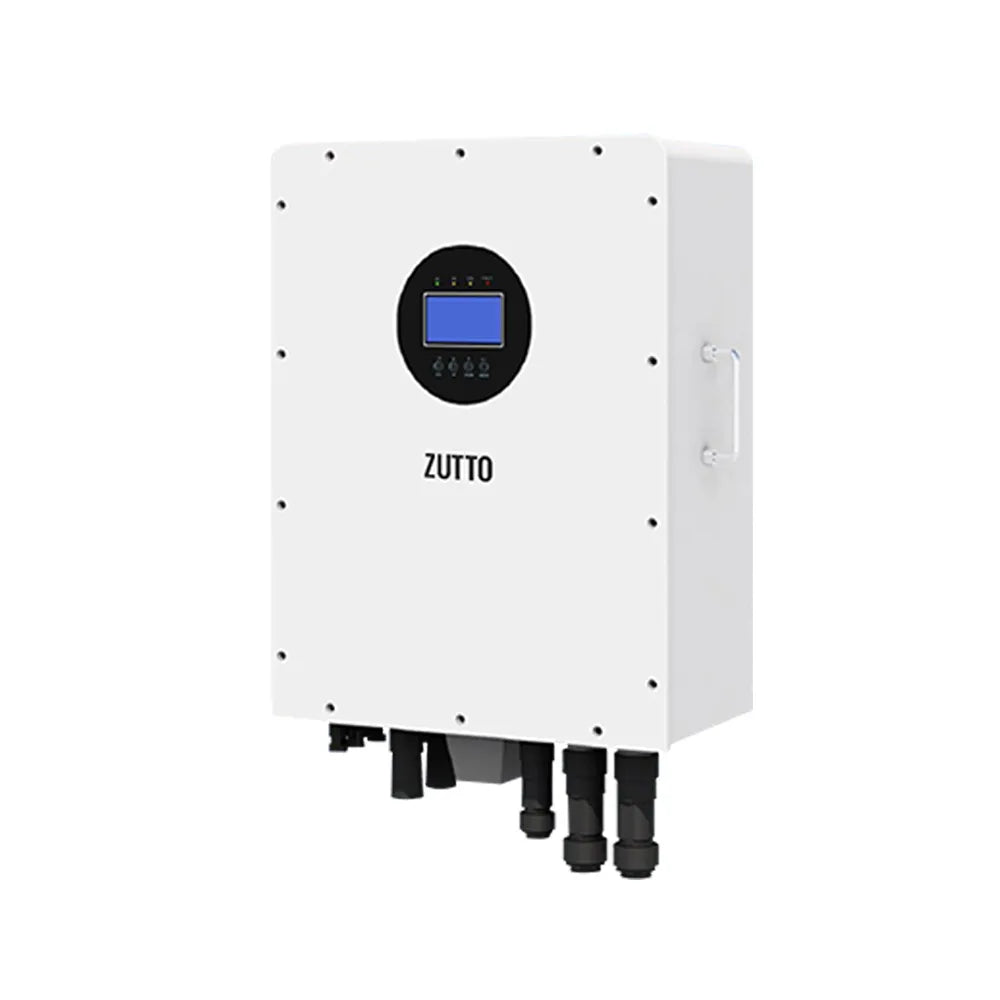

Zutto InverCore04
Power Precision for Three Phases
The Zutto InverCore04 is a reliable three-phase hybrid inverter designed for residential and commercial solar systems. With a power output range of 8kW to 12kW and support for 48VDC lithium batteries, it features high-efficiency MPPT with a range of 15.6kW and IP65-rated durability. Equipped with grid/off-grid compatibility and UPS functionality, the InverCore04 provides seamless energy management for diverse applications.
Warranty
This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.
Specifications
| Item | Model | 8KH3/B1 | 10KH3/B1 | 12KH3/B1 |
|---|---|---|---|---|
| Inverter Module | Battery Voltage | 48VDC | 48VDC | 48VDC |
| Rated Power | 8KW | 10KW | 12KW | |
| AC Voltage | 400VAC / 230VAC | 400VAC / 230VAC | 400VAC / 230VAC | |
| MPPT PV Power | 10.4KW | 13KW | 15.6KW | |
| Maximum MPPT Voltage | 550VDC | 550VDC | 550VDC | |
| MPPT Voltage | 200~650VDC | 200~650VDC | 200~650VDC | |
| Protection Level | IP65 | IP65 | IP65 | |
| Parameter | Dimension | 450*280*650mm | 450*280*650mm | 450*280*650mm |
| Weight | 35kg (approx.) | 35kg (approx.) | 35kg (approx.) | |
| Material / Colour | Metal / White+Black | Metal / White+Black | Metal / White+Black |
Key Features

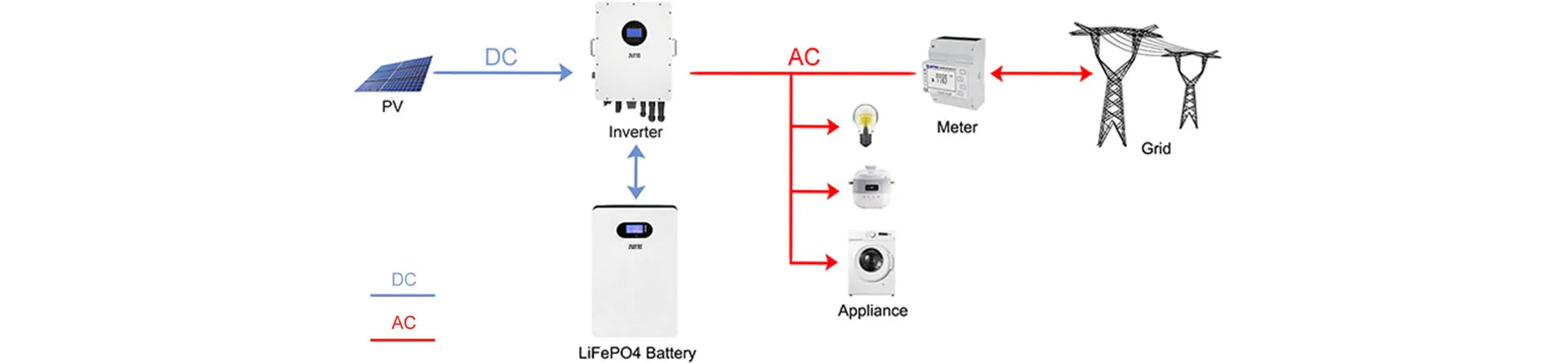

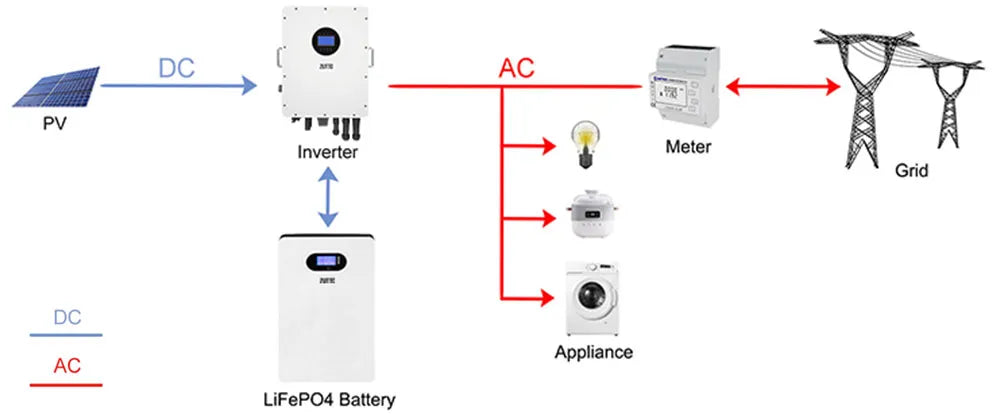

Connectivity Solutions
ZTINV004
Power Precision for Three Phases
Quality Certifications
FAQs for Zutto InverCore04
What is the power output range of the Zutto InverCore04?
The Zutto InverCore04 offers a power output range of 8kW to 12kW, providing sufficient power for both residential and commercial solar energy systems.
What is the MPPT voltage range of the Zutto InverCore04?
The Zutto InverCore04 supports an MPPT voltage range of 200V to 650V, ensuring high efficiency and optimal solar power conversion from a wide variety of solar panel configurations.
What types of installations are supported by the Zutto InverCore04?
The Zutto InverCore04 is designed for both grid-connected and off-grid installations, offering flexible energy solutions that can operate in diverse settings.
What is the protection rating of the Zutto InverCore04?
The Zutto InverCore04 features an IP65 protection rating, ensuring durability and reliable performance even in outdoor environments or harsh weather conditions.
What is the weight and size of the Zutto InverCore04?
The Zutto InverCore04 has a compact design with dimensions of 450mm x 280mm x 650mm and weighs approximately 35kg, making it suitable for a variety of installation environments.
