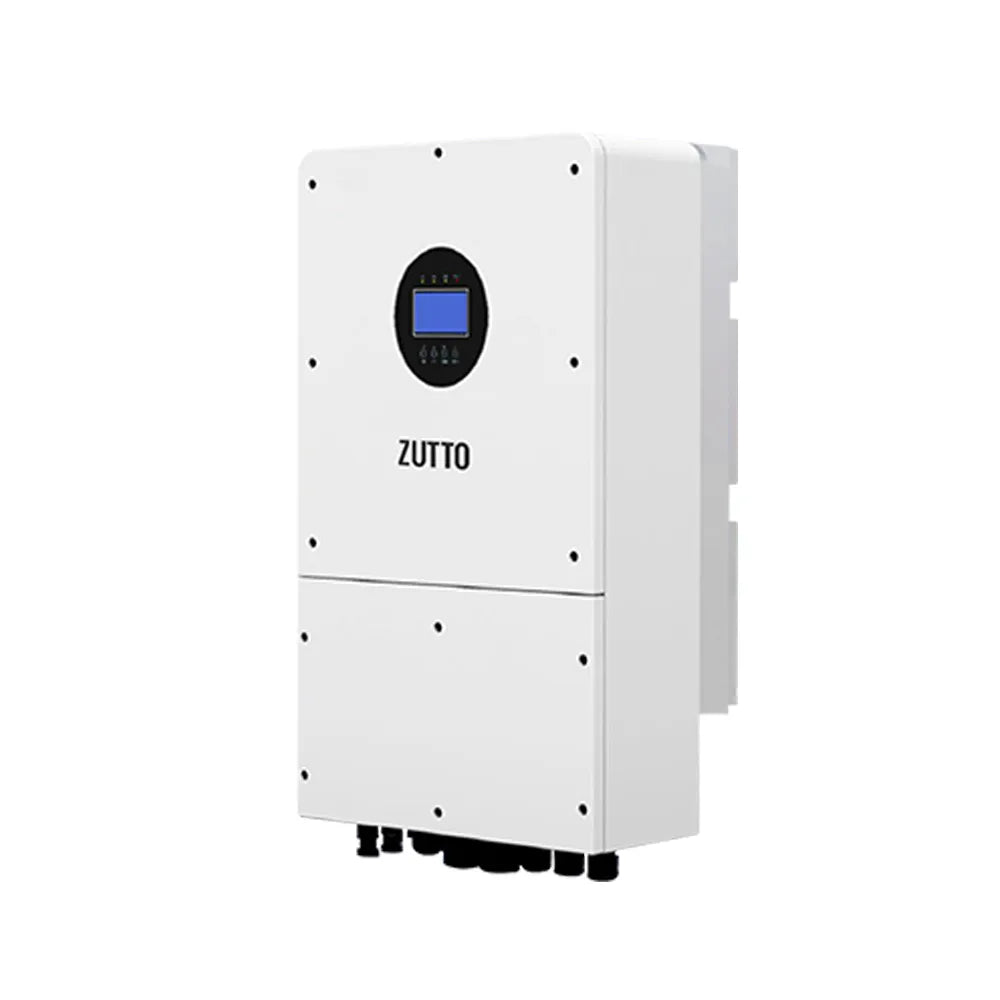

Zutto InverCore03 hybrid inverter with a modern wall-mounted design, featuring an LCD display for monitoring energy usage. Supports 48V lithium batteries, MPPT solar charging, and smart UPS functionality. Designed for grid-tied and off-grid solar power systems in Singapore.

Zutto InverCore03
Power That Adapts Seamlessly

Name: Zutto InverCore03 Power That Adapts Seamlessly
Brand: ZUTTO
Availability: OutOfStock

The Zutto InverCore03 is a high-performance hybrid inverter designed for efficient energy management in both grid-connected and off-grid solar systems. Supporting 48VDC lithium batteries and offering power outputs from 6kW to 12kW, it features high-efficiency MPPT with a range of up to 15.5kW, robust IP65-rated protection, and smart UPS functionality. Its advanced design and WiFi connectivity make it an ideal solution for modern energy needs.

REQUEST MORE INFO ▶

Download Data Sheets

Warranty

This product comes with Zutto's Local 2-year Standard Warranty. For easy enjoyment of the Warranty, please register your Zutto Warranty.

Specifications

Item	Model	6KW/A1	8KW/A1	10KW/A1	12KW/A1
Inverter Module	Battery Voltage	48VDC	48VDC	48VDC	48VDC
	Rated Power	6KW	8KW	10KW	12KW
	AC Voltage	230VAC	230VAC	230VAC	230VAC
	MPPT PV Power	7.8KW	10.4KW	13KW	15.5KW
	Maximum MPPT Voltage	500VDC	500VDC	550VDC	500VDC
	MPPT Voltage	150~425VDC	150~425VDC	150~425VDC	150~425VDC
	Protection Level	IP65	IP65	IP65	IP65
Parameter	Dimension	330235580mm
	Weight	24kg (approx.)	30kg (approx.)	31kg (approx.)	31kg (approx.)
	Material/ Colour	Metal / White+Black

Key Features

Versatile Power Range

Delivers power outputs from 6kW to 12kW, meeting diverse residential and commercial energy requirements.

Icon representing seamless integration of grid and off-grid solar energy systems, ensuring uninterrupted power supply for residential and commercial use.

Seamless Grid and Off-Grid Integration

Supports hybrid operation, enabling smooth transitions between grid-connected and off-grid modes.

Solar MPPT technology icon, representing advanced Maximum Power Point Tracking (MPPT) technology that enhances photovoltaic system energy conversion efficiency and optimizes solar power generation performance.

High-Efficiency MPPT Technology

Ensures maximum solar energy utilization with up to 15.5kW MPPT capacity and a wide input range of 150–425VDC.

Durable and Weatherproof

IP65-rated enclosure ensures reliable performance in various environmental conditions, perfect for outdoor installations.

Connectivity Solutions

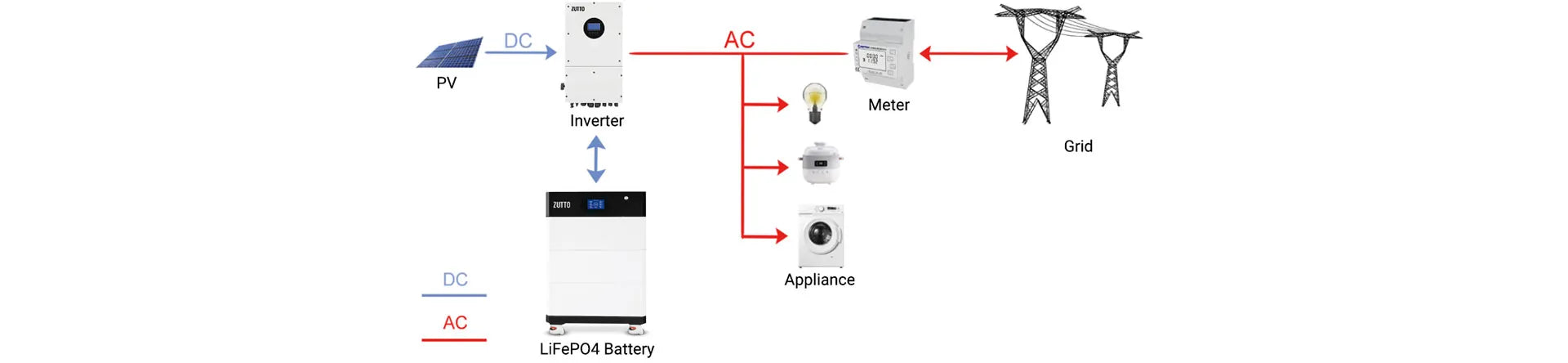

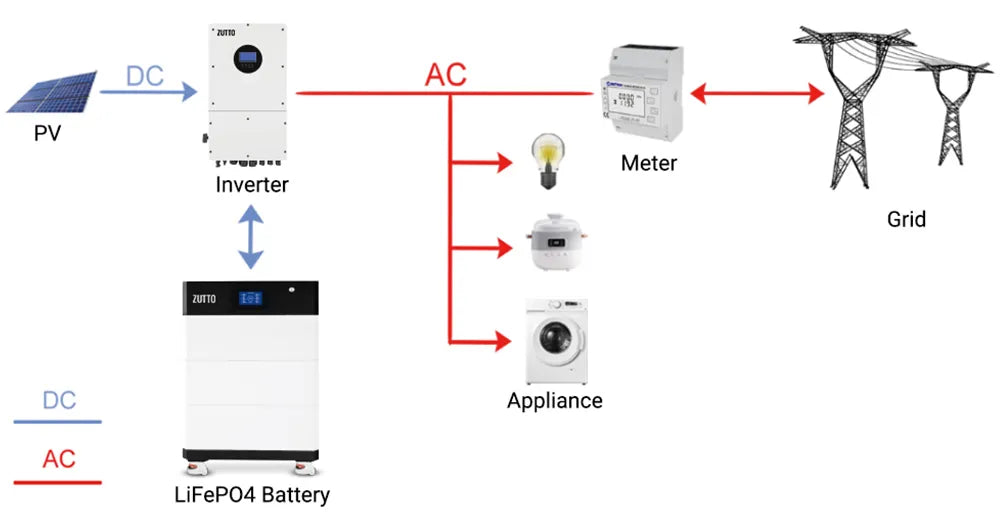

Zutto InverCore03 solar energy system diagram, illustrating DC power input from PV panels to the inverter, energy storage in a LiFePO4 battery, and AC output powering home appliances. The system also integrates with the grid through a smart meter for energy management in Singapore.

Quality Certifications

FAQs for Zutto InverCore03

What is the power output range of the Zutto InverCore03?

The Zutto InverCore03 offers power outputs from 6kW to 12kW, providing flexibility for both residential and commercial energy storage and management needs.

What is the maximum MPPT voltage supported by the Zutto InverCore03?

The Zutto InverCore03 supports a maximum MPPT voltage of up to 550VDC, ensuring efficient solar energy conversion and maximizing power generation.

What is the protection rating of the Zutto InverCore03?

The Zutto InverCore03 is equipped with an IP65 protection rating, ensuring it is dustproof and waterproof, making it suitable for both indoor and outdoor installations in various environmental conditions.

What is the range of MPPT voltage for the Zutto InverCore03?

The Zutto InverCore03 supports an MPPT voltage range of 150V to 425V, ensuring optimal solar energy utilization from a variety of solar panel configurations.

Can the Zutto InverCore03 be used for both grid-connected and off-grid systems?

Yes, the Zutto InverCore03 is a hybrid inverter that supports both grid-connected and off-grid operation, providing seamless transitions and efficient energy management.
